Mitsubishi Montero (1991+). Manual - part 262

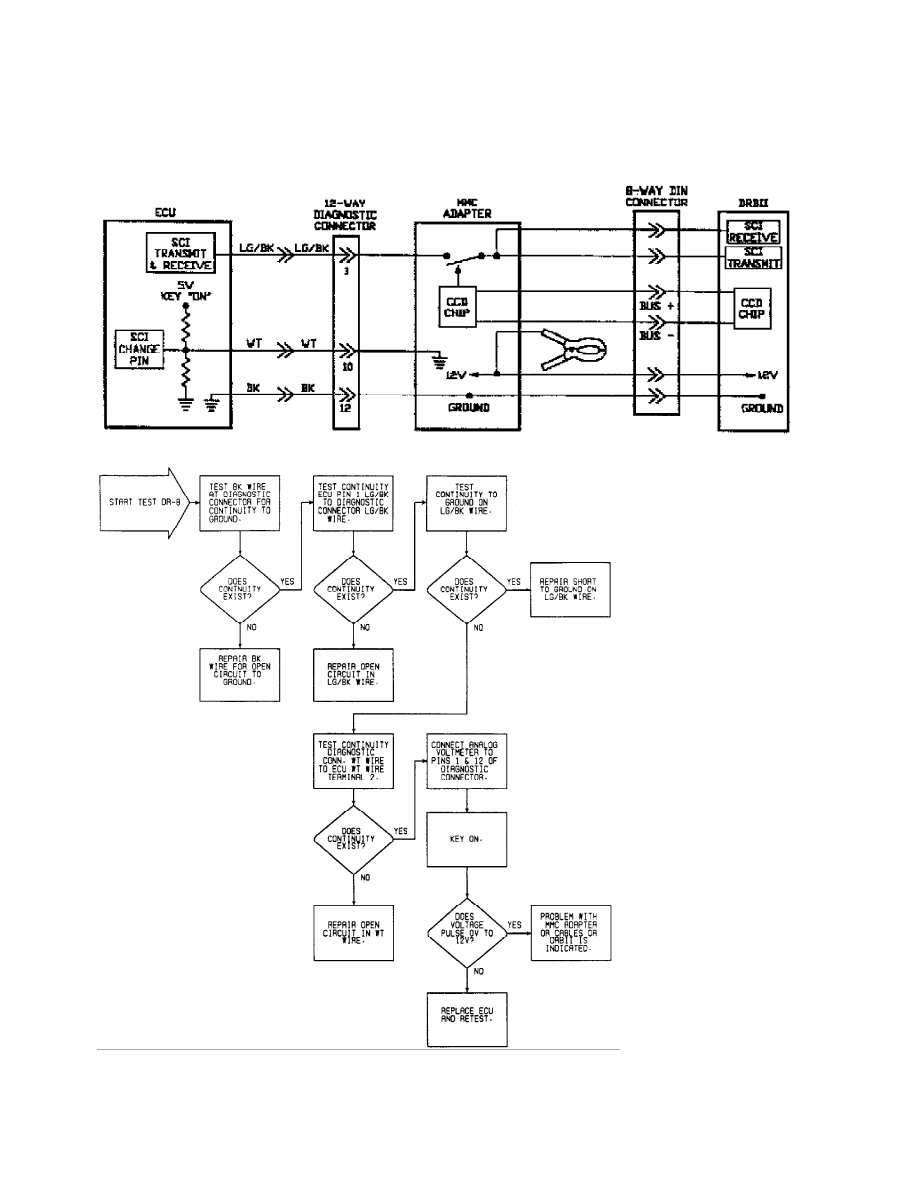

Fig. 204:  Circuit Diagram DR-8 (1.8L)

Fig. 205:  Flow Chart DR-8 (1.8L)

         DR-9: CODE 23 TOP DEAD CENTER SENSOR CONNECTOR - 1.8L

Fig. 206:  Circuit Diagram DR-9 (1.8L)

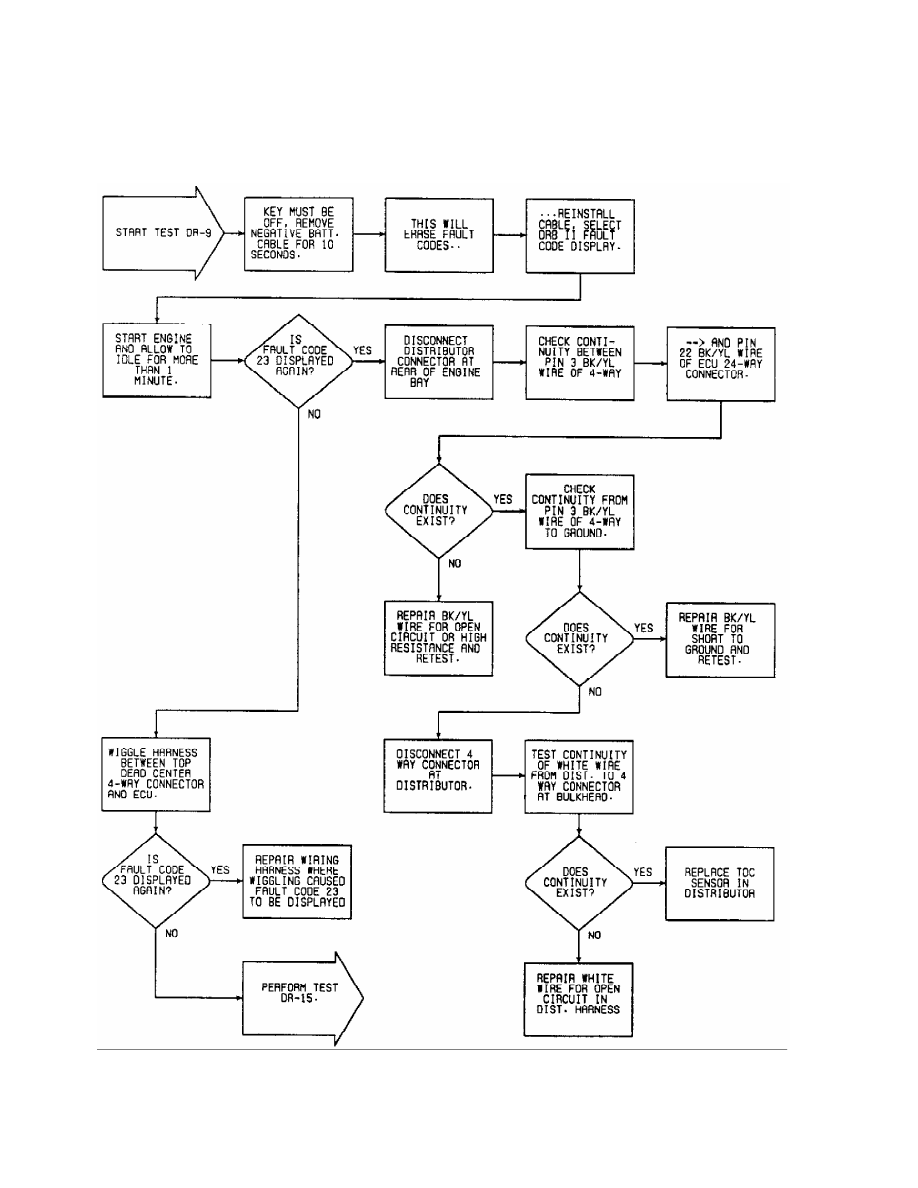

Fig. 207:  Flow Chart DR-9 (1.8L)

         DR-10: CODE 24 VEHICLE SPEED SENSOR CIRCUIT - 1.8L

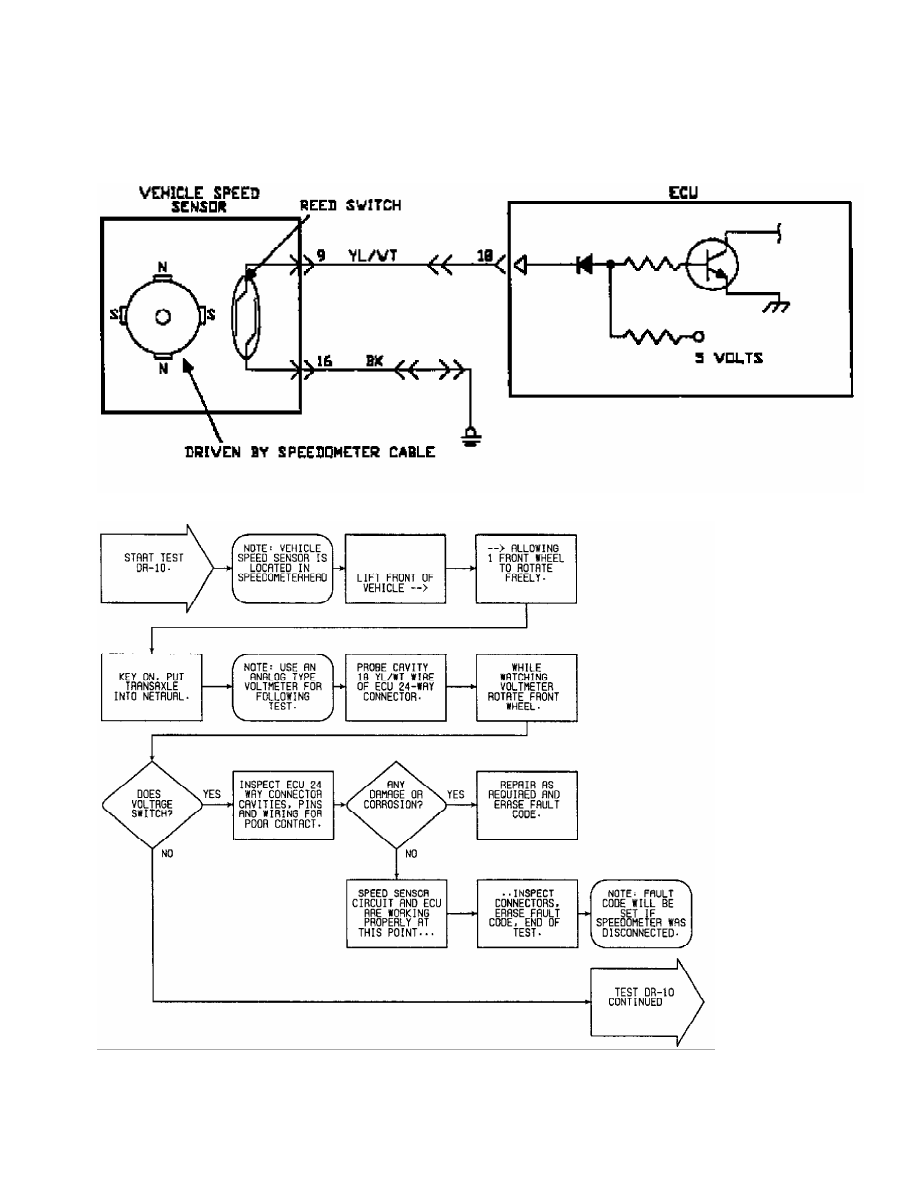

Fig. 208:  Circuit Diagram DR-10 (1.8L)

Fig. 209:  Flow Chart DR-10 (1.8L) (1 of 2)
