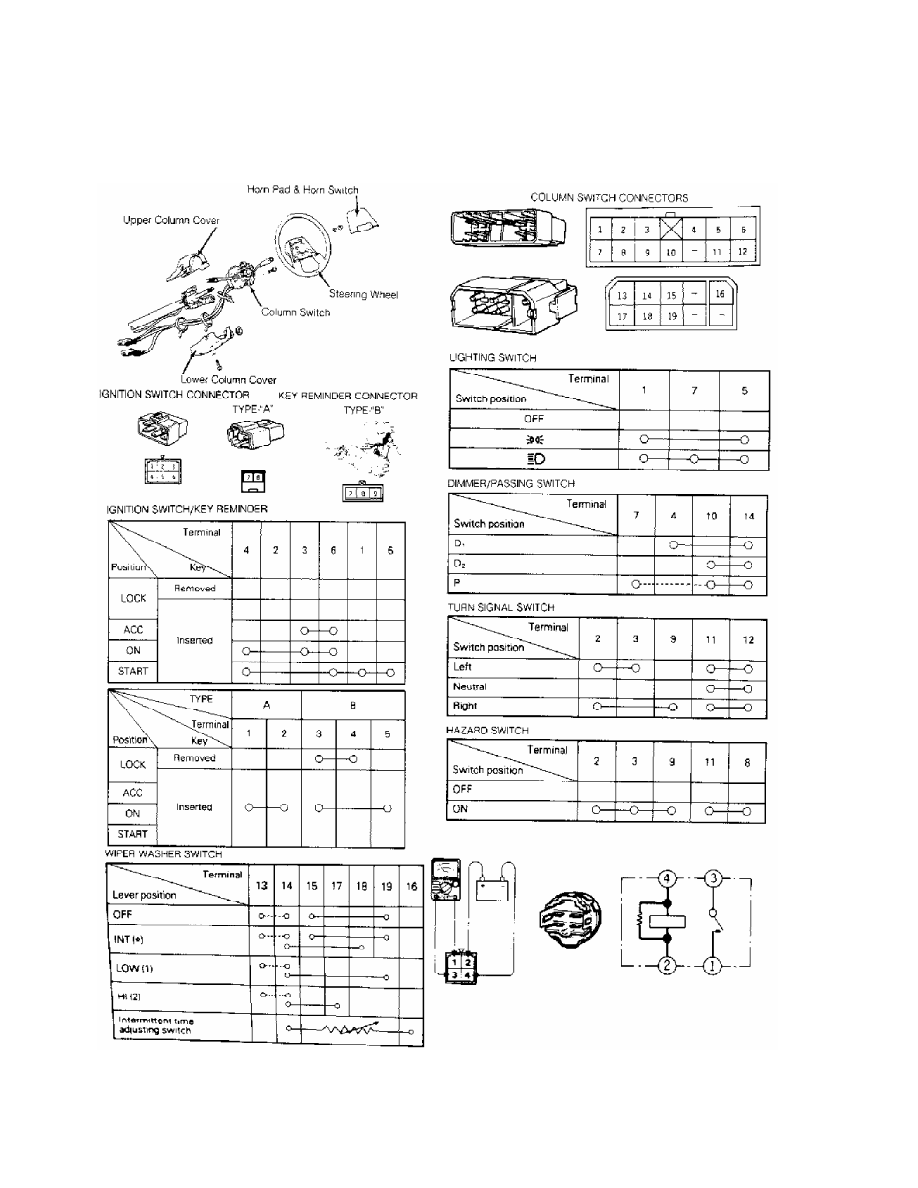

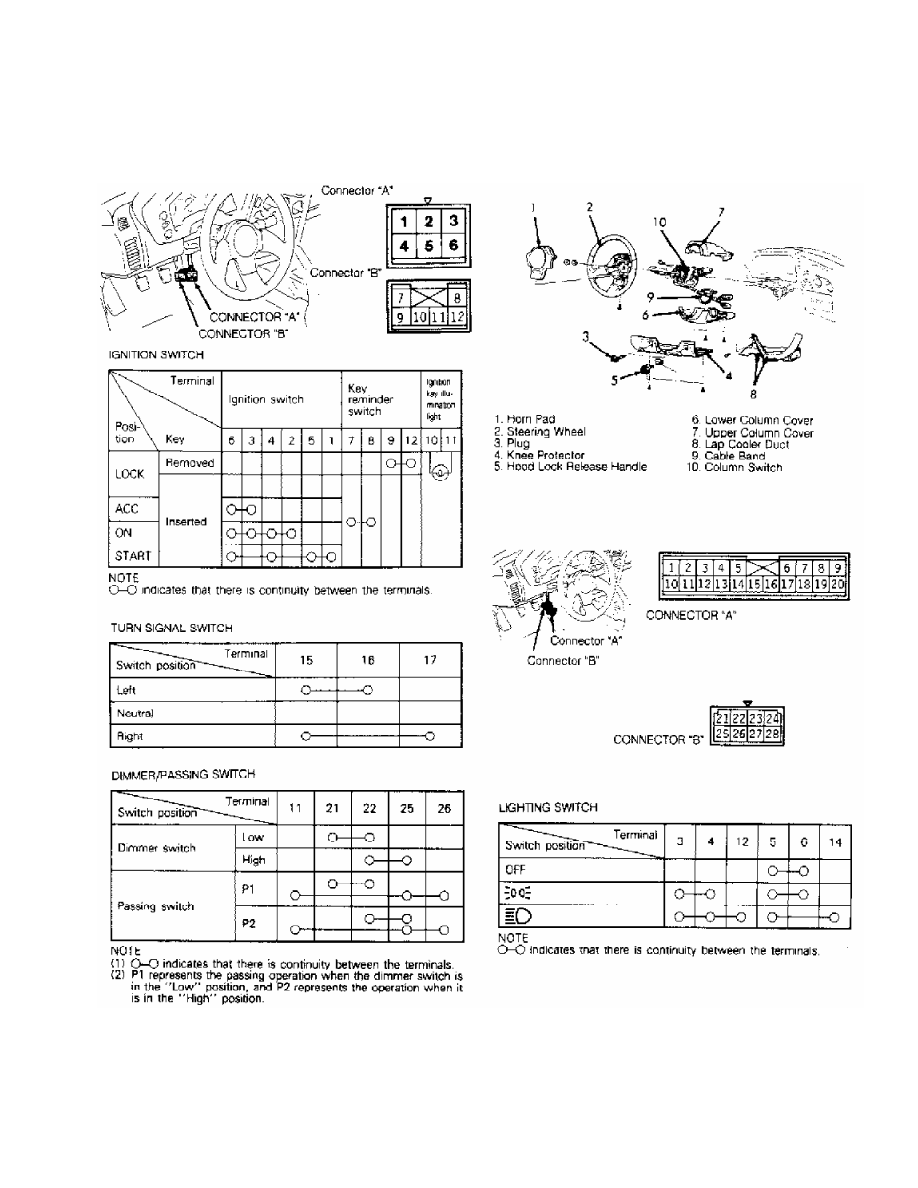

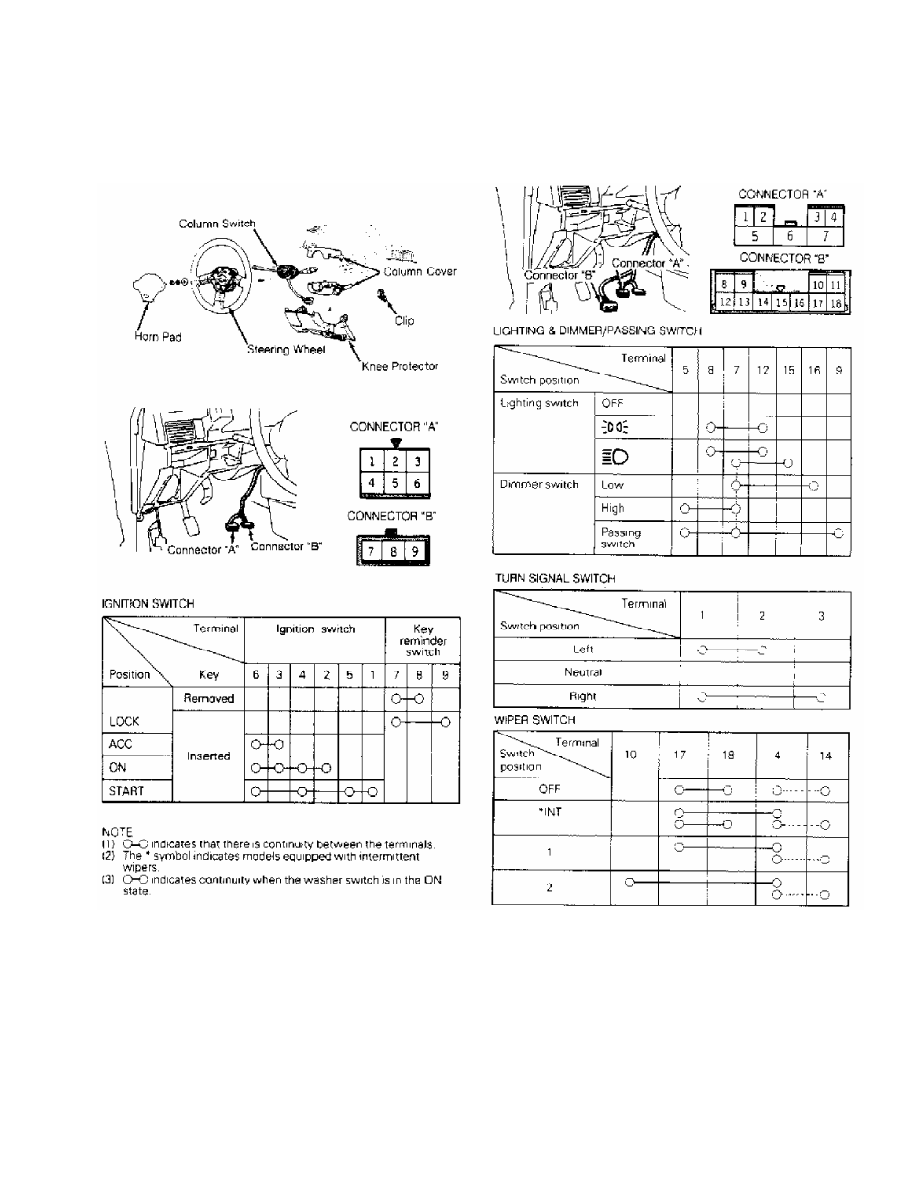

Remove horn pad and steering wheel. See Figs. 1-6. See STEERING COLUMN TESTING/REMOVAL & INSTALLATION table for figure directory on specific model. Remove knee protector and upper and lower column covers (if necessary). On Eclipse, remove hood lock release handle and air ducts. On all models, remove any necessary cable bands, and remove steering column switch. To install, reverse removal procedure. Removal (Stealth & 3000GT) 1) Disconnect negative battery cable. Wait 30 seconds, and then remove air bag module mounting nut from back side of module. To remove clockspring connector from air bag module, force lock outward and pry it using a flat screwdriver. Ensure no undue force is exerted on connector when it is removed. Remove air bag module, and store it face up. See Fig. 7. CAUTION: Wait at least 30 seconds after disconnecting battery cable before continuing servicing. 2) Remove steering wheel and knee protector. Remove upper and lower column covers. Remove air ducts. Remove right and left steering column switches. WARNING:DO NOT hammer on steering wheel. Collapsible steering column mechanism may be damaged. Installation 1) To install, reverse removal procedure. Before installing steering wheel, center clockspring by lining up NEUTRAL mark of clockspring with mark on steering column. To complete installation, reverse removal procedure. DO NOT reconnect negative battery cable until air bag module is installed. 2) After installation is complete, turn ignition on from passenger side of vehicle. Supplemental Restraint System (SRS) light on dash should come on for approximately 7 seconds. If SRS light does not come on, stays on or flashes, repair air bag system. |
