Mitsubishi Galant (2004+). Manual - part 724





MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-35

DTC B1061, B1062: Mode Selection Damper Control Motor and Potentiometer

.

DTC SET CONDITION

• DTC B1061 or B1062 is set if there is an open or

short circuit in the potentiometer input circuit, or if
there is an open in the power circuit or ground cir-
cuit.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• The A/C-ECU, the mode selection damper con-

trol motor and potentiometer, or connector(s) or
wiring between the two may be defective.

Past trouble

• If DTC B1061 or B1062 is stored as a past trou-

ble, carry out diagnosis with particular emphasis
on wiring and connector(s) between the A/C-ECU
and the mode selection damper control motor
and potentiometer. If the connectors and wiring
are normal, and obviously the ECU is the cause
of the trouble, replace the ECU. If in doubt, do not
replace the ECU.

TROUBLESHOOTING HINT

• Malfunction of connector.

• Malfunction of the harness.

• Malfunction of the mode selection damper control

motor and potentiometer.

• Malfunction of the A/C-ECU.

MODE SELECTION
DAMPER CONTROL
MOTOR AND
POTENTIOMETER

JOINT
CONNECTOR (2)

A/C-ECU

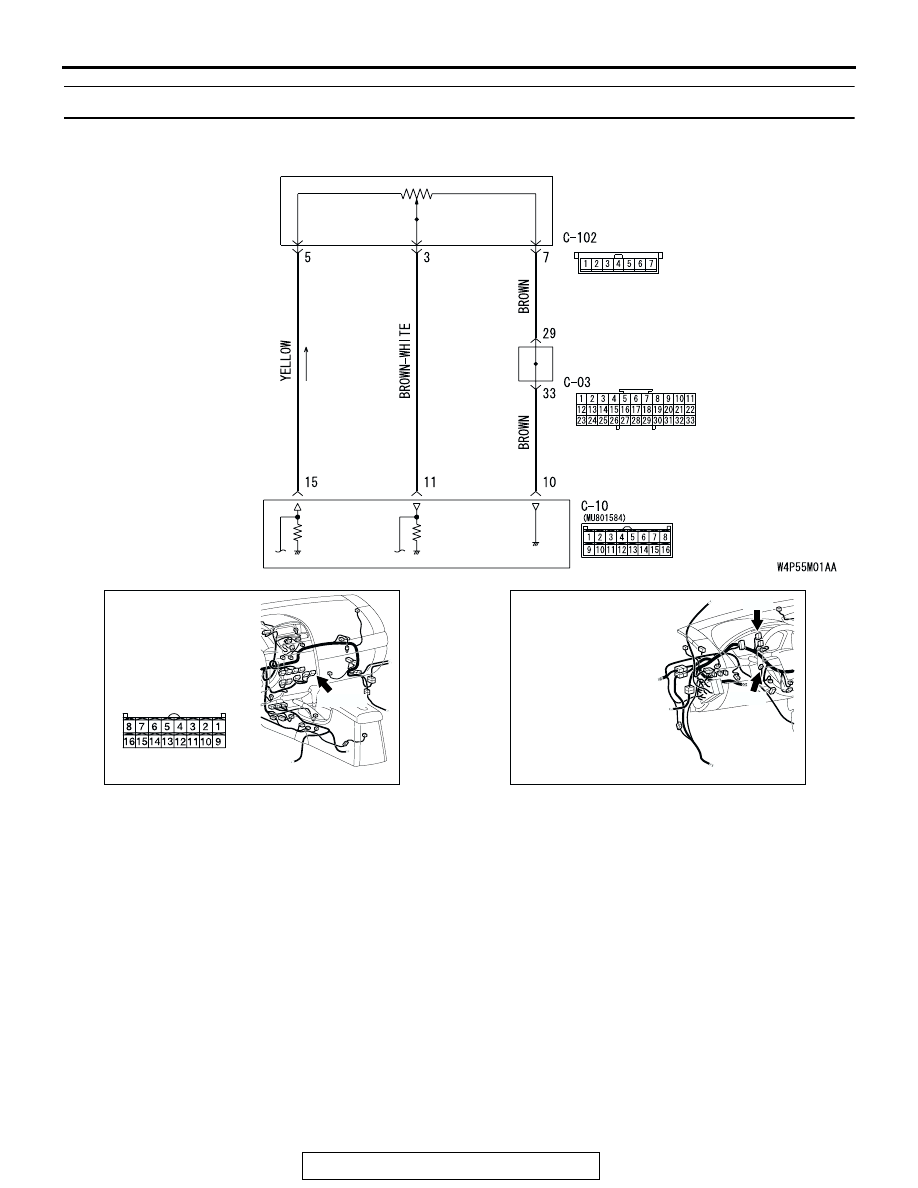

Mode Selection Damper Control Motor Potentiometer Circuit

AC305233AW

CONNECTOR: C-10

HARNESS SIDE

C-10 (B)

AC305231CG

CONNECTOR: C-03, C-102

C-03

C-102

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-36

DIAGNOSIS

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

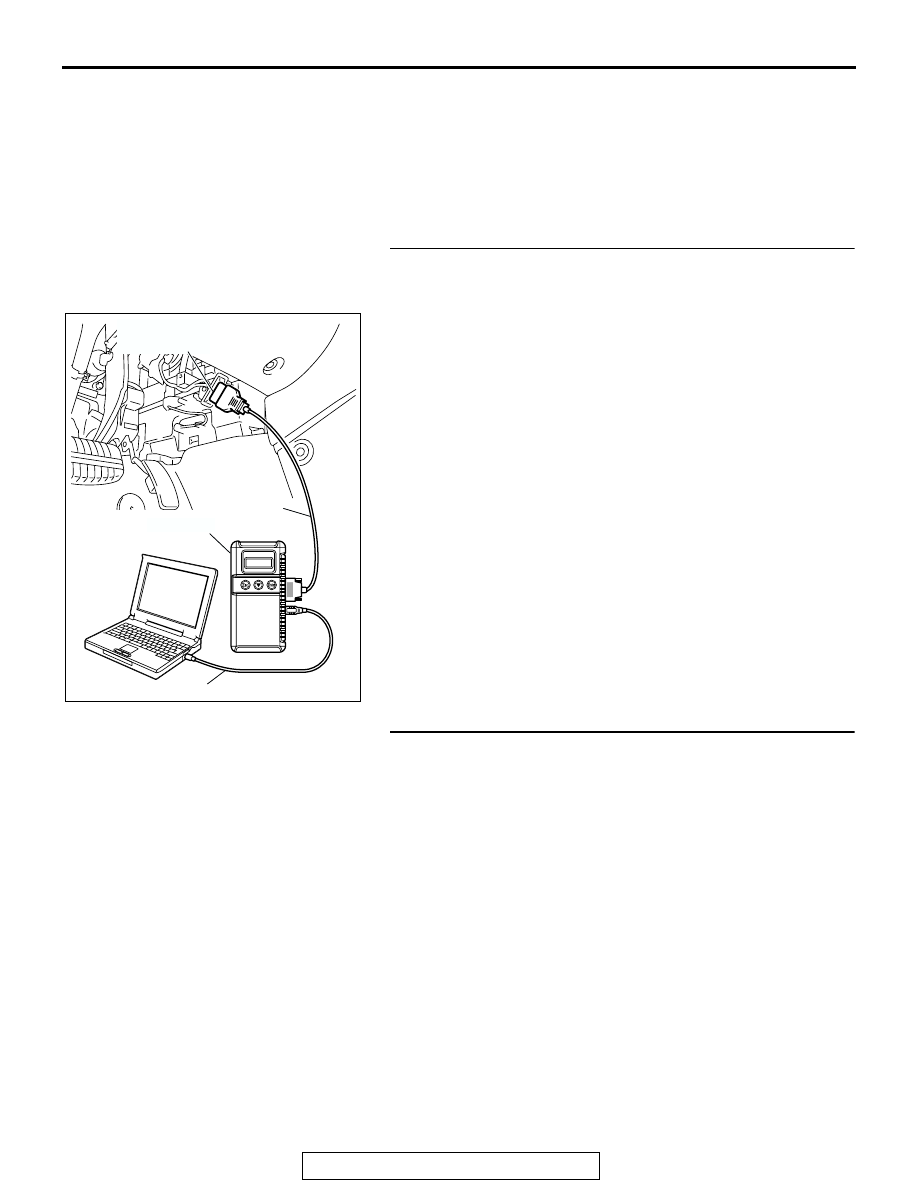

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

Use scan tool MB991958 to diagnose the CAN bus lines.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.

(3) Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart

P.54C-621

).

Then go to Step 7.

STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Use Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 3.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-37

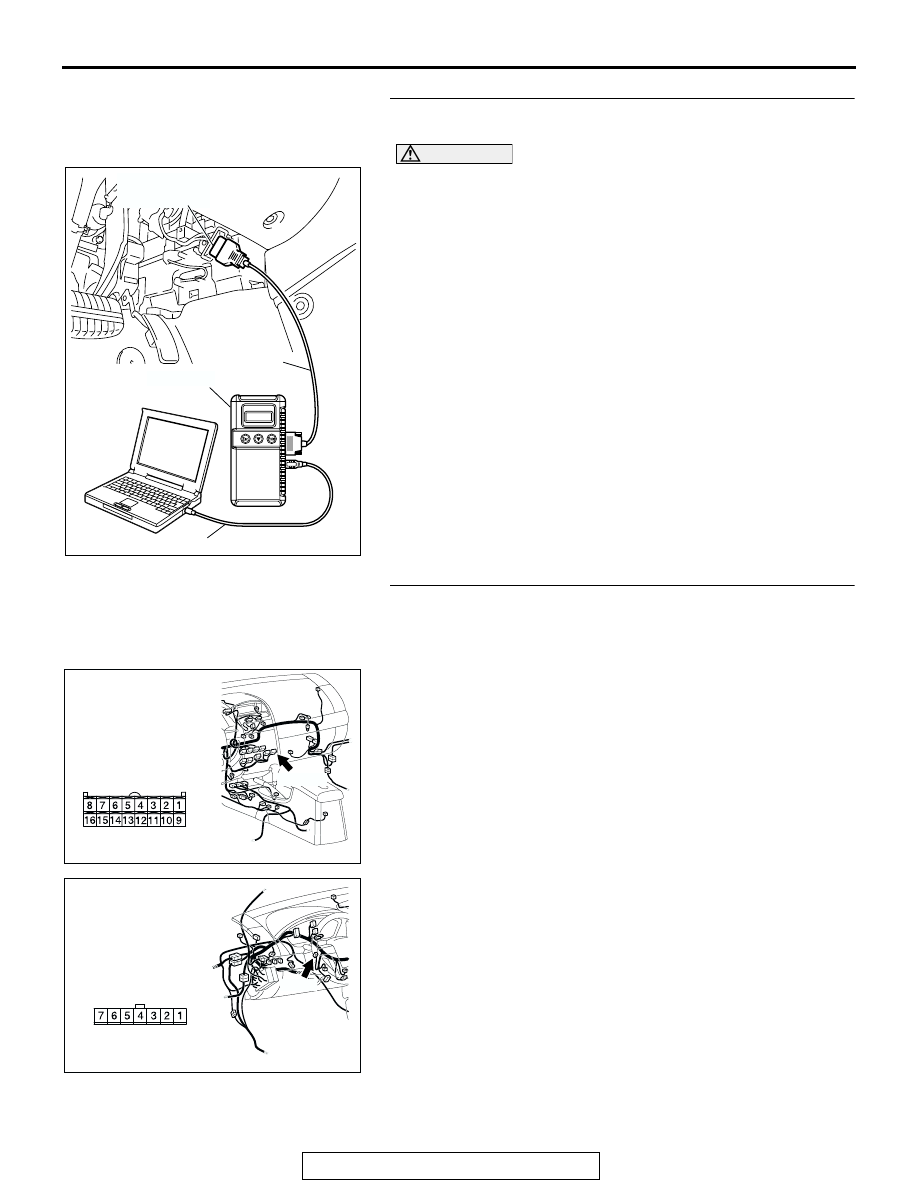

STEP 3. Using scan tool MB991958, check data list item 12:
Air outlet c/o potentiometer.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to the data reading mode for item

12: Air outlet c/o potentiometer.

• Check that the set position of the heater control matches

the displayed position on the scan tool.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES : Replace the A/C-ECU. Then go to Step 7.
NO :  Go to Step 4.

STEP 4. Check A/C-ECU connector C-10 and mode
selection damper control motor and potentiometer
connector C-102 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q: Are A/C-ECU connectors C-10 and mode selection

damper control motor and potentiometer connector
C-102 in good condition?
YES : Go to Step 5.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 7.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305233AW

CONNECTOR: C-10

HARNESS SIDE

C-10 (B)

AC305231

C-102

HARNESS SIDE

CD

CONNECTOR: C-102

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-38

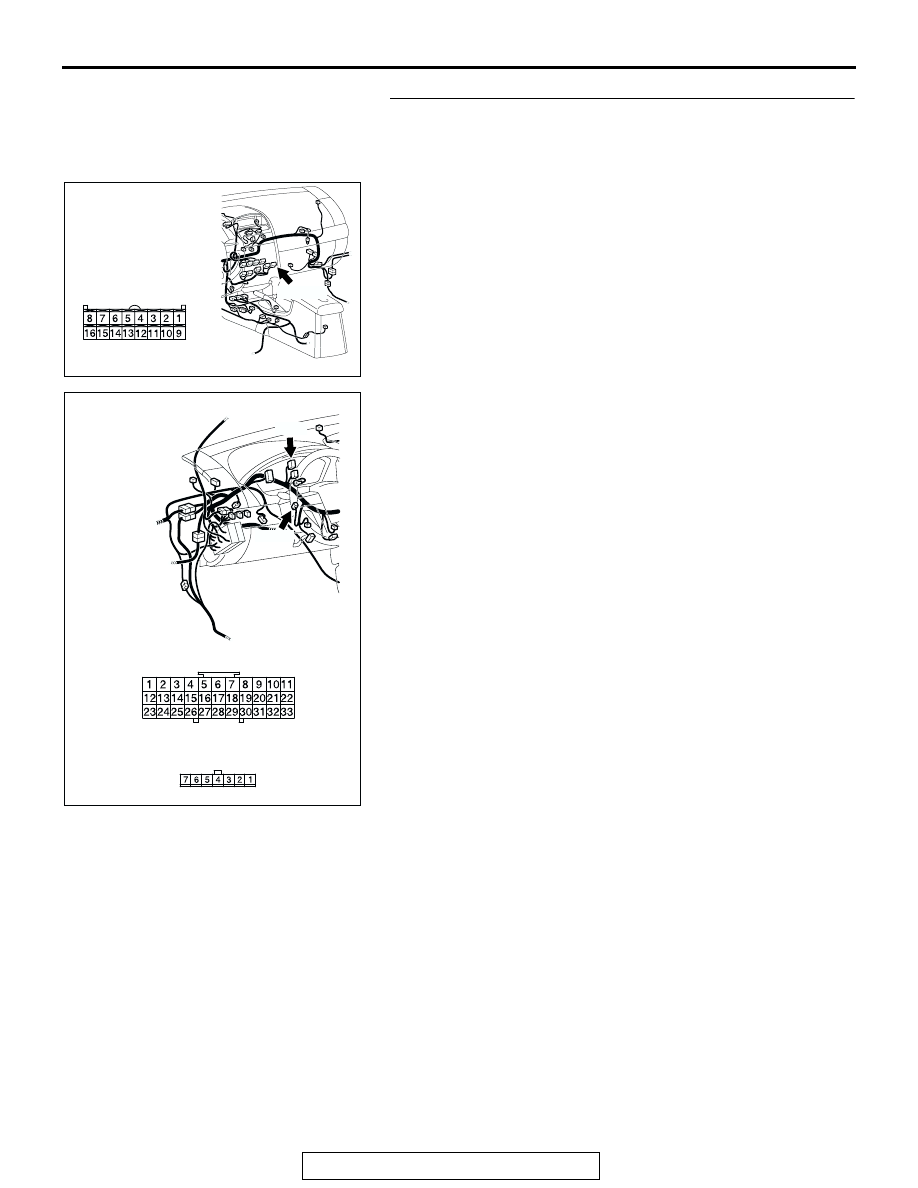

STEP 5. Check the wiring harness between A/C-ECU
connectors C-10 (terminals 15, 11 and 10) and mode
selection damper control motor and potentiometer
connector C-102 (terminals 5, 7 and 3).

NOTE: Also check joint connector C-03 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If joint connector C-03 is damaged, repair or replace the con-
nector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Are the wiring harnesses between A/C-ECU connectors

C-10 (terminals 15, 11 and 10) and mode selection
damper control motor and potentiometer connector
C-102 (terminals 5, 7 and 3) in good condition?
YES : Go to Step 6.
NO :  Repair the wiring harness. Then go to Step 7.

AC305233AW

CONNECTOR: C-10

HARNESS SIDE

C-10 (B)

AC305232

C-03

C-102

CONNECTORS: C-03, C-102

HARNESS SIDE

C-102

C-03

AR
