TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-13

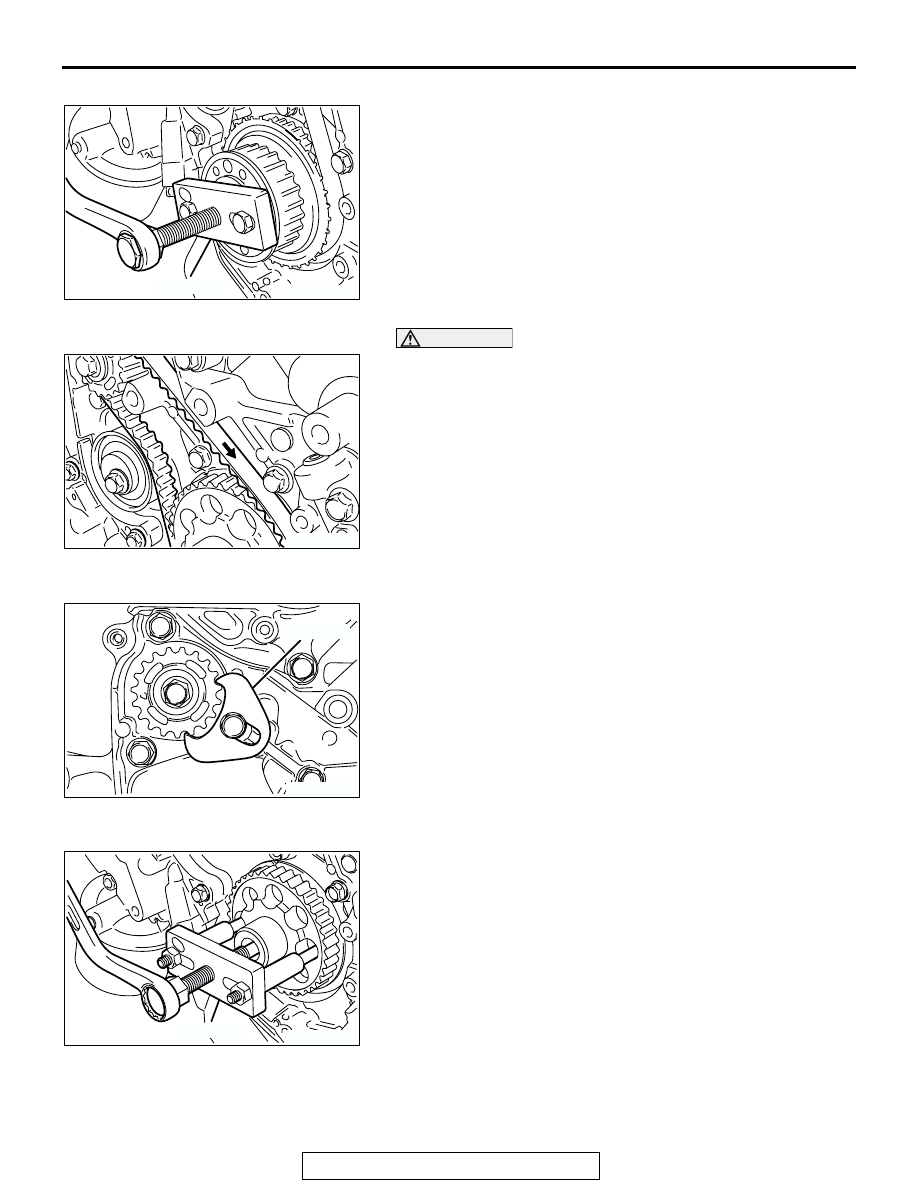

<<D>> CRANKSHAFT SPROCKET REMOVAL
1. Set special tool MD998778 as shown in the illustration.
2. Screw in the center bolt of the special tool to remove the

crankshaft sprocket.

.

<<E>> TIMING BELT "B" REMOVAL

CAUTION

Water or oil on the belt shortens its life drastically, so the
removed timing belt, sprocket, and tensioner must be free
from oil and water. These parts should not be washed or
immersed in solvent. Replace parts if contaminated. If
there is oil or water on each part, check the front case oil
seals, camshaft oil seal and water pump for leaks.
1. Mark the belt running direction for reinstallation.
2. Loosen the tensioner "B" bolt, and then remove the timing

belt "B."

.

<<F>> COUNTERBALANCE SHAFT SPROCKET REMOVAL
1. Set special tool MD998785 as shown to prevent the

counterbalance shaft sprocket from turning together.

2. Loosen the bolt and remove the sprocket.

.

<<G>> CRANKSHAFT SPROCKET "B" REMOVAL
1. Set special tool MD998778 as shown in the illustration.
2. Screw in the center bolt of the special tool to remove

crankshaft sprocket "B."

.

AK300136

MD998778

AC

AK300137

AK300138

MD998785

AC

AK300139AC

MD998778

TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-14

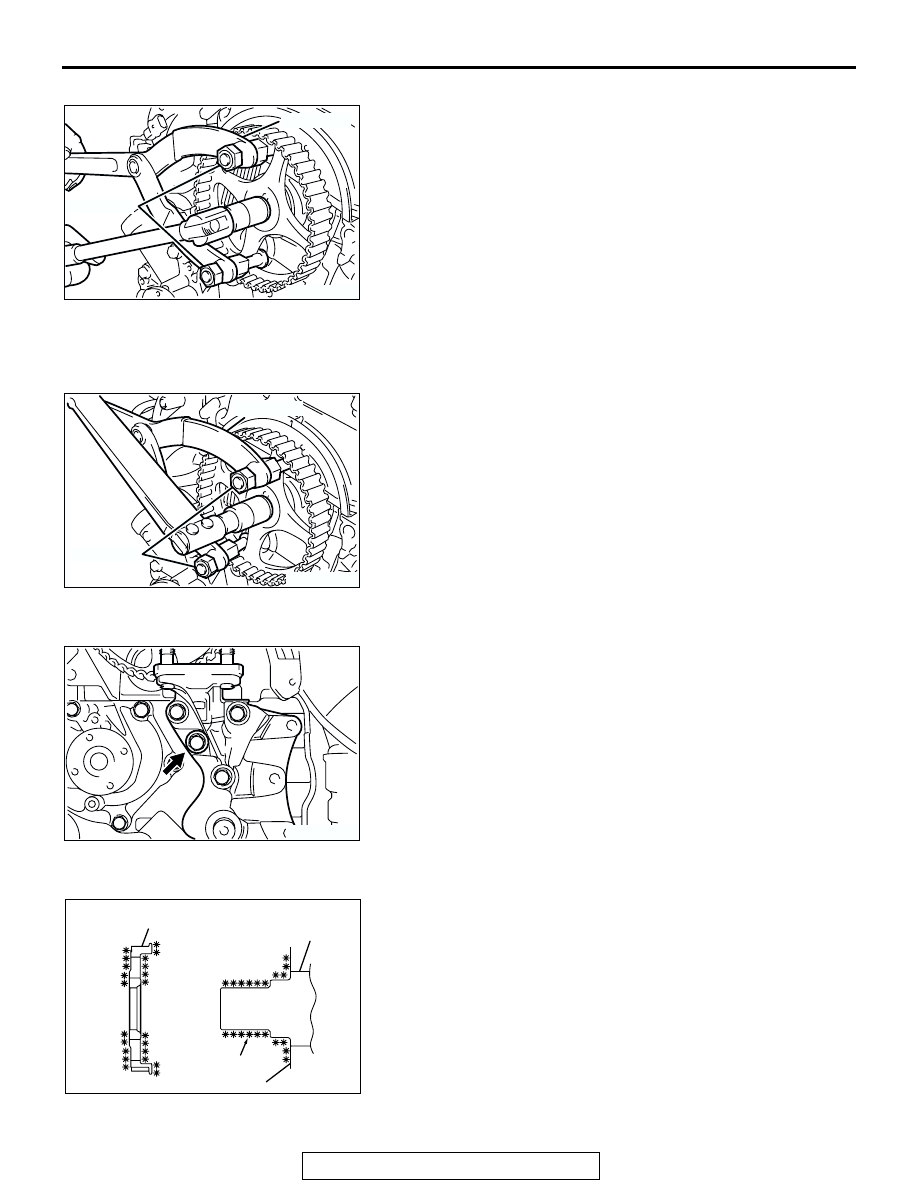

<<H>> CAMSHAFT SPROCKET REMOVAL
1. While holding the camshaft sprocket with special tools

MB990767 and MD998719, loosen the camshaft sprocket
bolt.

2. Remove the camshaft sprocket.

INSTALLATION SERVICE POINTS

.

>>A<< CAMSHAFT SPROCKET INSTALLATION
1. Fit the camshaft sprocket to the front of the camshaft.
2. While holding the camshaft sprocket with special tools

MB990767 and MD998719, tighten the camshaft sprocket
bolt.

Tightening torque: 88

± 10 N⋅m (65 ± 7 ft-lb)

.

>>B<< ENGINE SUPPORT BRACKET INSTALLATION
Coat the threads of the seal bolt in the illustration with 3M



AAD Part number 8672 or equivalent before tightening.

Tightening torque: 49

± 5 N⋅m (36 ± 4 ft-lb)

.

>>C<< CRANKSHAFT SPROCKET "B" INSTALLATION
Clean and then degrease the front of the front case, crankshaft
sprocket "B" and crankshaft surface on which sprocket "B" is
attached.
NOTE: Degreasing is necessary to prevent decrease in the fric-
tion between contacting surfaces.

.

AK300140

MD998719

MB990767

AC

AK300141

MD998719

MB990767

AC

AK300142

AK301828AB

SPROCKET "B"

DEGREASE

FRONT CASE

CRANKSHAFT

TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-15

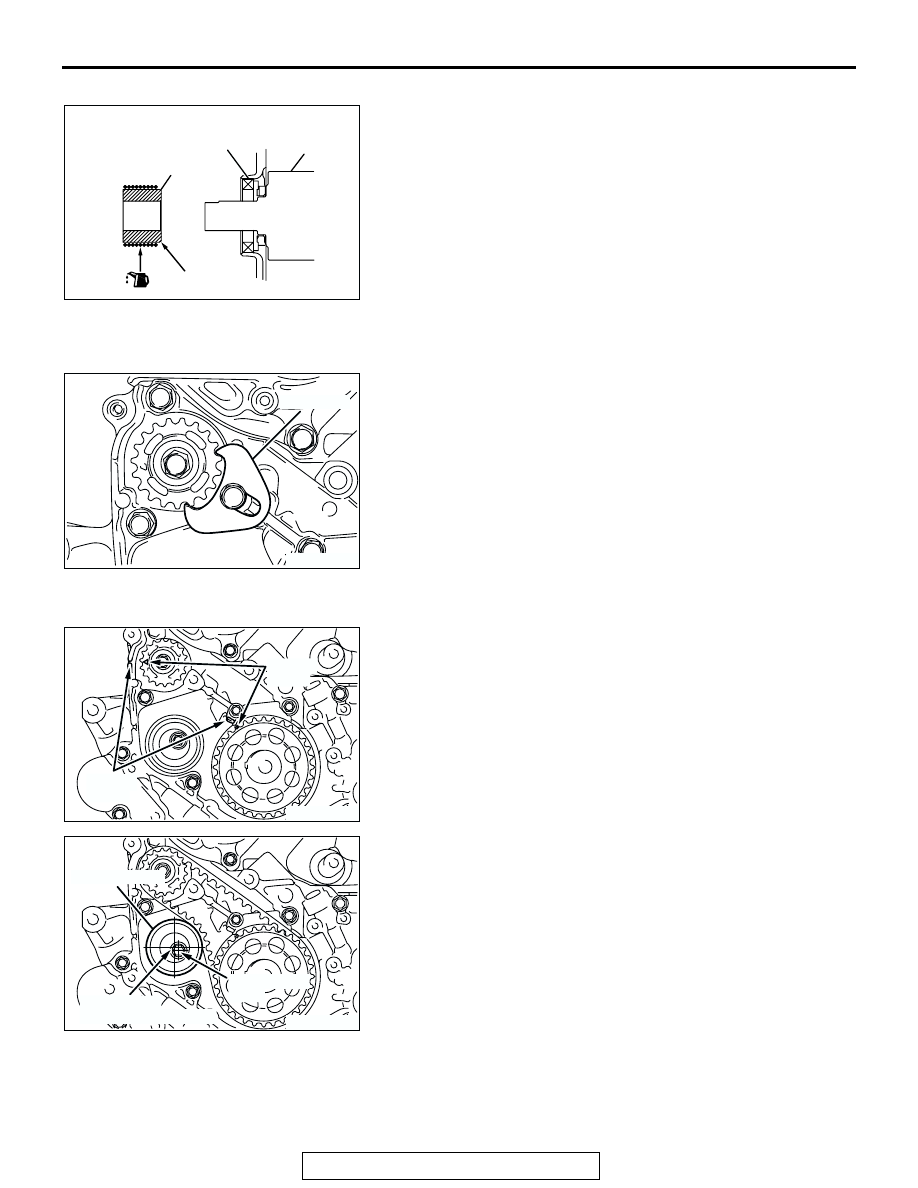

>>D<< SPACER INSTALLATION
1. Apply a thin coat of clean engine oil to the lip area of the oil

seal.

2. Install the spacer with the chamfered end facing toward the

oil seal.

.

>>E<< COUNTERBALANCE SHAFT SPROCKET
INSTALLATION
1. Install the counterbalance shaft sprocket and screw on the

bolt.

2. Install special tool MD998785 as shown in the illustration to

lock the counterbalance shaft.

3. Tighten the bolt, and then remove the special tool.

Tightening torque: 45

± 3 N⋅m (33 ± 2 ft-lb)

.

>>F<< TIMING BELT "B" INSTALLATION
1. Align timing marks on the crankshaft sprocket "B" and

counterbalance shaft sprocket with the marks on the front
case.

2. Install the timing belt "B" on the crankshaft sprocket "B" and

counterbalance shaft sprocket. There should be no slack on
the tension side.

3. Make sure that the tensioner pulley center and the bolt

center are positioned as shown in the illustration.

AK301298AC

SPECER

OIL SEAL

COUNTER
BALANCE
SHAFT

CHAMFERED

AK300138

MD998785

AC

AK300143

TIMING
MARK

TIMING
MARK

AC

AK300144

CENTER OF
TENSIONER PULLEY

CENTER OF
BOLT

TENSIONER B

AC

TIMING BELT

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-16

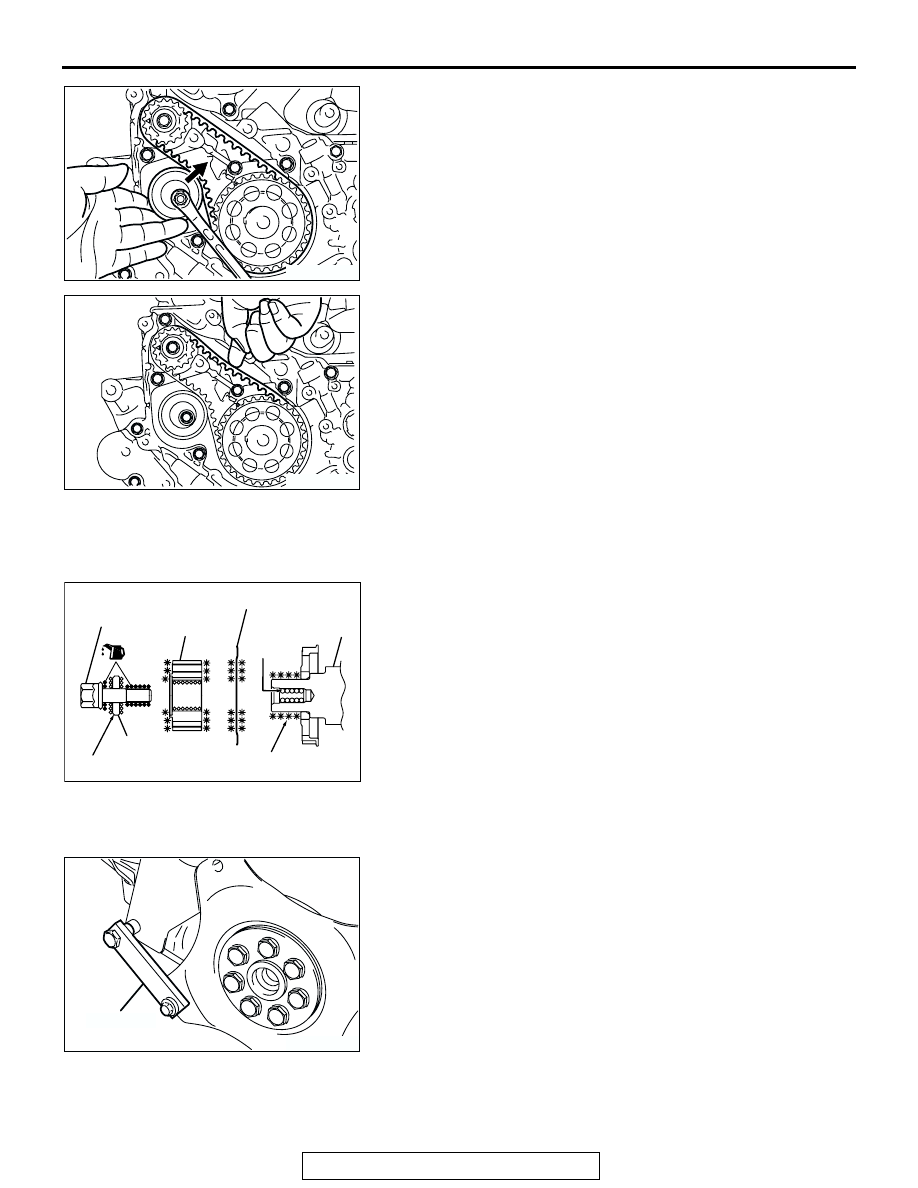

4. Move tensioner "B" in the direction of the arrow while lifting

with your finger to give sufficient tension to the tension side
of timing belt. In this condition, tighten the bolt to secure
tensioner "B." When the bolt is tightened, use care to
prevent the tensioner pulley shaft from turning with the bolt.
If the shaft is turned with the bolt, the belt will be over
tensioned.

Tightening torque: 19

± 3 N⋅m (14 ± 2 ft-lb)

5. Check that timing marks on the sprockets are aligned with

the timing marks on the front case.

6. With your index finger, press the midway of span on the

tension side of timing belt "B." The bolt must deflect 5 to 7
mm (0.20 to 0.28 inch).

.

>>G<< CRANKSHAFT SENSING BLADE/CRANKSHAFT
SPROCKET/CRANKSHAFT PULLEY
WASHER/CRANKSHAFT BOLT INSTALLATION
1. Clean and then degrease the contacting surfaces of the

crankshaft sprocket, sensing blade and crankshaft.
NOTE: Degreasing is necessary to prevent decrease in the
friction between contacting surfaces.

2. Clean the bolt hole in the crankshaft, the crankshaft

contacting surface of the crankshaft sprocket, and the
washer.

3. Install the sensing blade and the crankshaft sprocket to the

crankshaft.

4. Apply a small amount of engine oil to the threads and

seating surface of the crankshaft bolt.

5. Install the washer to the crankshaft bolt with the larger

chamfered side toward the bolt head.

6. Lock the drive plate using the special tool MD998781.
7. Tighten the crankshaft bolt to the specified torque.

Tightening torque: 167 N

⋅m (123 ft-lb)

.

AK300145

AK300146

AK301075AC

CRANKSHAFT
BOLT

SPROCKET

SENSING BLADE

CLEAN

CRANKSHAFT

DEGREASE

WASHER

BIG CHAMFERED SIDE

AK300135

MD998781

AC
