TRUNK LID

TSB Revision

BODY

42-63

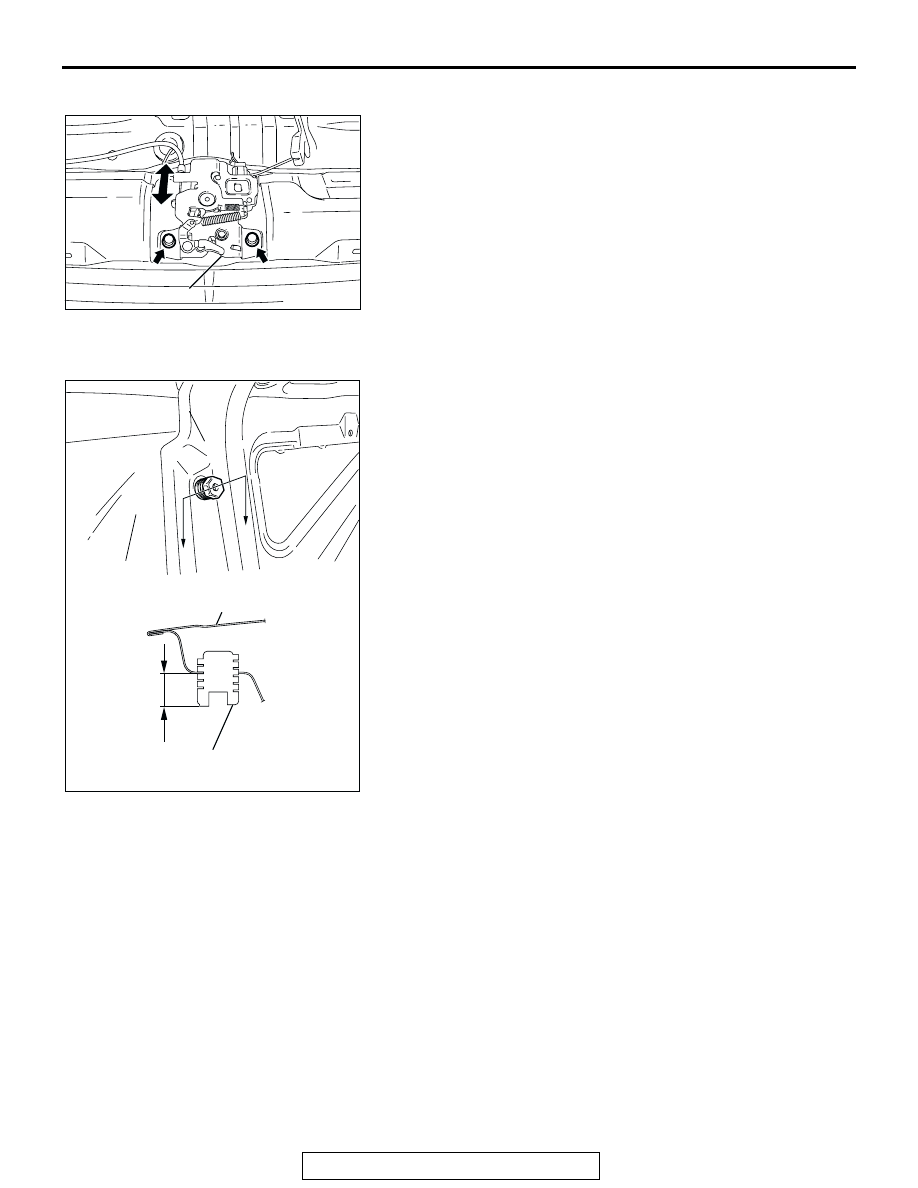

TRUNK LID LATCH ADJUSTMENT

M1421008600012

After checking the trunk lid release cable for proper routing,
loosen the trunk lid latch mounting bolts. Change the position of
the trunk lid latch relative to the trunk lid striker so that trunk lid
locking and unlocking effort is correct.

TRUNK LID HEIGHT ADJUSTMENT

M1421008300044

Turn each trunk lid damper to achieve the height shown in the
drawing is reached. If the trunk lid panel height on one side is
different from that on the other side (even after the trunk lid
dampers have been adjusted to the height indicated in the
drawing), turn the trunk lid damper(s) slightly to make fine
adjustments to the trunk lid panel height.
NOTE: When the damper is new, one full turn of the trunk lid
damper changes the height approximately 3 mm. Turn it clock-
wise to reduce height. Turn it counterclockwise to increase
height.

AC305834 AB

TRUNK LID LATCH

AC305822

AC305823

AC306177

SECTION A – A

TRUNK LID PANEL
ASSEMBLY

A

A

TRUNK LID DAMPER

AB

17 mm
(0.7 in)

TRUNK LID

TSB Revision

BODY

42-64

TRUNK LID

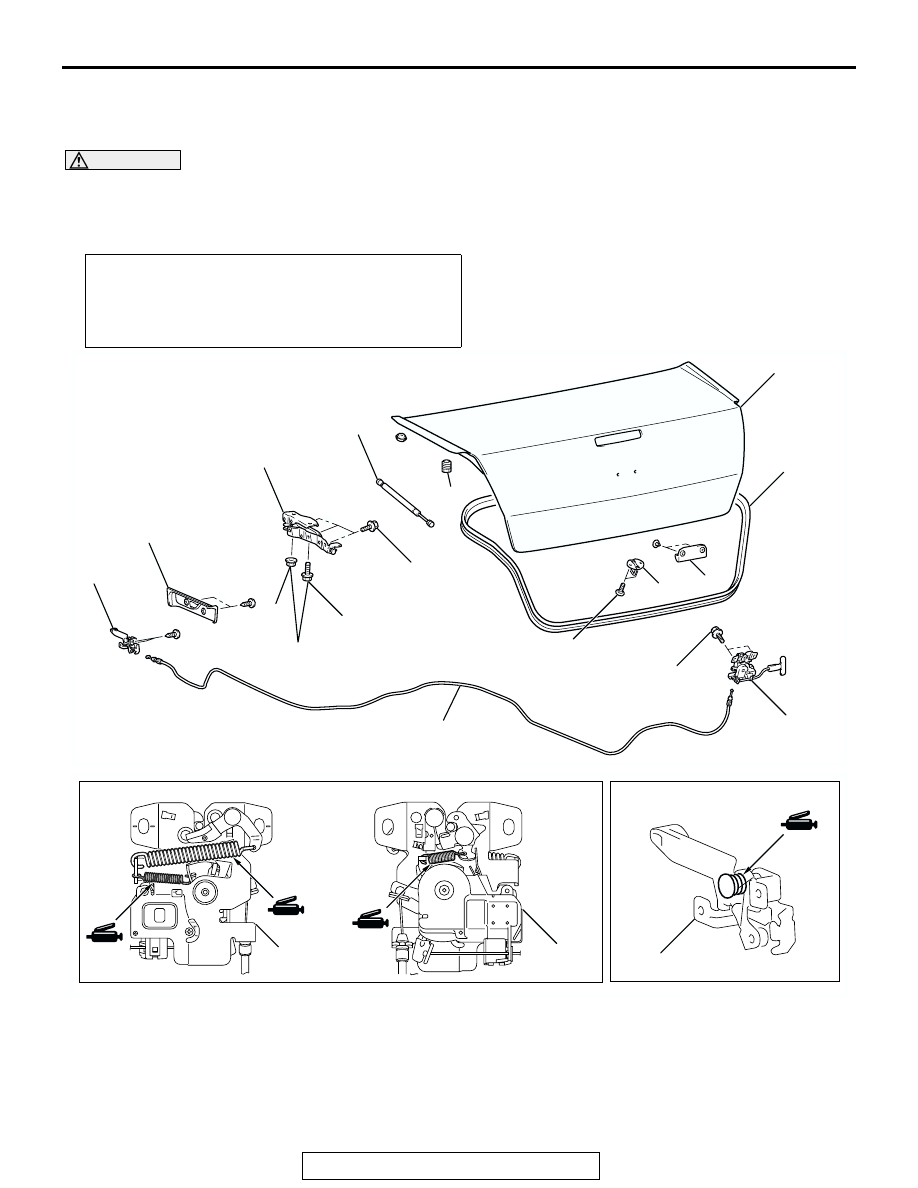

REMOVAL AND INSTALLATION

M1421002200191

CAUTION

• Do not disassemble or throw the trunk lid gas spring into fire.
• Punch a hole in the trunk lid gas spring before disposal to release the gas inside.
• Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.

Post-installation Operation
• Adjustment of Clearance Around Trunk Lid (Refer to

P.42-62

).

• Trunk Lid Latch Adjustment (Refer to

P.42-63

).

• Trunk Lid Height Adjustment (Refer to

P.42-63

).

AC305820

1

2

3

5

4

6

7

8

9

10

11

12

13 ± 2 N·m
111 ± 22 in-lb

13 ± 2 N·m
111 ± 22 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

AB

9

AC305820

AC306170

AC305831

AC305832

AB

7

5

5

<FRONT VIEW >

<REAR VIEW>

TRUNK LID

TSB Revision

BODY

42-65

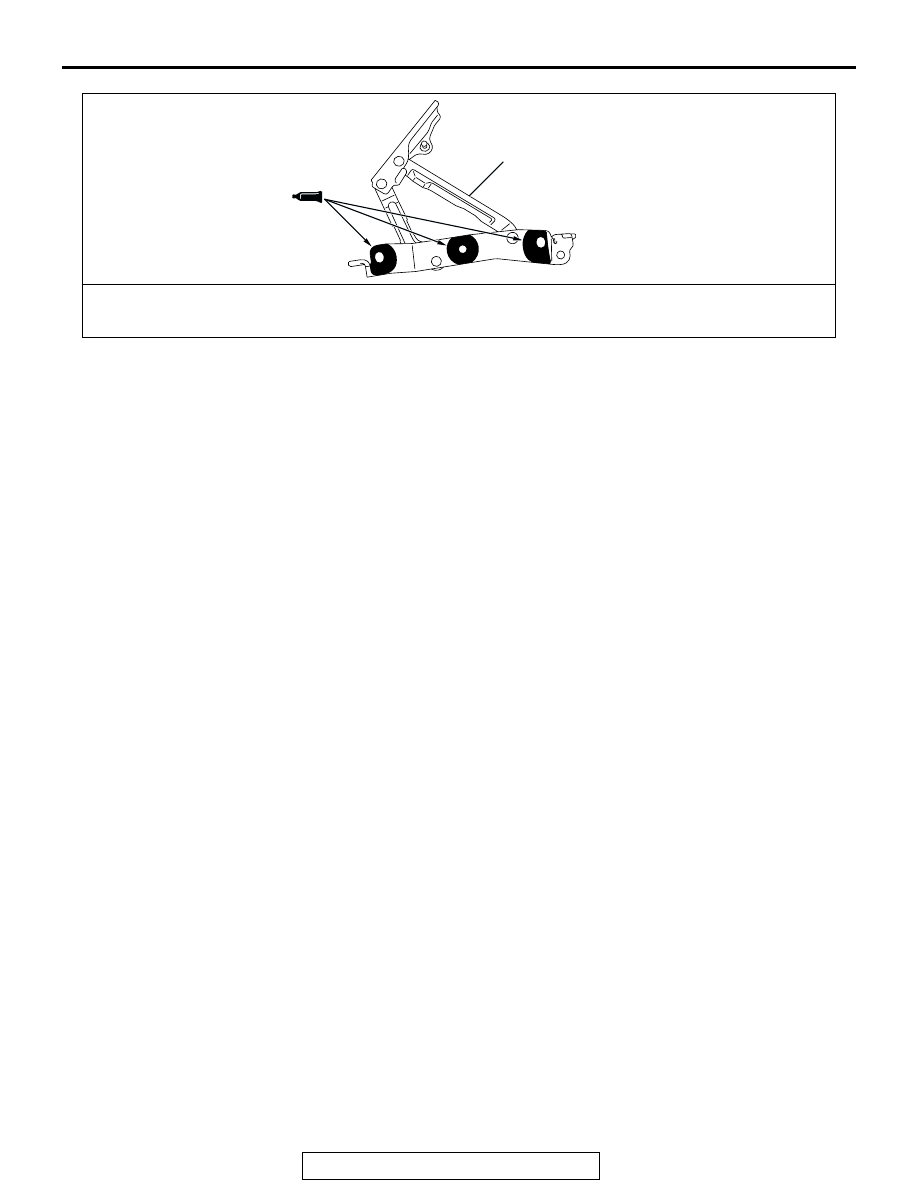

AC305830

AC306174

AB

ADHESIVE: 3M™ AAD PART NO.8531 HEAVY DRIP CHECK SEALER, 3M™ AAD PART NO.8646 AUTOMOTIVE JOINT
AND SEAM SEALER OR EQUIVALENT

12

REMOVAL

1. TRUNK LID DAMPER
2. TRUNK LID STRIKER
3. TRUNK LID INSIDE HANDLE

TRUNK LID WEATHERSTRIP
REMOVAL STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

>>A<<

4. TRUNK LID WEATHERSTRIP

TRUNK LID LATCH REMOVAL
STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

5. TRUNK LID LATCH ASSEMBLY

TRUNK LID RELEASE CABLE AND
TRUNK LID RELEASE HANDLE
REMOVAL STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

•

TRUNK TRIM ASSEMBLY (REFER
TO GROUP 52A, TRIMS

P.52A-10

.)

•

REAR SEAT (REFER TO GROUP
52A, SEAT

P.52A-30

.)

•

CENTER PILLAR LOWER TRIM
(REFER TO GROUP 52A, TRIMS

P.52A-10

.)

•

COWL SIDE TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

6. TRUNK LID RELEASE HANDLE

COVER

7. TRUNK LID RELEASE HANDLE
8. TRUNK LID RELEASE CABLE

TRUNK LID PANEL ASSEMBLY
REMOVAL STEPS

1. TRUNK LID DAMPER
2. TRUNK LID STRIKER
3. TRUNK LID INSIDE HANDLE
•

THREE-DIAMOND MARK (REFER
TO GROUP 51 MARKS

P.51-24

.)

•

HIGH MOUNT STOPLIGHT
<VEHICLES WITHOUT REAR
SPOILER> (REFER TO GROUP
54A, HIGH-MOUNTED STOPLIGHT

P.54A-127

.)

•

REAR SPOILER ASSEMBLY
<VEHICLES WITH REAR SPOILER>
(REFER TO GROUP 51, REAR
SPOILER

P.51-9

.)

9. TRUNK LID PANEL ASSEMBLY

MOUNTING BOLT AND NUT

10. TRUNK LID PANEL ASSEMBLY

TRUNK LID HINGE REMOVAL
STEPS

10. TRUNK LID PANEL ASSEMBLY

<<A>>

11. TRUNK LID GAS SPRING
12. TRUNK LID HINGE

TRUNK LID RELEASE CABLE AND
TRUNK LID RELEASE HANDLE
REMOVAL STEPS (Continued)

TRUNK LID

TSB Revision

BODY

42-66

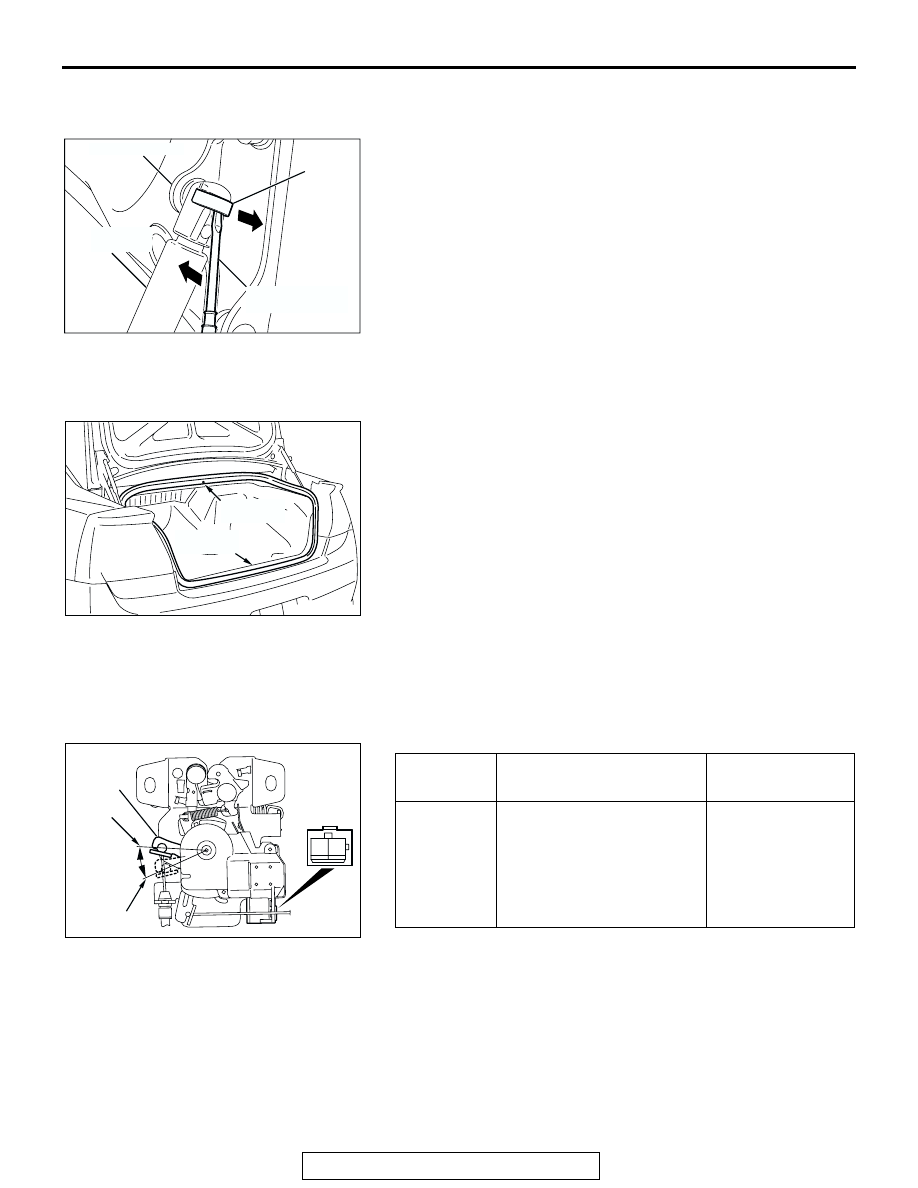

REMOVAL SERVICE POINT

.

<<A>> TRUNK LID GAS SPRING REMOVAL
As shown in the figure, slide the pin upward, then remove the
trunk lid gas spring in the direction of the arrow to unscrew the
trunk lid hinge.

INSTALLATION SERVICE POINT

.

>>A<< TRUNK LID WEATHERSTRIP INSTALLATION
Install the trunk lid weatherstrip so that the marking and the
joint are aligned with the body center line,

INSPECTION

M1421004800144

TRUNK LID LATCH ASSEMBLY CHECK

.

TRUNK LID LATCH ACTUATOR CHECK

.

AC305996

PIN

AB

TRUNK LID
GAS SPRING

TRUNK LID HINGE

FLAT-TAPPED
SCREWDRIVER

AC305825 AB

MARKING

SECTION

JOINT

SECTION

LEVER
POSITION

BATTERY CONNECTION

LEVER
OPERATION

At the "OFF"
position

• Connect ground and the

negative battery
terminal.

• Connect terminal No. 1

and the positive battery
terminal.

The lever moves
from the "OFF"
position to the
"OPEN" position.

AC305826

1

2

AB

OFF

LEVER

OPEN

<REAR VIEW>
