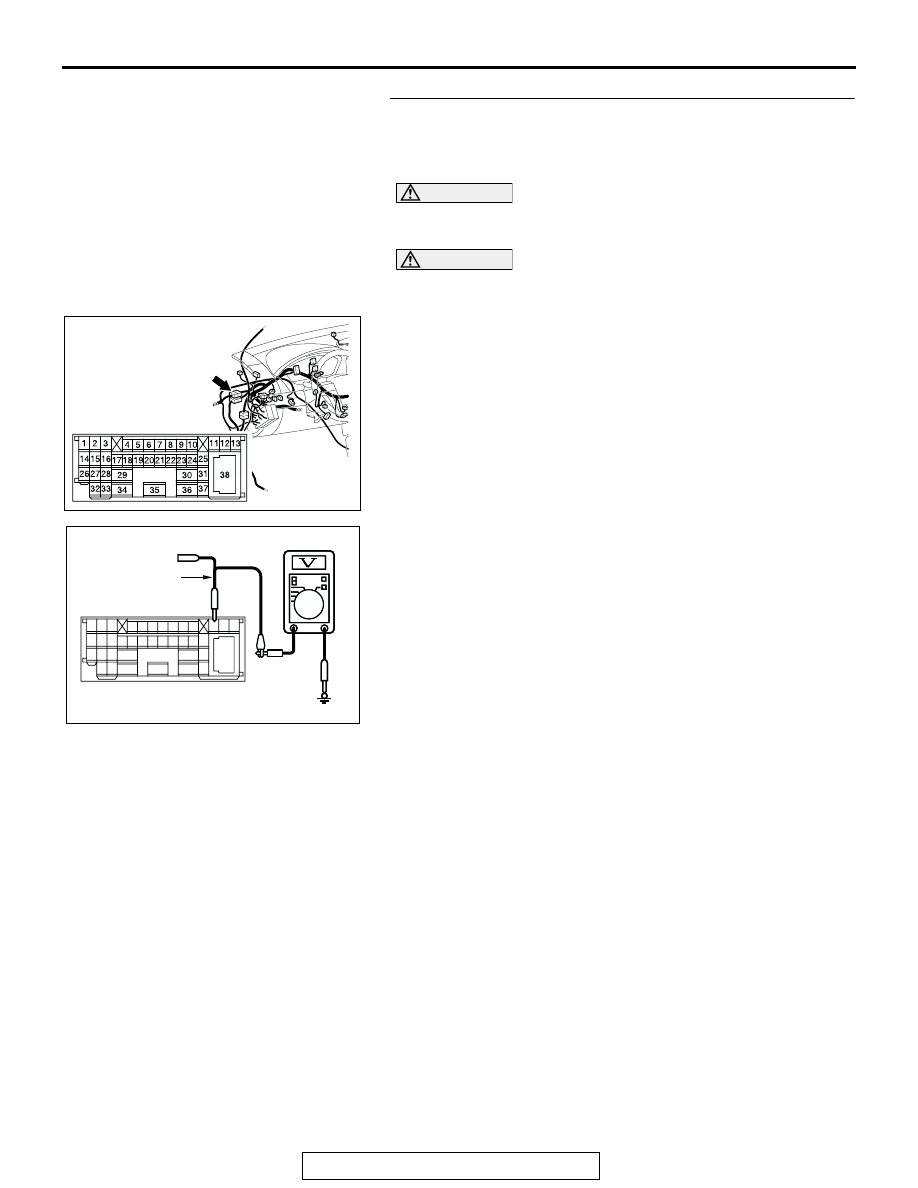

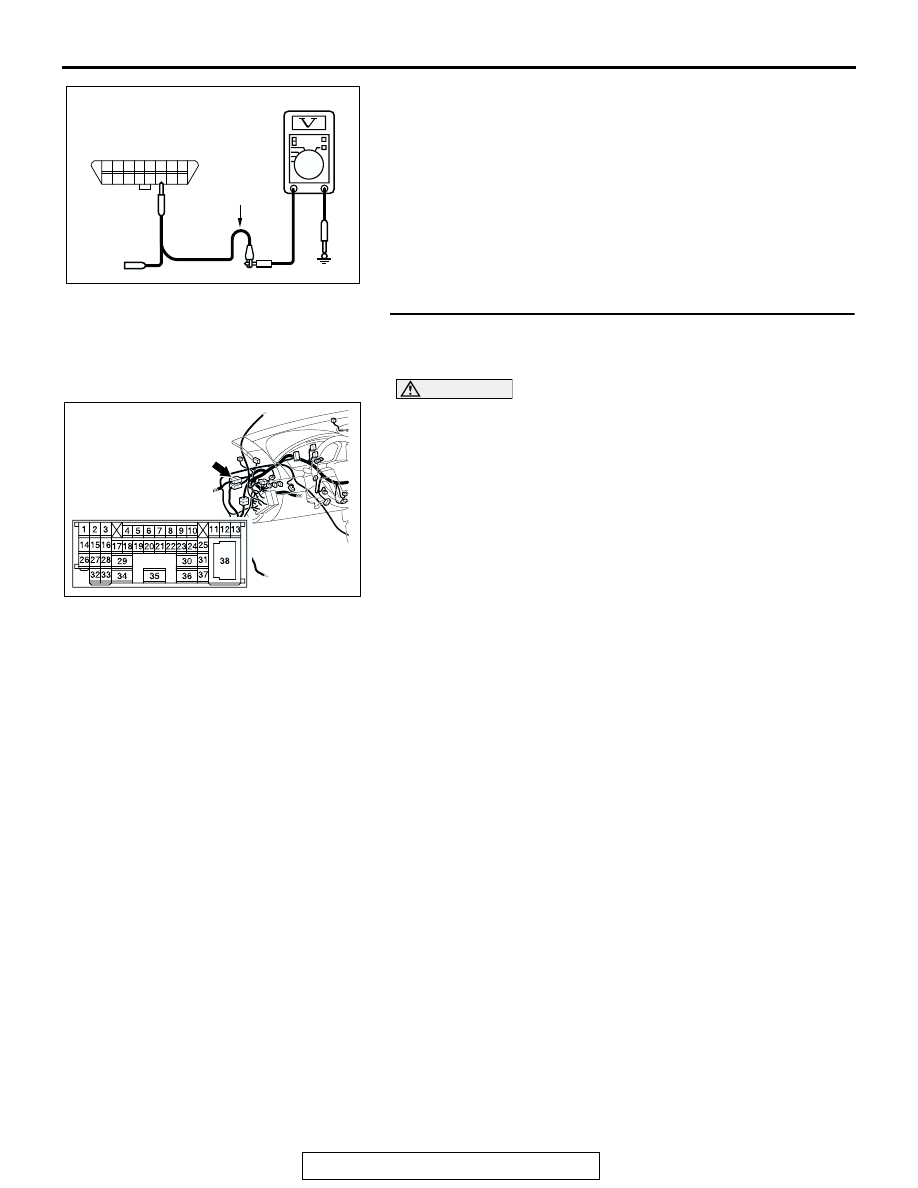

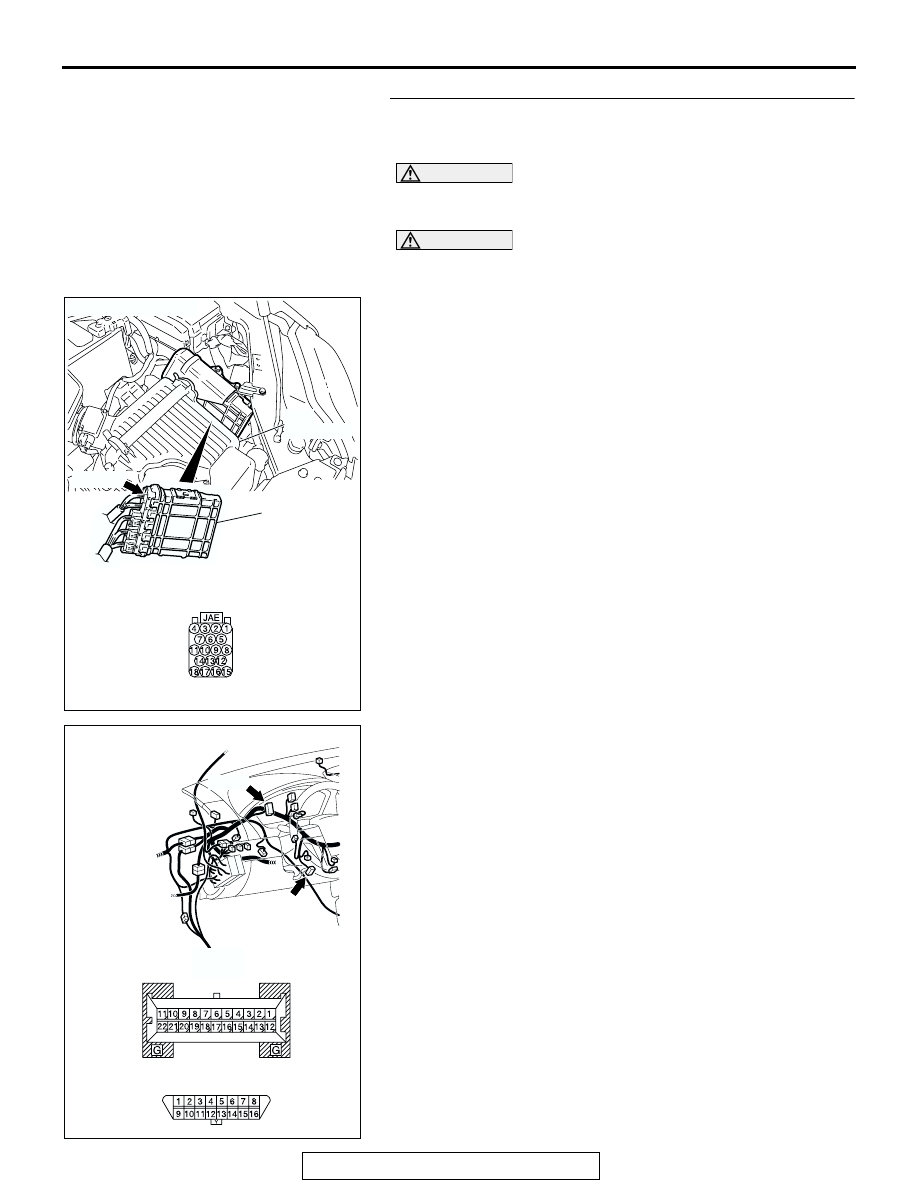

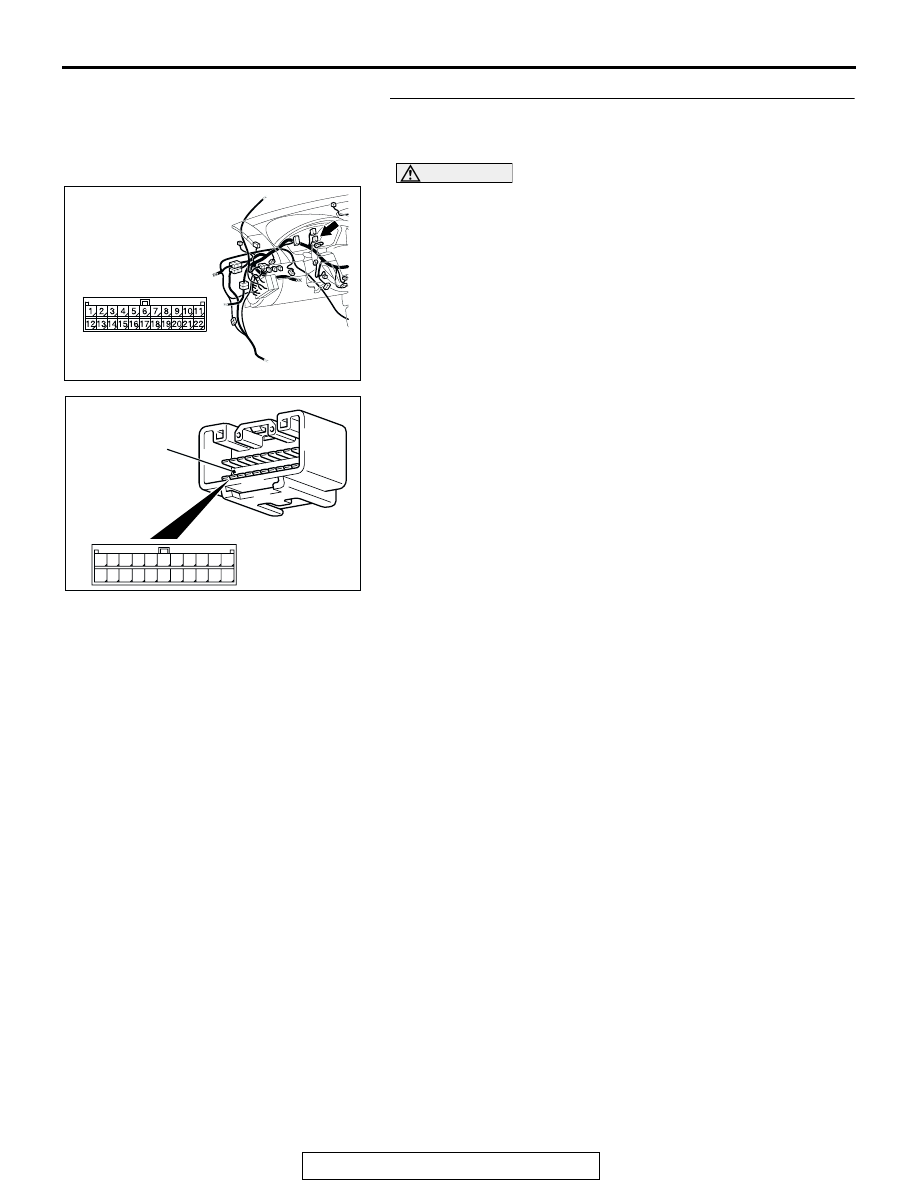

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-79 STEP 3. Check the CAN_L-side bus line (communication Measure the voltage at data link connector C-125. CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect powertrain control module connector B-19 and combination meter connector C-101, and measure the (2) Turn the ignition switch to the "ON" position. AC306248AD B-19 (B) CONNECTOR: B-19 PCM AIR HARNESS SIDE AC305232 CONNECTORS: C-101, C-125 AH C-101 C-125 C-125 (B) C-101 HARNESS SIDE |
