SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-219

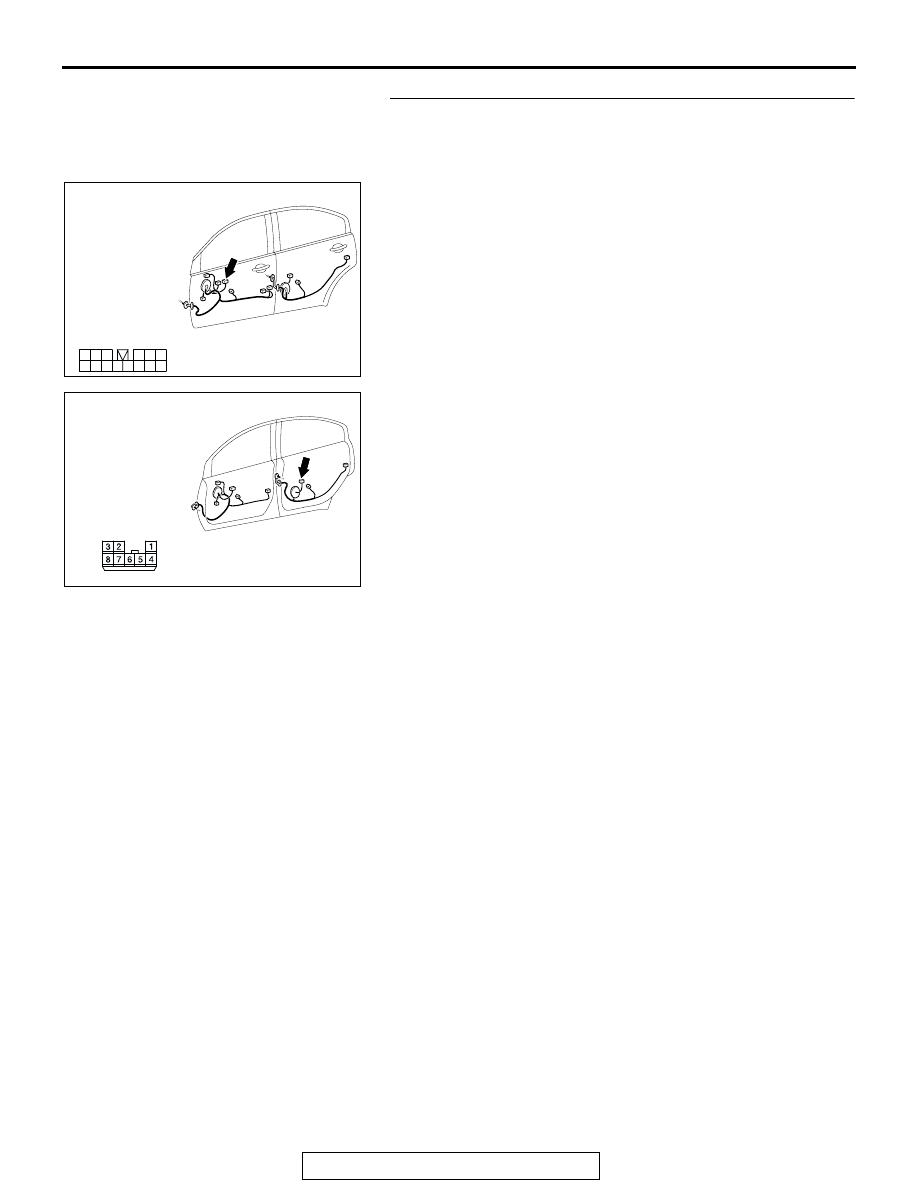

STEP 30. Check the wiring harness between power
window main switch connector E-12 (terminals 6 and 14)
and rear power window sub switch (RH) connector E-06
(terminals 5 and 8).

AC305262

3
9

4

12

14

6

13

5

1110

8

2

7

1

HARNESS SIDE

CONNECTOR:E-12

AC

AC305333

CONNECTOR:E-06

HARNESS SIDE

AE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-220

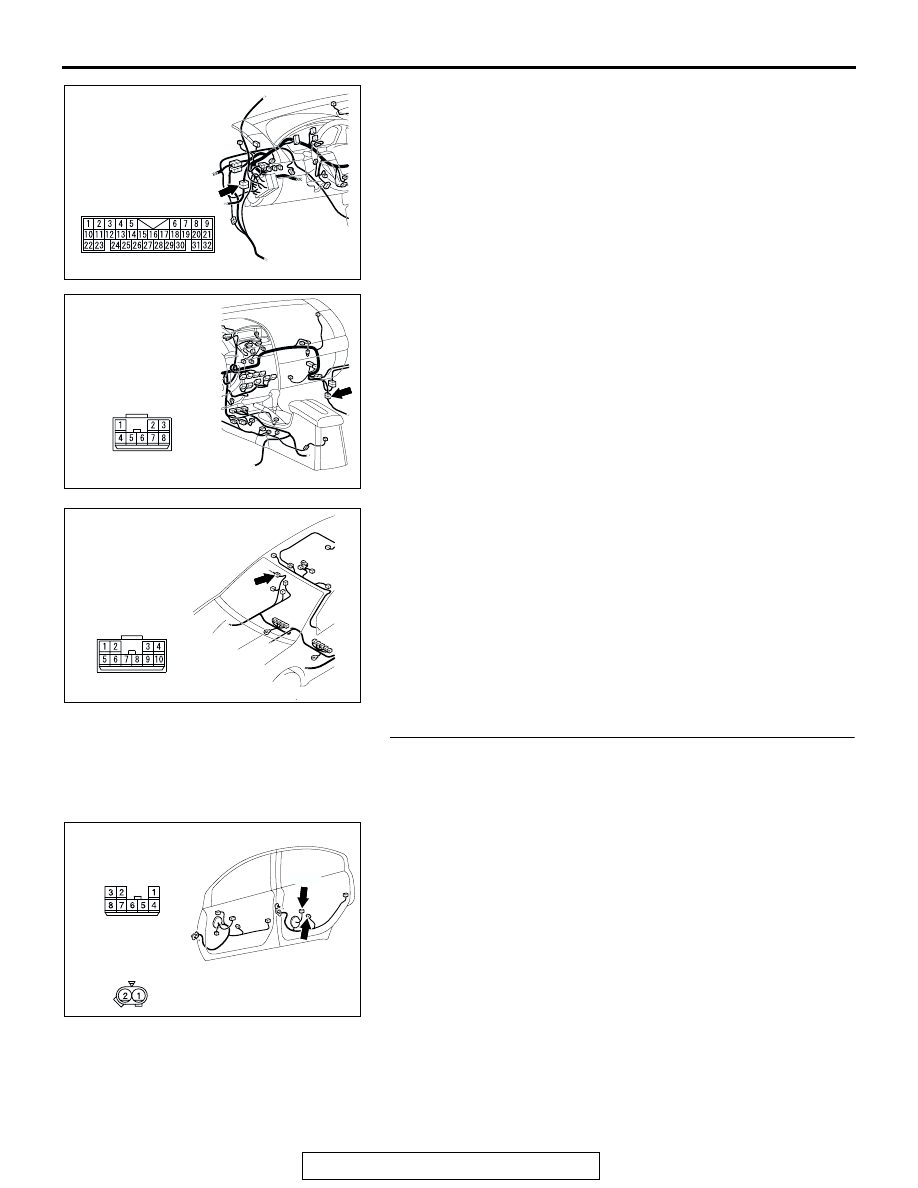

NOTE: Also check intermediate connectors C-26, C-13 and
D-36. If intermediate connector C-26, C-13 or D-36 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-12 (terminals 6 and 14) and rear
power window sub switch (RH) connector E-06
(terminals 5 and 8) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

STEP 31. Check the wiring harness between rear power
window sub switch (RH) connector E-06 (terminals 4 and
7) and rear power window regulator motor (RH) connector
E-07 (terminals 1 and 2).

Q: Is the wiring harness between rear power window sub

switch (RH) connector E-06 (terminals 4 and 7) and rear
power window regulator motor (RH) connector E-07
(terminals 1 and 2) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

AC305231

CONNECTOR: C-26

AF

AC305233 AC

CONNECTOR: C-13

AC305264

AB

CONNECTOR: D-36

AC305333

AD

HARNESS SIDE

CONNECTOR:E-06,E-07

E-06

E-07

E-06

E-07(GR)

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-221

INSPECTION PROCEDURE D-5: Power Window: Front or rear passenger's power windows do not
work at all by operating the power window main switch.

POWER
WINDOW
MAIN
SWITCH

FRONT DOOR WINDOW
REGULATOR MOTOR

(RH)

FRONT POWER
WINDOW SUB
SWITCH

(RH)

<PASSENGER'S SIDE>

POWER
WINDOW
RELAY

LOCK
SWITCH

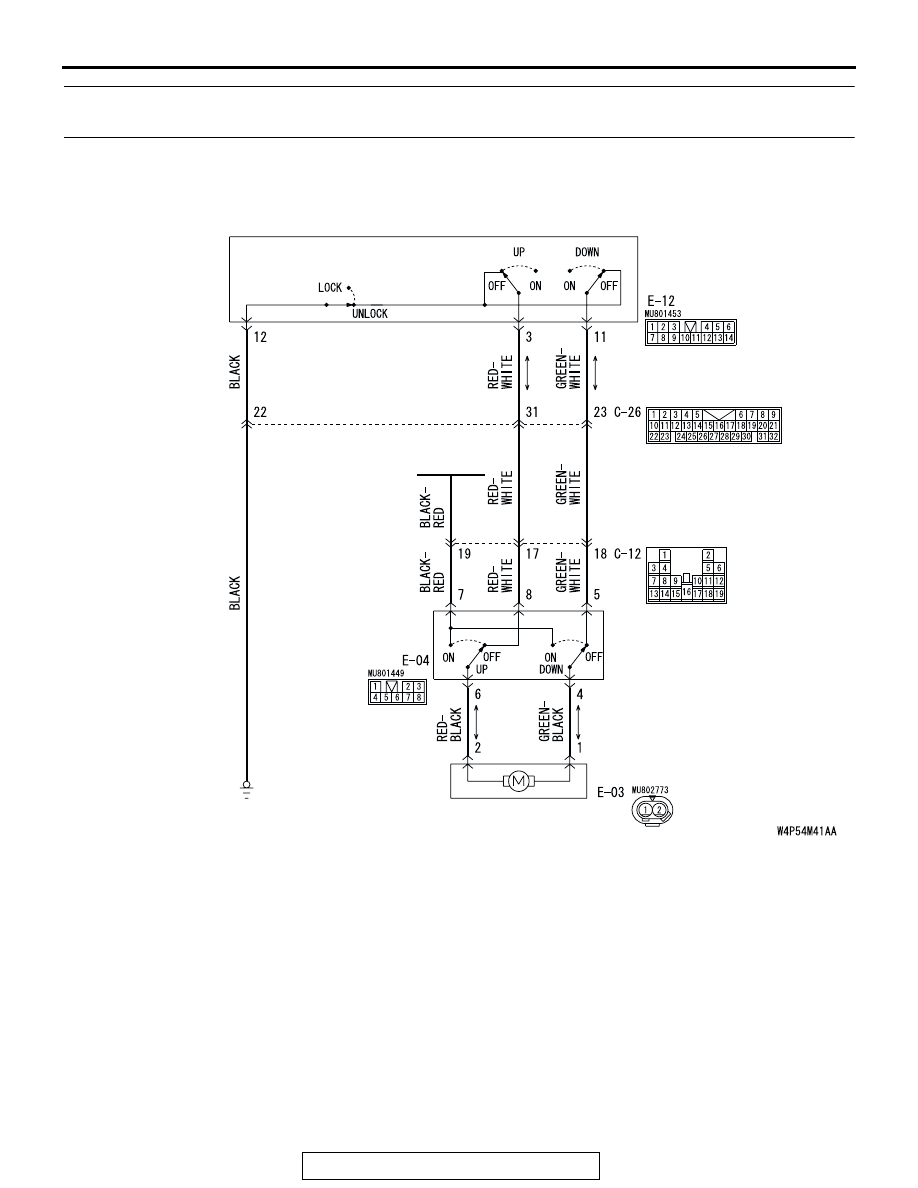

Power Window (front: RH) Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-222

.

CIRCUIT OPERATION
When you operate each power window switch for
front or rear passengers (incorporated in the power
window main switch), the corresponding power win-
dow motor operates, opening or closing each power
window.

.

TECHNICAL DESCRIPTION (COMMENT)
If the corresponding power window opens and closes
normally when each power window sub-switch is
operated, the power window main switch may be
defective.

.

TROUBLESHOOTING HINT
The power window main switch may be defective

POWER
WINDOW
MAIN
SWITCH

REAR DOOR WINDOW
REGULATOR MOTOR

(RH)

REAR
POWER WINDOW
SUB SWITCH

(RH)

REAR
POWER WINDOW
SUB SWITCH

(LH)

REAR DOOR WINDOW
REGULATOR MOTOR

(LH)

POWER WINDOW
RELAY

<REAR SIDE>

LOCK
SWITCH

(REAR: LH)

(REAR: RH)

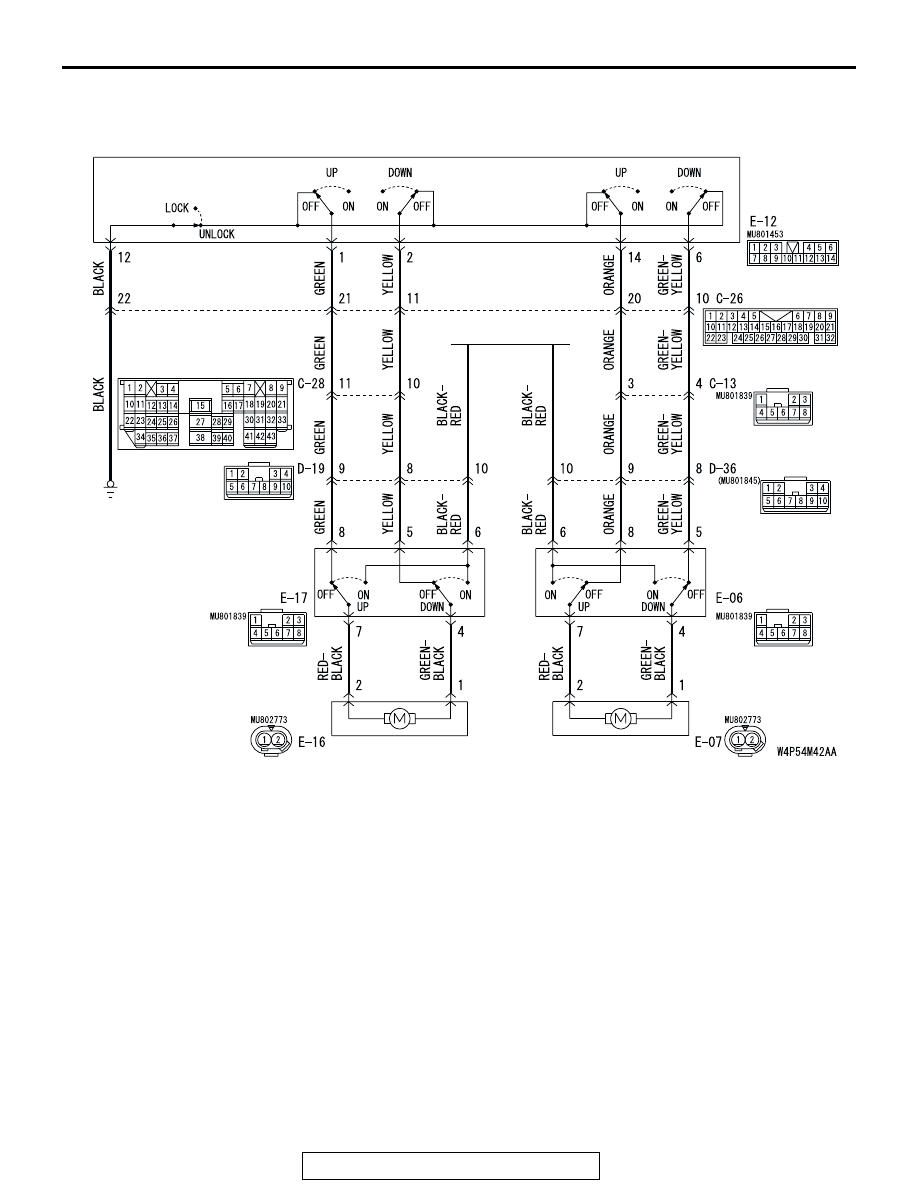

Power Window (rear) Circuit
