EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-9

GENERAL DESCRIPTION

M2171000100333

The emission control  system is basically the same
as that for the ENDEAVOR.

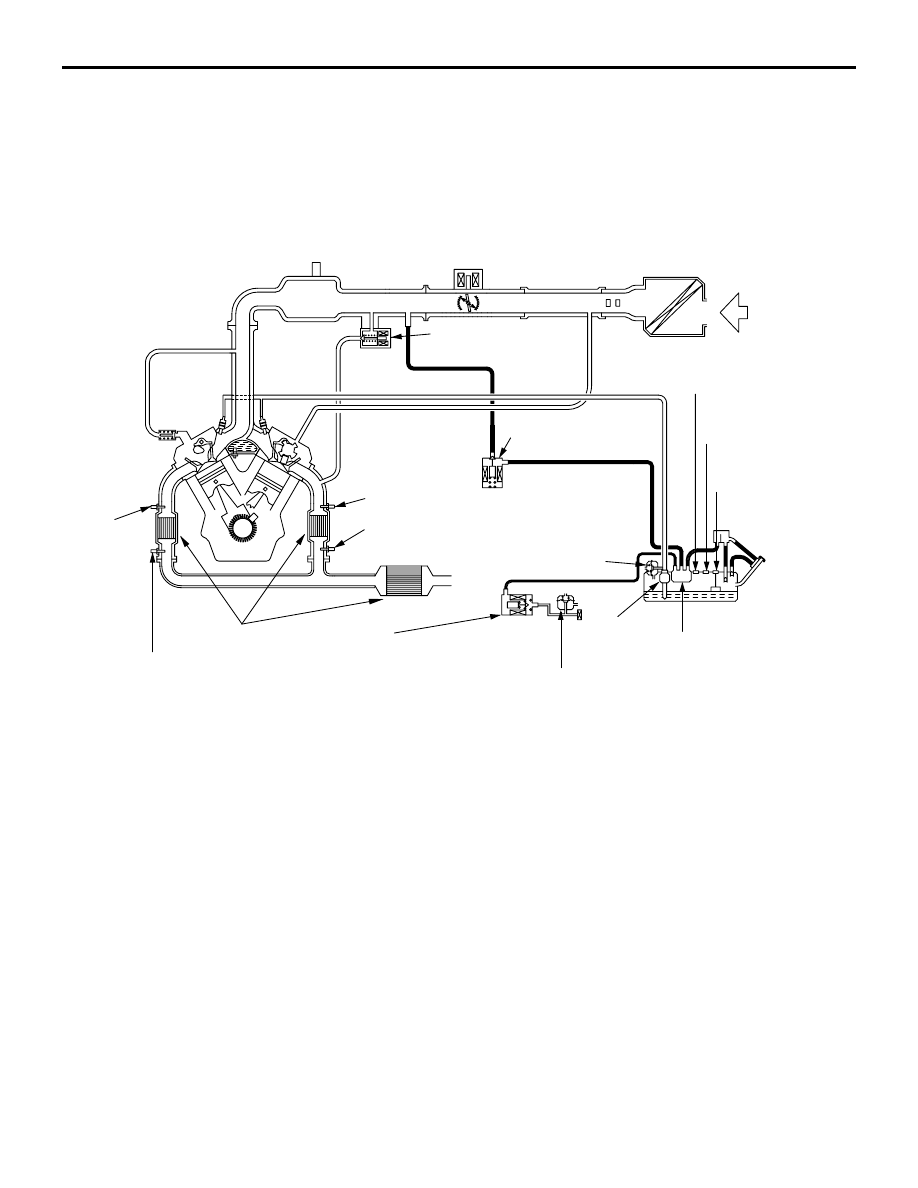

EMISSION CONTROL SYSTEM DIAGRAM

AK304209

MANIFOLD ABSOLUTE
PRESSURE SENSOR

THROTTLE ACTUATOR
CONTROL MOTOR

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

FUEL TANK
DIFFERENTIAL
PRESSURE SENSOR

FUEL TANK
TEMPERATURE
SENSOR

EVAPORATIVE EMISSION
VENTILATION VALVE

FUEL TANK

EVAPORATIVE
EMISSION CANISTER

RIGHT
BANK
HEATED
OXYGEN
SENSOR
(FRONT)

RIGHT BANK HEATED
OXYGEN SENSOR (REAR)

FUEL PRESSURE
REGULATOR

EVAPORATIVE
EMISSION
VENTILATION
SOLENOID

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

FUEL PUMP

FUEL
LEVEL
SENSOR

EVAPORATIVE
EMISSION
PURGE SOLENOID

EGR VALVE
(STEPPER MOTOR)

CATALYTIC CONVERTER

AB

NOTES

33-1

GROUP 33

FRONT

SUSPENSION

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

33-2

CONSTRUCTION AND OPERATION

33-3

GENERAL DESCRIPTION

FRONT SUSPENSION

33-2

GENERAL DESCRIPTION

M2330000100244

The suspension system is McPherson strut type. A
flat sheet metal crossmember without "kick-up" is
used for high rigidity and weight reduction.

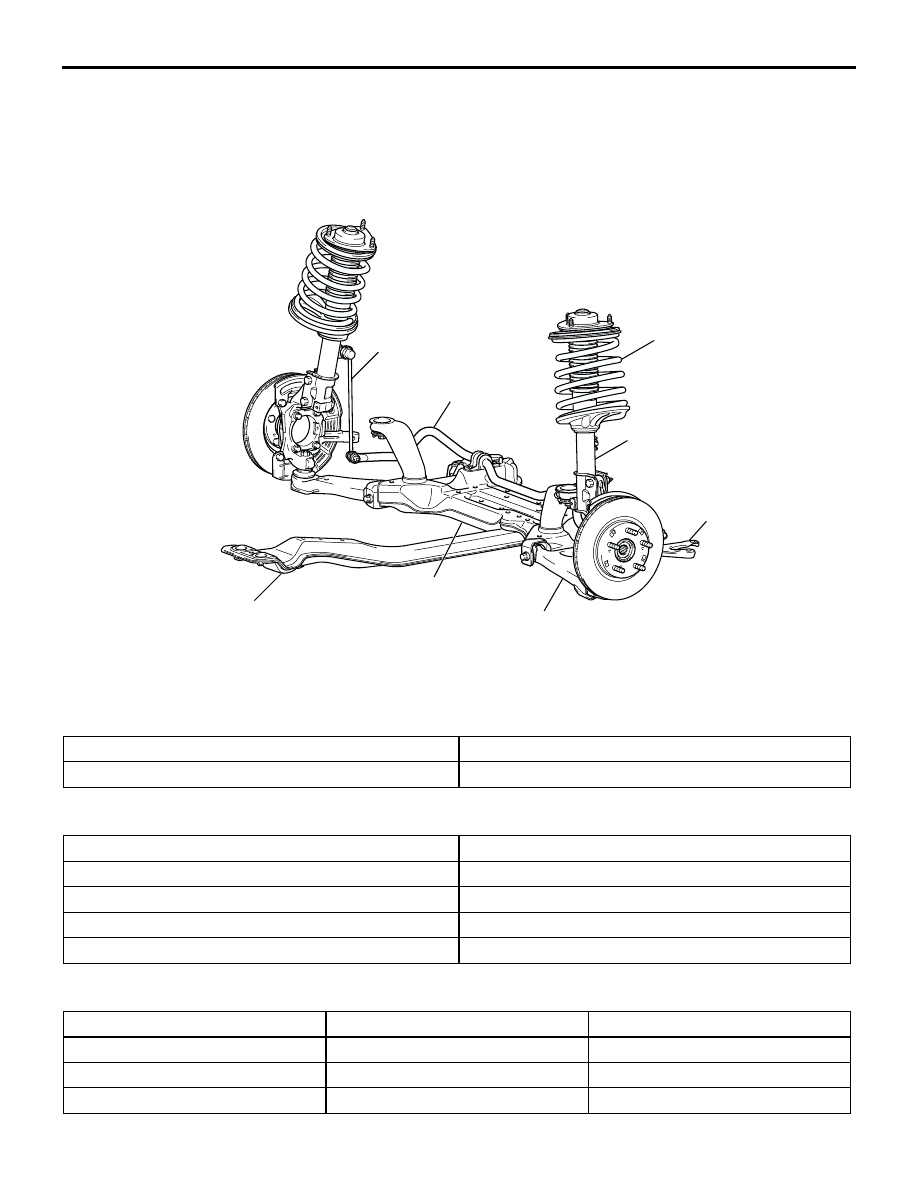

CONSTRUCTION DIAGRAM

SPECIFICATIONS

.

SUSPENSION SYSTEM

.

WHEEL ALIGNMENT

.

COIL SPRING

AC305733 AB

STABILIZER BAR

COIL SPRING

STABILIZER LINK

STRUT ASSEMBLY

FRONT AXLE No.1
CROSSMEMBER

LOWER ARM ASSEMBLY

CENTER MEMBER

FRONT AXLE
CROSSMEMBER
STAY <3.8L ENGINE>

ITEM

SPECIFICATION

Suspension method

McPherson strut with coil spring

ITEM

SPECIFICATION

Camber

0

°

00'

Caster

3

°

00'

Kingpin inclination

12

°

54'

Toe-in mm (in)

0 (0)

ITEM

2.4L ENGINE

3.8L ENGINE

Wire diameter mm (in)

15.3 (0.60)

15.0 (0.59)

Average diameter mm (in)

170

−

 180 (6.7

−

 7.1)

170

−

 180 (6.7

−

 7.1)

Free length mm (in)

348.0 (13.70)

333.5 (13.13)
