GENERAL DESCRIPTION

ENGINE COOLING

14-3

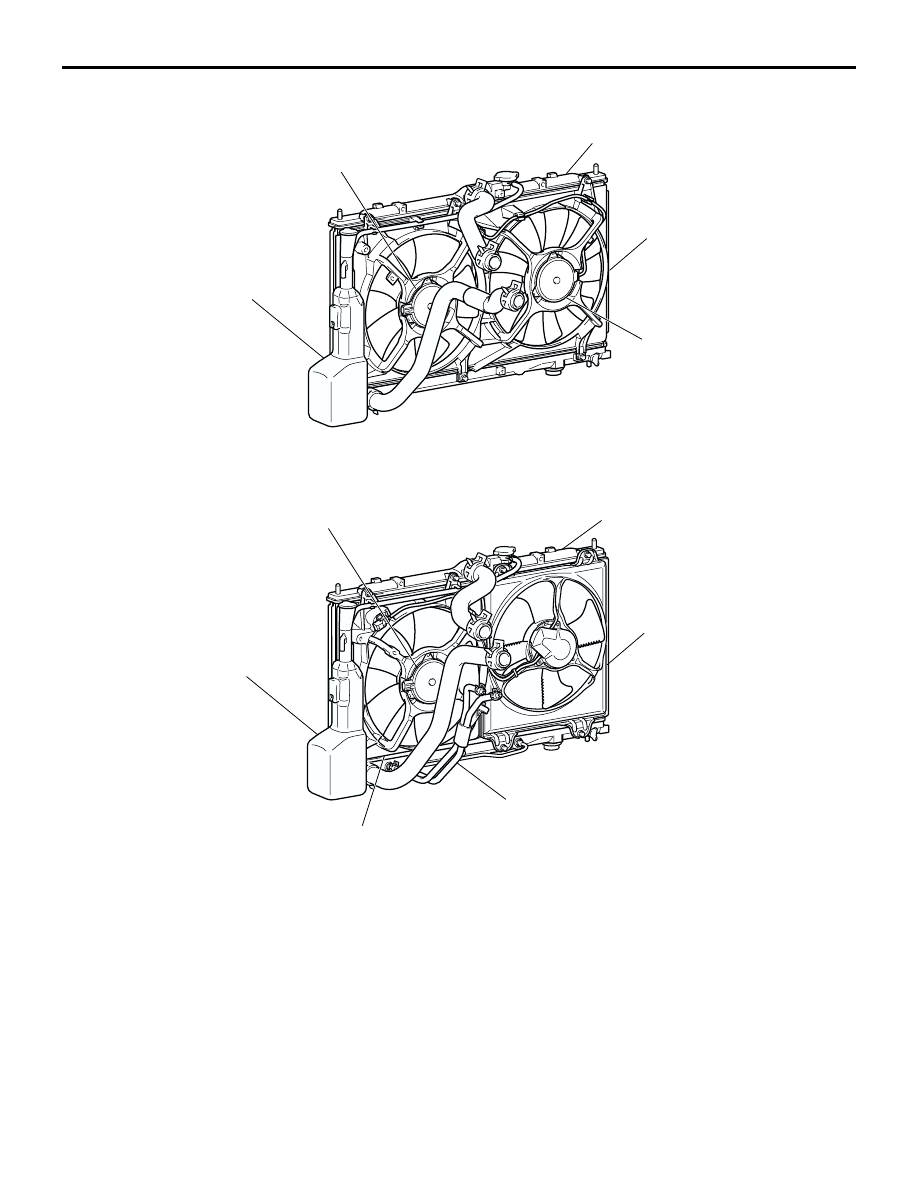

CONSTRUCTION DIAGRAM

AC305835

RADIATOR

RADIATOR CONDENSER
TANK ASSEMBLY

RADIATOR FAN MOTOR

AB

COOLING FAN SHROUD

<2.4L ENGINE>

CONDENSER FAN MOTOR

AC305836

RADIATOR

RADIATOR CONDENSER
TANK ASSEMBLY

RADIATOR FAN MOTOR

CONDENSER FAN
MOTOR AND SHROUD

TRANSMISSION FLUID
COOLER LINE HOSE

COOLING FAN SHROUD

AB

<3.8L ENGINE>

GENERAL DESCRIPTION

ENGINE COOLING

14-4

DESCRIPTION OF STRUCTURE AND
OPERATION

.

PremAir

â* direct ozone reduction (DOR) radiator

A catalyst which reduces ozone (O

3

) in the ambient

air has been applied to the radiator core. The radia-
tor offers a suitable surface area and operating tem-
perature range to facilitate catalytic reduction of
ozone across the PremAir

â* radiator.  When ozone

(O

3

) contained in the ambient air passes across the

catalyst, the ozone (O

3

) is reduced to Oxygen (O

2

),

and reduces pollution in the air. Vehicles with the
DOR catalyst applied to the radiator have the follow-
ing WARNING label near the headlight (RH) in the
engine compartment.

WARNING: ADDITIONAL EMISSION CONTROL
INFORMATION.THIS VEHICLE IS EQUIPPED
WITH A PremAir

â* DIRECT OZONE REDUCTION

(DOR) RADIATOR.REPLACEMENT OF THIS EMIS-
SION CONTROL COMPONENT OF THIS EMIS-
SION CONTROLCOMPONENT WITH A NON-DOR
RADIATOR IS A VIOLATION OF AIR POLLUTION
REGULATION.
NOTE: *: PremAir is a registered trademark of Engel-
hard Corporation.

AC307315

OZONE
    O

3

OXYGEN
     O

2

AB

15-1

GROUP 15

INTAKE AND

EXHAUST

CONTENTS

AIR INTAKE SYSTEM . . . . . . . . . . . .

15-2

AIR DUCT AND AIR CLEANER . . . . . . . . .

15-2

INTAKE MANIFOLD . . . . . . . . . . . . . . . . . .

15-3

EXHAUST SYSTEM . . . . . . . . . . . . . .

15-5

EXHAUST PIPE AND MUFFLER . . . . . . . .

15-5

EXHAUST MANIFOLD  . . . . . . . . . . . . . . . .

15-6

AIR INTAKE SYSTEM

INTAKE AND EXHAUST

15-2

AIR INTAKE SYSTEM

AIR DUCT AND AIR CLEANER

M2150004000106

•

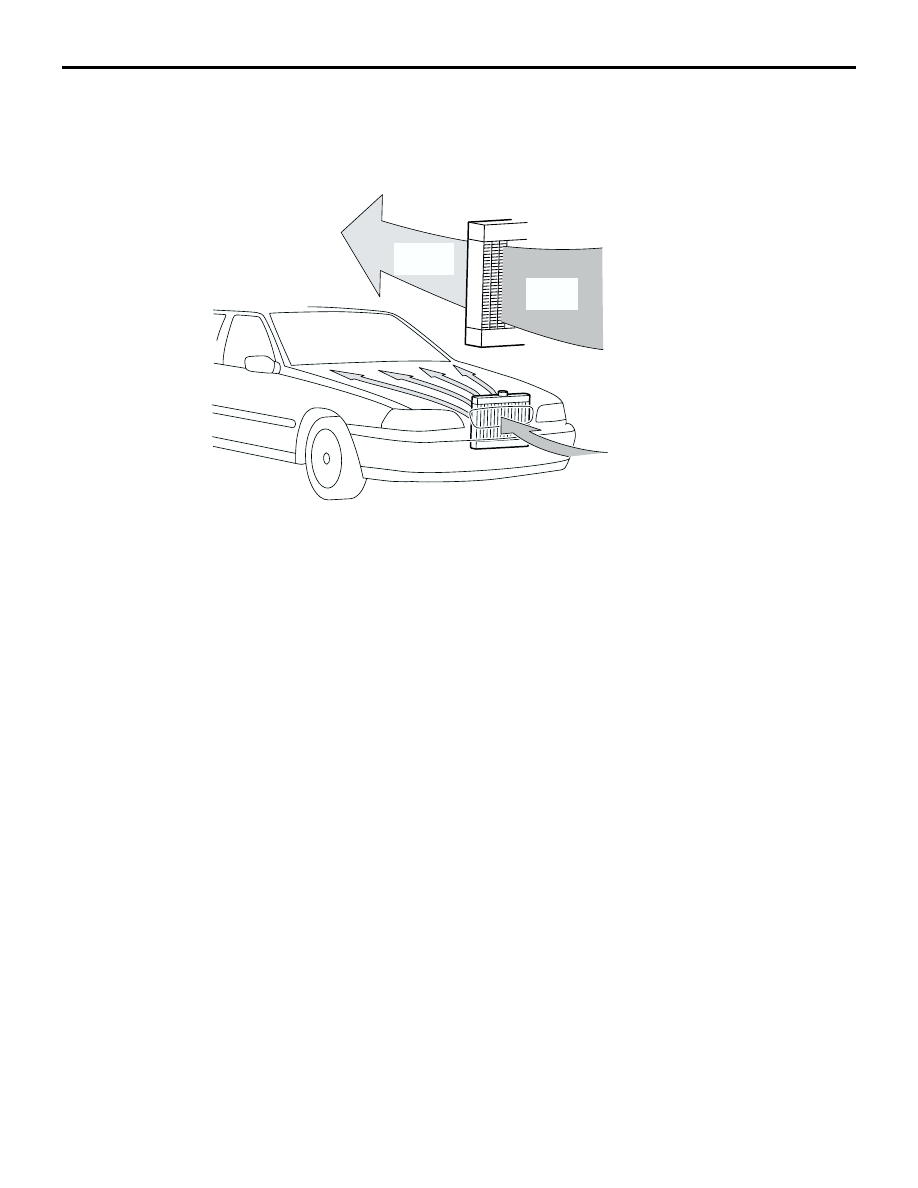

A front air intake system that actively sucks cool-
ing air from the front through the top of the radia-
tor improves engine performance and reduces air
intake noise.

•

Environmentally friendly unleaded rubber materi-
als are used for the air intake hose.

•

A large air cleaner resonator has been installed
on the locker cover to increase engine perfor-
mance and reduce air intake noise. <2.4L
Engine>

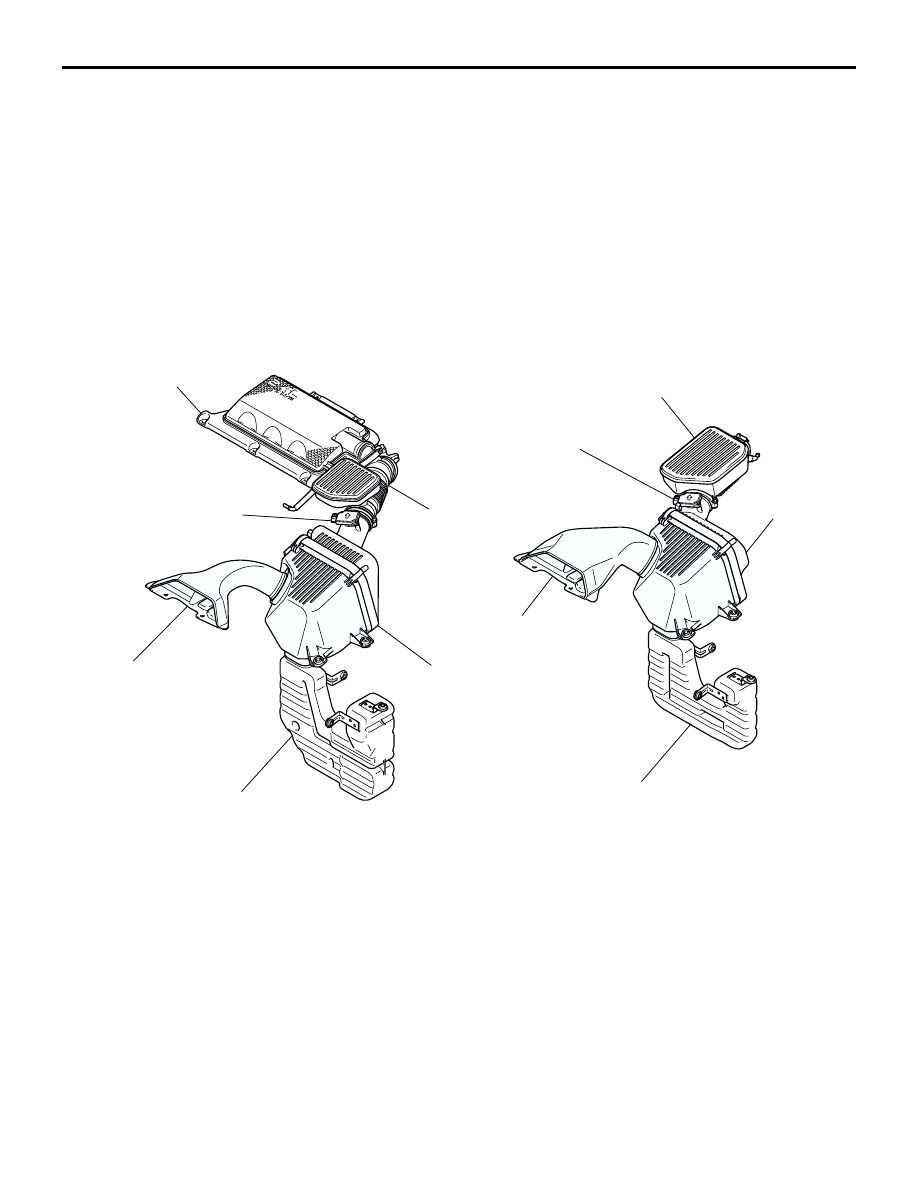

CONSTRUCTION DIAGRAM

AC305877

AC305878
AC306420

<2.4L ENGINE>

<3.8L ENGINE>

AIR CLEANER
RESONATOR

MASS
AIRFLOW
SENSOR

AIR CLEANER
INTAKE DUCT

AIR CLEANER
ASSEMBLY

AIR CLEANER TO
THROTTLE BODY
DUCT

MASS
AIRFLOW
SENSOR

AIR CLEANER
ASSEMBLY

AB

AIR CLEANER
INTAKE DUCT

AIR CLEANER TO
THROTTLE BODY
DUCT

AIR CLEANER
RESONATOR

AIR CLEANER
RESONATOR
