TRUNK LID

BODY

42-17

TRUNK LID

M2420013000083

TRUNK LID LATCH

•

The trunk lid latch prevents a person from being
confined in the luggage compartment in an acci-
dent.
You can open the trunk lid by pulling an emer-
gency trunk lid release handle to the arrow direc-
tion when you are confined in the luggage
compartment in an accident.

•

The emergency trunk lid release handle glows by
absorbing light, so you can operate the handle
even in a dark luggage compartment.

NOTE: The glow time depends on the amount of
light absorption, but the handle will glow four
hours maximum when exposed to sunlight for 30
seconds or more. The glow performance
depends on environmental conditions.

•

The trunk lid inside handle is installed on the
trunk lid to improve the trunk lid operation.

AC305563

AC305564

AC306162

AC305565

AB

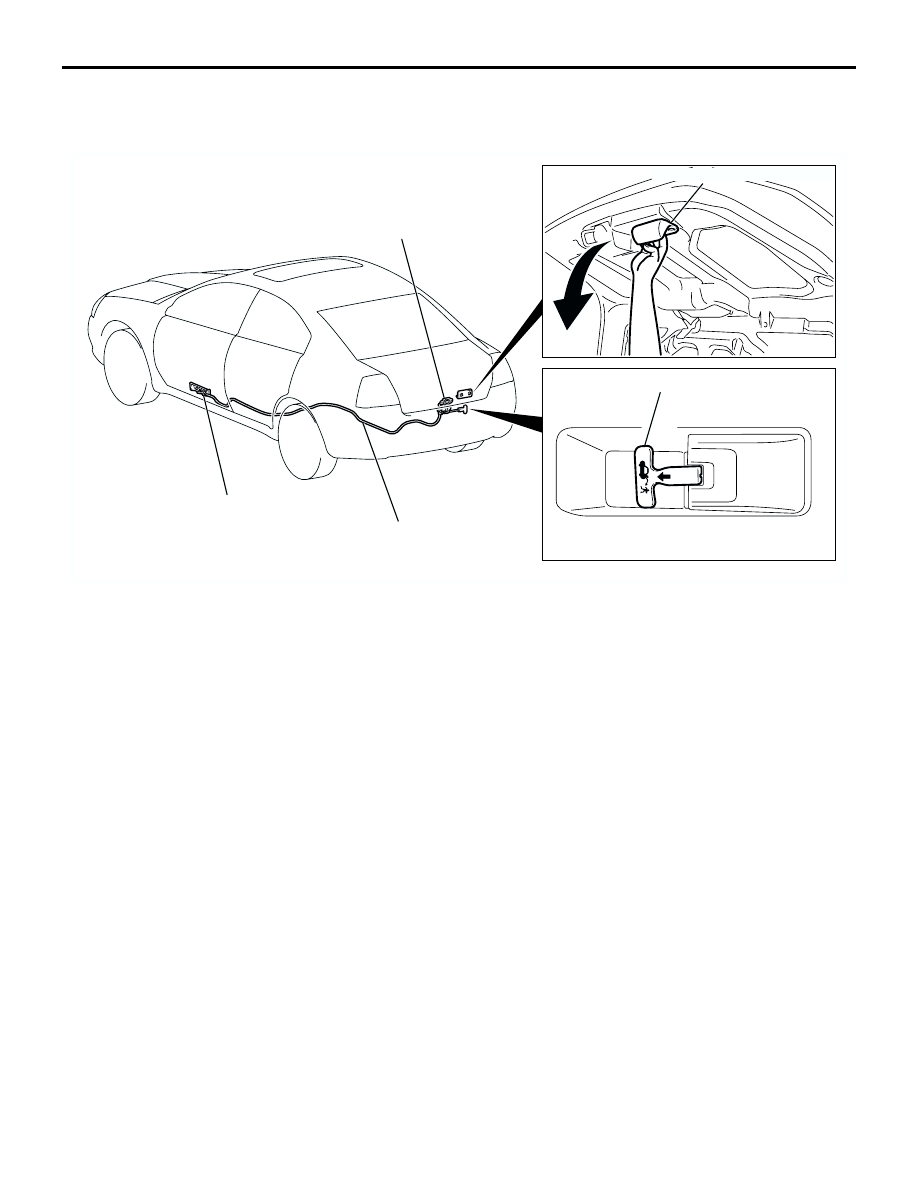

EMERGENCY TRUNK LID RELEASE HANDLE

TRUNK LID LATCH ASSEMBLY

TRUNK LID RELEASE HANDLE

TRUNK LID RELEASE CABLE

TRUNK LID INSIDE HANDLE

TRUNK LID

BODY

42-18

TRUNK LID GAS SPRING

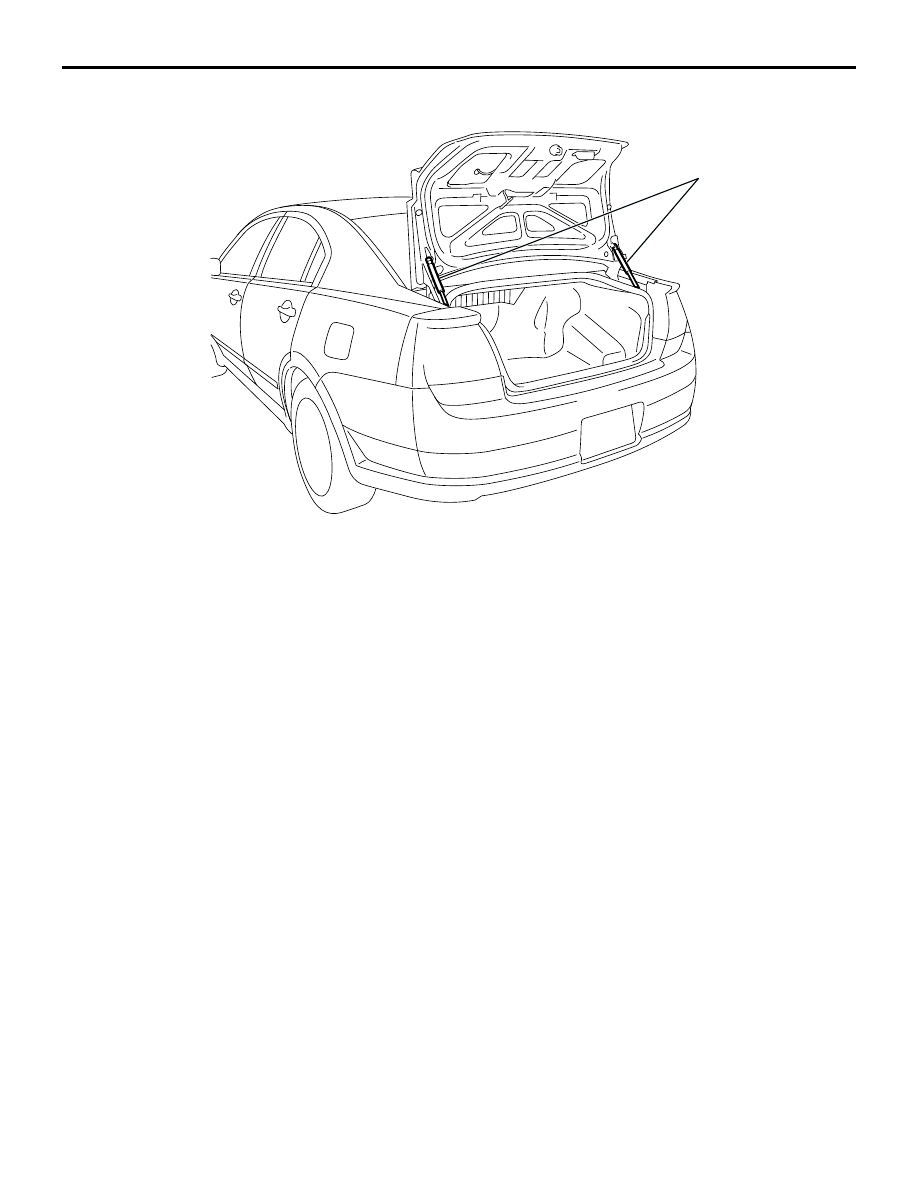

The gas springs allow the customer to open or close
the trunk lid easily.

AC305566

AB

GAS SPRING

KEYLESS ENTRY SYSTEM

BODY

42-19

KEYLESS ENTRY SYSTEM

M2420010000169

A keyless entry system enable locking and unlocking
of all doors from up to 12m (39.4 feet) away from the
vehicle. The following features are also available.

•

 All doors can be locked and unlocked and the
trunk lid can be unlocked with the transmitter
when its radio signals are received by the
receiver with an antenna in the ETACS-ECU.

•

Locking and unlocking with the transmitter is con-
firmed using a hazard answerback function (illu-
minated or flashing turn-signal lights, dome light)
or horn answerback function (honking of horn).

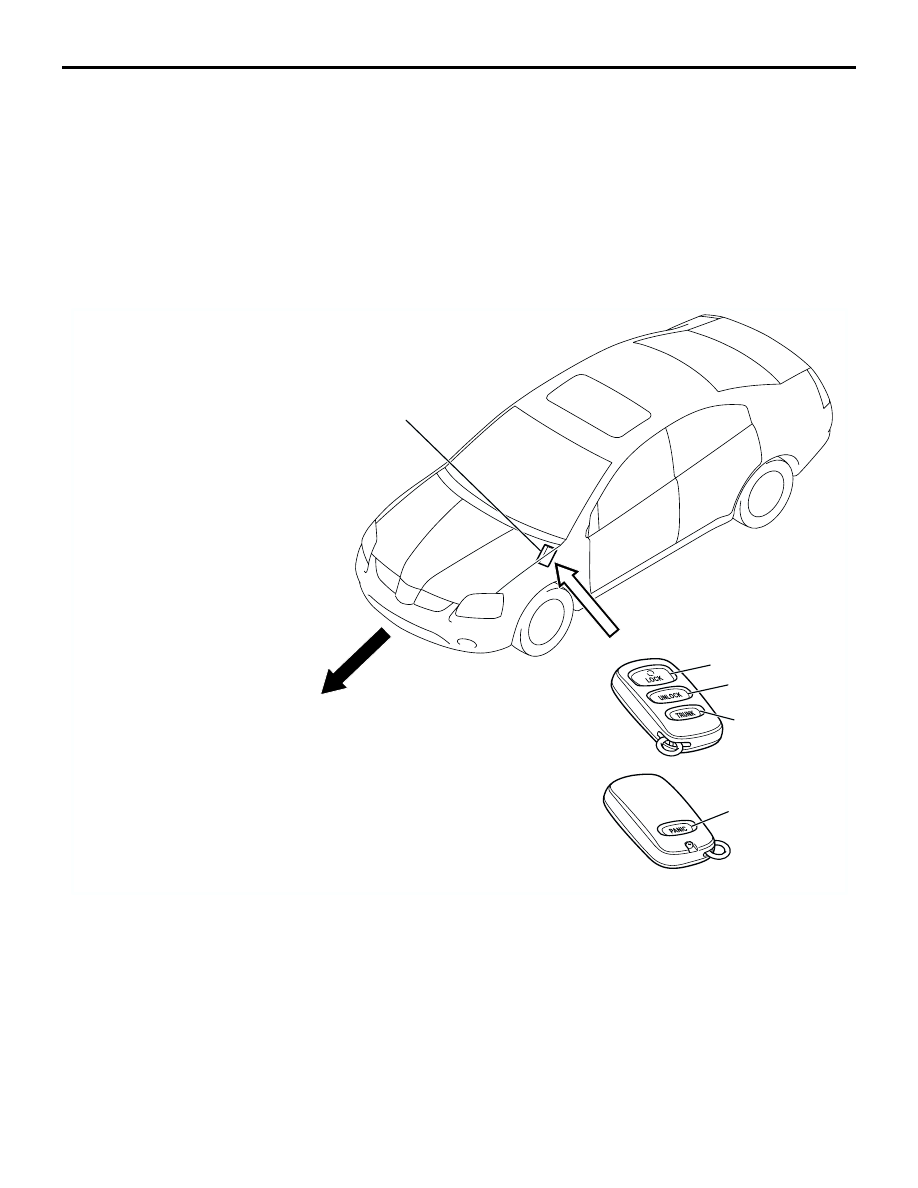

CONSTRUCTION DIAGRAM

AC306172

AC305502

AC305557

AC305558

· DOME LIGHT (WHEN LOCKED: FLASHES ONCE,
                           WHEN UNLOCKED: ILLUMINATES FOR 15 SECONDS)
· TURN SIGNAL LIGHTS (WHEN LOCKED: FLASHES ONCE,
                                          WHEN UNLOCKED: FLASHES TWICE)
· HORN (WHEN LOCKED WHILE DRIVER'S SIDE DOOR IS LOCKED:
               SOUNDS  ONCE, WHEN UNLOCKED: NOT SOUND)
· DOOR LOCK ACTUATOR (WHEN LOCKED: LOCKING,
                                              WHEN UNLOCKED: UNLOCKING)
· TRUNK LID ACTUATOR (WHEN UNLOCKED: UNLOCKING)

TRANSMITTER

LOCK BUTTON

UNLOCK BUTTON

PANIC BUTTON

<FRONT VIEW >

<REAR VIEW>

TRUNK BUTTON

AB

ETACS-ECU
(INCORPORATING RECEIVER WITH AN ANTENNA)

RADIO SIGNAL

ELECTRIC SIGNAL

KEYLESS ENTRY SYSTEM

BODY

42-20

Keyless entry system operation table (default)

Keyless entry system operation table (after adjustment)

NOTE: For further details on using the multi-center
display (middle grade type) to adjust the keyless
entry lock operation, refer to GROUP 54B, Simplified
Wiring System

P.54B-10

.

OPERATION OF TRANSMITTER

OPERATION OF KEYLESS ENTRY SYSTEM

Lock button

Press once

Lock all doors

Unlock button

Press once

Unlock the driver’s door

Press again

Unlock all doors

Trunk button

Press twice (press once,
and then press again within
5 seconds)

Unlock the trunk lid

Panic alarm
system

Panic button

Press once

Starts the panic alarm (headlights flash and
horn honks for three minutes)

Lock button,
unlock button,
trunk button or
panic button

Press again

Stops the panic alarm in progress

OPERATION OF TRANSMITTER

OPERATION OF KEYLESS ENTRY SYSTEM

Lock button

Press once

Lock all doors

Unlock button

Press once

Unlock all doors

Trunk button

Press twice (press once,
and then press again within
5 seconds)

Unlock the trunk lid

Panic alarm
system

Panic button

Press once

Starts the panic alarm (headlights flash and
horn honks for three minutes)

Lock button,
unlock button,
trunk button or
panic button

Press again

Stops the panic alarm in progress
