MAIN BODY

BODY

42-5

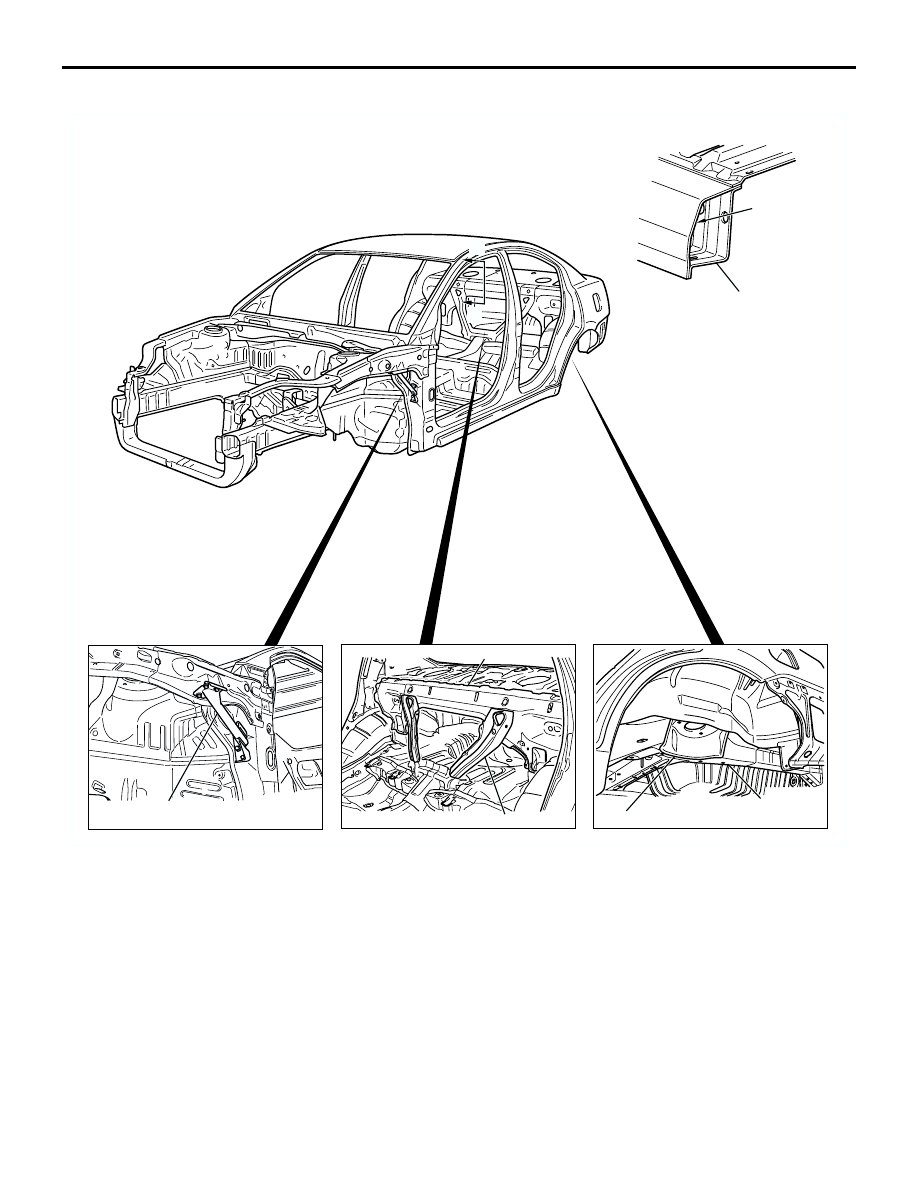

DRIVING STABILITY

Driving stability and quietness have been improved
by increasing the rigidity of suspension assembly
area.

1. The front upper frame and the front pillar are

combined by the front pillar to upper frame brace,
to improve body torsional rigidity and rigidity of
the front suspension mounting point.

2. The rear deck crossmember features a closed

section structure, which is extended to the rear
floor. The seatback plate enhances vehicle body
torsional rigidity and reinforced the rear suspen-
sion mountings.

3. The spring house bracket is beside the rear floor

sidemember, to improve the rigidity of the rear
suspension mounting point.

AB301108

AB300730

AB

SPRING HOUSE BRACKET

REAR FLOOR SIDEMEMBER

FRONT PILLAR TO UPPER
FRAME BRACE

REAR DECK CROSSMEMBER

SEATBACK PLATE

A

A

REAR DECK
CROSSMEMBER

REAR SHELF
EXTENSION

SECTION A – A

MAIN BODY

BODY

42-6

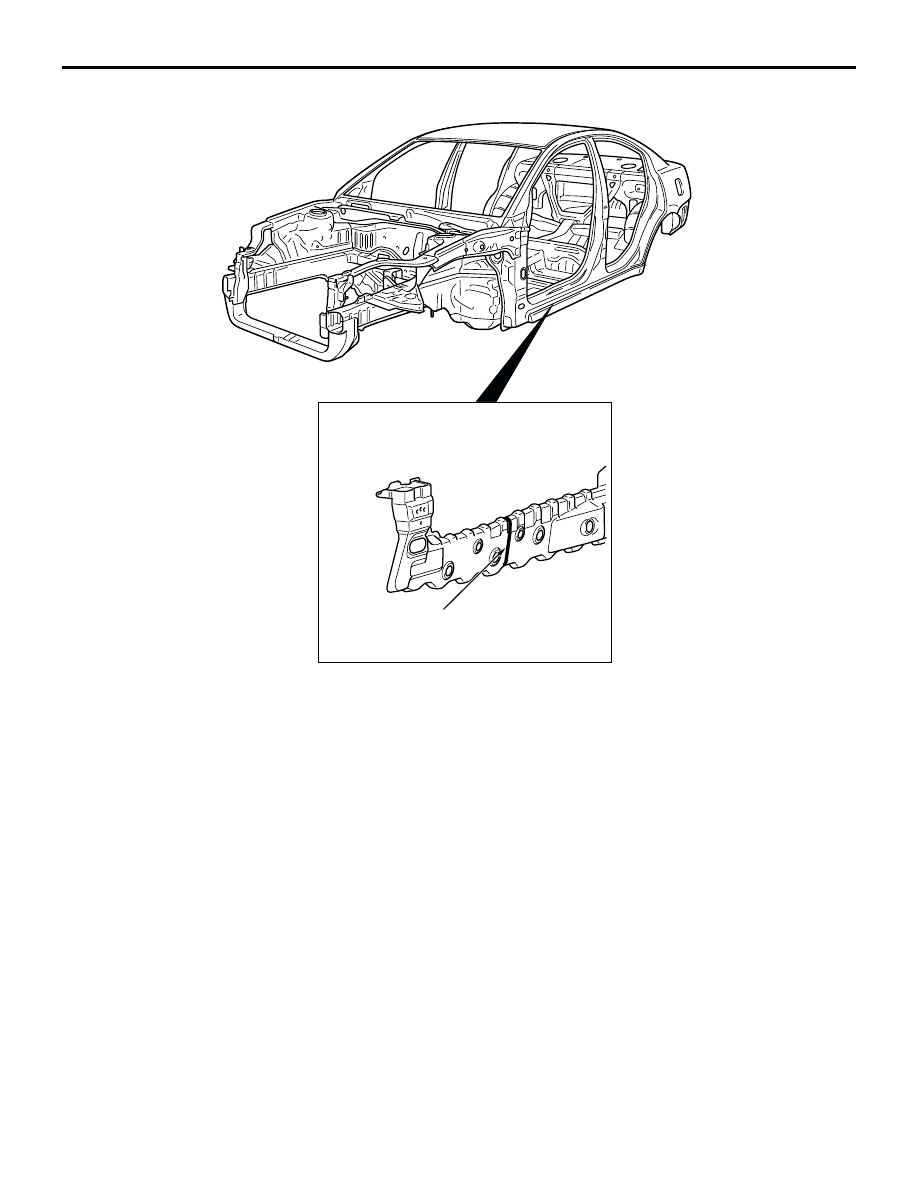

STEEL PLATE WITH UNEVEN THICKNESS

.

The following part is made of an uneven-thickness
steel sheet*. Safety upon impact and lightness are
improved by the integrated varying thickness struc-
ture.

•

The thickness of the side sill outer reinforcement
inner applied at the front is increased.

NOTE: *: Steel plates with different thickness welded
together to make one steel plate.

AB301098

SIDE SILL OUTER REINFORCEMENT,
INNER

BOUNDARY LINE

AB

MAIN BODY

BODY

42-7

QUIETNESS

M2420004000159

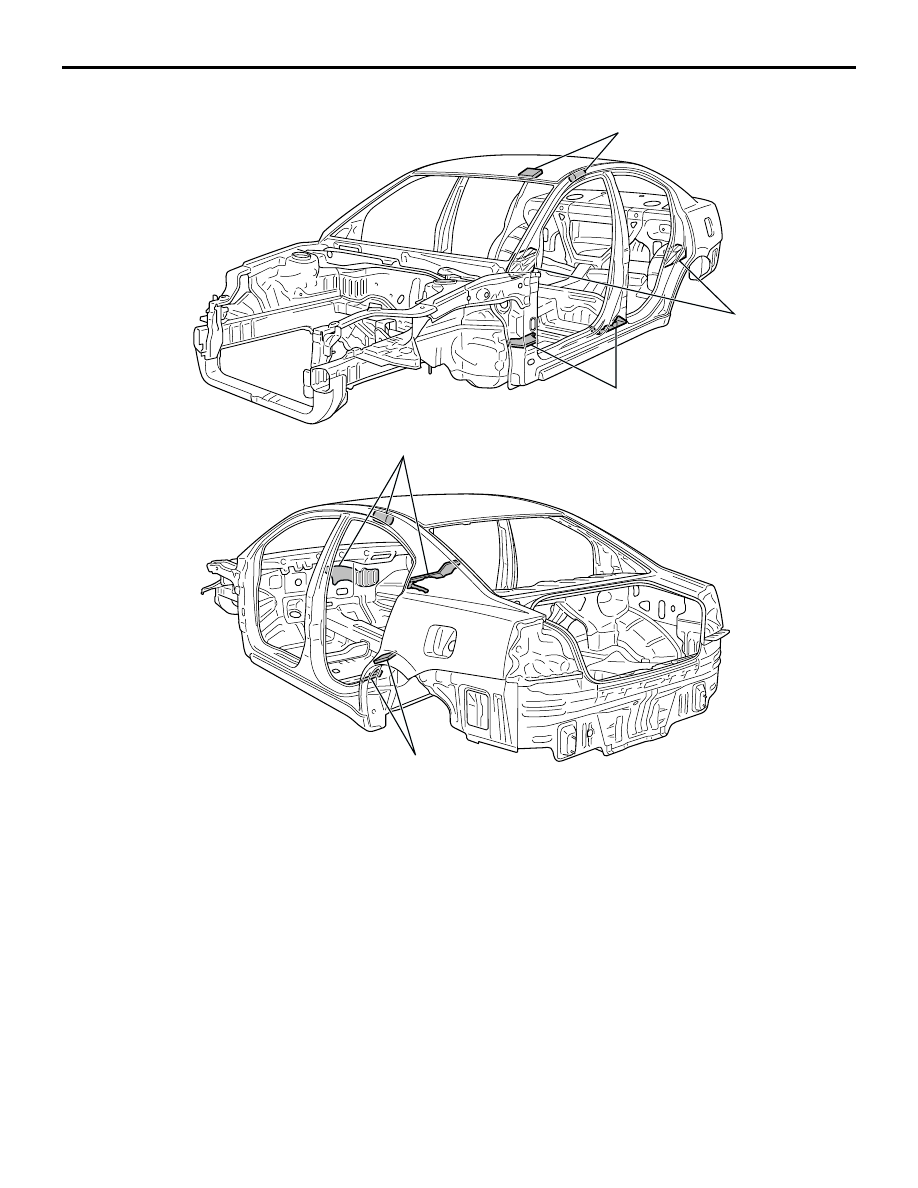

Quietness has been improved with foam acoustic
material and urethane foam.
1. Foam acoustic materials have been filled into the

front pillar, the roof rail, the roof side rail, the
center pillar, the dash panel, the rear pillar and
inside the wheel house arch, to prevent noise
inside the vehicle.

2. Urethane foam has been inserted into the front

pillar and the rear seatback brace to prevent noise
inside the vehicle.

AB301048AB

1

1

1

1

2

STRUT TOWER BAR

BODY

42-8

BODY COLOR CHARTS

M2420005000215

NOTE: Inner Panel-Color refers to the coat color of the engine compartment, cabin and floor.

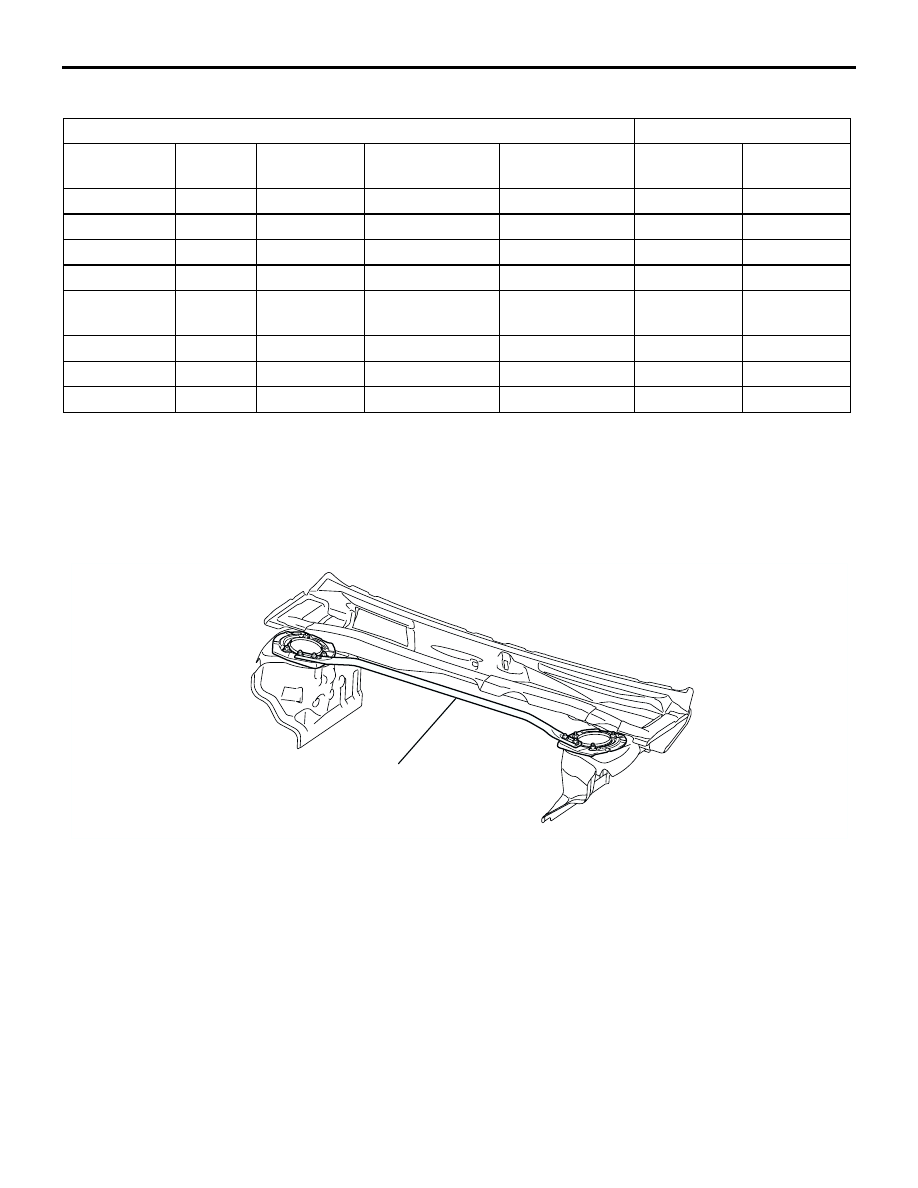

STRUT TOWER BAR

M2420001300065

A strut tower bar is used at the strut attachment
point, to improve body rigidity.<GTS>

OUTER PANEL-COLOR

INNER PANEL-COLOR

COLOR

COLOR
CODE

COLOR
NUMBER

COLOR NAME

COMPOSITION
OF FILM

COLOR
NUMBER

COLOR
NAME

SILVER

A68

AC11268

*

Metallic

*

*

DARK GRAY H32

CUH10032

*

Pearl

*

*

BLUE

T34

CUT10034

*

Pearl

BEIGE

S13

CUS10013

*

Pearl

*

*

GRYISH
GREEN

G69

CUG10069

*

Pearl

*

*

BLACK

X13

AC10813

*

Solid

*

*

WHITE

W69

AC11269

*

Pearl

*

*

DEEP RED

P06

CUP10006

*

Pearl

*

*

AC305561AB

STRUT TOWER BAR
