ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-7

ENGINE COOLANT REPLACEMENT

M1141001200478

WARNING

When removing the radiator cap, use care to avoid
contact with hot coolant or steam. Place a shop towel
over the cap and turn the cap counterclockwise a lit-
tle to let the pressure escape through the vinyl tube.
After relieving the steam pressure, remove the cap by
slowly turning it counterclockwise.

1. Drain the water from the radiator, heater core and engine

after unplugging the radiator drain plug and removing the
radiator cap.

2. Drain the water in the water jacket by unplugging the drain

plug of the cylinder block.

3. Remove the radiator condenser tank assembly and drain the

coolant.

4. Drain the coolant then clean the path of the coolant by

injecting water into the radiator from the radiator cap area.

AC304173AC

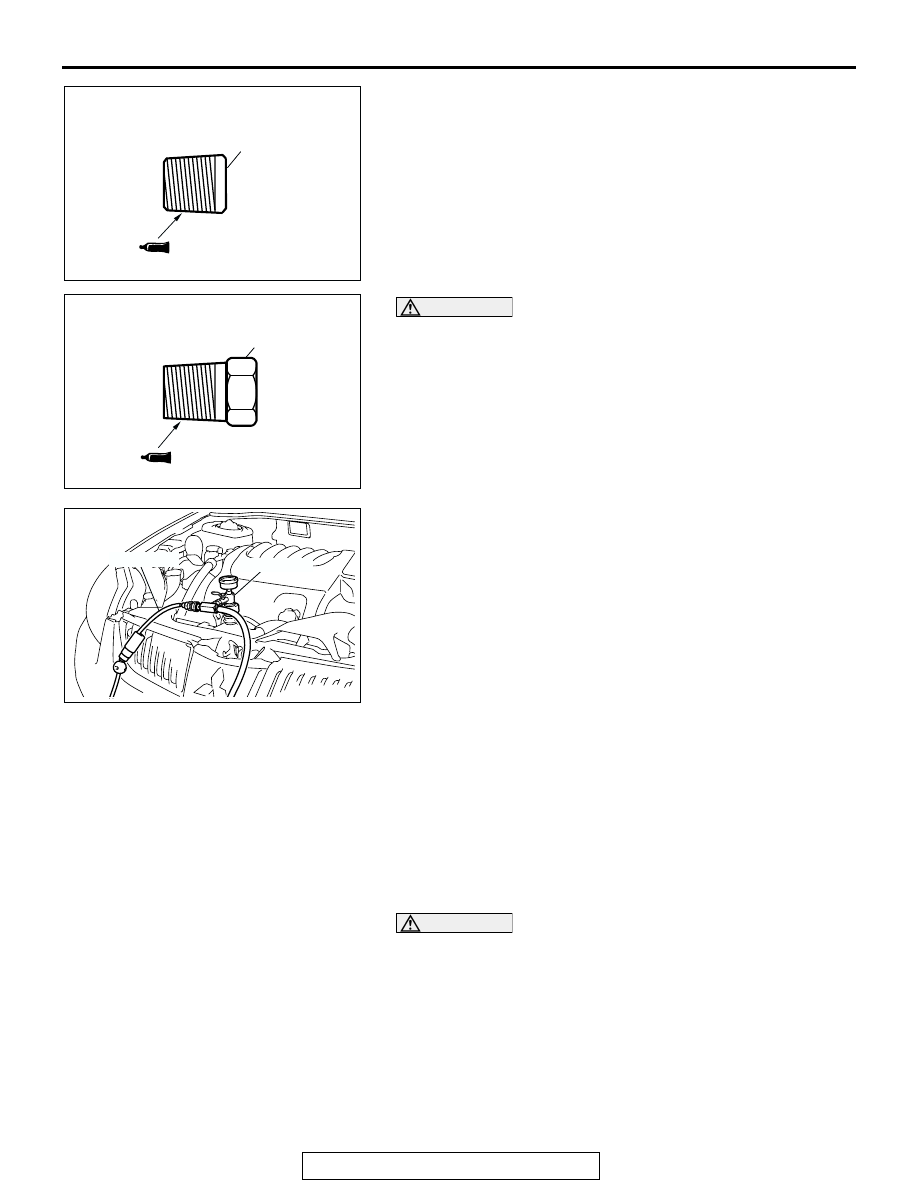

CYLINDER BLOCK
DRAIN PLUG

INTAKE MANIFOLD

<2.4L ENGINE>

AC306131AB

<3.8L ENGINE: LEFT BANK>

CYLINDER BLOCK
DRAIN PLUG

AC306132AB

<3.8L ENGINE: RIGHT BANK>

CYLINDER BLOCK
DRAIN PLUG

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-8

5. Apply the designated sealant to the screw area of the

cylinder block drain plug, and then tighten to the standard
torque.

Specified sealant: 3M

 AAD Part No.8731 or equiva-

lent

Tightening torque:

<2.4L Engine> 44

± 5 N⋅m (33 ± 3 ft-lb)

<3.8L Engine> 39

± 5 N⋅m (29 ± 3 ft-lb)

6. Securely tighten the radiator drain plug.
7. Assemble the radiator condenser tank assembly.

CAUTION

• Do not use alcohol or methanol anti-freeze or any

engine coolants mixed with alcohol or methanol
anti-freeze. The use of an improper anti-freeze can
cause corrosion of the aluminum components.

• If the coolant contact the PremAir direct ozone reduc-

tion (DOR) radiator, wash it with water at once. <Vehi-
cles for California emission regulation> (2.4L Engine)

8. By referring to the section on coolant, select an appropriate

concentration for safe operating temperature within the
range of 30 to 60 %. Use special tool MB991871 to refill the
coolant. A convenient mixture is a 50 % water and 50 %
antifreeze solution [freezing point:

−31°C (−32.8 °F)].

Recommended antifreeze: Long Life Antifreeze

Coolant or an equivalent

Quantity:

<2.4L Engine> 7.7 dm

3

 (8.1 quarts)

<3.8L Engine> 8.7 dm

3

 (9.2 quarts)

NOTE: For how to use special tool MB991871, refer to its
manufacturer’s instructions.

9. Reinstall the radiator cap.
10.Start the engine and let it warm up until the thermostat

opens.

11.After repeatedly revving the engine up to 3,000 r/min several

times, stop the engine.

12.Remove the radiator cap after the engine has cooled, and

pour in coolant up to the brim. Reinstall the cap.

CAUTION

Do not overfill the radiator condenser tank assembly.
13.Add coolant to the radiator condenser tank assembly

between the "FULL" and "LOW" mark if necessary.

ENGINE COOLANT CONCENTRATION TEST

M1141001100396

Refer to GROUP 00, RECOMMENDED LUBRICANTS AND
LUBRICANT CAPACITIES TABLE

P.00-34

.

AC304677 AC

CYLINDER BLOCK
DRAIN PLUG

<2.4L ENGINE, 3.8L ENGINE: RIGHT BANK>

AC200625AD

CYLINDER BLOCK
DRAIN PLUG

<3.8L ENGINE: LEFT BANK>

AC306129

AIR HOSE

MB991871

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-9

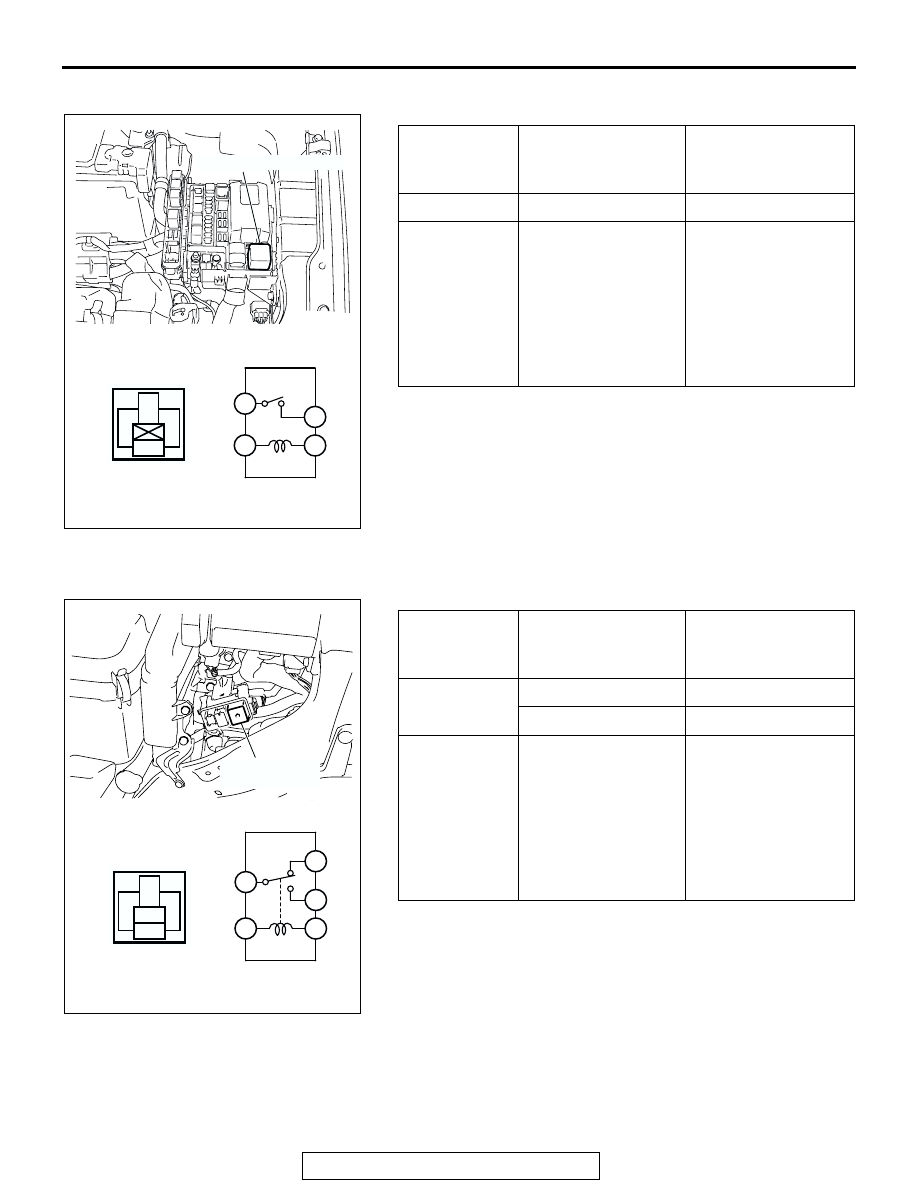

FAN CONTROL RELAY CONTINUITY CHECK

M1141006200310

RADIATOR FAN RELAY CHECK

M1141004400028

BATTERY
VOLTAGE

TERMINAL NO. TO
BE CONNECTED
TO TESTER

CONTINUITY TEST
RESULTS

Not applied

4

− 2

Open circuit

Connect
terminal No.3
and battery (

−)

terminal.
Connect
terminal No.1
and battery (+)
terminal.

4

− 2

Less than 2 ohms

AC305017

1

3

4

2

3

4

1

2

AC307445

FAN CONTROL RELAY

AB

BATTERY
VOLTAGE

TERMINAL NO. TO
BE CONNECTED
TO TESTER

CONTINUITY TEST
RESULTS

Not applied

2

− 4

Less than 2 ohms

2

− 5

Open circuit

Connect
terminal No.3
and battery (

−)

terminal.
Connect
terminal No.1
and battery (+)
terminal.

2

− 5

Less than 2 ohms

AC306697

1

3

4

2

3

2

1

5

5

4

AC307444

RADIATOR FAN
RELAY

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-10

RADIATOR FAN MOTOR CHECK

M1141007100093

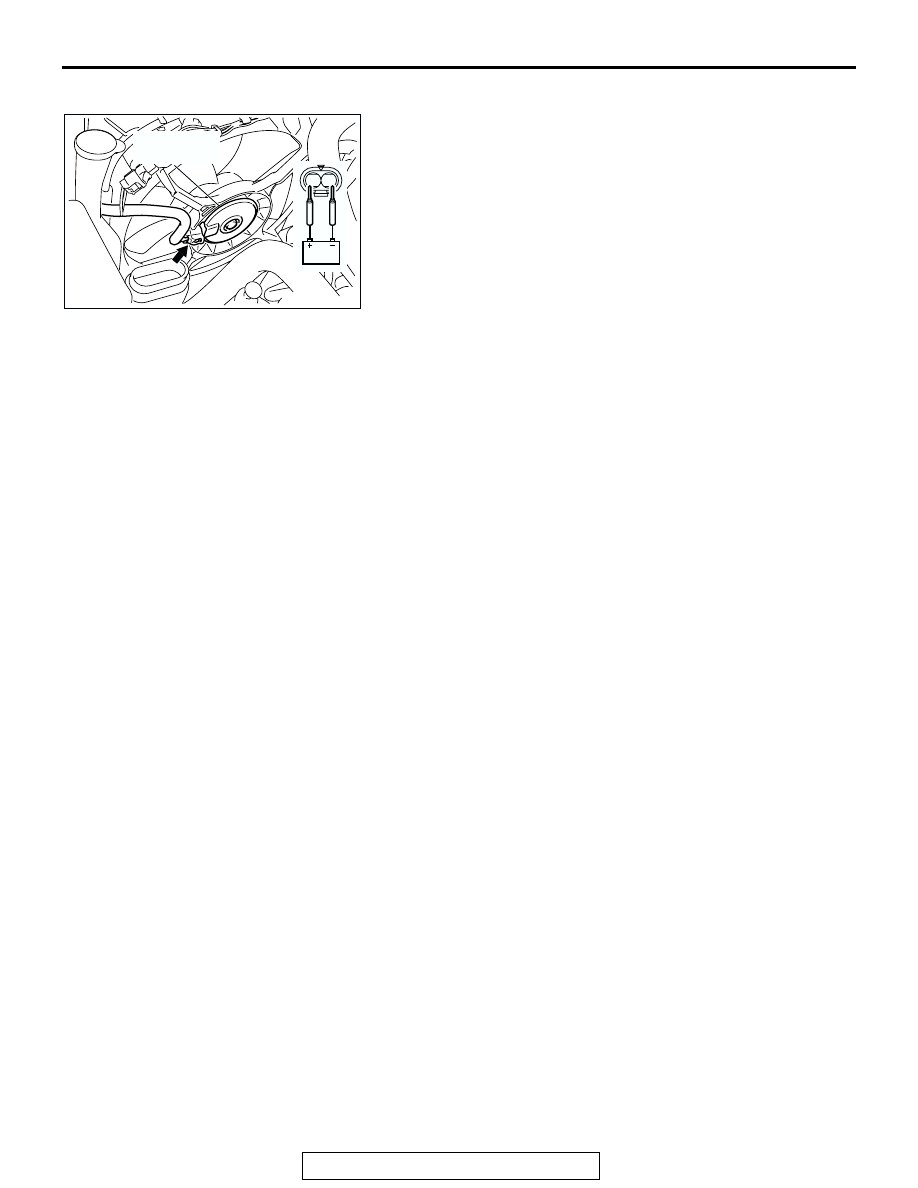

1. Remove the radiator fan motor connector.
2. Check to see that the fan motor of the radiator turns when

applying battery power between the connector terminals of
the radiator fan motor. Also check to see that there is no
abnormal sound coming from the radiator fan motor at this
time.

3. If the radiator fan motor is defective, replace it.

AC306130

RADIATOR
FAN MOTOR

1

2
