REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-65

DISASSEMBLY SERVICE POINT

.

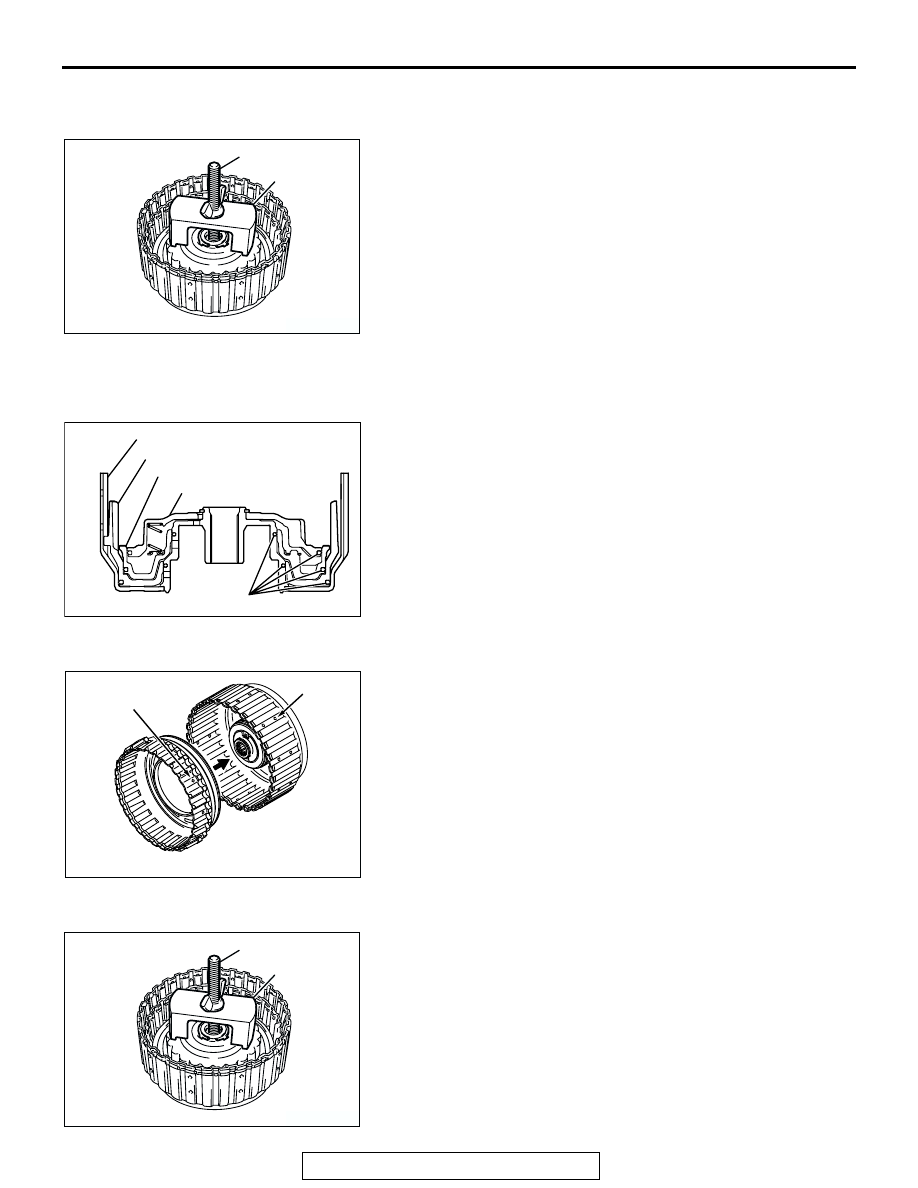

<<A>> SNAP RING REMOVAL
1. Set special tools MD999590 and MD998924 as shown in the

illustration.

2. Compress the return spring and remove the snap ring.

ASSEMBLY SERVICE POINTS

.

>>A<< D-RING INSTALLATION
1. Install D-rings in the grooves on the reverse clutch retainer,

piston, overdrive clutch piston and spring retainer. Be careful
not to twist or damage the D-rings.

2. Apply ATF or petroleum jelly (Vaseline) to D-rings.

.

>>B<< REVERSE CLUTCH PISTON INSTALLATION
Align the outer circumference holes ("A" and "B") of the reverse
clutch piston and the reverse clutch retainer to assemble them.

.

>>C<< SNAP RING INSTALLATION
1. Set special tools MD999590 and MD998924 as shown in the

illustration.

2. Tighten the nut on the special tool to press down on the

spring retainer and reverse clutch retainer, and then install
the snap ring.

AK300525AD

MD999590

MD998924

AK301765

D-RING

REVERSE CLUTCH RETAINER

REVERSE CLUTCH PISTON

OVERDRIVE CLUTCH PISTON

SPRING RETAINER

AB

AK301276AC

A

B

AK300525AD

MD999590

MD998924

REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-66

3. Check that the clearance between the snap ring and the

return spring retainer is within the standard value. If not
within the standard value, select a snap ring to achieve the
standard value clearance.

Standard value: 0

− 0.09 mm (0 − 0.0035 inch)

.

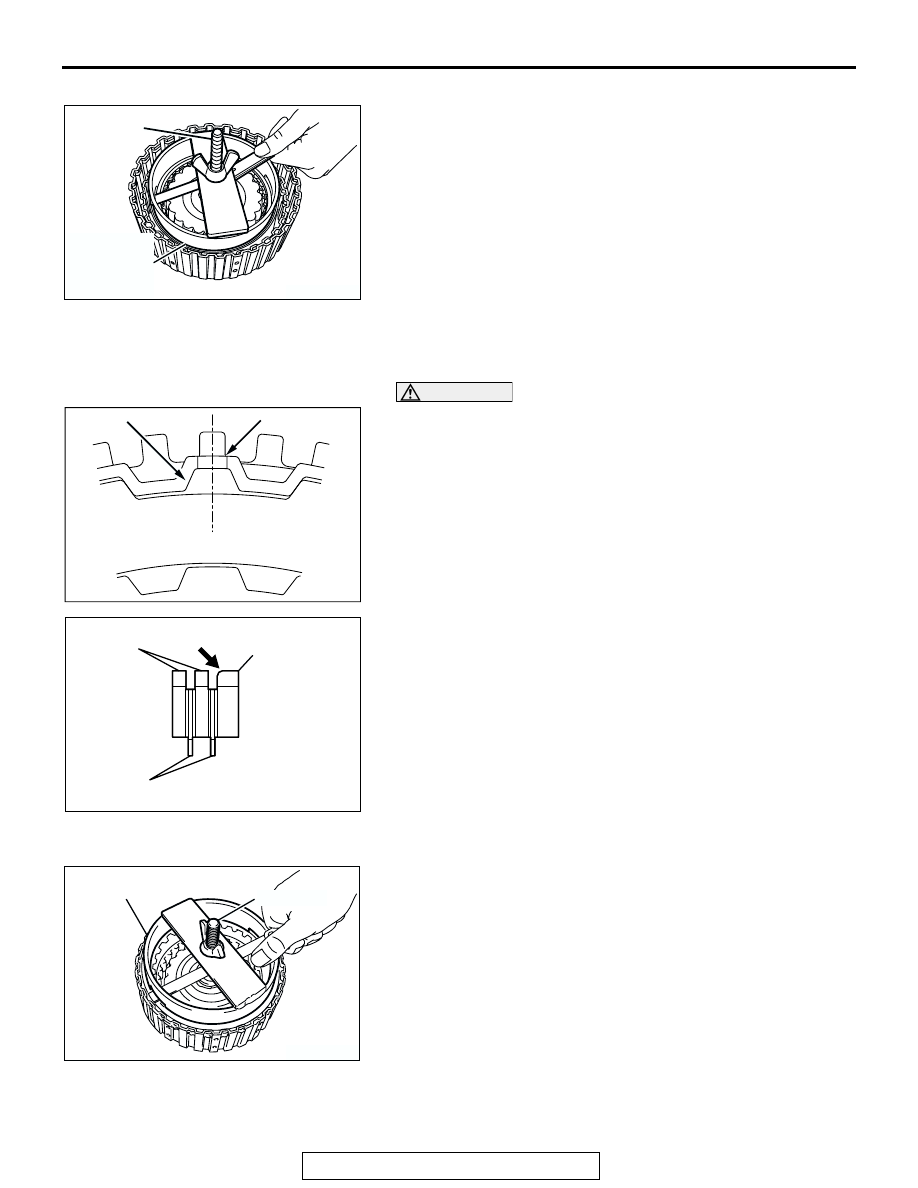

>>D<< PRESSURE PLATE/CLUTCH PLATE/CLUTCH
DISC/CLUTCH REACTION PLATE INSTALLATION
1. Install the pressure plate in the direction shown <F4A5A>.

CAUTION

Immerse the clutch disc in ATF before assembling it. If the
clutch disc is new, soak it in ATF for more than two hours.
2. Assemble the clutch discs and clutch plates, one on top of

the other, inside the reverse clutch piston. Assemble both
clutch plates so that the places with no teeth (marked "A")
are aligned with the holes in the retainer (marked "B").

NUMBER OF CLUTCH DISCS AND CLUTCH PLATES

3. Install the clutch reaction plate in the direction shown.

.

AK300526

MODEL

CLUTCH DISC

CLUTCH PLATE

F4A4B

4

4

F4A5A

4

3

AK301766

CLUTCH PLATES ROUNDED EDGE

CLUTCH DISCS

CLUTCH
REACTION
PLATE

AC

<F4A4B>

AK303676AB

CLUTCH DISCS

CLUTCH
REACTION
PLATE

PRESSURE
PLATE

ROUNDED EDGE

CLUTCH
PLATES

<F4A5A>

AK301272AC

A

B

REVERSE AND OVERDRIVE CLUTCH

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-67

>>E<< SNAP RING INSTALLATION
1. Install the snap ring into the groove in the reverse clutch

piston.

2. Set special tools MB991628 <F4A4B> or MB991629

<F4A5A> and MD998924 as shown in the illustration, and
compress the clutch element.

3. Check that the clearance between the snap ring and the

clutch reaction plate is within the standard value. If not within
the standard value, select a snap ring to achieve the
standard value clearance.

Standard value: 1.6

− 1.8 mm (0.0630 − 0.0709 inch)

.

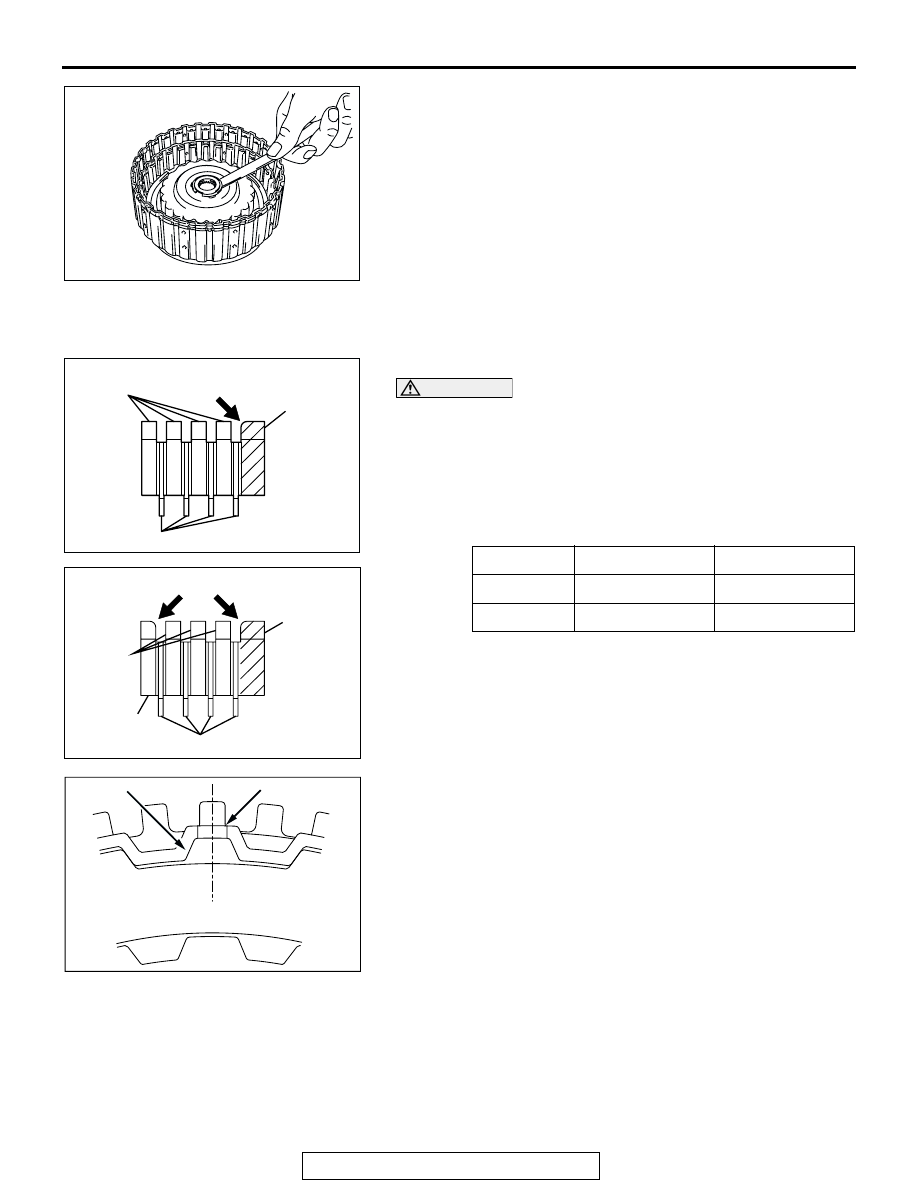

>>F<< CLUTCH PLATE/CLUTCH DISC/CLUTCH REACTION
PLATE INSTALLATION

CAUTION

Immerse the clutch disc in ATF before assembling it. If the
clutch disc is new, soak it in ATF for at least two hours.
1. Assemble two clutch discs and two clutch plates, one on top

of the other, inside the reverse clutch retainer. Assemble
both clutch plates so that the places with no teeth (marked
"A") are aligned with the holes in the retainer (marked "B").

2. Install the clutch reaction plate in the direction shown. Install

it the same as the clutch plate, so that the places with no
teeth (marked "A") are aligned with the holes in the retainer
(marked "B").

.

>>G<< SNAP RING INSTALLATION
1. Install the snap ring into the groove of reverse clutch

retainer.

2. Set special tools MB991790 <F4A4B> or MB991789

<F4A5A> and MD998924 as shown in the illustration, and
compress the clutch element.

3. Check that the clearance between the snap ring and the

clutch reaction plate is within the standard value. If not within
the standard value, select a snap ring to achieve the
standard value clearance.

Standard value: 1.5

− 1.7 mm (0.0591 − 0.0669 inch)

AK202313

MD998924

AG

MB991628
<F4A4B> OR
MB991629
<F4A5A>

AK301272AC

A

B

AK301320

AK301320

AC

CLUTCH
PLATES

ROUNDED
EDGE

CLUTCH DISCS

CLUTCH
REACTION
PLATE

AK300528AD

MB991790 <F4A4B> OR
MB991789 <F4A5A>

MD998924

PLANETARY GEAR

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-68

PLANETARY GEAR

DISASSEMBLY AND ASSEMBLY

M1233002500173

AK301602

1

3

4

6

2

5

7

9

8

10

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

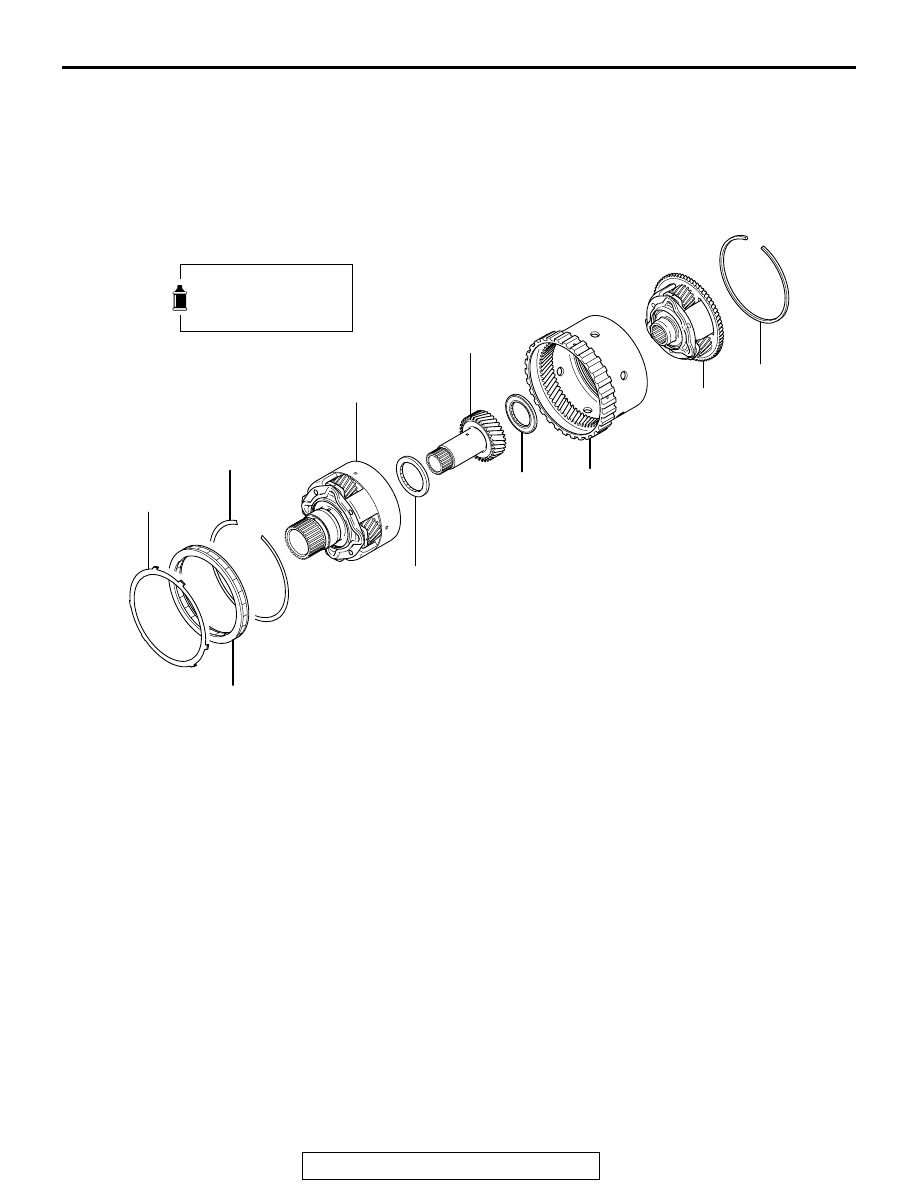

DISASSEMBLY STEPS

1.

STOPPER PLATE

>>B<<

2.

ONE-WAY CLUTCH

3.

SNAP RING

4.

OUTPUT PLANETARY CARRIER

>>A<<

5.

THRUST BEARING NUMBER 3

6.

UNDERDRIVE SUN GEAR

>>A<<

7.

THRUST BEARING NUMBER 4

8.

SNAP RING

9.

OVERDRIVE PLANETARY
CARRIER

10. OVERDRIVE ANNULUS GEAR

DISASSEMBLY STEPS
