Mitsubishi Galant (2004+). Manual - part 1631

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-13

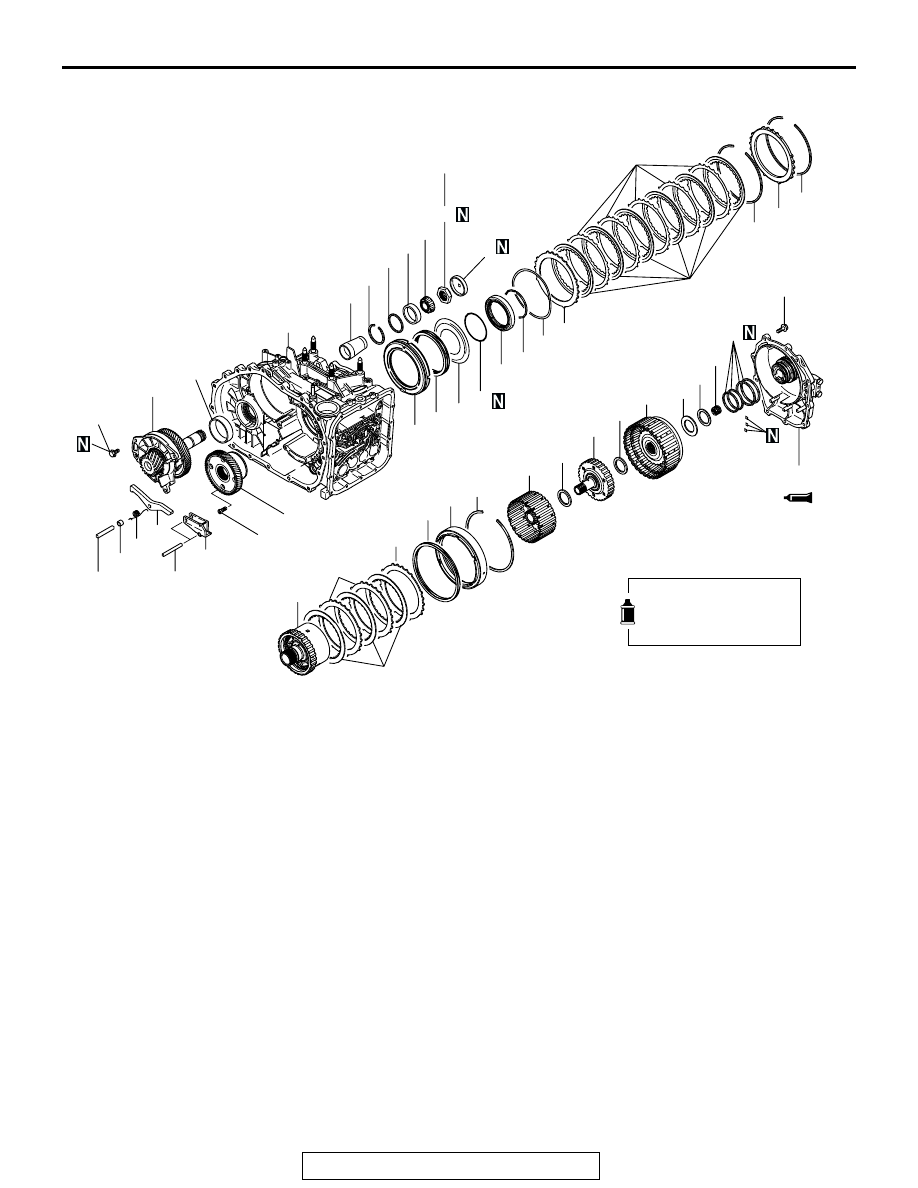

AK301616

63

65

170 ± 10 N·m
125 ± 7 ft-lb

61

62

84

82

81

87

86

85

88

90

64

66

67

74

75

76

77

78

79

80

34 ± 2 N·m
25 ± 1 ft-lb

73

71

72

70

68

33 ± 3 N·m
24 ± 2 ft-lb

69

83

89

23 ± 3 N·m
17 ± 2 ft-lb

44

45

47

48

49

50

52

53

54

55

56

57

59

60

58

51

46

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

44. REAR COVER
45. THRUST RACE NO.8
46. SEAL RING
47. INPUT SHAFT REAR BEARING
48. THRUST BEARING NO.7
49. REVERSE AND OVERDRIVE CLUTCH
50. THRUST BEARING NO.6
51. OVERDRIVE CLUTCH HUB
52. THRUST BEARING NO.5
53. PLANETARY REVERSE SUN GEAR
54. SNAP RING
55. SECOND BRAKE PISTON
56. RETURN SPRING
57. PRESSURE PLATE
58. SECOND BRAKE DISCS
59. SECOND BRAKE PLATES
60. PLANETARY CARRIER ASSEMBLY
61. SNAP RING
62. REACTION PLATE
63. SNAP RING
64. LOW-REVERSE BRAKE DISCS
65. LOW-REVERSE BRAKE PLATES
66. PRESSURE PLATE
67. WAVE SPRING

68. PARKING PAWL SHAFT
69. SPACER
70. PARKING PAWL SPRING
71. PARKING ROLLER SUPPORT SHAFT
72. PARKING PAWL
73. PARKING ROLLER SUPPORT
74. SNAP RING
75. ONE-WAY CLUTCH INNER RACE
76. O-RING
77. SPRING RETAINER
78. RETURN SPRING
79. LOW-REVERSE BRAKE PISTON
80. TRANSFER DRIVE GEAR
81. CAP
82. JAM NUT
83. OUTPUT SHAFT
84. TAPER ROLLER BEARING
85. COLLAR
86. OUTER RACE
87. SPACER
88. SNAP RING
89. OUTER RACE
90. TRANSAXLE CASE

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-14

<F4A5A>

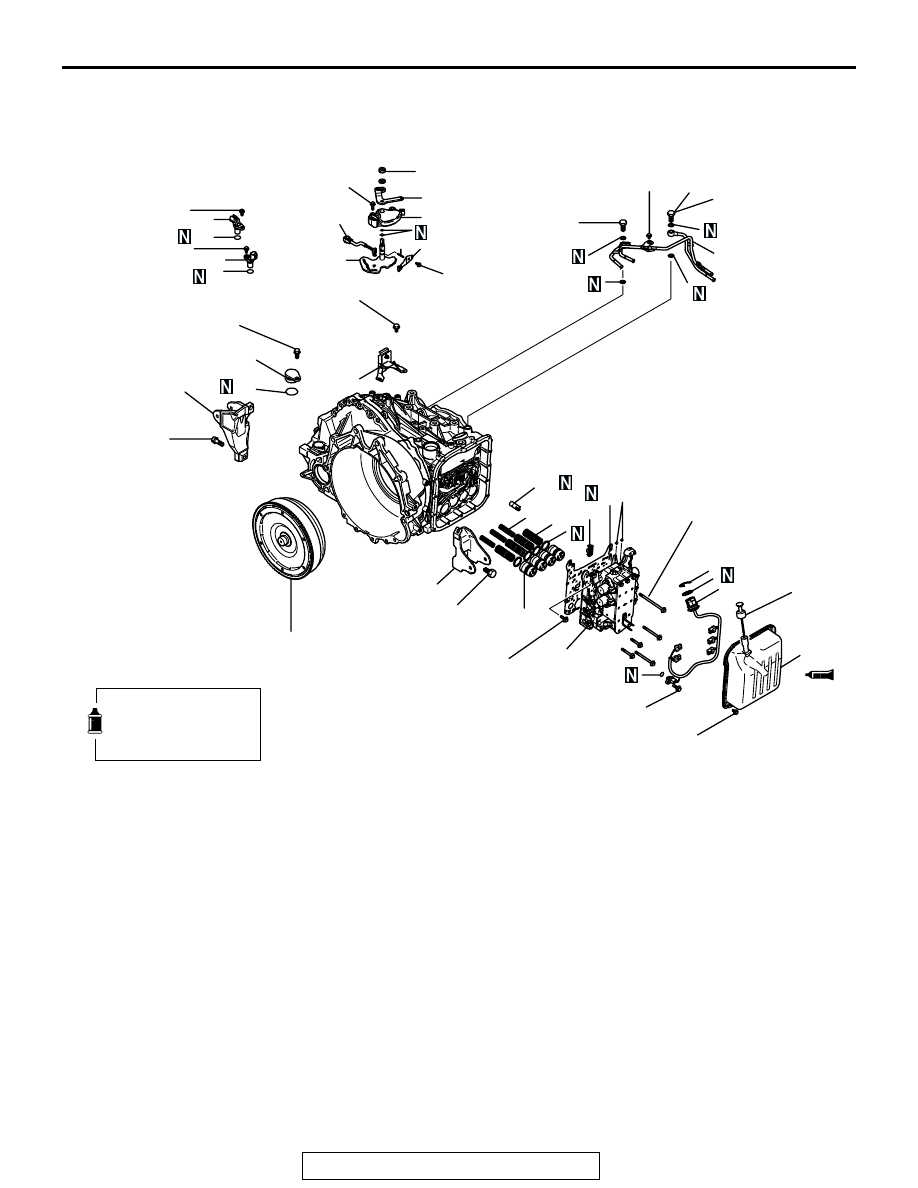

AK204127

2

1

3

5

3

8

10

8

13

25 22

12

29

28

15

27

11

26

20

21

4

24

6

3

AB

23

19

17

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

11 ± 1 N·m
95 ± 8 in-lb

70 ± 10 N·m
51 ± 7 ft-lb

70 ± 10 N·m
51 ± 7 ft-lb

24 ± 3 N·m
18 ± 2 ft-lb

24 ± 3 N·m
18 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

5 ± 1 N·m
43 ± 8 in-lb

6 ± 1 N·m
52 ± 8 in-lb

23 ± 3 N·m
17 ± 2 ft-lb

2

5

7

9

14

16

18

11 ± 1 N·m
95 ± 8 in-lb

1.

TORQUE CONVERTER

2.

ROLL STOPPER BRACKET

3.

CONTROL CABLE SUPPORT BRACKET

4.

OIL DIPSTICK

5.

EYE BOLT

6.

OIL COOLER FEED TUBE

7.

INPUT SHAFT SPEED SENSOR

8.

O-RING

9.

OUTPUT SHAFT SPEED SENSOR

10. O-RING
11. MANUAL CONTROL LEVER
12. PARK/NEUTRAL POSITION SWITCH
13. SEALING CAP
14. O-RING
15. VALVE BODY COVER

16. MANUAL CONTROL SHAFT DETENT
17. VALVE BODY
18. STEEL BALL
19. GASKET
20. SNAP RING
21. SOLENOID VALVE HARNESS
22. STRAINER
23. SECOND BRAKE RETAINER OIL SEAL
24. ACCUMULATOR PISTON
25. ACCUMULATOR SPRING
26. ACCUMULATOR SPRING
27. MANUAL CONTROL LEVER SHAFT

ROLLER

28. MANUAL CONTROL LEVER SHAFT
29. PARKING PAWL ROD

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-15

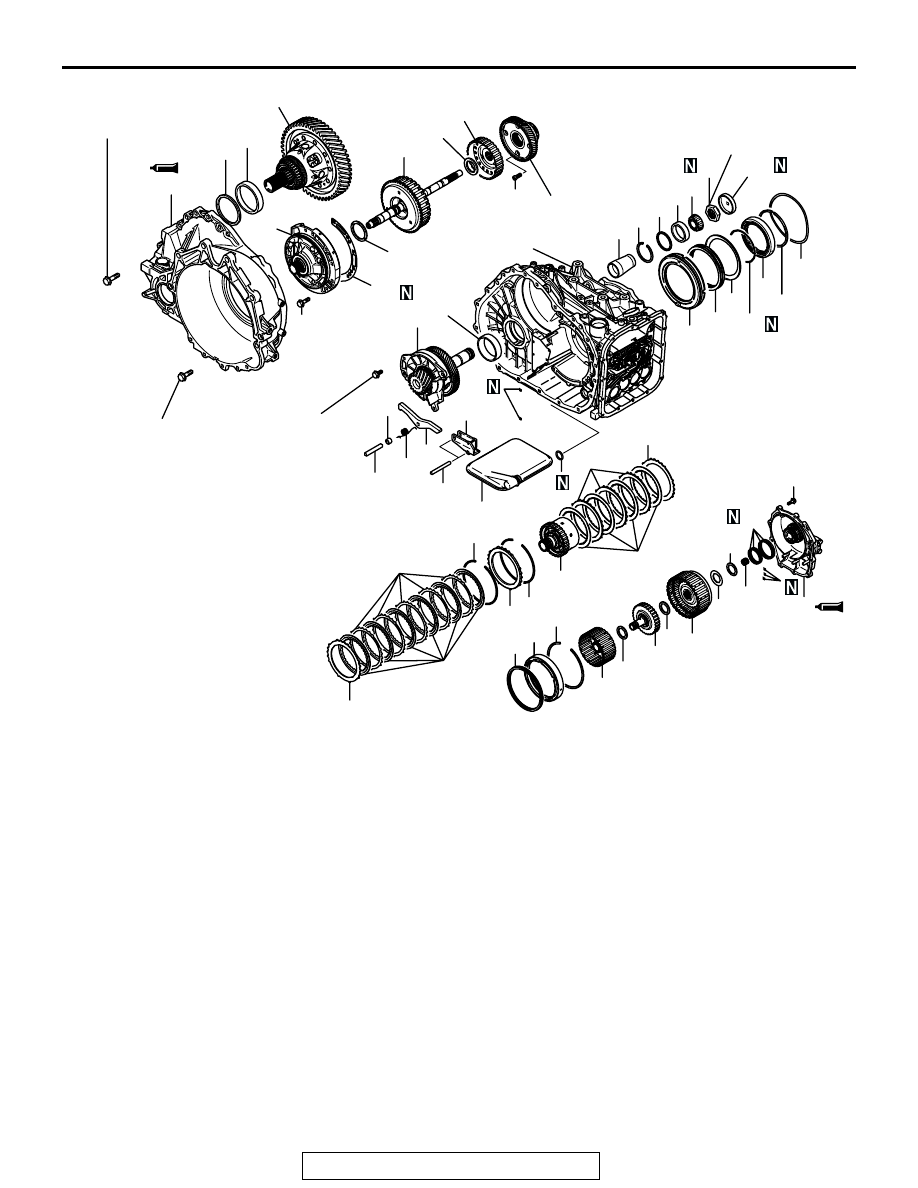

AK204128AB

30

48 ± 6 N·m
35 ± 4 ft-lb

31

32

33

29 ± 2 N·m
21 ± 1 ft-lb

34

35

36

37

38

39

40

41

23 ± 3 N·m
17 ± 2 ft-lb

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

34 ± 2 N·m
25 ± 1 ft-lb

78

79

170 ± 10 N·m
126 ± 7   ft-lb

80

54 ± 5 N·m
40 ± 4 ft-lb

81

82

83

84

85

86

87

48 ± 6 N·m
35 ± 4 ft-lb

30. TORQUE CONVERTER HOUSING
31. DIFFERENTIAL
32. OIL FILTER
33. OIL PUMP
34. GASKET
35. THRUST WASHER NO.1
36. UNDERDRIVE CLUTCH AND INPUT

SHAFT

37. THRUST BEARING NO.2
38. UNDERDRIVE CLUTCH HUB
39. OUTER RACE
40. SPACER
41. REAR COVER
42. THRUST RACE NO.8
43. SEAL RING
44. INPUT SHAFT REAR BEARING
45. THRUST BEARING NO.7
46. REAR AND OVERDRIVE CLUTCH
47. THRUST BEARING NO.6
48. OVERDRIVE CLUTCH HUB
49. THRUST BEARING NO.5
50. PLANETARY REVERSE SUN GEAR
51. SNAP RING

52. SECOND BRAKE PISTON
53. RETURN SPRING
54. PRESSURE PLATE
55. SECOND BRAKE DISC
56. SECOND BRAKE PLATE
57. PLANETARY CARRIER ASSEMBLY
58. SNAP RING
59. REACTION PLATE
60. SNAP RING
61. LOW-REVERSE BRAKE DISC
62. LOW-REVERSE BRAKE PLATE
63. PRESSURE PLATE
64. WAVE SPRING
65. PARKING PAWL SHAFT
66. SPACER
67. PARKING PAWL SPRING
68. PARKING ROLLER SUPPORT SHAFT
69. PARKING PAWL
70. PARKING ROLLER SUPPORT
71. SNAP RING
72. ONE-WAY CLUTCH INNER RACE
73. O-RING
74. SPRING RETAINER

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-16

Required Special Tools:

• MB990607: Torque Wrench Socket

• MB990930: Installer Adapter

• MB990931: Installer Adapter

• MB990935: Installer Adapter

• MB990936: Installer Adapter

• MB990938: Handle

• MB991625: Special Socket (41)

• MB991631: Clearance Dummy Plate

• MB991632: Clearance Dummy Plate

• MD998323: Bearing Installer

• MD998333: Oil Pump Remover

• MD998338: Oil Pump Remover

• MD998350: Bearing Installer

• MD998412: Guide

• MD998903: Spring Compressor

• MD998913: Dial Gauge Extension

• MD998924: Spring Compressor Retainer

DISASSEMBLY

CAUTION

• Because the automatic transaxle is manufactured from

high-precision parts, care must be taken not to scratch
or damage these parts during disassembly and assem-
bly.

• The working area should be covered with a rubber mat

to keep it clean at all times.

• Do not wear any cloth gloves and do not use any shop

towels during disassembly. Use only nylon cloth, paper
towels or any other lint-free material.

• Parts which have been disassembled should all be

cleaned. Metal parts can be cleaned with normal deter-
gent, but they should be dried completely using com-
pressed air.

• Clutch discs, plastic thrust plates and rubber parts

should be cleaned with automatic transmission fluid
(ATF).

• If the transaxle body has been damaged, disassemble

and clean the cooler system.

75. RETURN SPRING
76. LOW-REVERSE BRAKE PISTON
77. TRANSFER DRIVE GEAR
78. CAP
79. JAM NUT
80. OUTPUT SHAFT
81. TAPER ROLLER BEARING
82. COLLAR
83. OUTER RACE
84. SPACER
85. SNAP RING
86. OUTER RACE
87. TRANSAXLE CASE
