Mitsubishi Galant (2004+). Manual - part 1620

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-373

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

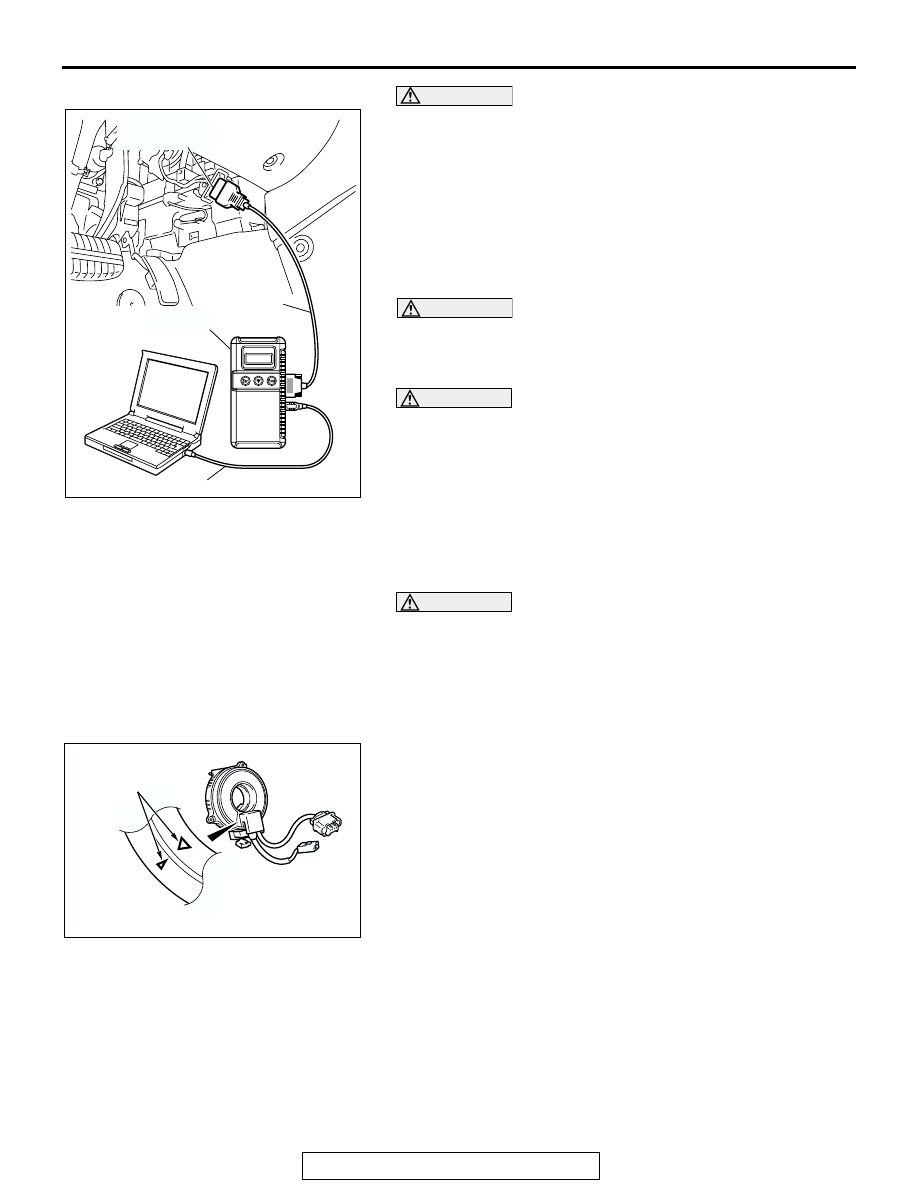

3. Connect scan tool MB991958 to the data link connector.
4. Turn the ignition switch to the “ON” position.
5. Check DTCs using scan tool MB991958 to ensure entire

SRS operates properly.
At this time, check that no DTC except B1400, B1410,
B1480 and B1490 are set.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-26

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

6. Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and air bags
deployment.

.

>>B<< CLOCK SPRING INSTALLATION

WARNING

Ensure that the clock spring’s mating marks are prop-
erly aligned. If not, the steering wheel may not rotate
completely during a turn, or the flat cable in the clock
spring could be damaged, This would prevent normal
SRS operation and possibly cause serious injury to
the driver.

1. Align the mating marks of the clock spring.

<Mating Mark Alignment>
Turn the clock spring clockwise fully. Then turn it back
approximately 3-3/4 turns counterclockwise to align the
mating marks.

2. Turn the front wheels to the straight-ahead position. Then

install the clock spring to the column switch.

.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC306756AB

MATING MARKS

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-374

>>C<< STEERING WHEEL ASSEMBLY/AIR BAG MODULE
ASSEMBLY INSTALLATION

CAUTION

When installing the steering wheel and air bag module,
ensure that the harness of the clock spring does not
become caught or tangled.
1. Before installing the steering wheel and air bag module, turn

the vehicle’s front wheels to the straight-ahead position and
align the mating marks of the clock spring.

2. After securing the steering wheel, turn the steering wheel all

the way in both directions to confirm that the steering wheel
rotation is normal.

.

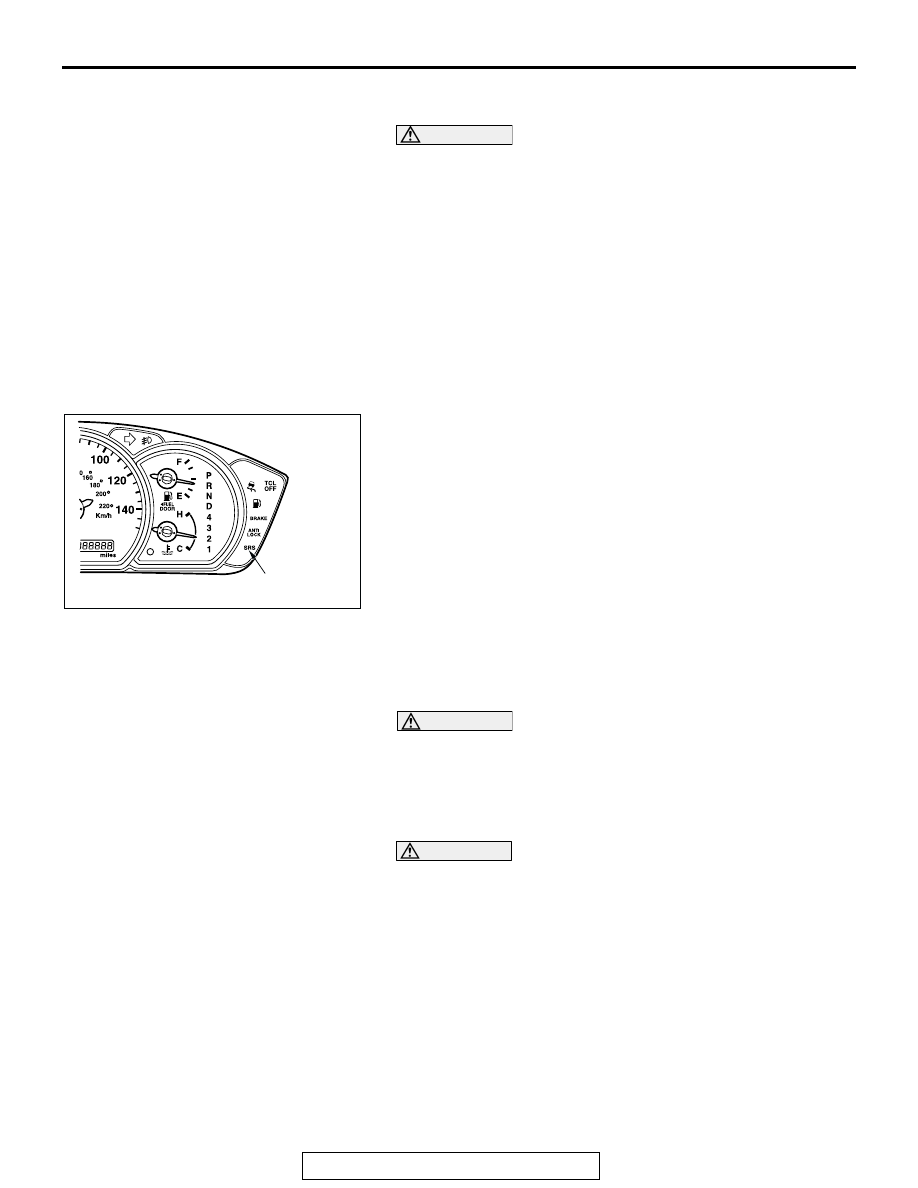

>>D<< POST-INSTALLATION INSPECTION
1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-32

.

INSPECTION

M1524002500422

.

AIR BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag modules (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any component damage is found during the follow-
ing inspection, replace the air bag module with a new
one. Dispose of the old one according to the specified
procedure. (Refer to

P.52B-388

).

1. Check the pad cover for dents, cracks or deformation.

AC307341

SRS WARNING LIGHT

AB

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-375

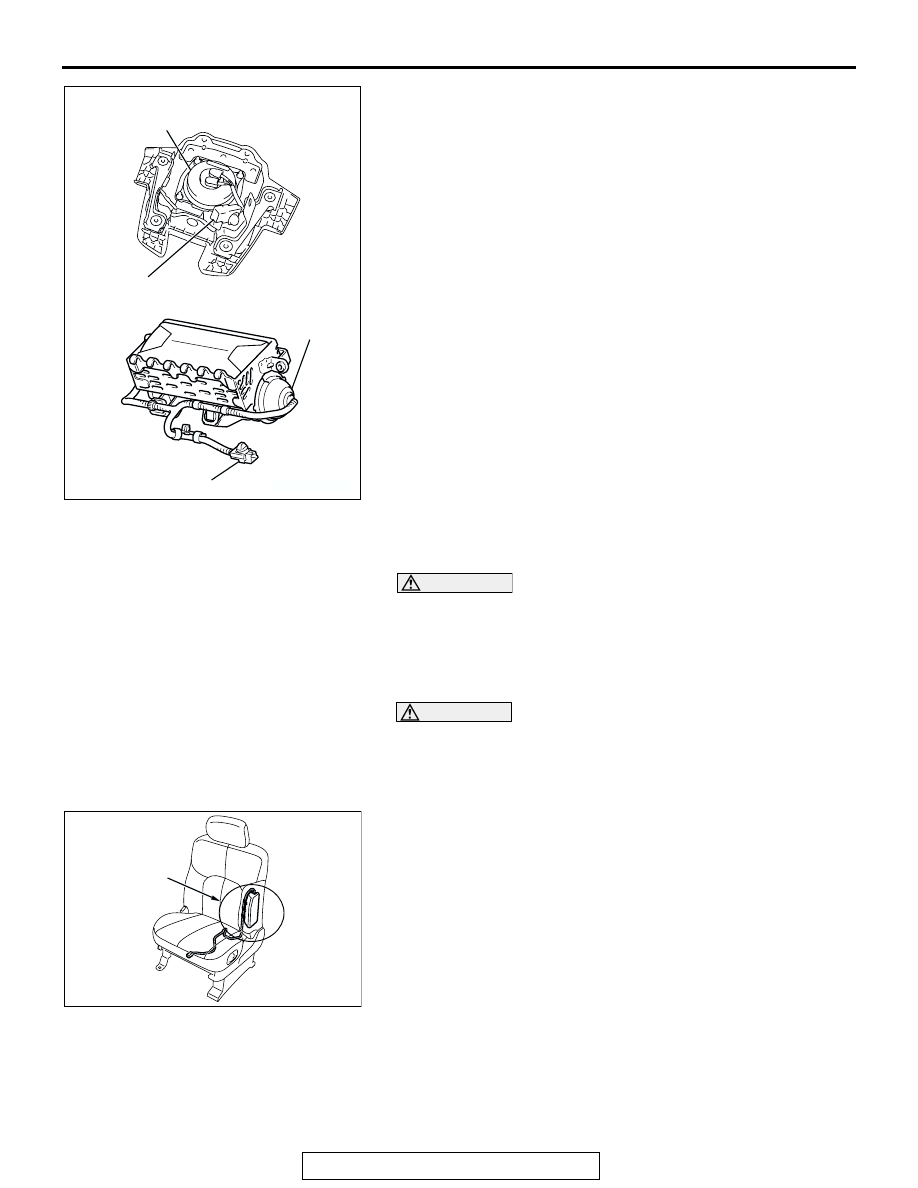

2. Check the connectors for damage, the terminals for

deformation, and the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the air bag module (driver’s side) to the steering

wheel and check fit and alignment with the steering wheel.

5. Install the air bag module (front passenger’s side) to the

instrument panel and front deck crossmember and check fit
and alignment.

.

FRONT SEATBACK ASSEMBLY WITH SIDE-AIRBAG
MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag module (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any improper part is found during the following
inspection, replace the front seatback assembly with
a new one. Dispose of the old one according to the
specified procedure. (Refer to

P.52B-388

).

1. Check the air bag module deployment section for dents or

deformation.

2. Check the connector for damage, the terminals for

deformation, and the harness for binding.

.

AC307662AB

<DRIVER'S SIDE>

<FRONT PASSENGER'S SIDE>

INFLATOR CASE

CONNECTOR

CONNECTOR

INFLATOR
CASE

AC206854

AIR BAG MODULE
DEPLOYMENT
SECTION

AB

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-376

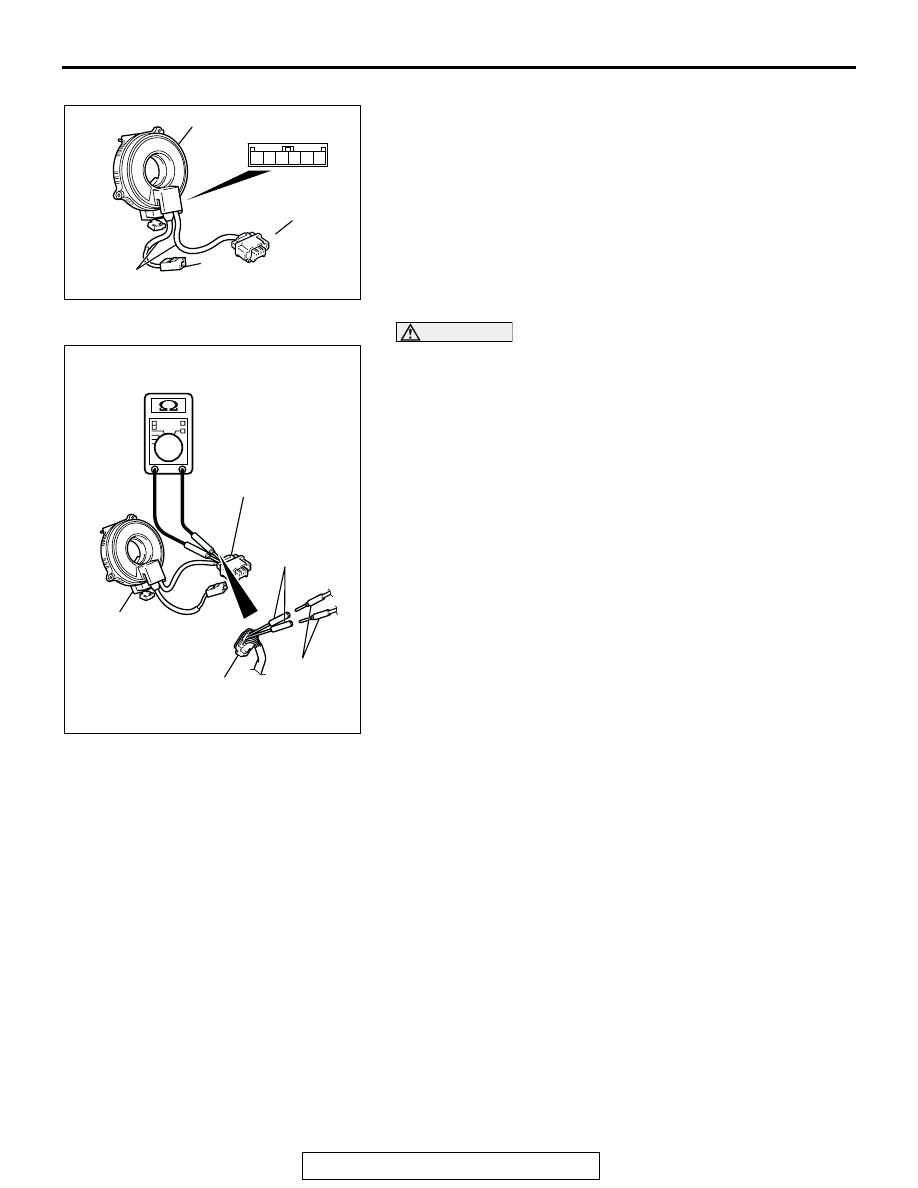

CLOCK SPRING CHECK
If any malfunction is found in the following inspections, replace
the clock spring with a new one.
1. Check the connectors and protective tube for damage, and

the terminals for deformation.

2. Visually check the case for damage.
3. Check to see that there is a charge (continuity) between the

C-306 clock spring connector terminal 1 and C-304 horn
switch.

CAUTION

 Do not directly insert a probe, etc. into the terminal from
the front of the connector.
4.  Insert the special tool (MB991222) from behind the airbag

module connector of the C-305 driver's side.

5.  As shown in the figure, connect the circuit tester to the

special tool (MB991222) and check to see that there is a
continuity between the terminals.

1 2 3 4 5 6

AC306765

D-306 CLOCK SPRING
CONNECTOR

C-304
HORN SWITCH
CONNECTOR

AB

CASE

PROTECTIVE
TUBE

C-305 AIR BAG
MODULE
CONNECTOR

AC306759

CLOCK SPRING

PLOBE
(MB991222)

DIGITAL
MULTI-METER

AB

C-305 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)

C-305 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)
