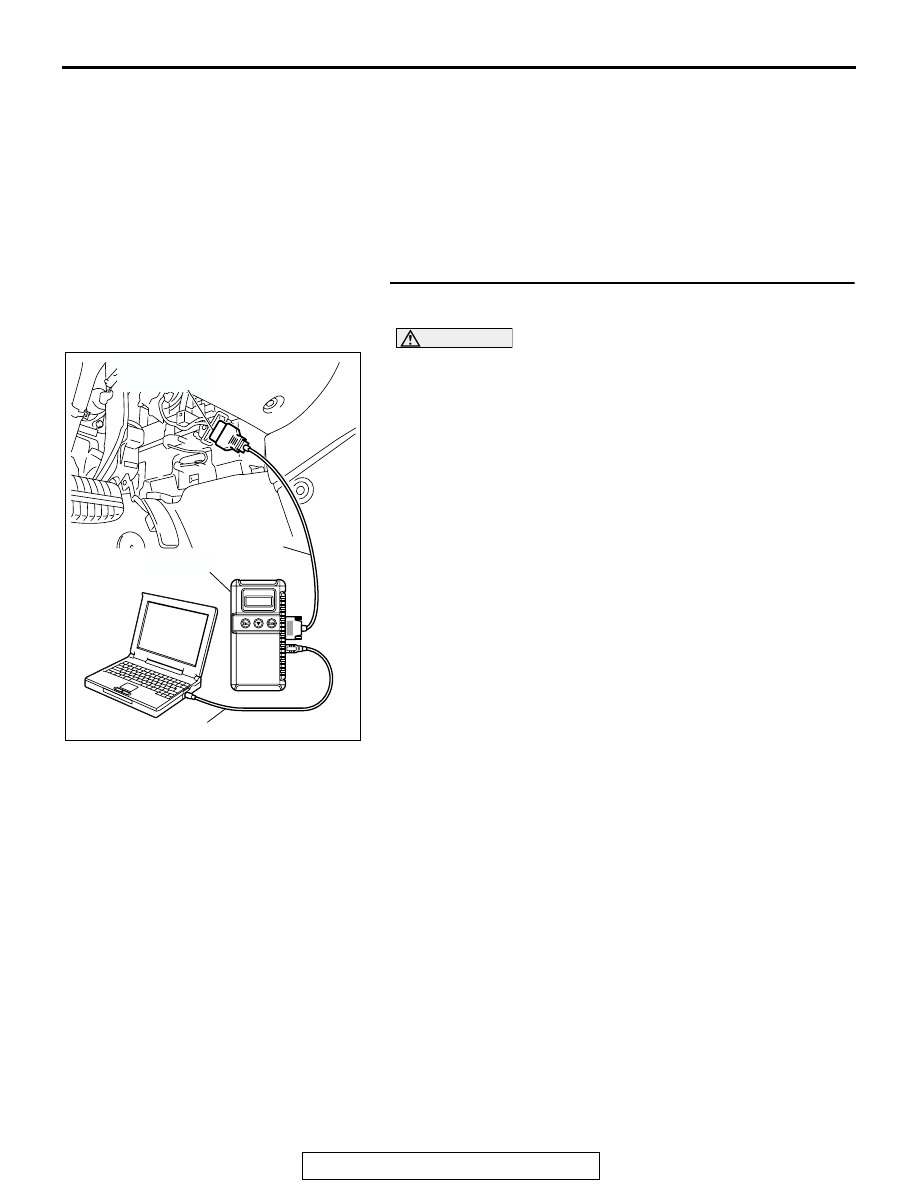

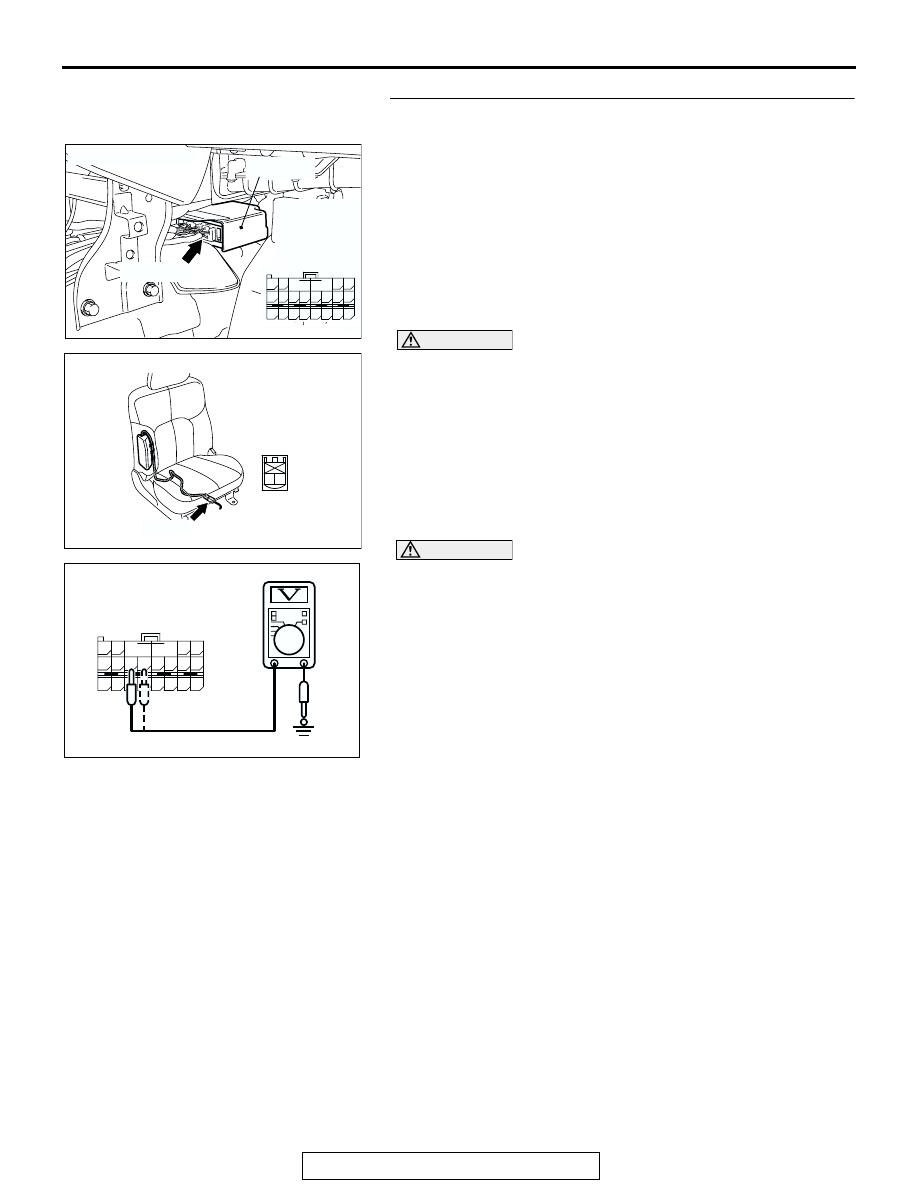

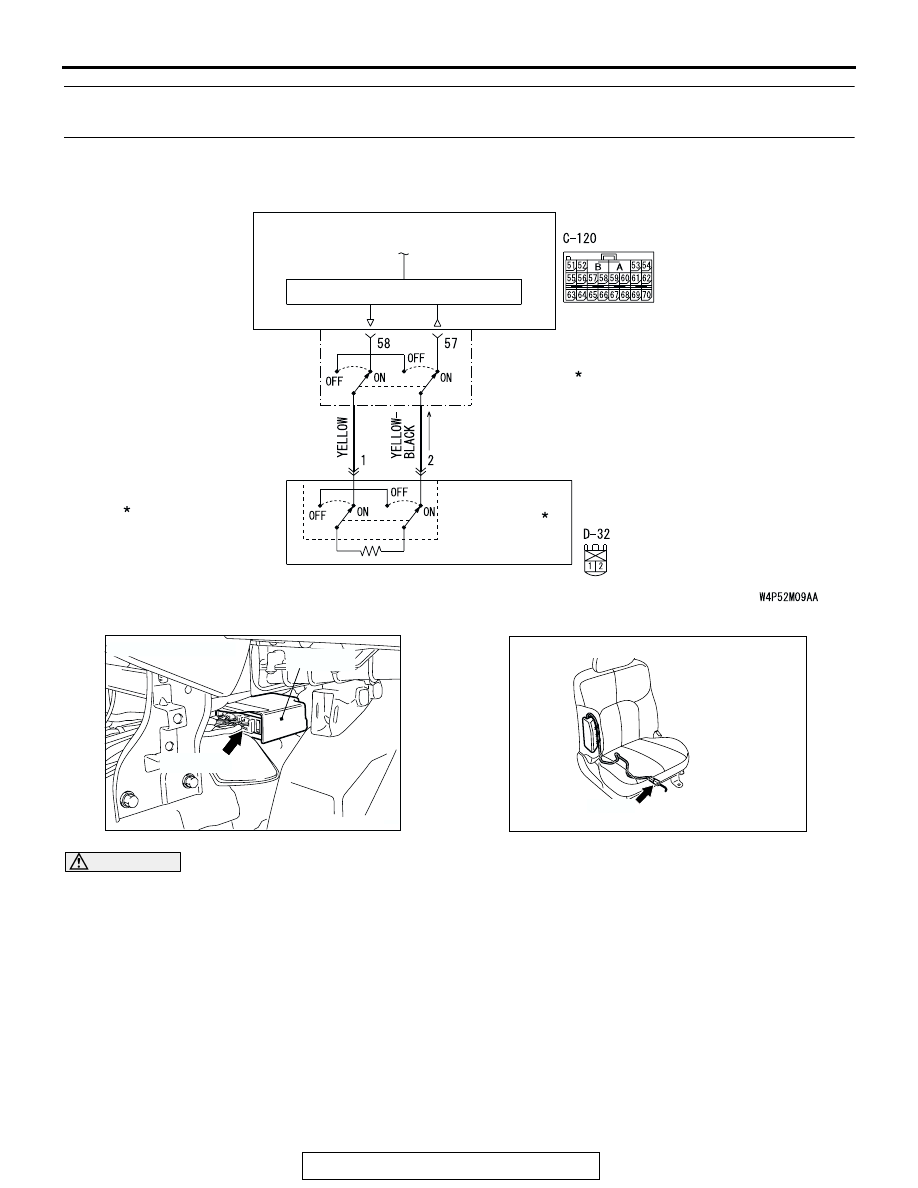

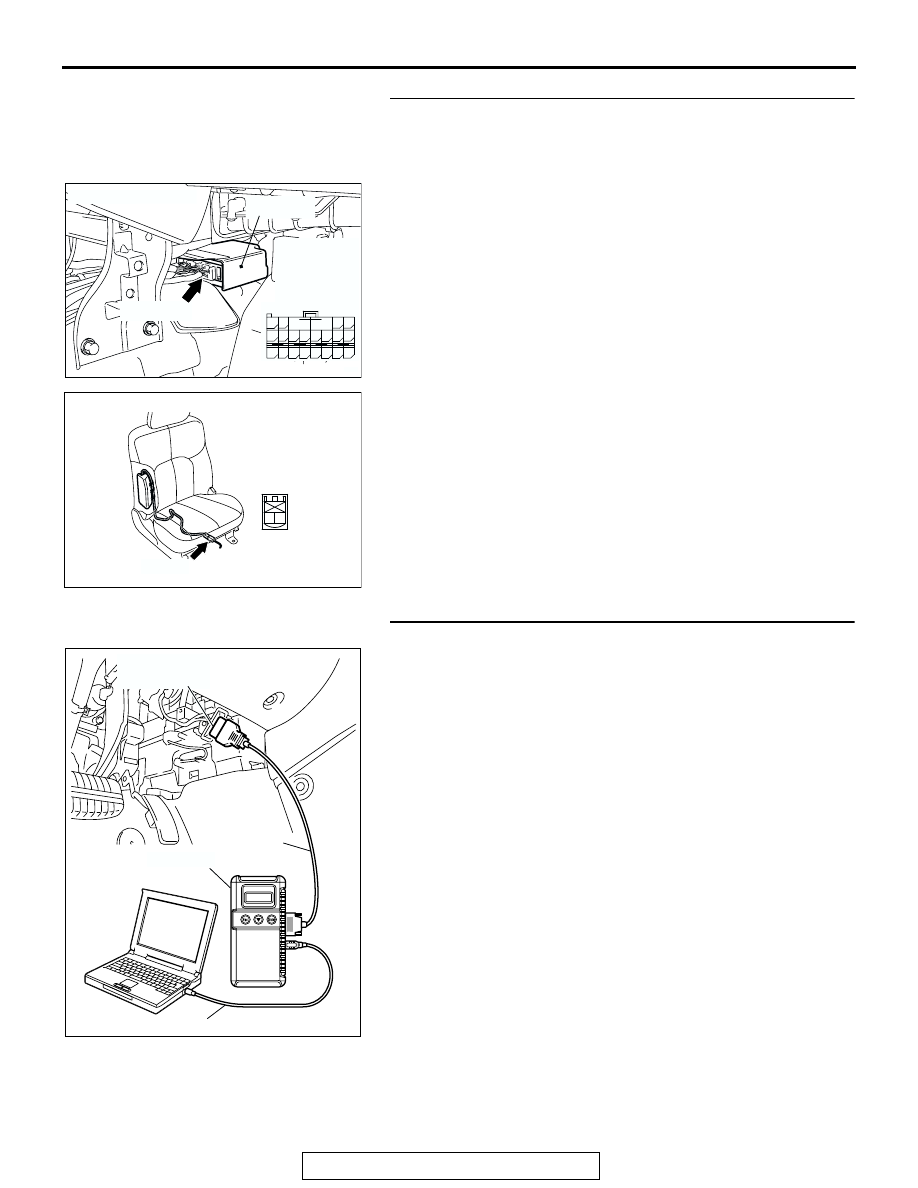

SRS AIR BAG DIAGNOSIS TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-137 STEP 4. Check the side-airbag module (RH) circuit. (1) Disconnect SRS-ECU connector C-120. DANGER To prevent the air bag from deploying unintentionally, (2) Disconnect side-airbag module (RH) connector D-32. CAUTION Do not insert a test probe into the terminal from its front connector terminals 57 and 58 and body ground. Q: Is the measured voltage within the specified range? YES : Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC B1422 sets, ). Then go to Step 6. NO : Go to Step 5. AC305362 CONNECTOR: C-120 C-120 (Y) AG SRS-ECU 63 55 51 69 61 66 58 65 64 56 57 68 60 67 59 70 62 53 52 B A 54 C-120 AC307779 D-32 (R) AD 2 1 HARNESS SIDE CONNECTOR : D-32 AC301579 63 55 51 69 61 66 58 65 64 56 57 68 60 67 59 70 62 53 52 B A 54 C-120 HARNESS SIDE AC |
