INSPECTION PROCEDURE 22: Preset Stations are Erased.

.

CIRCUIT OPERATION
Power is continuously supplied to the radio and CD
player or radio, CD player and CD changer.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably a faulty radio and CD player or
radio, CD player and CD changer memory backup
power supply system circuit.

.

TROUBLESHOOTING HINTS

• Damaged wiring harness or connector.

• Malfunction of the radio and CD player or radio,

CD player and CD changer.

BATTERY

RELAY
BOX

RADIO AND CD PLAYER
                OR
RADIO, CD PLAYER AND
CD CHANGER

JOINT
CONNECTOR (1)

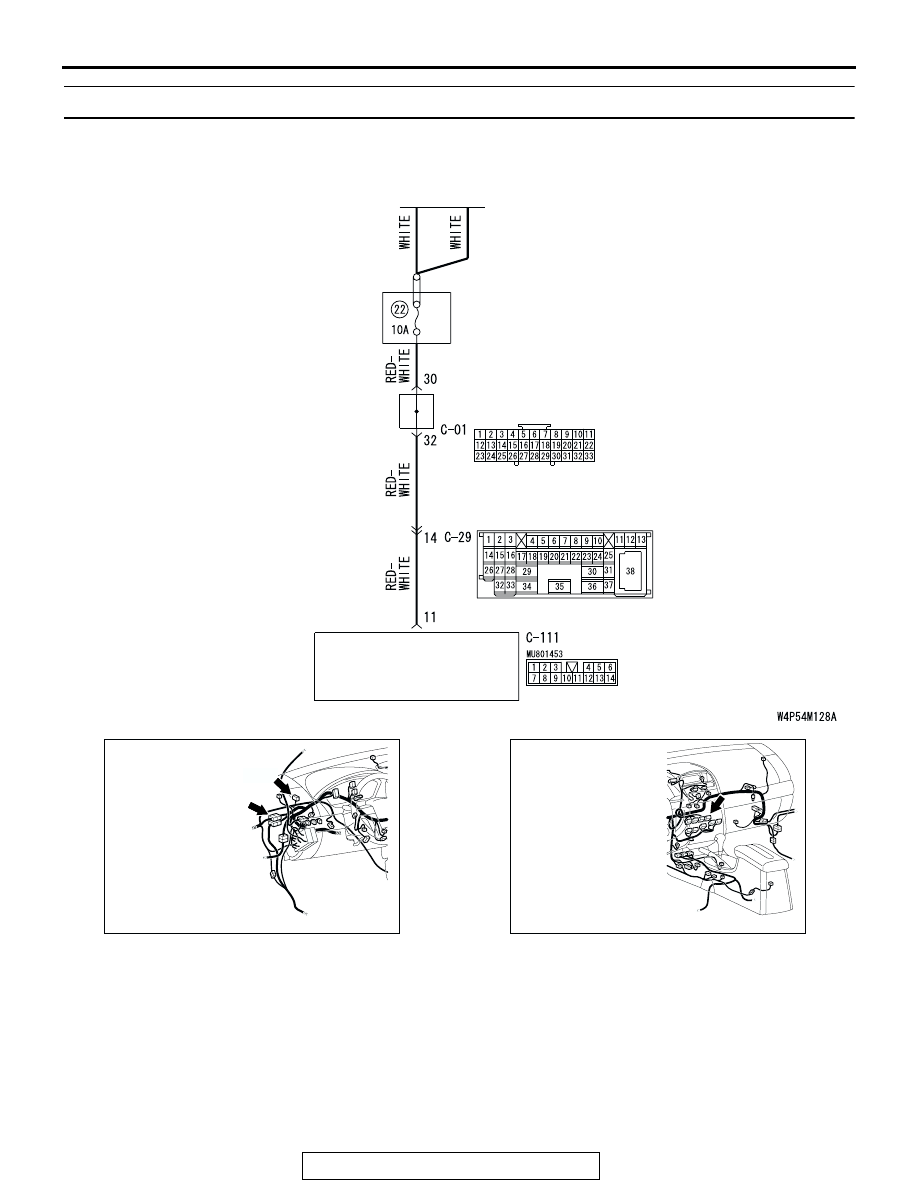

Memory Backup Power Circuit

AC305231

C-01

C-29

CONNECTORS: C-01, C-29

BI

AC305233BZ

CONNECTOR: C-111

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-208

DIAGNOSIS

Required Special Tool:

• MB991223: Harness set

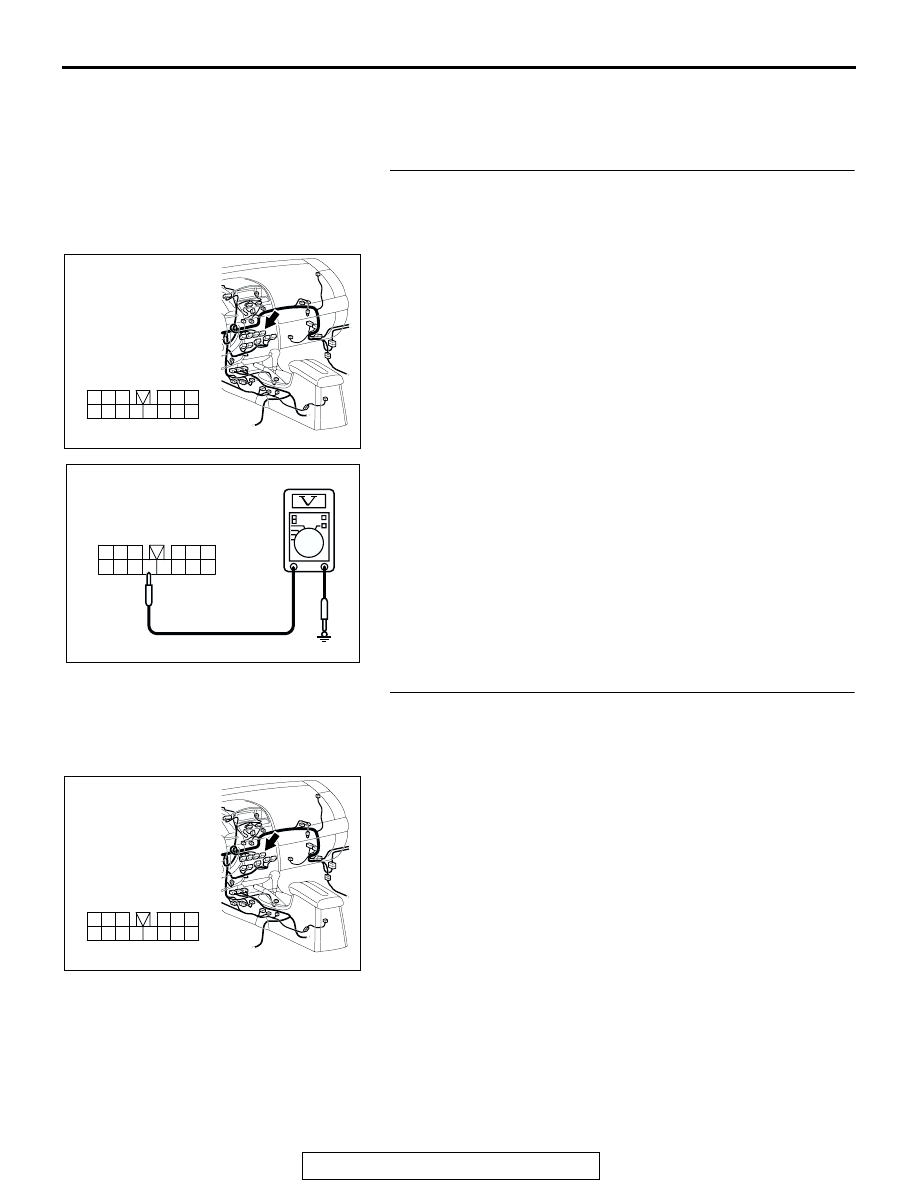

STEP 1. Measure at radio and CD player or radio, CD
player and CD changer connector C-111 in order to check
the power supply circuit to the radio and CD player or
radio, CD player and CD changer (through the battery).
(1) Disconnect radio and CD player or radio, CD player and CD

changer connector C-111, and measure at the wiring
harness side.

(2) Measure the voltage between terminal number 11 and

ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Either repair or replace the radio and CD player or

radio, CD player and CD changer. Check that a
memory is retained.

NO :  Go to Step 2.

STEP 2. Check radio and CD player or radio, CD player and
CD changer connector C-111 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is radio and CD player or radio, CD player and CD

changer connector C-111 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that a memory is retained.

AC305233

HARNESS SIDE

3
9

4

12

14

6

13

5

1110

8

2

7

1

BY

CONNECTOR: C-111

AC209365

3
9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR C-111
(HARNESS SIDE)

HX

AC305233

HARNESS SIDE

3
9

4

12

14

6

13

5

1110

8

2

7

1

BY

CONNECTOR: C-111

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-209

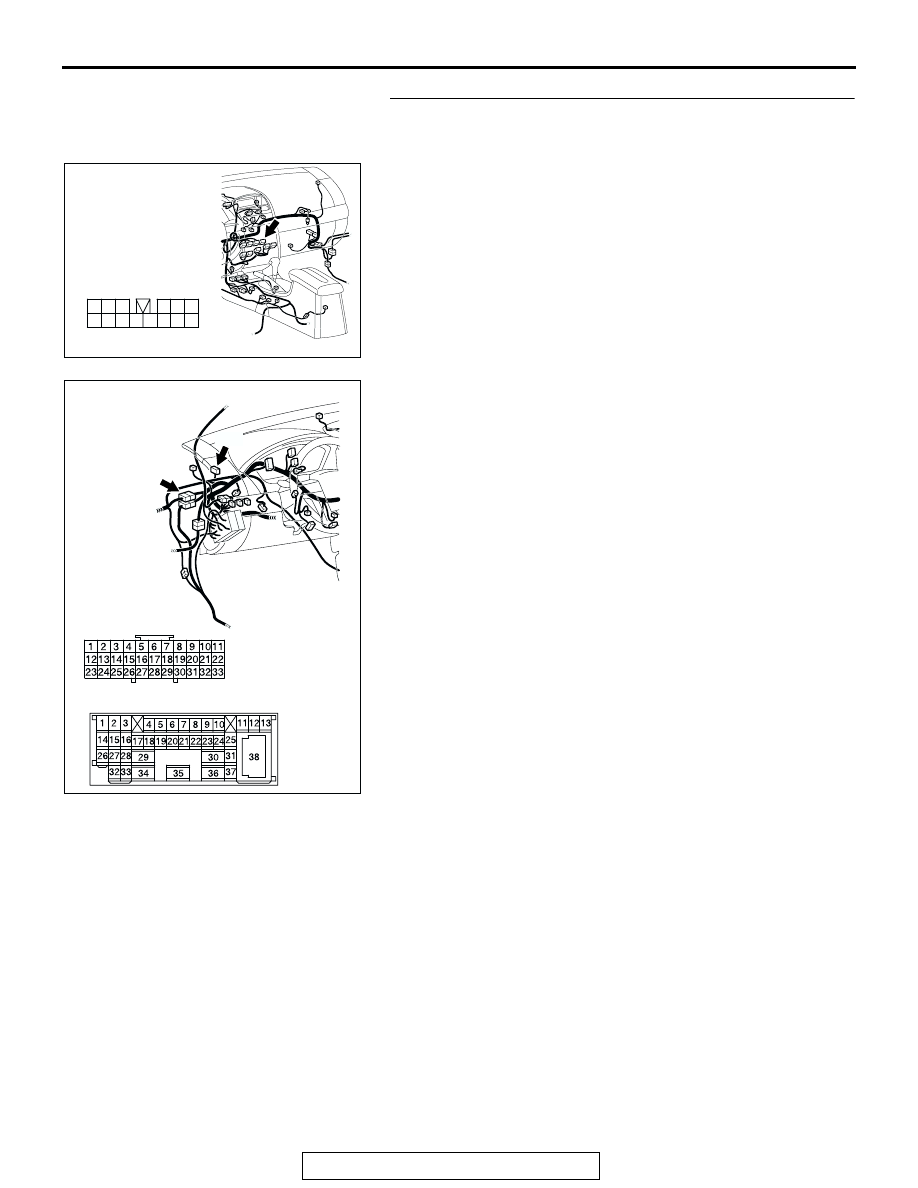

STEP 3. Check the wiring harness between radio and CD
player or radio, CD player and CD changer connector
C-111 (terminal 11) and the battery.

NOTE: Also check intermediate connector C-29 and joint con-
nector(1) C-01 for loose, corroded, or damaged terminals, or
terminals pushed back in the connector. If intermediate connec-
tors C-29 or joint connector(1) C-01 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between radio and CD player or

radio, CD player and CD changer connector C-111
(terminal 11) and the battery in good condition?
YES : Repair or replace the radio and CD player or radio,

CD player and CD changer. Check that a memory is
retained.

NO :  Repair the wiring harness. Check that a memory is

retained.

AC305233

HARNESS SIDE

3
9

4

12

14

6

13

5

1110

8

2

7

1

BY

CONNECTOR: C-111

AC305232

CONNECTORS: C-01, C-29

C-01

C-29

AS

C-01

C-29

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-210

INSPECTION PROCEDURE 23: CD can not be Inserted.

DIAGNOSIS

STEP 1. Check that a CD has been already loaded.
Q: Has a CD been already loaded?

YES : Take out the CD (If the CD can not be ejected, refer to

INSPECTION PROCEDURE 27

P.54A-213

). Check

that a CD can be inserted.

NO :  Go to Step 2.

STEP 2. Check how a CD is inserted.
Ensure that the ignition switch is at 'ACC' or 'ON'.
NOTE: If you try to load a CD when the ignition switch is at the
positions other than 'ACC' or 'ON,' the CD will not be inserted
completely and then rejected.
Q: If you try to load the CD, does the CD stops halfway and

then rejected?
YES : Refer to INSPECTION PROCEDURE 27

P.54A-213

.

NO :  Go to Step 3.

STEP 3. Check after the CD is loaded.
NOTE: Even though the CD is loaded, 'E01' [vehicles with
multi-center display (low grade type)] or 'ERROR 01' [vehicles
with multi-center display (middle grade type)] sometimes dis-
played with the CD rejected because of vibration/shock or dew
on the CD face or optical lens.
Q: Though the CD is inserted completely, is 'E01' [vehicles

with multi-center display (low grade type)] or 'ERROR
01' [vehicles with multi-center display (middle grade
type)] displayed and the CD ejected?
YES : Go to Step 4.
NO :  There is no action to be taken.

STEP 4. Check the CD.
Check the CD for the conditions below:

• Is the CD loaded with its label facing down?

• Is the recorded face dirty or scratched?

• Is there dew on the recorded face?

Q: Is the CD in good condition?

YES : Go to Step 5.
NO :  The original CD is defective. Check that a CD can be

inserted.
