INSTRUMENT PANEL ASSEMBLY

TSB Revision

INTERIOR

52A-7

REMOVAL SERVICE POINT

.

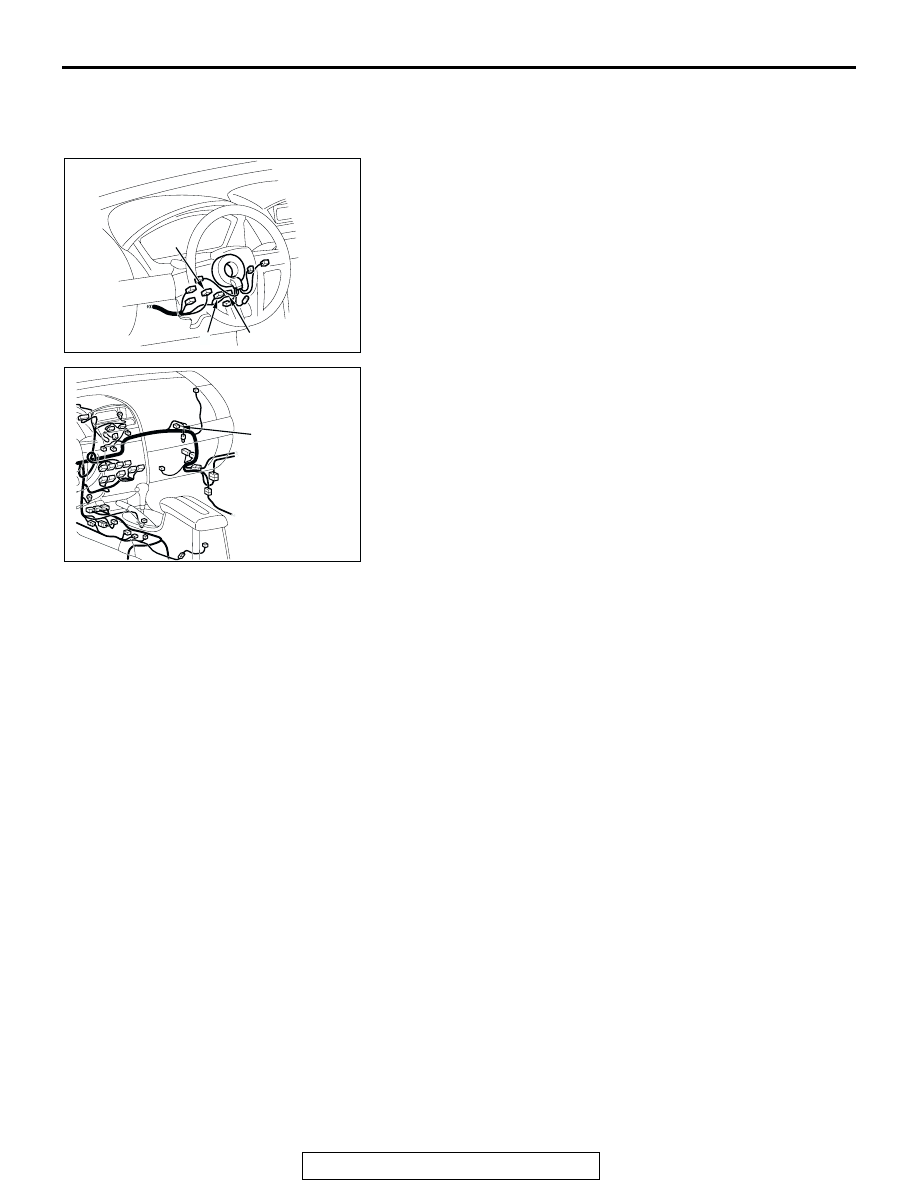

<<A>> CONNECTOR DISCONNECTION
Disconnect the connectors shown in the illustration.
1. CLOCK SPRING CONNECTOR (6)
2. CLOCK SPRING CONNECTOR (4-Y)
3. COLUMN SWITCH CONNECTOR (10)

4. AIR BAG MODULE (FRONT PASSENGER’S SIDE)

CONNECTOR (4-Y)

AC307136

1

3

AB

2

AC307135 AB

4

INSTRUMENT PANEL ASSEMBLY

TSB Revision

INTERIOR

52A-8

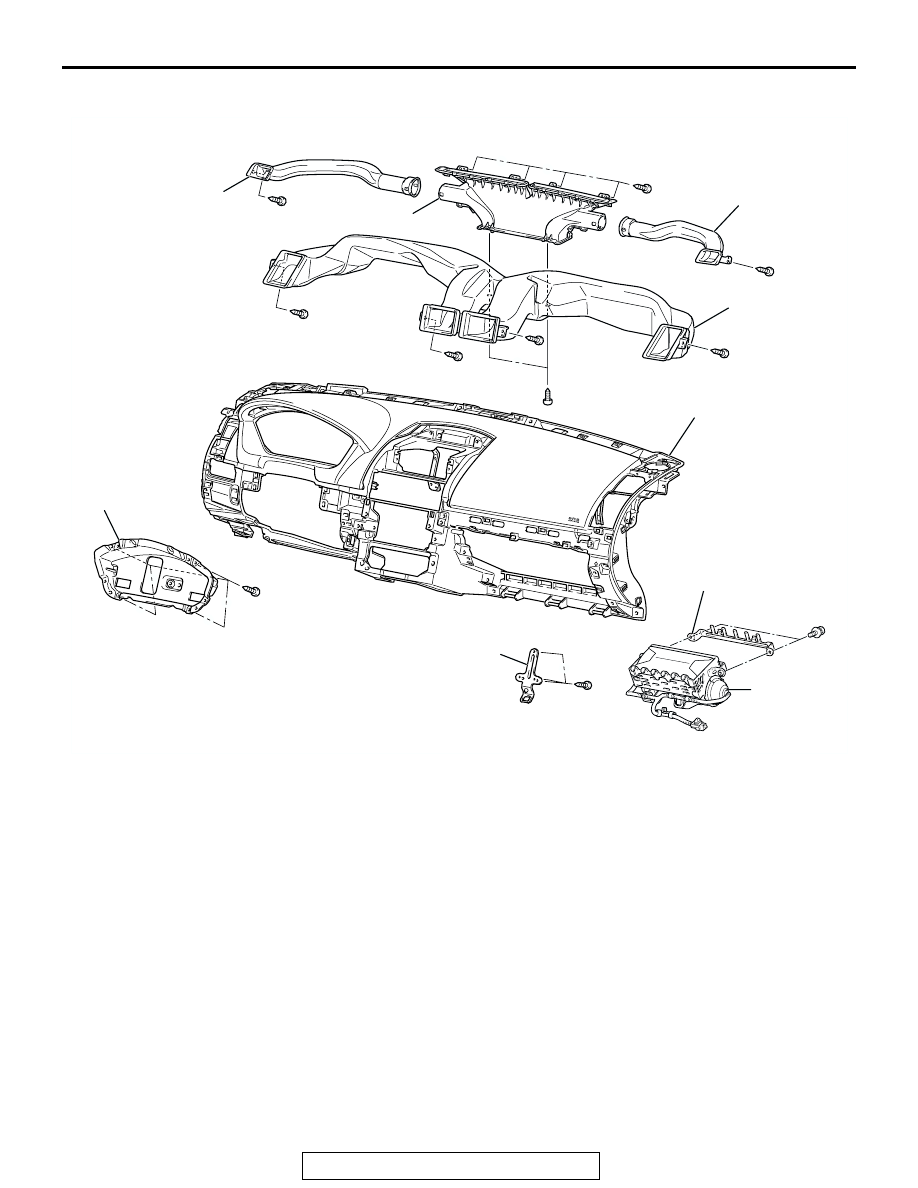

DISASSEMBLY AND ASSEMBLY

M1521001900376

AC306857 AB

2

3

7

8

1

4

5

4

6

g

b

b

b

b

b

b

b

b

b

b

DISASSEMBLY STEPS

1.

DISTRIBUTION DUCT

2.

BACKBONE BRACKET

3.

AIR BAG MODULE ASSEMBLY
(FRONT PASSENGER’S SIDE)
(REFER TO GROUP 52B, AIR
BAG MODULE(S) AND CLOCK
SPRING

P.52B-368

.)

4.

SIDE DEFROSTER DUCT

5.

DEFROSTER NOZZLE

6.

COMBINATION METER BRACKET

7.

GLOVEBOX STRIKER

8.

INSTRUMENT PANEL

DISASSEMBLY STEPS

FLOOR CONSOLE ASSEMBLY

TSB Revision

INTERIOR

52A-9

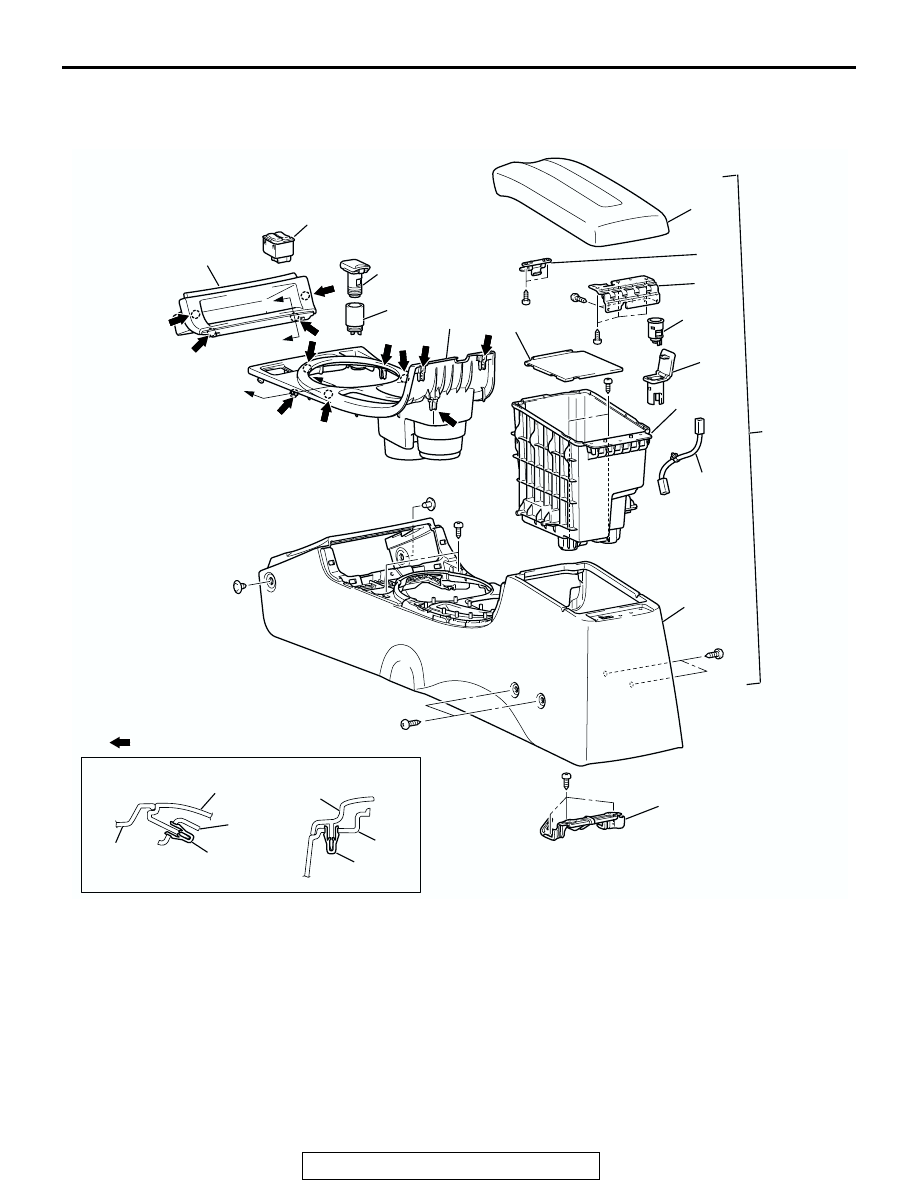

FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521002200314

AC307567

5

2

4

3

1

7

6

9

8

12

11

10

14

13

15

5

1

1

14

CLIP

FLOOR
CONSOLE

CLIP

NOTE
          : CLIP POSITION

SECTION A – A

SECTION B – B

AB

16

A

A

B

B

REMOVAL STEPS

1.

GEARSHIFT LEVER PANEL

2.

HEATED SEAT SWITCH
<VEHICLES WITH HEATED SEAT
SWITCH>

3.

ACCESSORY SOCKET (ACC)
(REFERTO GROUP 54A,
ACCESSORY SOCKET

P.54A-136

.)

4.

ACCESSORY SOCKET COVER

5.

FRONT BOX

6.

PLATE

7.

FLOOR CONSOLE ASSEMBLY

8.

LID LOCK LEVER

9.

HINGE

10. LID
11. INNER BOX
12. ACCESSORY SOCKET (+B)

(REFERTO GROUP 54A,
ACCESSORY SOCKET

P.54A-136

.)

13. ACCESSORY SOCKET COVER
14. FLOOR CONSOLE
15. ACCESSORY SOCKET HARNESS
16. REAR BRACKET

REMOVAL STEPS (Continued)

TRIMS

TSB Revision

INTERIOR

52A-10

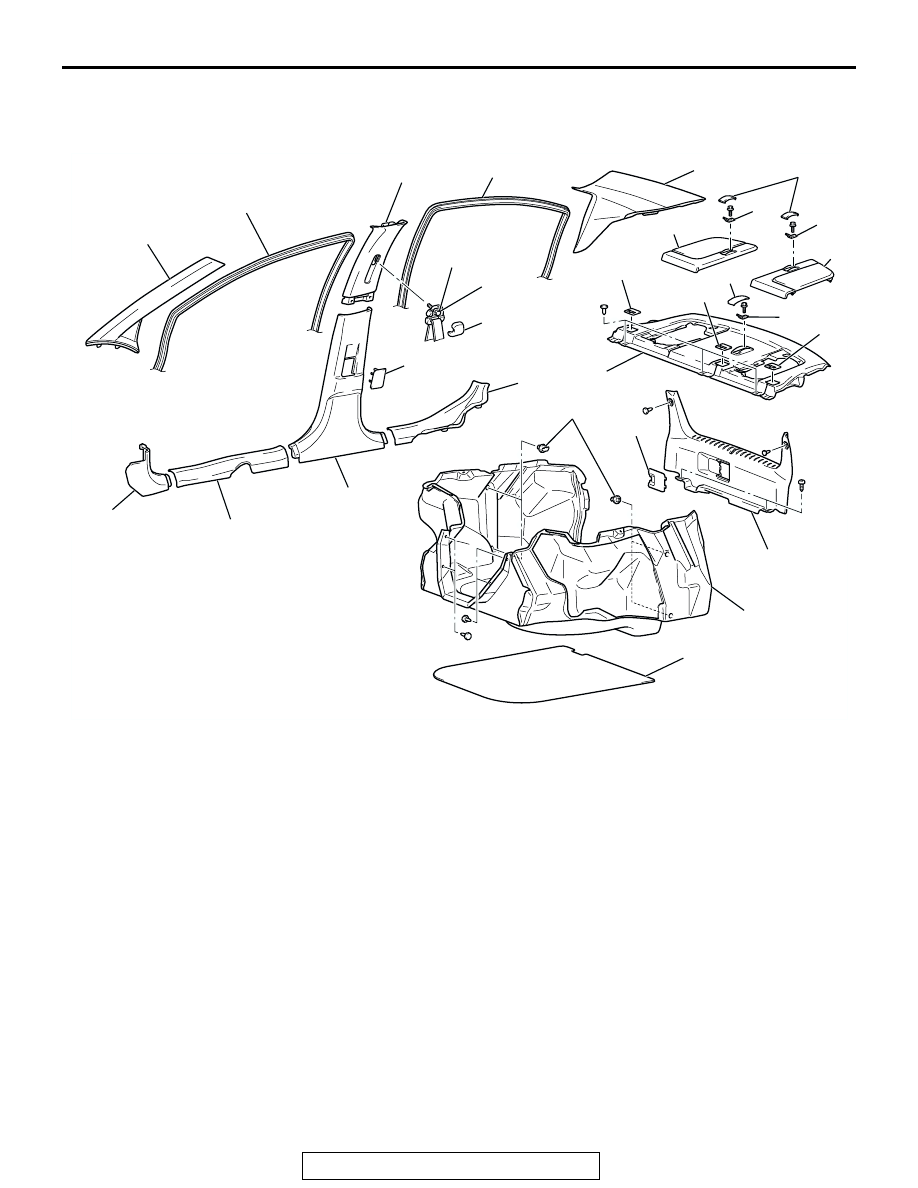

TRIMS

REMOVAL AND INSTALLATION

M1521001100455

AC306579

1

2

3

6

7

8

9

4

5

44 ± 10 N·m
33 ± 7 ft-lb

10

12

12

13

18

18

14

15

18

16

16

17

19

20

21

22

23

AB

16

14

1.

FRONT SCUFF PLATE

2.

COWL SIDE TRIM

•

REAR SEAT CUSHION (REFER
TO

P.52A-30

.)

3.

REAR SCUFF PLATE

•

FRONT SEAT BELT LOWER
ANCHOR BOLT

4.

FRONT SEAT BELT SASH GUIDE
COVER

5.

FRONT SEAT BELT SHOLDER
ANCHOR BOLT

6.

CENTER PILLAR COVER

7.

CENTER PILLAR TRIM LOWER

8.

FRONT DOOR OPENING TRIM

<<A>>

9.

FRONT PILLAR TRIM

10. REAR DOOR OPENING TRIM

11. CENTER PILLAR TRIM UPPER
•

REAR SEATBACK ASSEMBLY
(REFER TO

P.52A-30

.)

12. REAR PILLAR TRIM
13. CHILD RESTRAINT LID
14. REAR SHELF SPEAKER

GARNISH

15. CHILD RESTRAINT LID
16. SEAT BELT GARNISH
17. REAR SHELF TRIM
18. CHILD RESTRAINT FITTING
19. TRUNK ROOM FLOOR BOARD
20. REAR END TRIM COVER
21. REAR END TRIM
22. PARCEL NET ANCHOR
23. TRUNK ROOM TRIM
