Mitsubishi Galant (2004+). Manual - part 129

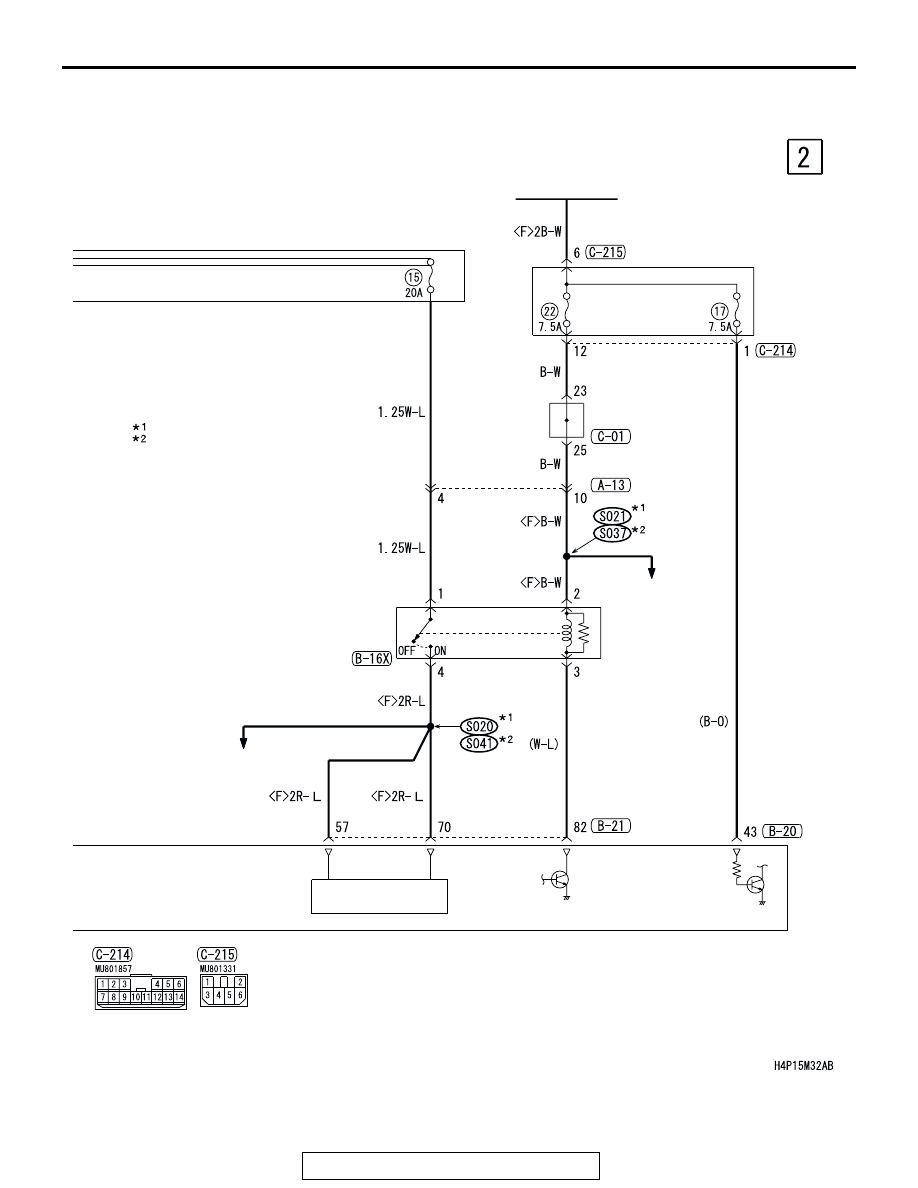

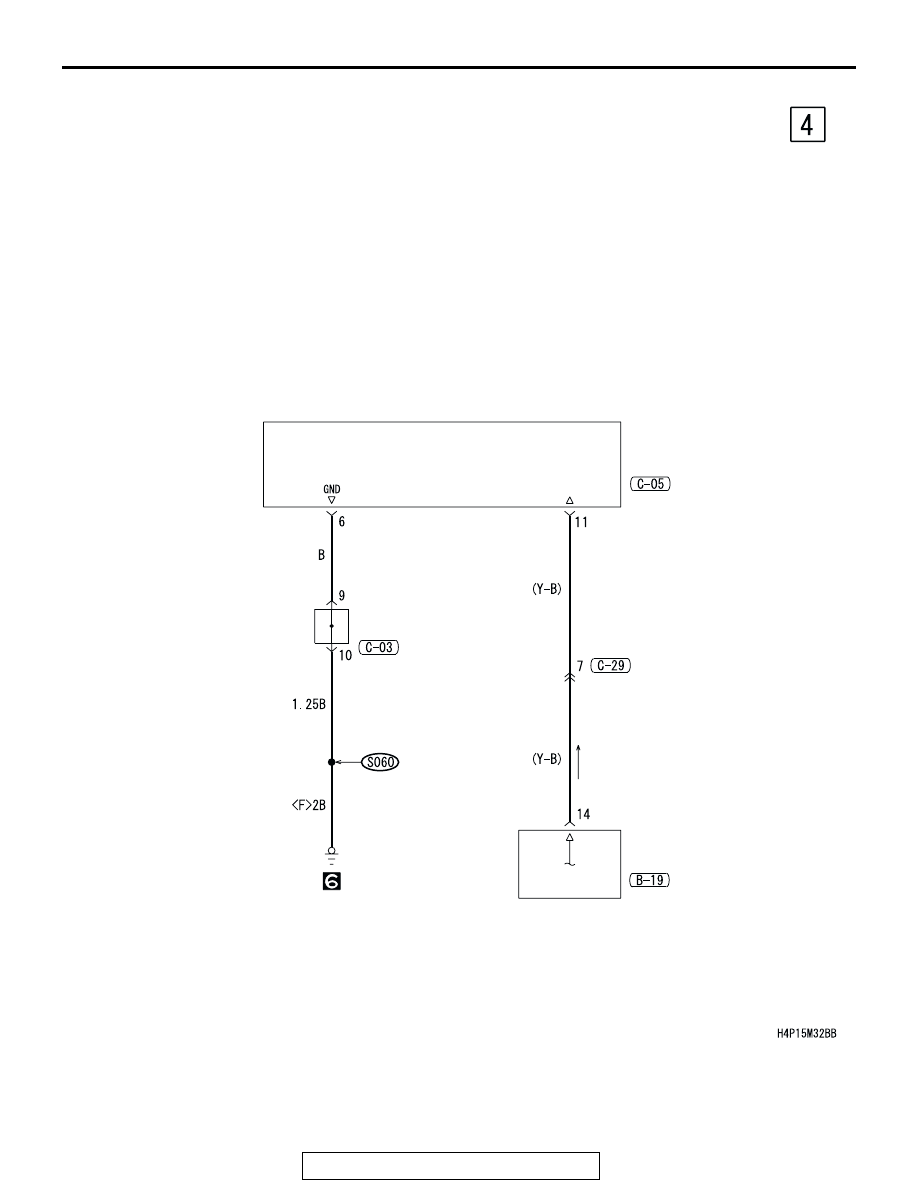

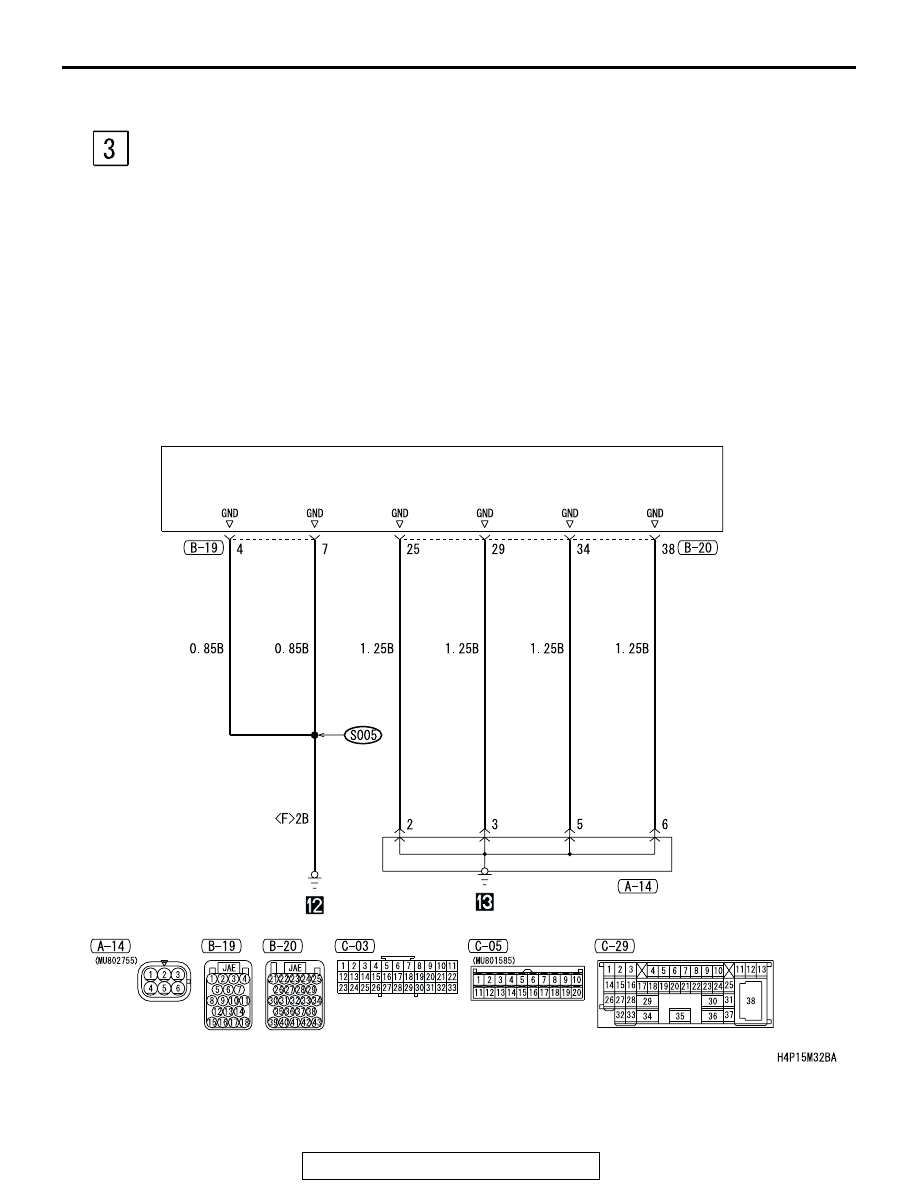

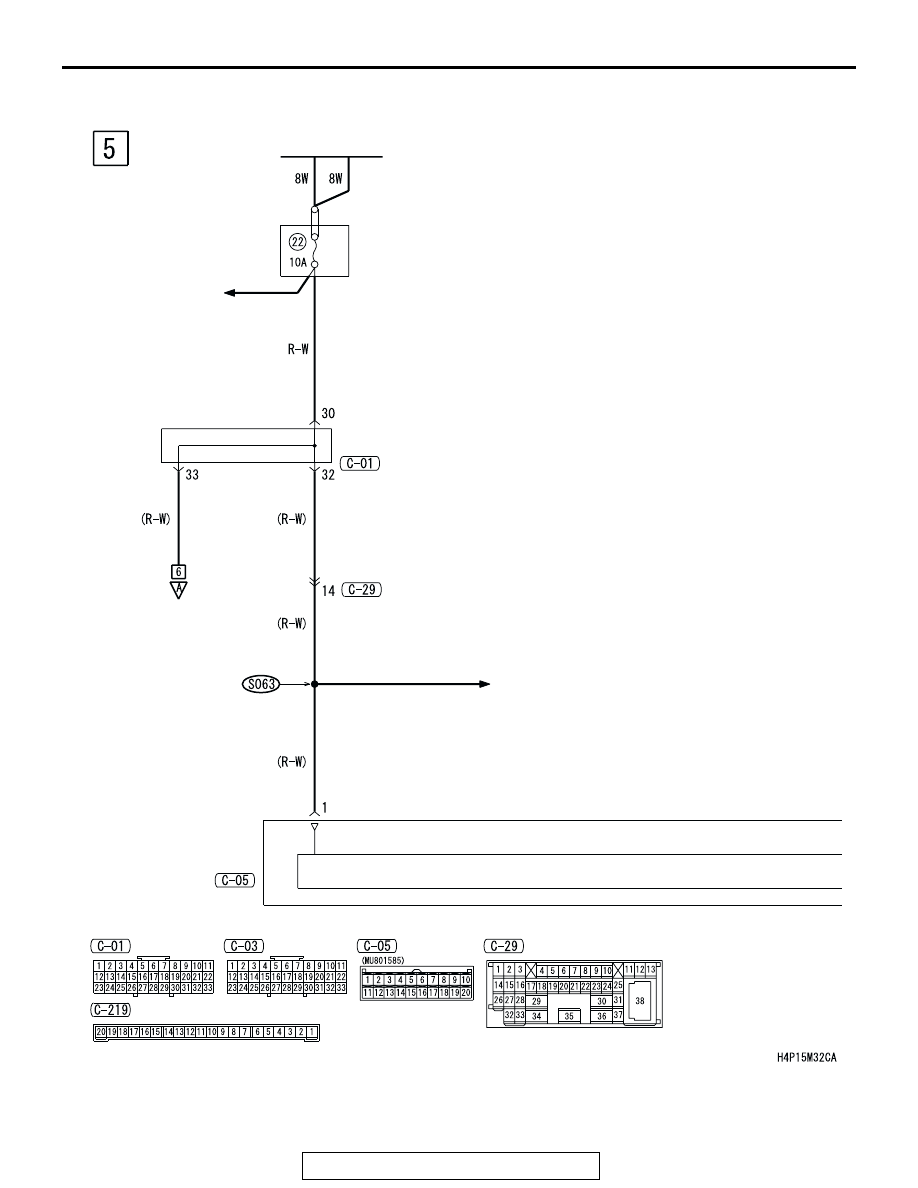

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-275

SOLENOID VALVE
POWER SUPPLY

POWERTRAIN
CONTROL MODULE

JOINT
CONNECTOR (1)

A/T
CONTROL
RELAY

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

INVECS-II
4A/T

INVECS-II 4A/T

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

NOTE

:

: 2.4L ENGINE

3.8L ENGINE

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-276

CONTROLLER AREA NETWORK (CAN) (CONTINUED)

POWERTRAIN CONTROL MODULE

GROUNDING
CONNECTOR

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-277

MULTI
CENTER
DISPLAY
UNIT

POWERTRAIN
CONTROL
MODULE

JOINT
CONNECTOR (2)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-278

CONTROLLER AREA NETWORK (CAN) (CONTINUED)

BATTERY

RELAY
BOX

JOINT
CONNECTOR (1)

MULTI
CENTER
DISPLAY
UNIT

POWER SUPPLY

JUNCTION BLOCK SIDE

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·BRAKE WARNING
 LIGHT, OIL PRESSURE
 WARNING LIGHT,
 FUEL WARNING LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING
 TONE ALARM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
·ENGINE IMMOBILIZER
 SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·INVECS-II 4A/T
·LIGHTING MONITOR
 TONE ALARM
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·SEAT BELT WARNING
 TONE ALARM
·SUPPLEMENTAL
 RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 FRONT SIDE MARKER LIGHT
 AND LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER
