Mitsubishi Galant (2004+). Manual - part 105

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-179

ETACS-ECU

DATA LINK
CONNECTOR

MULTI CENTER DISPLAY UNIT

ABS-ECU OR
ABS/TCL-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-180

AUTOMATIC AIR CONDITIONING SYSTEM (CONTINUED)

A/C-ECU

JUNCTION
BLOCK

BLOWER
RELAY

BLOWER
MOTOR

OUTSIDE/INSIDE
AIR SELECTION
DAMPER
CONTROL
MOTOR

MOTOR DRIVE
CIRCUIT

POWER
SUPPLY

POWER
TRANSISTOR

JOINT
CONNECTOR
(2)

FUSIBLE
LINK

1

IGNITION
SWITCH (IG2)

POWER TRANSISTOR
DRIVE CIRCUIT

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-181

NOTES

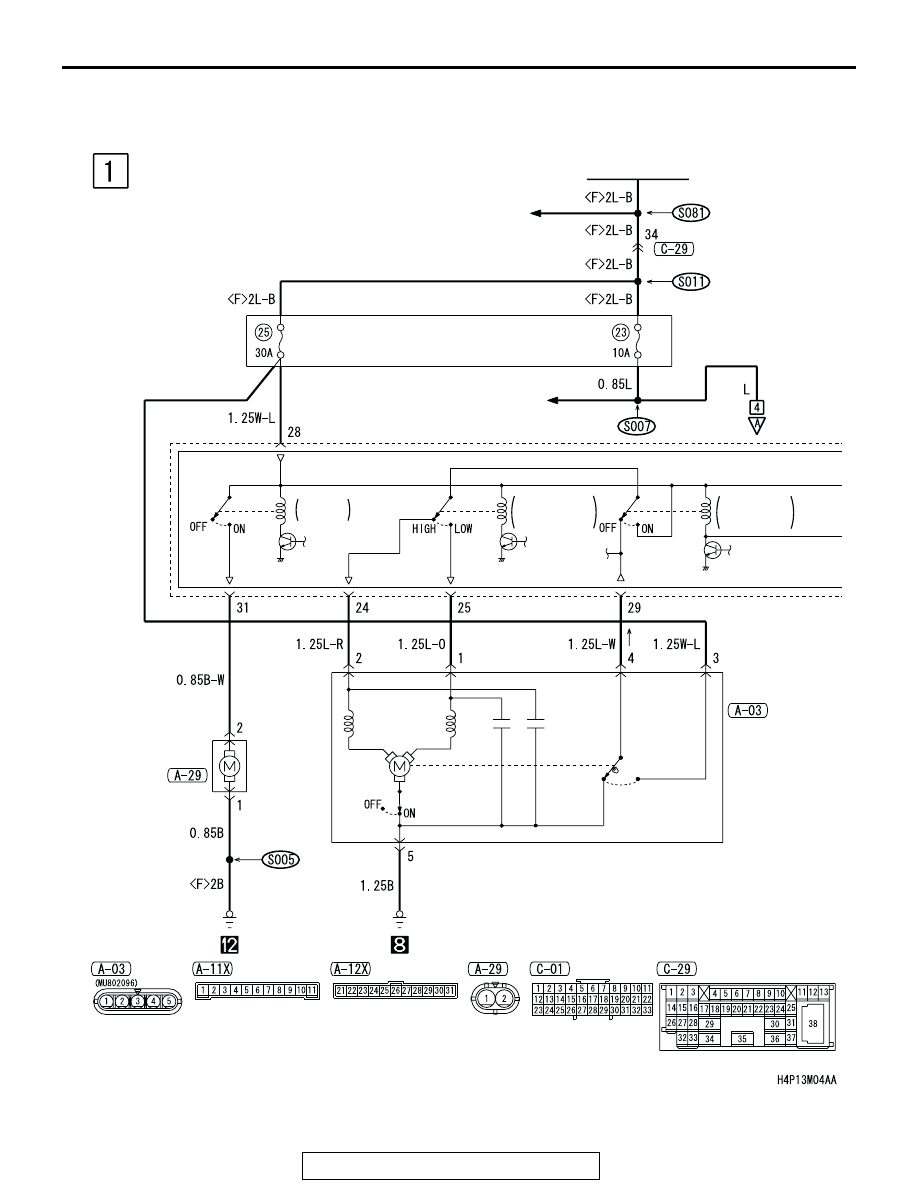

WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-182

WINDSHIELD WIPER AND WASHER

M1901006100575

IGNITION
SWITCH (ACC)

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER
 AREA NETWORK
 (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·REMOTE CONTROLLED
 MIRROR

·ACCESSORY SOCKET
·AUDIO SYSTEM
·AUTOMATIC AIR CONDITIONING SYSTEM
·CONTROLLER AREA NETWORK(CAN)
·MANUAL AIR CONDITIONING SYSTEM
·MULTI CENTER DISPLAY

WASHER
RELAY

WIPER SPEED
SWITCHING
RELAY

WIPER
AUTOMATIC
STOP RELAY

WINDSHIELD
WIPER MOTOR

CIRCUIT
BREAKER

WINDSHIELD
WASHER MOTOR

RELAY
BOX
