CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-15

CENTRALIZED JUNCTION

M1901000300678

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

1

Battery

Fusible
link

80

Black

Fuse No.5, 6, 9, 10 (in junction block)
circuit

2

30

Pink

Radiator fan motor

3

60

Yellow

ABS-ECU and ABS/TCL-ECU

4

40

Green

Ignition switch circuit

5

30

Pink

Fuse No.3, 4 (in junction block
circuit), front power window regulator
motor, power seat assembly, power
window main switch and rear power
window regulator motor

6

Fuse

15

Blue

Fog light and fog light relay

7

20

Yellow

Heated seat assembly and heated
seat switch

8

10

Red

Horn and horn relay

9

20

Yellow

Camshaft position sensor, crankshaft
position sensor, engine oil control
valve, evaporative emission purge
solenoid, evaporative emission
ventilation solenoid, exhaust gas
recirculation valve, heated oxygen
sensor, immobilizer-ECU, injector,
mass airflow sensor, MFI relay,
powertrain control module and throttle
actuator control motor relay

10

10

Red

A/C compressor assembly and
A/C-ECU

11

15

Blue

ABS-ECU, ABS-TCL-ECU,
high-mounted stoplight, powertrain
control module and rear combination
light

12

−

−

−

13

7.5

Brown

Generator

14

10

Red

ETACS-ECU

15

20

Yellow

A/T control solenoid valve and
powertrain control module

16

Front-ECU (Headlight
relay: High)

10

Red

Headlight (RH) and headlight (High:
RH)

17

10

Red

Headlight (LH) and headlight (High:
LH)

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-16

18

Front-ECU (Field
effect transistor for
headlight: Low)

Fuse

10

Red

Headlight (RH) and headlight (Low:
RH)

19

10

Red

Headlight (LH) and headlight (Low:
LH)

20

Front-ECU (Taillight
relay)

7.5

Brown

A/C-ECU, A/T selector lever position
illumination light, air bag off indicator
light (passenger’s side), combination
meter, fog light switch, front
combination light (RH), front side
marker light (RH), glove box light,
hazard warning light switch, heated
seat switch, multi center display unit,
radio, CD player, CD changer, rear
combination light (RH), rheostat, seat
belt warning light (passenger’s side)
and TCL switch

21

7.5

Brown

Front combination light (LH), front
side marker light (LH), license plate
light and rear combination light (LH)

22

Battery

10

Red

A/C-ECU, column switch,
combination meter, ETACS-ECU,
front-ECU, key reminder switch, multi
center display unit, radio, CD player,
CD changer and vanity mirror light

23

Ignition switch (ACC)

10

Red

A/C-ECU, accessory socket relay,
ETACS-ECU, multi center display
unit, radio, CD player and CD
changer

24

Battery

15

Blue

Fuel pump module

25

Ignition switch (ACC)

30

Green

Front-ECU and windshield wiper
motor

26

Battery

Fusible
link

20

Light blue Condenser fan motor

27

120

−

Generator

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-17

AC208462AB

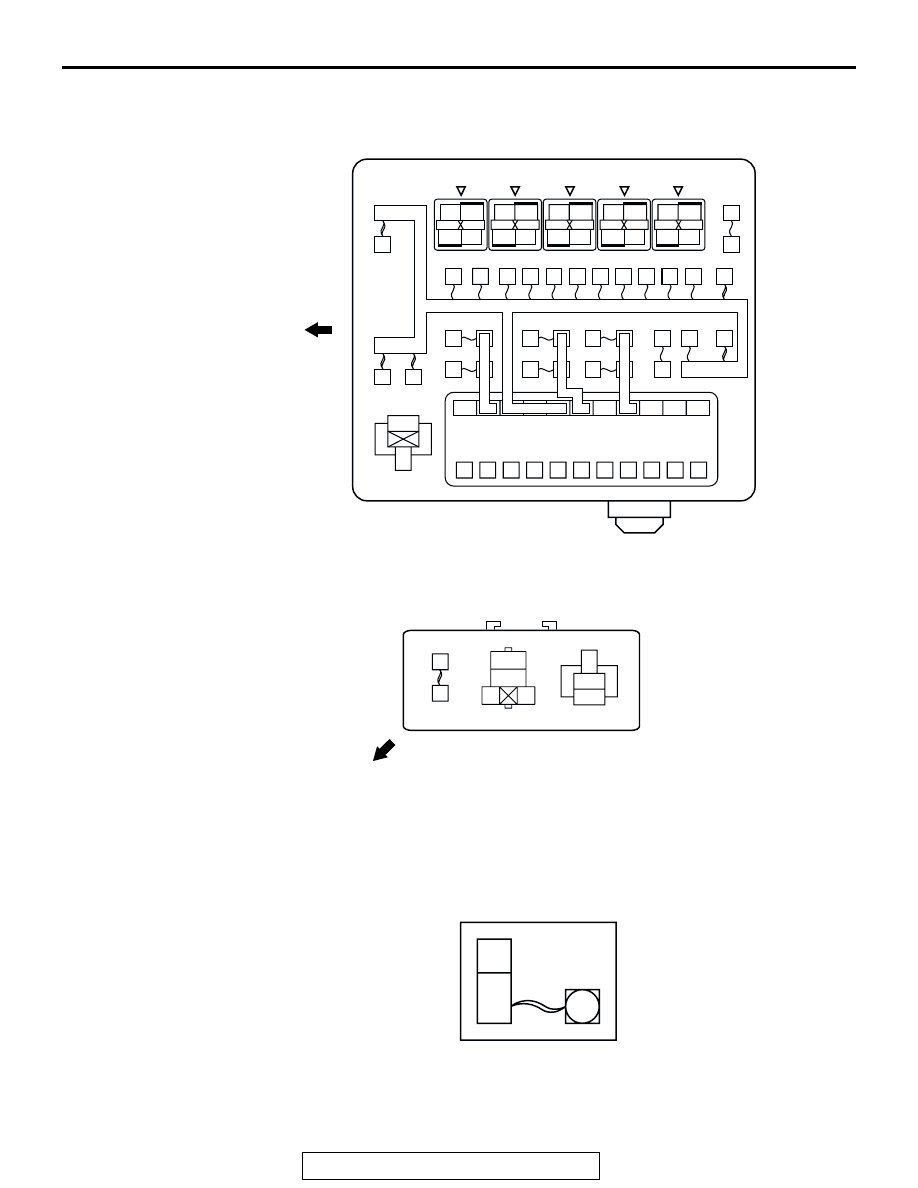

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

1

2

3

4

5

25

6

7

8 9 10 11 12 13 14 15 24

16

17

18

19

20

21

23 22

AC303418

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

26

AB

AC207745

(CONNECTED DIRECTLY TO BATTERY POSITIVE TERMINAL)

27

AG

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-18

PASSENGER COMPARTMENT

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

1

−

Fuse

−

−

−

2

−

−

−

−

3

Fusible link No.5

20

Yellow

Audio amplifier

4

20

Yellow

Sunroof assembly

5

Fusible link No.1

30

Green

Choke coil

6

30

Green

Blower motor and resistor

7

−

−

−

8

−

−

−

9

15

Blue

Accessory socket

10

15

Blue

Data link connector and ETACS-ECU

11

Ignition switch (ACC)

15

Blue

ETACS-ECU

12

−

−

−

13

Ignition switch (IG2)

7.5

Brown

Sunroof assembly

14

Ignition switch (ACC)

7.5

Brown

Remote controlled mirror

15

−

−

−

16

−

−

−

17

Ignition switch (IG1)

7.5

Brown

Fuel pump relay and powertrain
control module

18

Ignition switch (ACC)

−

−

−

19

Fusible link No.1
(Fuse No.5 in junction
block)

7.5

Brown

Remote controlled mirror (mirror
heater)

20

Ignition switch (IG2)

7.5

Brown

A/C compressor clutch relay,
A/C-ECU, blower relay, condenser
fan motor, defogger relay, fan control
relay, front-ECU, heated seat relay,
outside/inside air selection damper
control motor and radiator fan relay

21

Ignition switch (IG1)

−

−

−

22

7.5

Brown

A/T control relay, air bag off indicator
light (passenger’s side), input shaft
speed sensor, occupant
classification-ECU, output shaft
speed sensor, powertrain control
module, rear combination light, seat
belt warning light (passenger’s side)
and SRS-ECU

23

7.5

Brown

ABS-ECU, ABS/TCL-ECU, column
switch, combination meter,
ETACS-ECU, multi center display unit
and SRS-ECU

24

10

Red

Capacitor and ignition coil
