70-1

GROUP 70

COMPONENT

LOCATIONS

CONTENTS

FUSIBLE LINK, FUSE AND IOD OR
STORAGE CONNECTOR . . . . . . . . .

70-2

GROUNDING CABLE  . . . . . . . . . . . .

70-3

GROUNDING . . . . . . . . . . . . . . . . . . .

70-4

RELAY . . . . . . . . . . . . . . . . . . . . . . . .

70-6

INSPECTION TERMINAL . . . . . . . . . .

70-8

SENSOR . . . . . . . . . . . . . . . . . . . . . . .

70-8

CONTROL UNIT . . . . . . . . . . . . . . . . .

70-15

SOLENOID AND SOLENOID VALVE

70-18

OTHER DEVICES . . . . . . . . . . . . . . . .

70-21

FUSIBLE LINK, FUSE AND IOD OR STORAGE CONNECTOR

TSB Revision

COMPONENT LOCATIONS

70-2

FUSIBLE LINK, FUSE AND IOD OR STORAGE

CONNECTOR

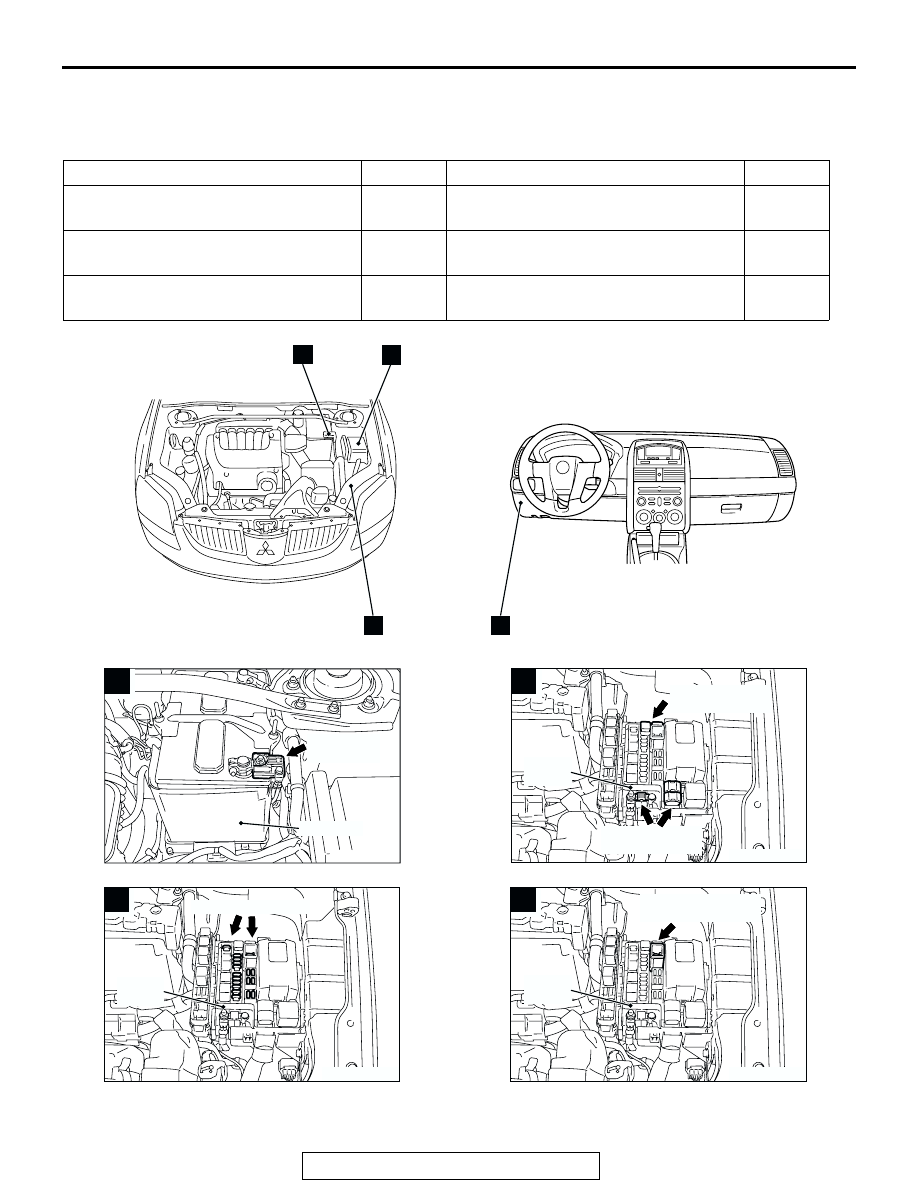

M1701000100380

NAME

SYMBOL NAME

SYMBOL

Fuses No.1 to 24 (Passenger
compartment)

D

Fusible link No.27 (Engine
compartment)

A

Fuses No.6 to 25 (Engine
compartment)

B

Fusible links No.1 to 5 (Engine
compartment)

B

Fusible link No.26 (Engine
compartment)

C

IOD or storage connector

B

AC305445AB

A

B

D

C

AC305020AB

FUSIBLE
LINK No.27

BATTERY

A

AC305015AB

FUSIBLE LINKS
No.1 TO 3

FUSIBLE LINKS
No.4, 5

RELAY
BOX

B

AC305016

RELAY
BOX

AB

FUSES No.6 TO 25

B

AC305019

B

RELAY
BOX

AB

IOD OR STORAGE
CONNECTOR

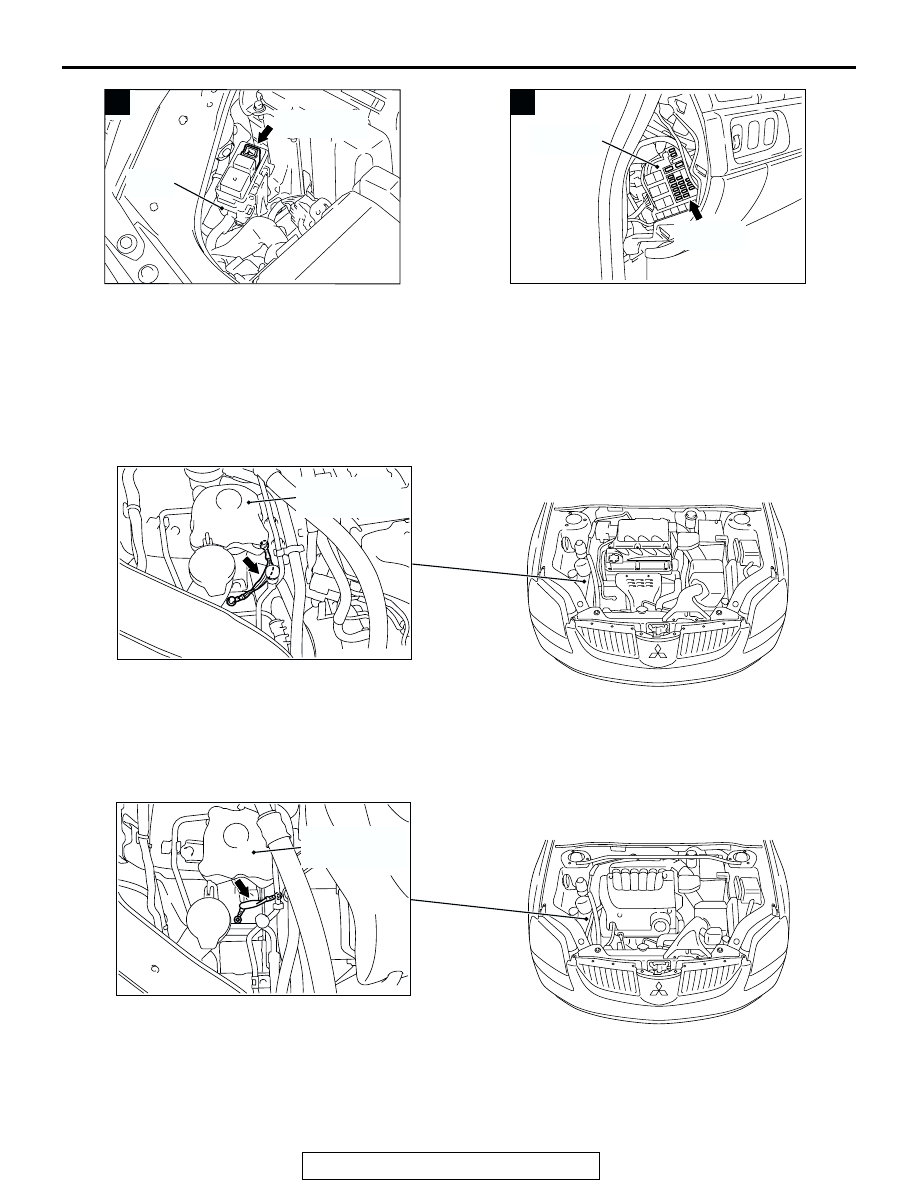

GROUNDING CABLE

TSB Revision

COMPONENT LOCATIONS

70-3

GROUNDING CABLE

M1701001000319

AC305023

FUSIBLE LINK
No.26

RELAY
BOX

AB

C

AC305031

AB

FUSES
No.1 TO 24

JUNCTION
BLOCK

D

AC305447

AC305039

AC305038

AB

<3.8L ENGINE>

<2.4L ENGINE>

ENGINE FRONT
MOUNTING
BRACKET

ENGINE FRONT
MOUNTING
BRACKET

GROUNDING

TSB Revision

COMPONENT LOCATIONS

70-4

GROUNDING

M1701000300373

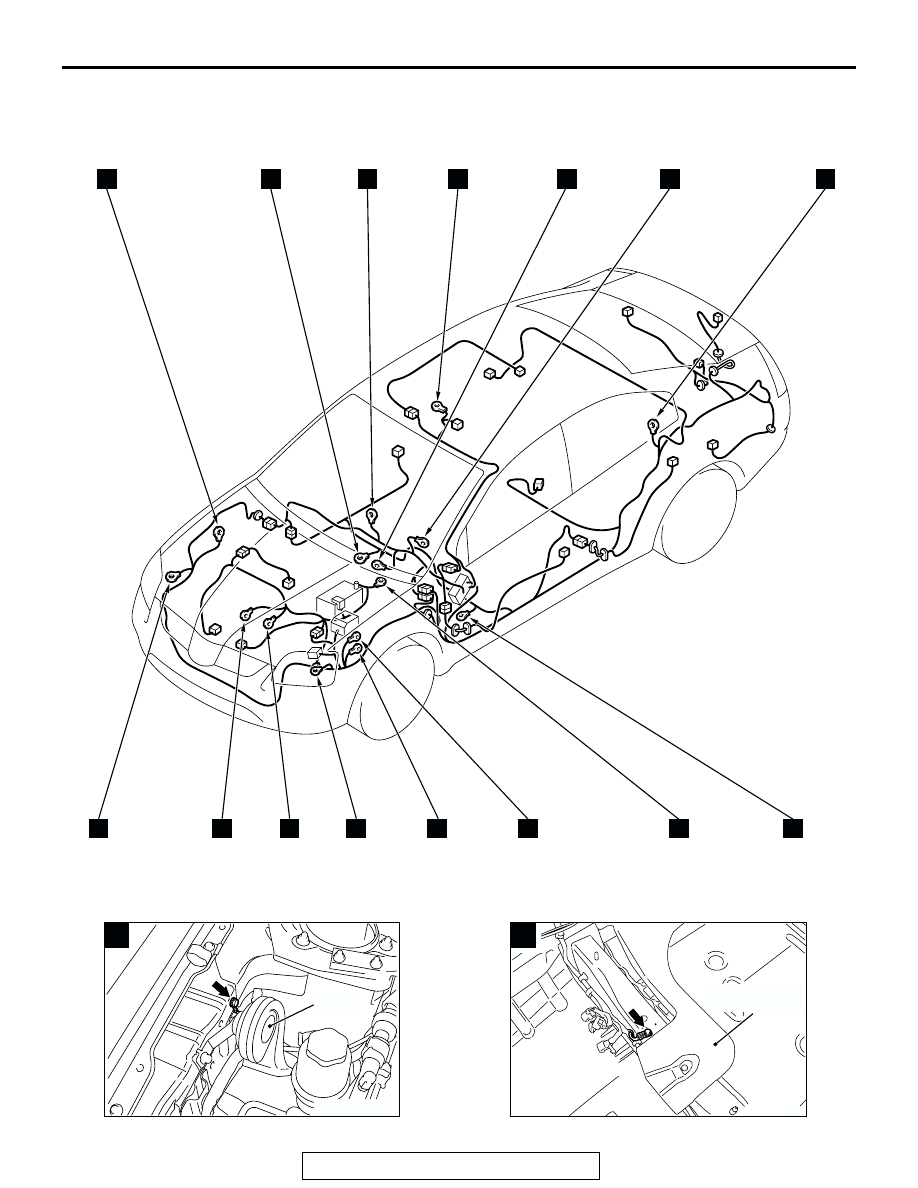

NOTE: 1 to 15 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

AC304369AC

1

4

2

3

5

6

7

8

9

10

11

12

13

14

15

AC305033AB

1

HORN

AC305355

2

AB

REAR HEATER
DUCT (RH)
