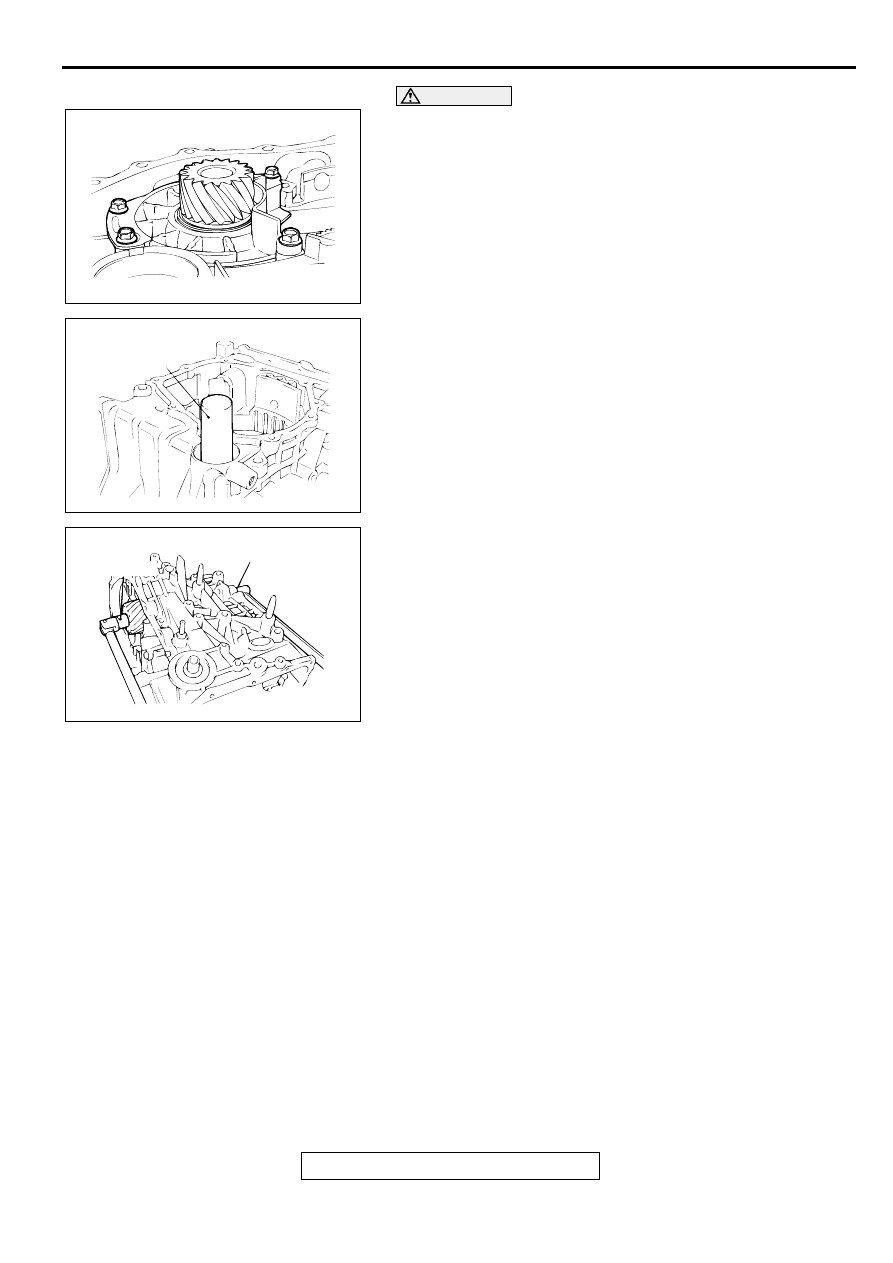

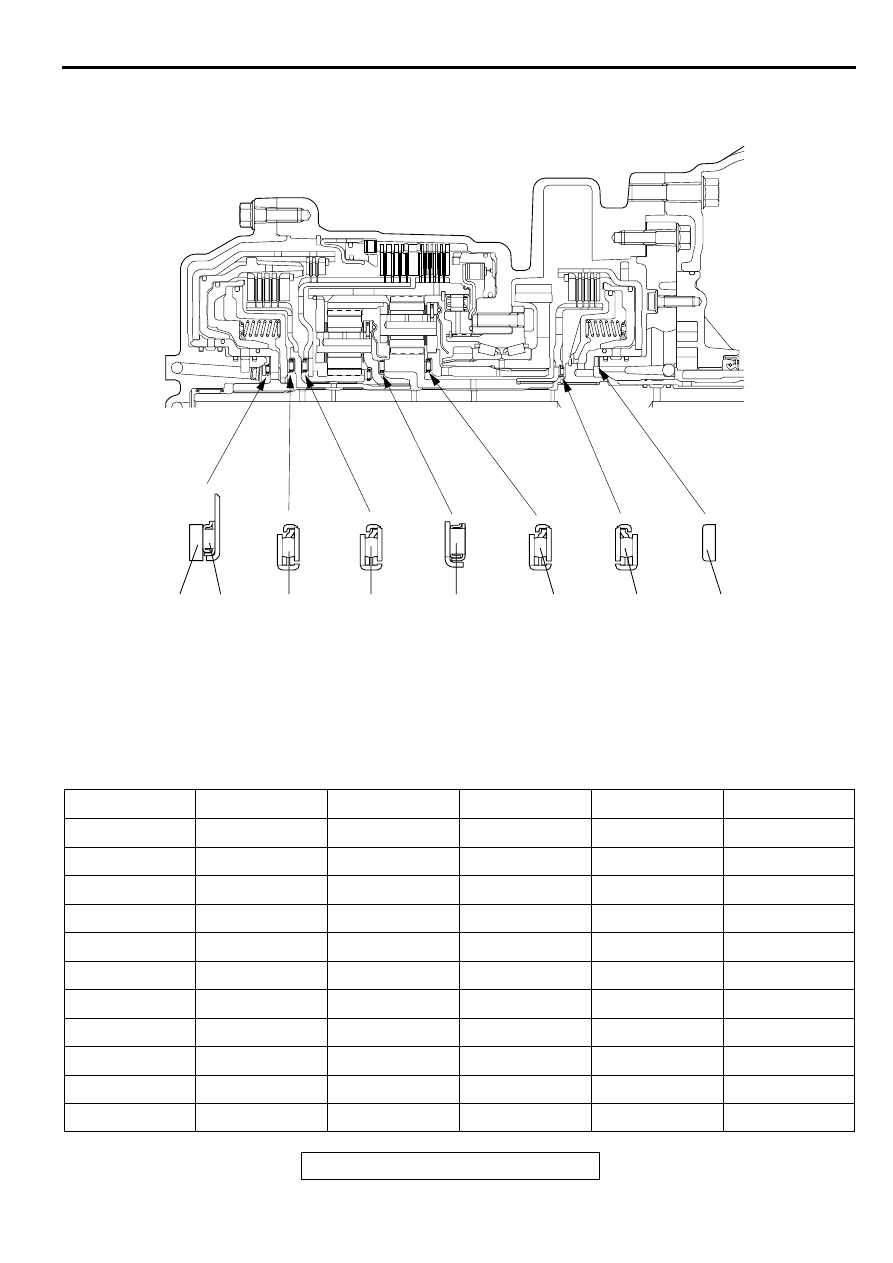

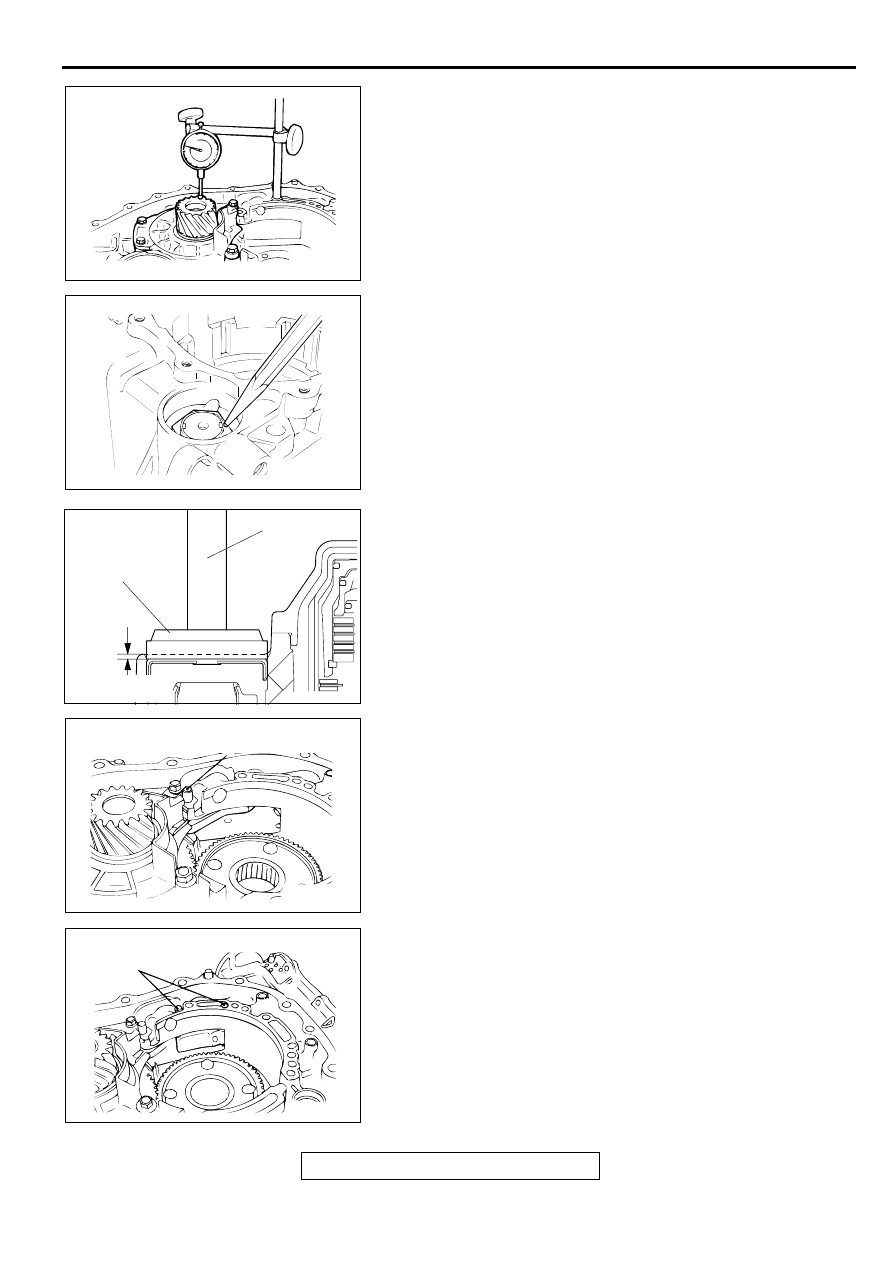

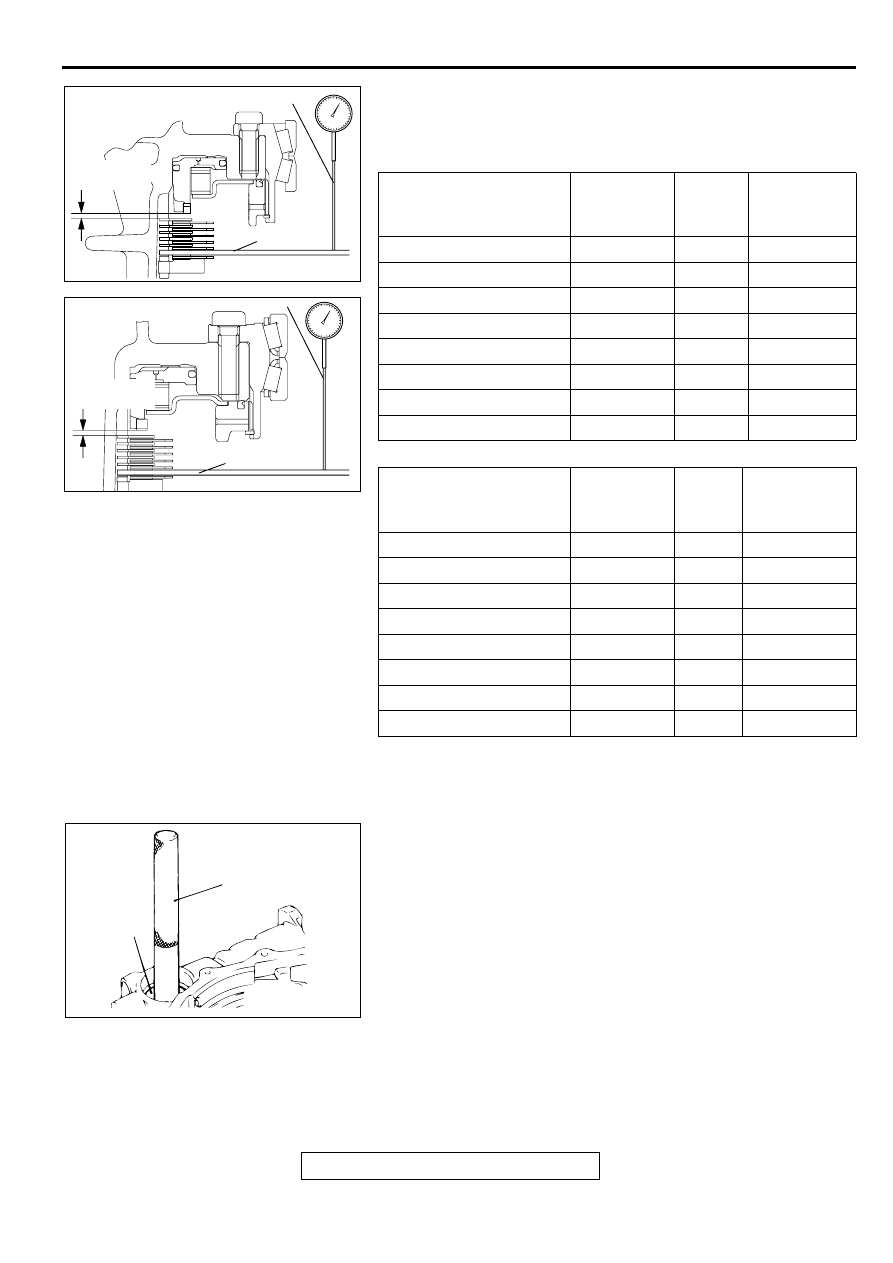

TRANSAXLE TSB Revision AUTOMATIC TRANSAXLE OVERHAUL 23B-33 19.Select a pressure plate whose thickness corresponds to the measured amount of movement from the table below. NOTE: This illustration shows F4A51. PRESSURE PLATE FOR F4A42 PRESSURE PLATE FOR F4A51 20.Remove all parts and special tools that were installed to take the measurements in steps 8 to 18. Remove and 21.Install the snap ring into the groove of transaxle case output shaft bore. 22.Install the thinnest output shaft preload adjustment spacer [thickness 1.88 mm (0.0740 in); part number MD756579]. 23.Use special tools MB990930 and MB990938 to tap the output shaft bearing outer race in the transaxle case. MOVEMENT AMOUNT THICKNESS ID PRESSURE 1.3 − 1.5 (0.051 − 0.059) 1.6 (0.063) L MD759567 1.5 − 1.7 (0.059 − 0.067) 1.8 (0.071) 1 MD759414 1.7 − 1.9 (0.067 − 0.075) 2.0 (0.079) 0 MD759415 1.9 − 2.1 (0.075 − 0.083) 2.2 (0.087) 2 MD759416 2.1 − 2.3 (0.083 − 0.091) 2.4 (0.094) 4 MD759417 2.3 − 2.5 (0.091 − 0.098) 2.6 (0.102) 6 MD759418 2.5 − 2.7 (0.098 − 0.106) 2.8 (0.110) 8 MD759419 2.7 − 2.9 (0.106 − 0.114) 3.0 (0.118) D MD759420 MOVEMENT AMOUNT THICKNESS ID PRESSURE 1.0 − 1.2 (0.039 − 0.047) 1.6 (0.063) F MD759568 1.2 − 1.4 (0.047 − 0.055) 1.8 (0.071) E MD759425 1.4 − 1.6 (0.055 − 0.063) 2.0 (0.079) D MD759426 1.6 − 1.8 (0.063 − 0.071) 2.2 (0.087) C MD759427 1.8 − 2.0 (0.071 − 0.079) 2.4 (0.094) B MD759428 2.0 − 2.2 (0.079 − 0.087) 2.6 (0.102) A MD759429 2.2 − 2.4 (0.087 − 0.094) 2.8 (0.110) 0 MD759430 2.4 − 2.6 (0.094 − 0.102) 3.0 (0.118) 1 MD759431 AKX01123 <F4A42> MD998913 MB991631 AB MOVEMENT AKX01124 <F4A51> MD998913 MB991632 AB MOVEMENT AKX01060 MB990938 MB990930 AB |
