MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-236

STEP 6. Check harness connector B-32 at intermediate
connector for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

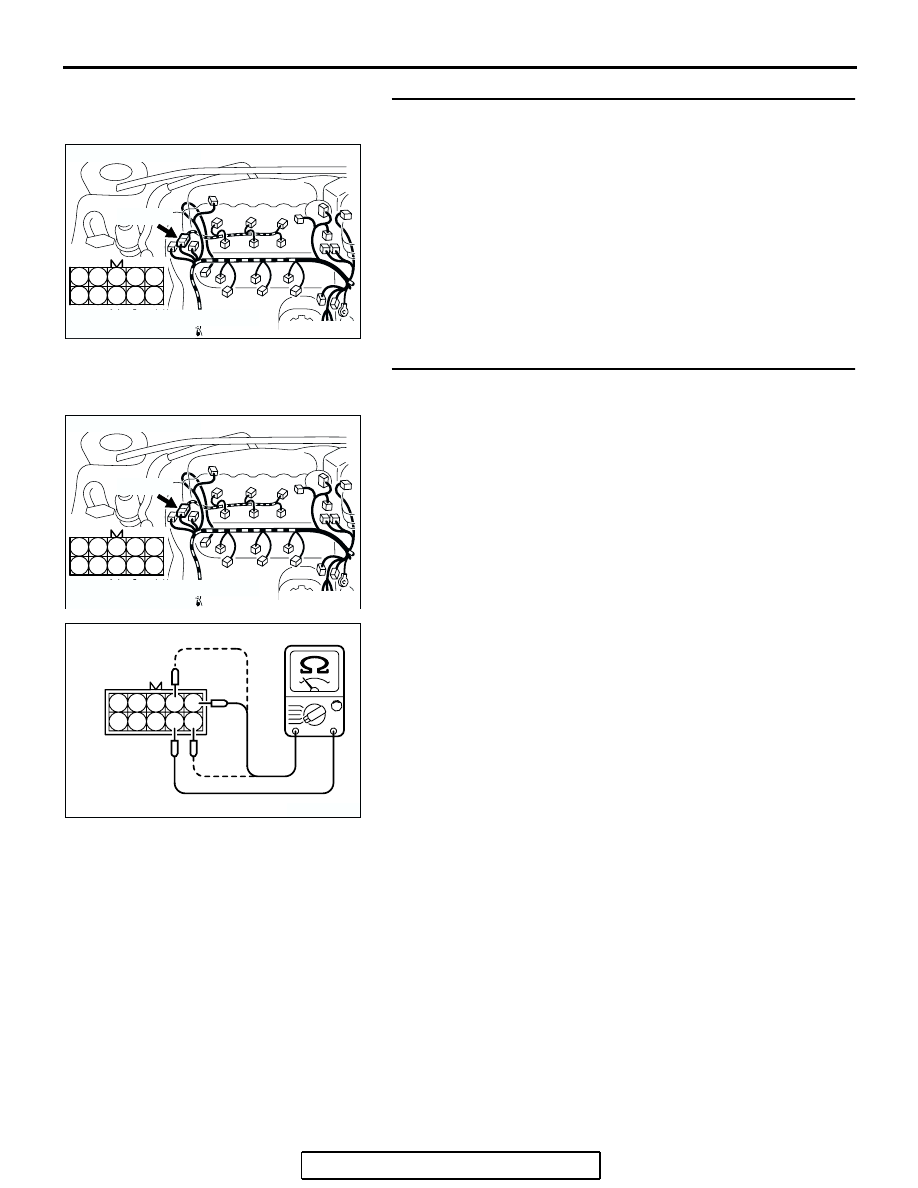

STEP 7. Measure the right bank injector resistance at
intermediate connector B-32.

(1) Disconnect the intermediate connector B-32.

(2) Measure the resistance between each injector side

connector terminal.

a. Measure the resistance between terminal No. 5 and No.

9 when measuring No. 1 cylinder.

b. Measure the resistance between terminal No. 9 and No.

10 when measuring No. 3 cylinder.

c. Measure the resistance between terminal No. 4 and No.

9 when measuring No. 5 cylinder.

• Resistance should be between 10.5 and 13.5 ohms [at

20

°C (68° F)].

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 10.
NO :  Go to Step 8.

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:
COMPONENT SIDE

AB

B-32 (B)

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:
COMPONENT SIDE

AB

B-32 (B)

1

2 3

6

7 8

4 5

9 10

AK203093

B-32
INTERMEDIATE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-237

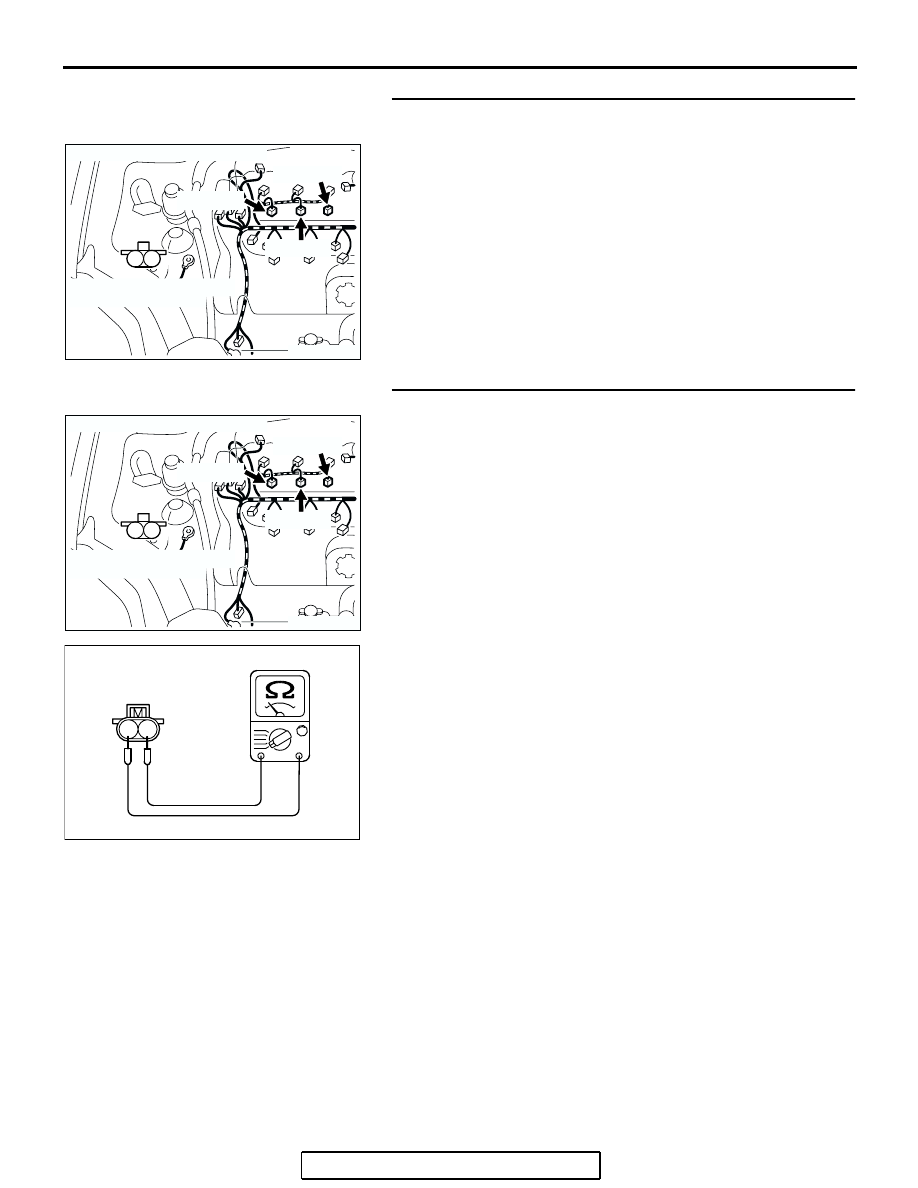

STEP 8. Check harness connector B-03, B-04, B-01 at right
bank injector for  damage.

(1) Remove the intake manifold.
(2) Check the right bank injector connector, which deviates

from the standard value at Step 7.

Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

STEP 9. Check the right bank injector.

(1) Check the right bank injector, which deviates from the

standard value at Step 7.

(2) Measure the resistance between injector side connector

terminal No. 1 and No. 2.

Standard value: 10.5

 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Repair harness wire between injector intermediate

connector and right bank injector connector because
of harness damage. Then go to Step 13.

NO :  Replace the injector. Then go to Step 13.

AK303055

M

1

2

CONNECTOR: B-01, B-03, B-04

AB

B-01 (GR)

B-03 (GR)

B-04 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303055

M

1

2

CONNECTOR: B-01, B-03, B-04

AB

B-01 (GR)

B-03 (GR)

B-04 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-238

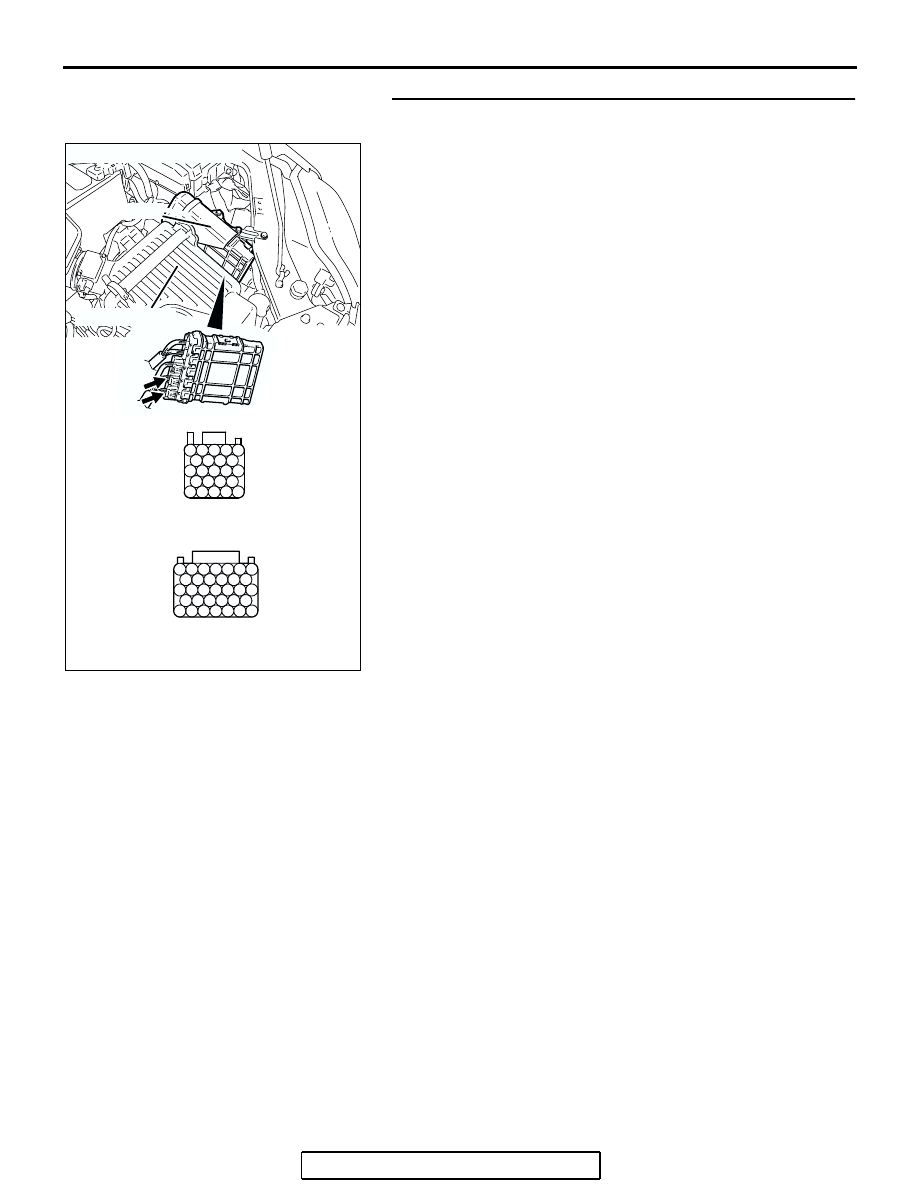

STEP 10. Check harness connector B-22, B-23 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

AK303057

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

CONNECTORS: B-22, B-23

B-22 (B)

AB

B-23

B-22 HARNESS CONNECTOR:
COMPONENT SIDE

B-23 HARNESS CONNECTOR:
COMPONENT SIDE

PCM

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-239

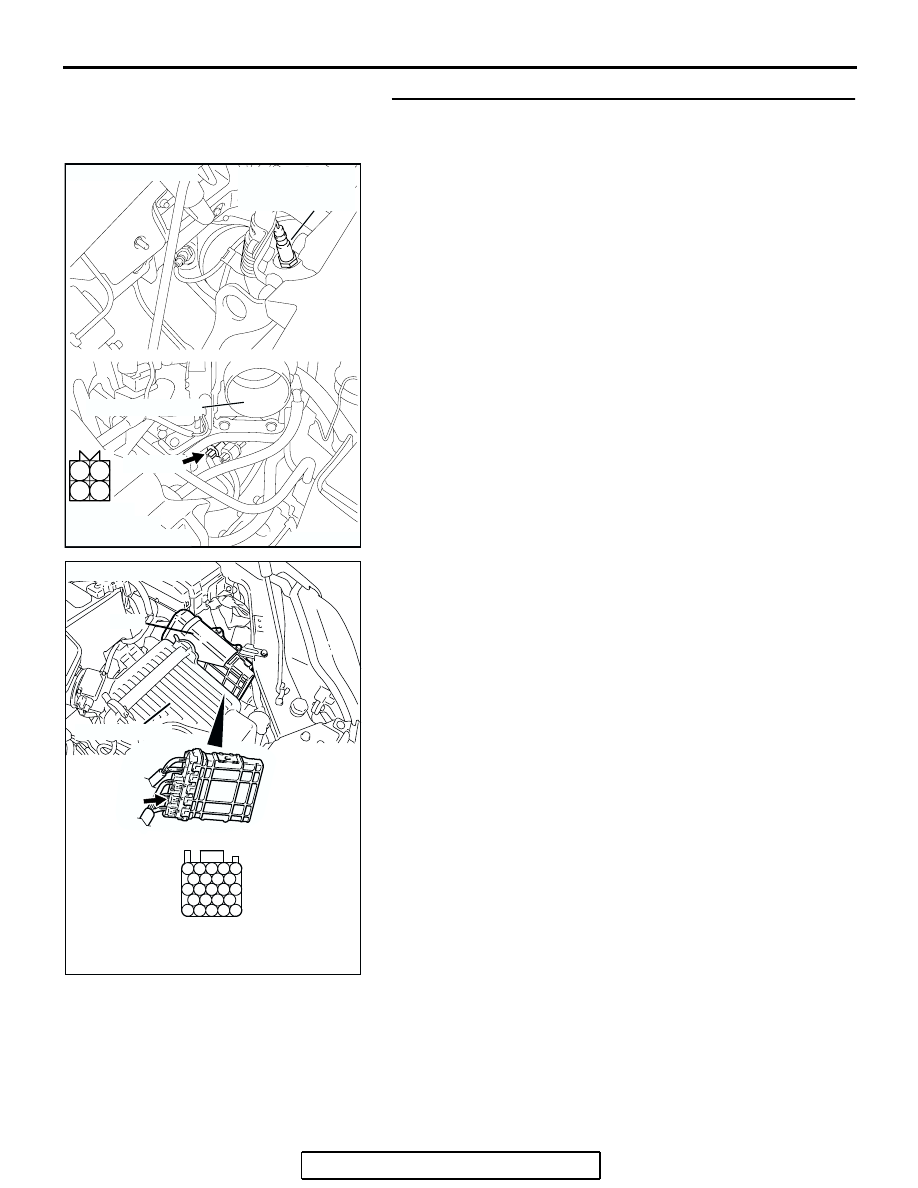

STEP 11. Check for harness damage between right bank
heated oxygen sensor (front) connector B-09 (terminal No.
4) and PCM connector B-22 (terminal No. 92).

Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair it. Then go to Step 13.

1

2

3

4

AK303048

B-09 (B)

CONNECTOR: B-09

THROTTLE BODY

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
