Mitsubishi Galant 9G. Manual - part 634

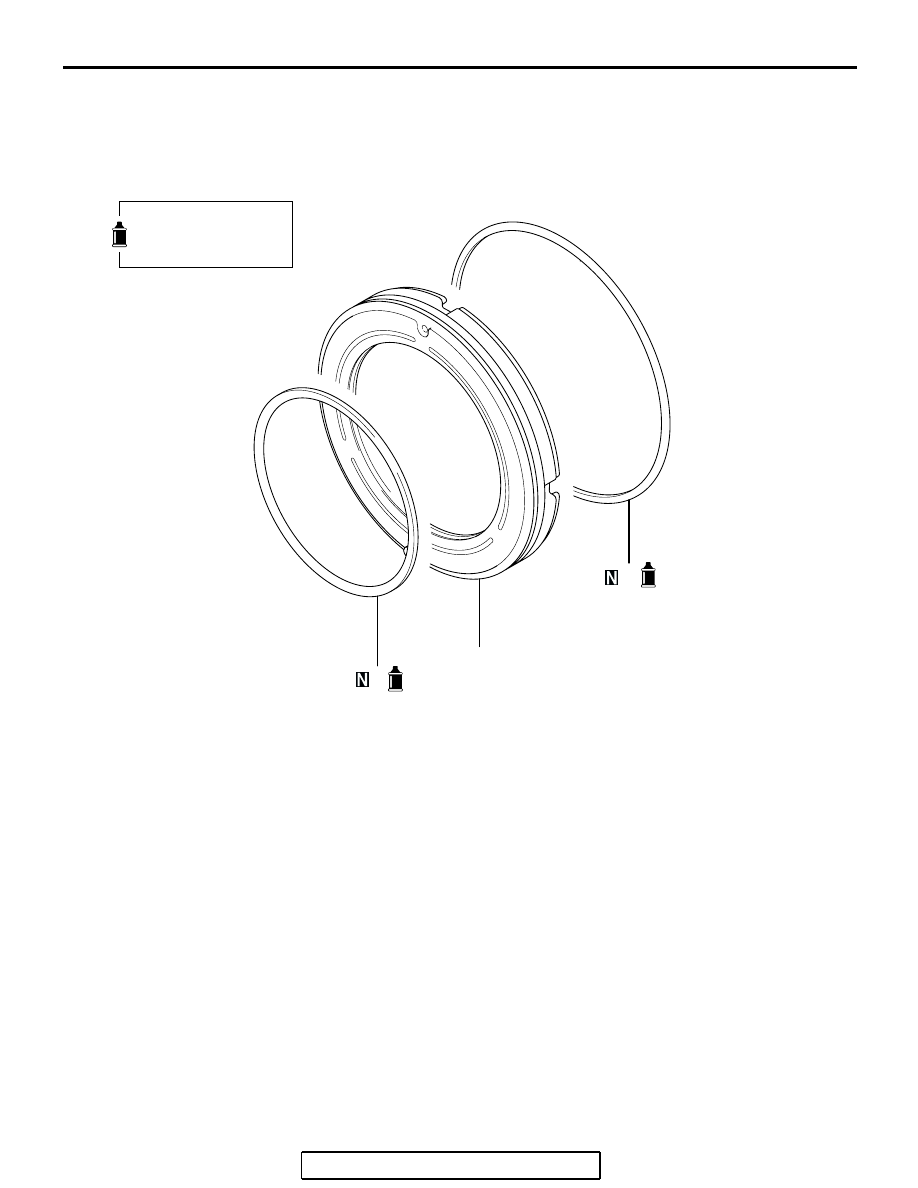

REVERSE AND OVERDRIVE CLUTCH
TSB Revision

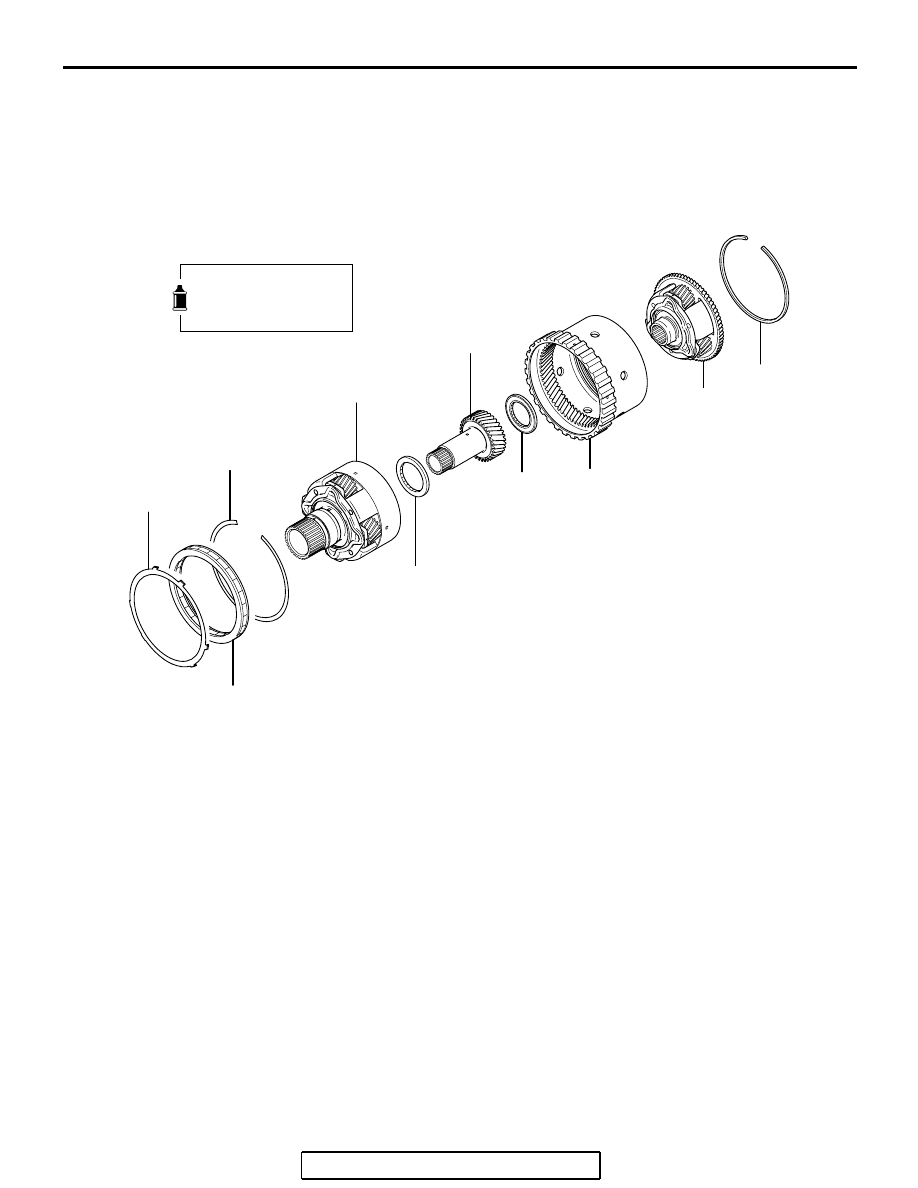

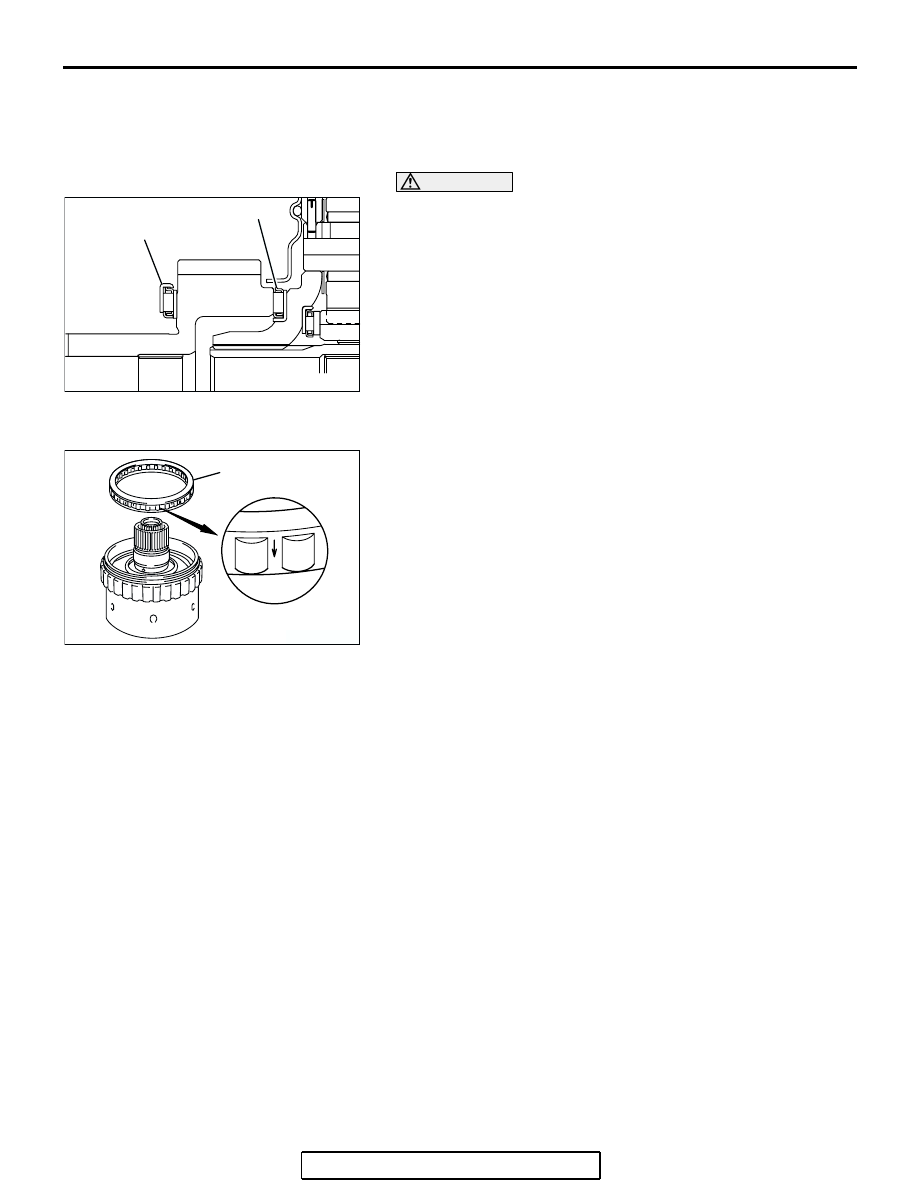

AUTOMATIC TRANSAXLE OVERHAUL
23B-68
>>F<< CLUTCH PLATE/CLUTCH DISC/CLUTCH
REACTION PLATE INSTALLATION
CAUTION
Immerse the clutch disc in ATF before assembling it. If the
clutch disc is new, soak it in ATF for at least two hours.

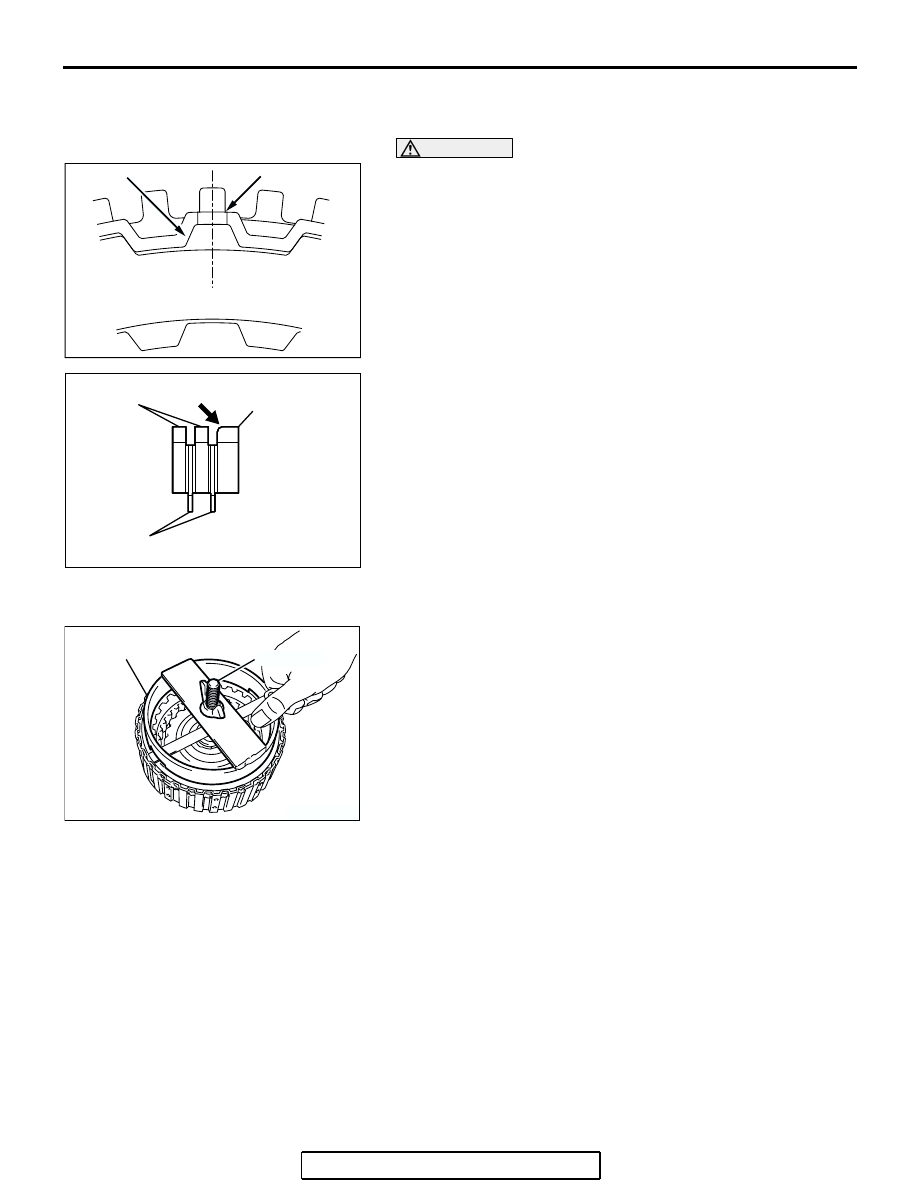

1. Assemble two clutch discs and two clutch plates, one on top
of the other, inside the reverse clutch retainer. Assemble
both clutch plates so that the places with no teeth (marked
"A") are aligned with the holes in the retainer (marked "B").
2. Install the clutch reaction plate in the direction shown. Install
it the same as the clutch plate, so that the places with no
teeth (marked "A") are aligned with the holes in the retainer
(marked "B").
.
>>G<< SNAP RING INSTALLATION
1. Install the snap ring into the groove of reverse clutch
retainer.
2. Set special tools MB991790 <F4A4B> or MB991789
<F4A5A> and MD998924 as shown in the illustration, and
compress the clutch element.
3. Check that the clearance between the snap ring and the
clutch reaction plate is within the standard value. If not within
the standard value, select a snap ring to achieve the
standard value clearance.
Standard value: 1.5
− 1.7 mm (0.0591 − 0.0669 inch)
AK301272AC
A
B
AK301320
AK301320
AK301320
AC
CLUTCH
PLATES
ROUNDED
EDGE
CLUTCH DISCS
CLUTCH
REACTION
PLATE
AK300528AD
MB991790 <F4A4B> OR
MB991789 <F4A5A>
MD998924
