Mitsubishi Galant 9G. Manual - part 580





TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-398

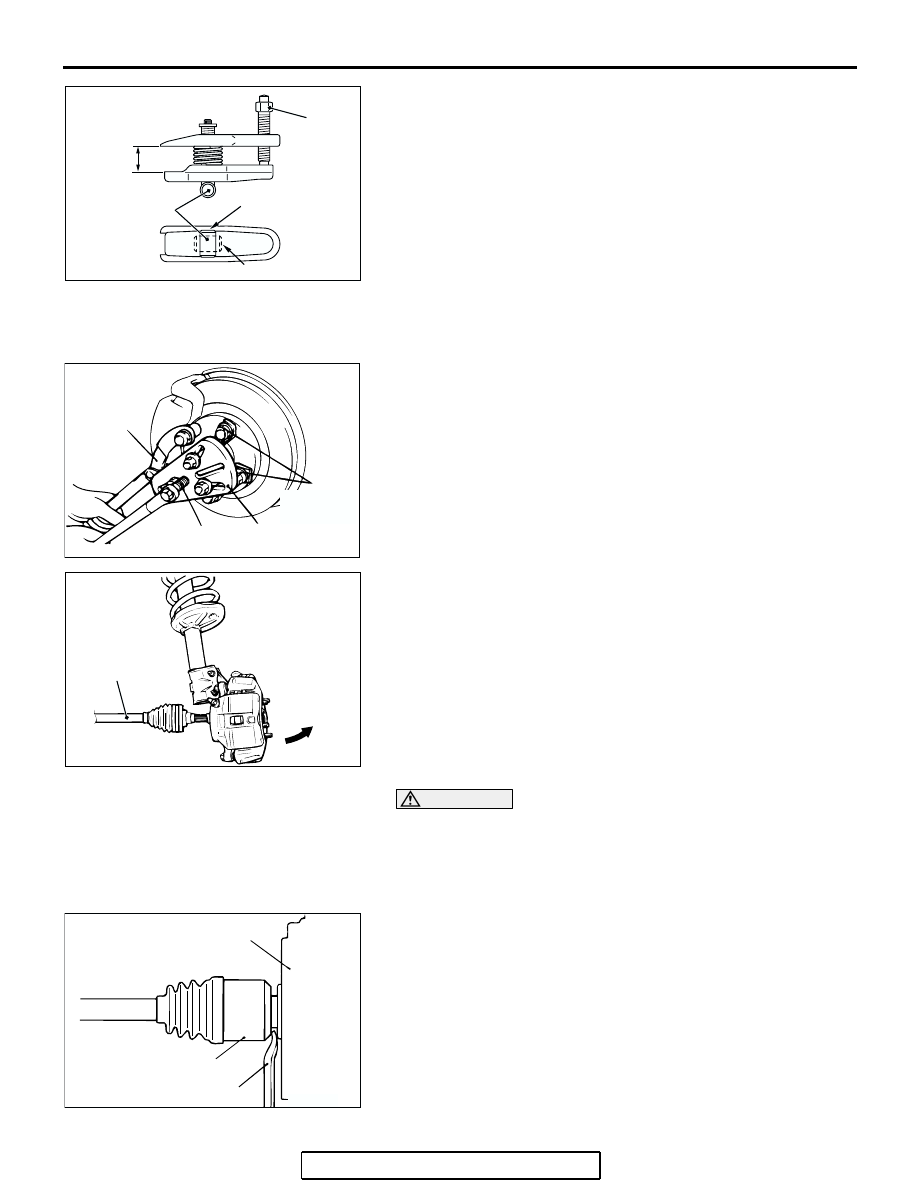

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end

and remove the self locking nut.

.

<<C>> DRIVE SHAFT <LH>/DRIVE SHAFT AND
INNER SHAFT ASSEMBLY  <RH> REMOVAL

1. Use special tools MB990242, MB990244, MB991354 and

MB990767 to push out the drive shaft or the drive shaft and
inner shaft assembly from the hub.

2. Remove the drive shaft from the hub by pulling the bottom of

the brake disc towards you.

CAUTION

• Do not pull on the drive shaft; doing so will damage the

PTJ; be sure to use the pry bar.

• When pulling the drive shaft out from the transaxle, be

careful that the spline part of the drive shaft does not
damage the oil seal.

3. Insert a pry bar between the transaxle case and the drive

shaft, and then pry and remove the drive shaft from the
transaxle.

AC106821

KNOB

PARALLEL

BOLT

CORRECT

WRONG

AC

AC102550

MB990244
(THREE)

MB991354

MB990242

MB990767

AC

AC102551AD

DRIVE
SHAFT

AC100141AL

TRANSAXLE

PTJ ASSEMBLY

PRY BAR

TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-399

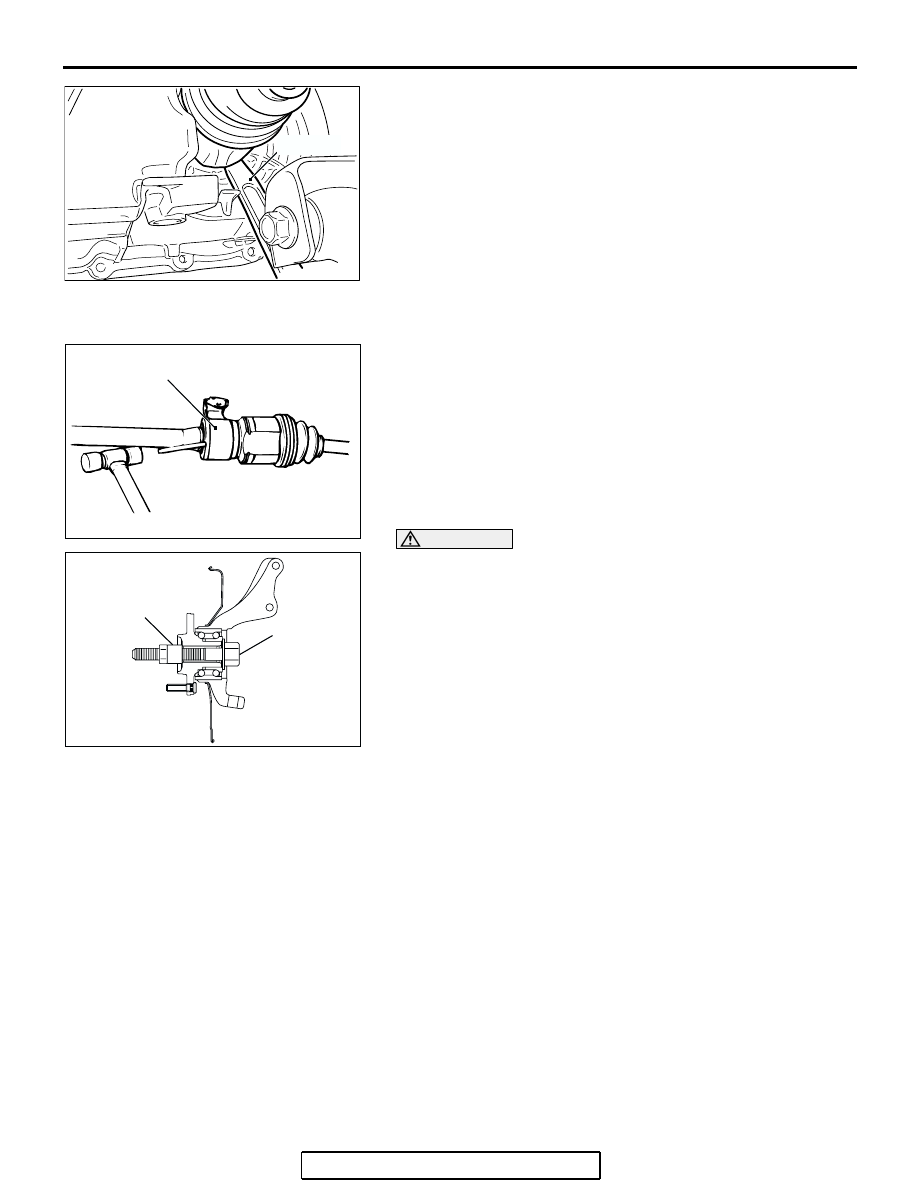

NOTE: Insert a pry bar, taking care not to damage the pro-
trusion of transaxle case when removing the drive shaft LH.

4. If the inner shaft is hard to remove from the transaxle, strike

the bracket assembly lightly with a plastic hammer and
remove the inner shaft.

CAUTION

Do not apply pressure to the wheel bearing by the vehicle
weight to avoid possible damage when the drive shaft is
removed. If, however, vehicle weight must be applied to
the bearing to move the vehicle, temporarily secure the
wheel bearing by using special tools MB991000 and
MB990998.

.

<<D>> TORQUE CONVERTER AND DRIVE PLATE
COUPLING BOLTS REMOVAL

1. Remove the drive plate coupling bolts while turning the

crank shaft.

2. Pry the torque converter towards the transaxle side.

Remove the torque converter with the transaxle.

.

AC305799

AB

PRY BAR

AC102553 AC

BRACKET ASSEMBLY

AC210315 AE

MB990998

MB991000

TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-400

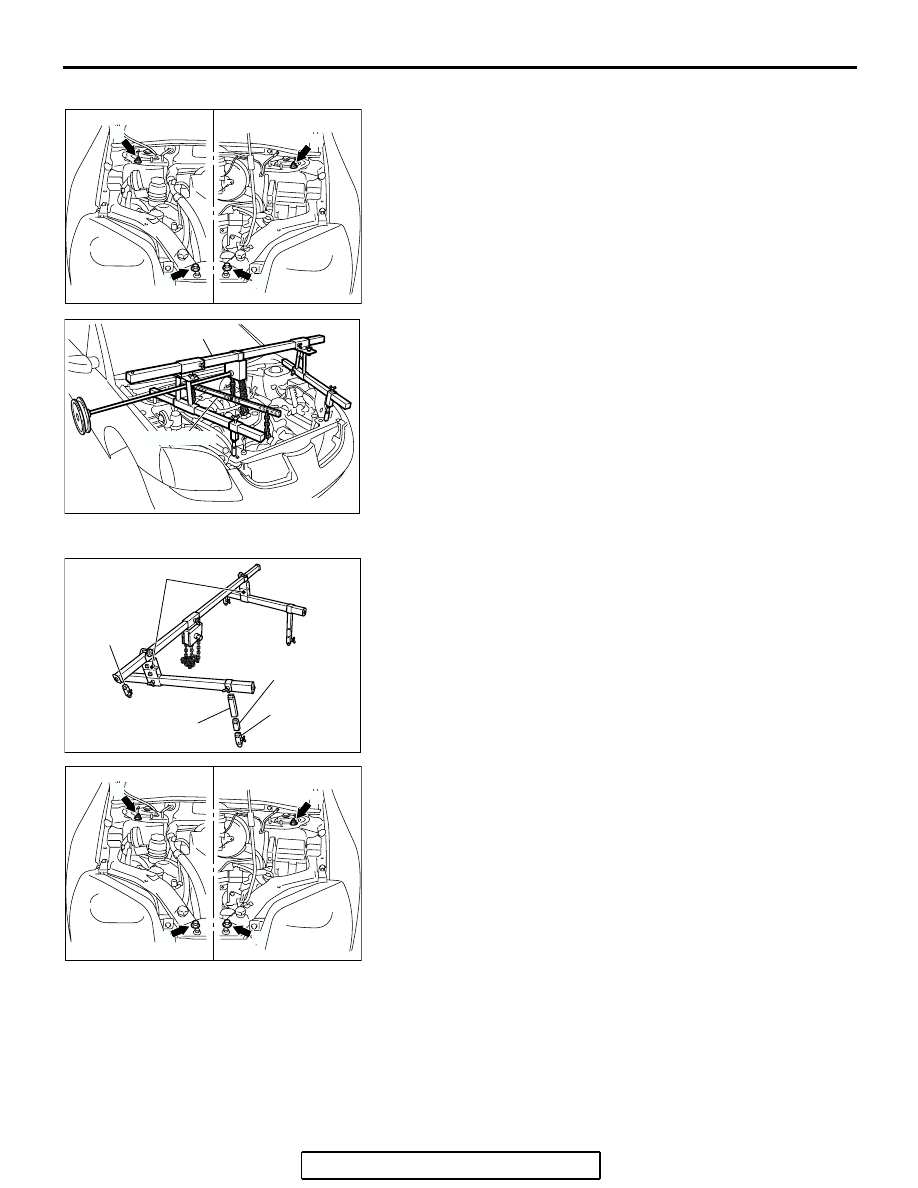

<<E>> ENGINE ASSEMBLY SUPPORTING

1. <Engine hanger (special tool MB991895) is used>

(1) Set special tool MB991895 (engine hanger) to the front

fender assembling bolts (A and B) and (C and D) as
shown.

(2) Set special tool MB991454 to hold the engine/transaxle

assembly.

2. <Engine hanger (special tool MB991928) is used>

(1) Assemble the engine hanger (special tool MB991928).

Attach following parts to the base hanger.)

• SLIDE BRACKET (HI)

• FOOT (STANDARD) (MB991932)

• JOINT (50) (MB991929)

• JOINT (140) (MB991931)

(2) Set special tool MB991928 (engine hanger) to the front

fender assembling bolts (A and B) and (C and D) as
shown.

AC306197

<RH>

<LH>

A

C

B

D

AB

AC306215

AB

MB991895

MB991454

AC306216

FOOT
(STANDARD)
(MB991932)

FOOT
(STANDARD)
(MB991932)

JOINT (50)
(MB991929)

JOINT (140)
(MB991931)

SLIDE BRACKET (HI)

AB

AC306197

<RH>

<LH>

A

C

B

D

AB

TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-401

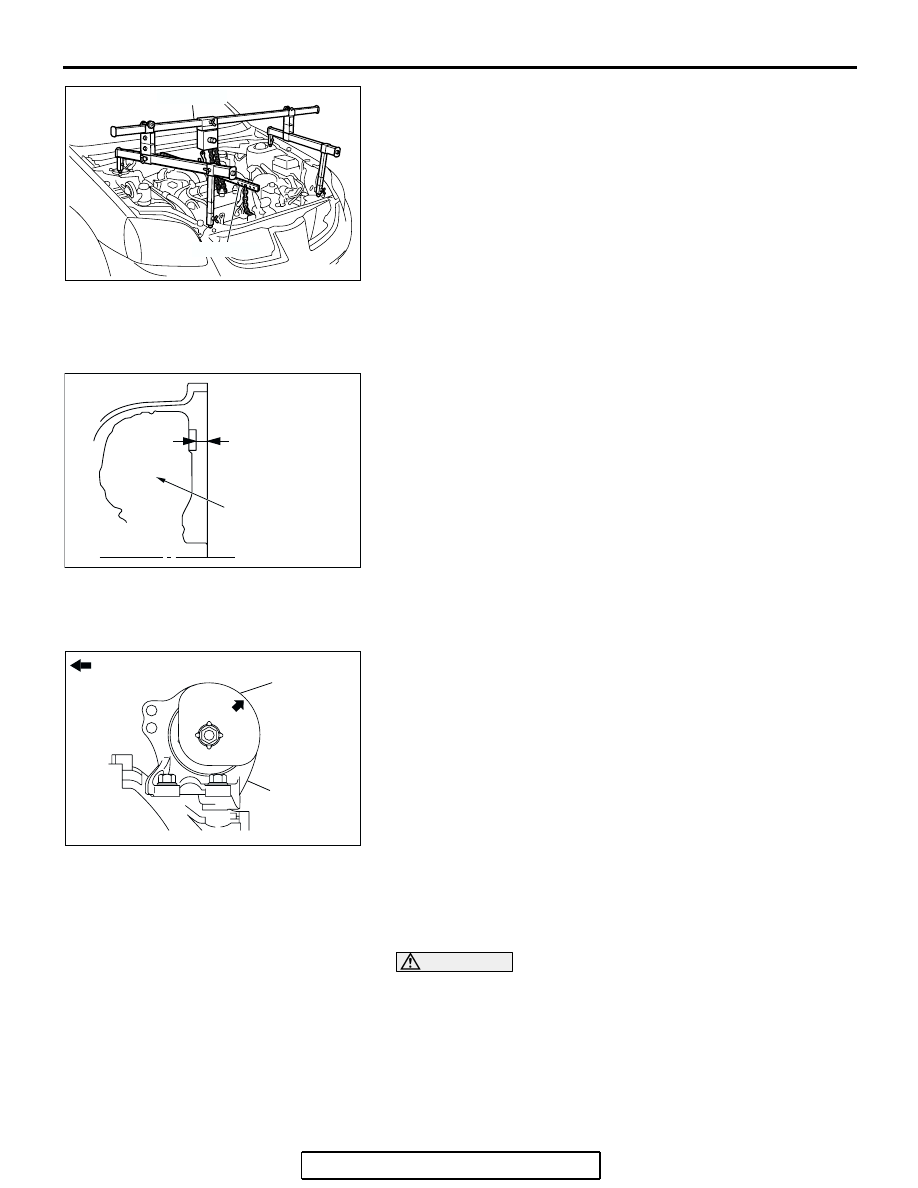

(3) Position special tool MB991454 to hold the

engine/transaxle assembly.
NOTE: Adjust the engine hanger balance by sliding the
slide bracket (HI).

INSTALLATION SERVICE POINT

.

>>A<< TRANSAXLE ASSEMBLY INSTALLATION

Engage the torque converter into the transmission side
securely, and then assemble the transmission assembly on the
engine.

.

>>B<< TRANSAXLE MOUNT STOPPER
INSTALLATION

Install the transaxle mount stopper so that its arrow points
upward.

.

>>C<< DRIVE SHAFT AND INNER SHAFT
ASSEMBLY <RH>/DRIVE SHAFT <LH>
INSTALLATION

CAUTION

When installing the drive shaft or the drive shaft and inner
shaft assembly, be careful that the spline part of the drive
shaft or the drive shaft and inner shaft assembly do not
damage the oil seal.

.

AC306217

AB

MB991454

MB991928

AC209056AC

APPROXIMATELY
9.4 mm (0.37 in)

TORQUE
CONVERTER

AC205424

ENGINE SIDE

TRANSAXLE
MOUNT
STOPPER

TRANSAXLE
MOUNT

AB
