AUTOMATIC TRANSAXLE DIAGNOSIS
TSB Revision
AUTOMATIC TRANSAXLE
23A-306
DIAGNOSIS
Required Special Tool:
• MB991958: Scan Tool (MUT-III Sub Assembly)
• MB991824: V.C.I.
• MB991827: MUT-III USB Cable
• MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, check actuator test
item 14: INVECS-II Cancel Command.
CAUTION
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

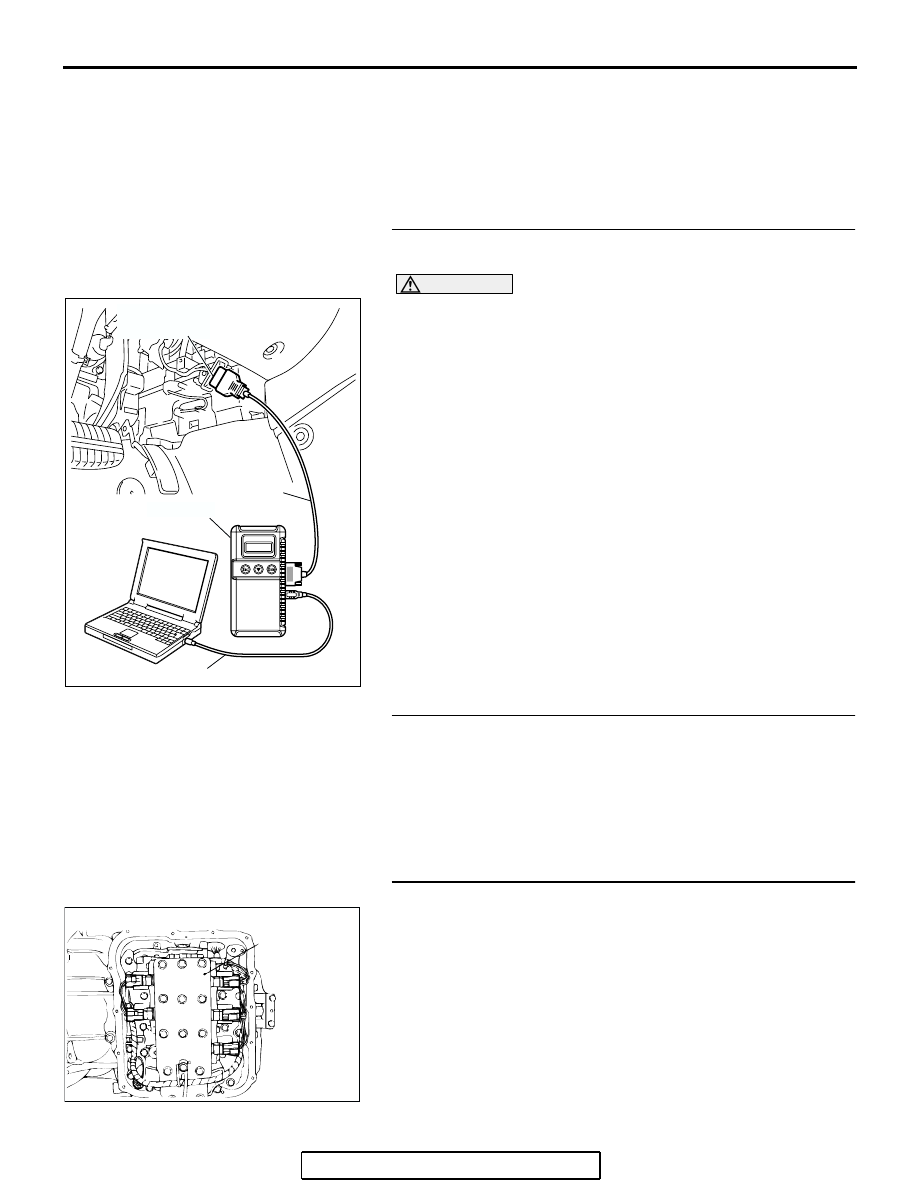

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to the actuator test mode.
• Item14: INVECS-II Cancel Command.
• Drive the vehicle and confirm the gear shifting corre-
spond to the standard shift line of the shift pattern
diagram. Refer to
.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the gear shifting correspond to the standard shift
line of the shift pattern diagram?
YES : The symptom is due to characteristics of the
INVECS-II system, but is not abnormal.
NO : Go to Step 2.
STEP 2. Check the shift points.
Q: Are the shift points early or late only when transmission
fluid is -29
°C (84°F) or less (early), or 125°C (257°F) or
more (late)?
YES : The symptom is due to characteristics of the
INVECS-II system, but is not abnormal.
NO : Go to Step 3.
STEP 3. Disassemble and clean the valve body.
Check the O-ring installation bolts for looseness and the valve
body for damage. Repair or replace the faulty parts. Refer to
GROUP 23B, Valve Body
Replace the valve body assembly if the damages are thought
to be irreparable. Then check the symptom.
Q: Is the symptom eliminated?
YES : The procedure is complete.
NO : Go to Step 4.
AC305412
AB
MB991910
DATA LINK
CONNECTOR
MB991824
MB991827
AC001860 AB
VALVE
BODY
ASSEMBLY
