AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-210

STEP 12. Check the harness for an open or short circuit to
ground between PCM connector B-21 (terminals 65, 66 and
55) and A/T control solenoid valve assembly connector
B-108 (terminals 3, 4 and 5).
Q: Are the harness wires in good condition?

YES : Go to Step 13.
NO : Repair or replace the harness wire.

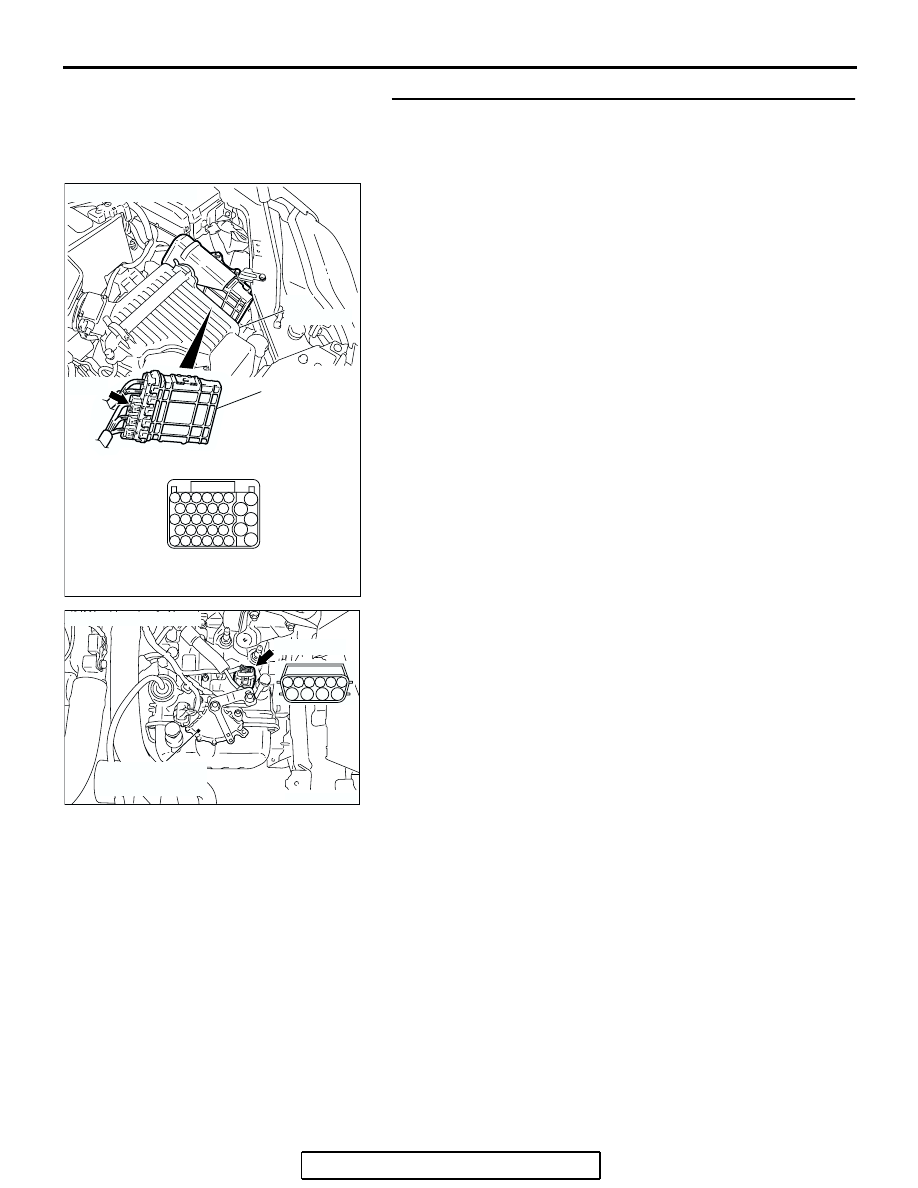

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

71 72

77 78 79

81 82

JAE

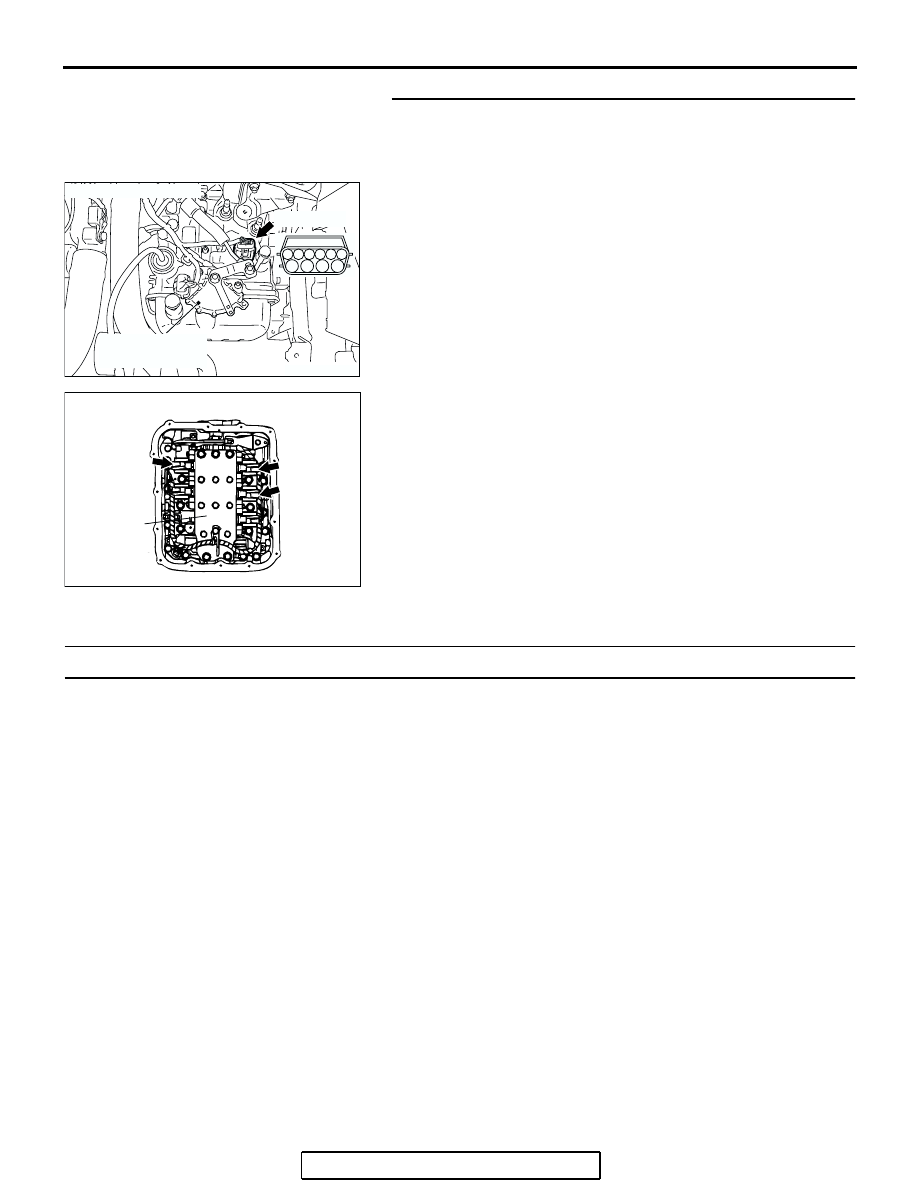

AC306322

CONNECTOR: B-108

B-108 (GR)

TRANSMISSION
RANGE SWITCH

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-211

STEP 13. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector B-108 (terminals 3, 4, 5, and 9) and solenoid
valve connectors B-108-1, B-108-2 and B-108-3.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO : Replace the harness wire.

DTC 33 (P0763): Second Solenoid Valve System

SOLENOID VALVE SYSTEM CIRCUIT

Refer to

P.23A-187

CIRCUIT OPERATION

Refer to

P.23A-187

DESCRIPTIONS OF MONITOR METHODS

• If solenoid terminal voltage is below specified

value when shift control is not in progress, PCM
judges that second solenoid valve has a failure.

MONITOR EXECUTION

• Continuous

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• DTC 41 (P0731): 1st gear incorrect ratio

• DTC 42 (P0732): 2nd gear incorrect ratio

• DTC 43 (P0733): 3rd gear incorrect ratio

• DTC 44 (P0734): 4th gear incorrect ratio

• DTC 46 (P0736): Reverse gear incorrect ratio

• DTC 36 (P0743): Torque converter clutch sole-

noid malfunction

• DTC 31 (P0753): Low-reverse solenoid malfunc-

tion

• DTC 32 (P0758): Underdrive solenoid malfunc-

tion

• DTC 34 (P0768): Overdrive solenoid malfunction

• DTC 54 (P1751): A/T control relay malfunction

Sensor (The sensor below is determined to be

normal)

• Torque converter clutch solenoid

• Low-reverse solenoid

• Underdrive solenoid

• Overdrive solenoid

• A/T control relay

AC306322

CONNECTOR: B-108

B-108 (GR)

TRANSMISSION
RANGE SWITCH

AC002219

CONNECTORS: B-108-1, B-108-2, B-108-3

B-108-1

B-108-2

B-108-3

VALVE BODY
ASSEMBLY

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-212

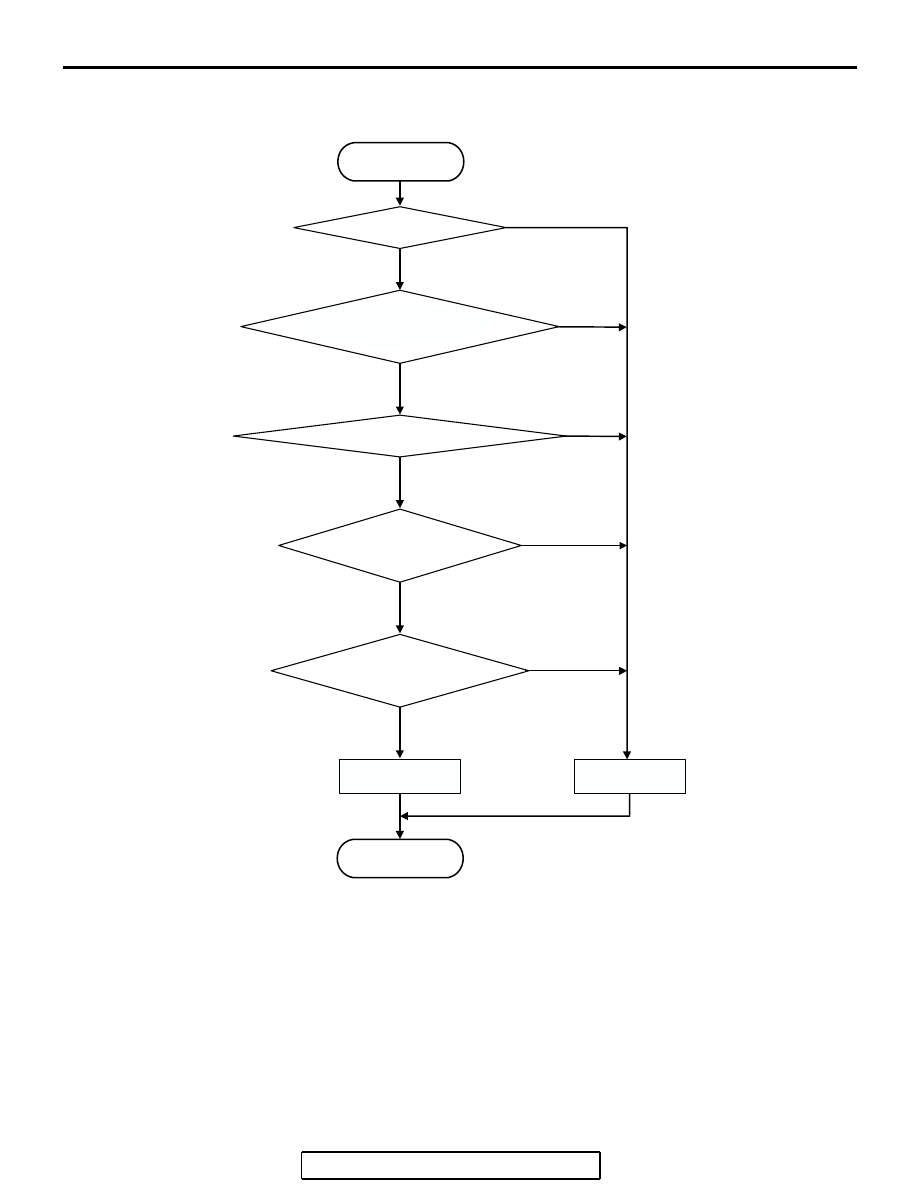

LOGIC FLOW CHARTS (Monitor Sequence)

DTC SET CONDITIONS

Check Conditions

• Solenoid status: either solid ON or OFF.

• Shift status: in-gear.

• Voltage of battery: 10 volts or more.

Judgement Criteria

• Solenoid voltage: 3 volts or less. (0.3 second)

• If DTC 33 (P0763) is set consecutively four times,

the transaxle is locked into 3rd gear as a fail-safe
measure, and the "N" range light flashes once
per second.

OBD-II DRIVE CYCLE PATTERN

Start the engine, and keep the vehicle stopped in "P"
range for 5 seconds.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the second solenoid valve

• Damaged harness or connector

• Malfunction of the PCM

AC205283

Good

Malfunction

END

START

In-gear?

Shift solenoid-C is in ON
or OFF steady state

Voltage of battery > 10 V

Solenoid circuit
voltage < 3 V

Continuous failure
for 0.3 sec.

Yes

Second solenoid valve is in
ON or OFF steady state

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-213

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Using scan tool MB991958, check actuator test
item 03: Second Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the actuator test mode.

• Item 03: Second Solenoid Valve.

• An audible clicking or buzzing should be heard when

the second solenoid valve is energized.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid valve operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

NO : Go to Step 2.

AC305412

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
