DOOR

TSB Revision

BODY

42-56

DOUBLE-SIDED TAPE POSITION

WATERPROOF FILM REMOVAL
STEPS

• DOOR TRIM ASSEMBLY (REFER

TO GROUP 52A, DOOR TRIM

P.52A-13

).

• DOOR INSIDE HANDLE (REFER TO

P.42-46

).

>>A<<

4. WATERPROOF FILM

DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS

• REAR SCUFF PLATE (REFER TO

GROUP 52A,  TRIMS

P.52A-10

).

>>C<<

5. DOOR OPENING INNER

WEATHERSTRIP (BODY SIDE)

DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS

• DOOR CHECK  MOUNTING BOLT

(BODY SIDE) (REFER TO

P.42-37

).

>>B<<

6. DOOR OPENING OUTER

WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS

• DOOR TRIM ASSEMBLY (REFER

TO GROUP 52A, DOOR TRIM

P.52A-13

).

7. DOOR BELTLINE  MOLDING

AC306731

AC306381

AC306382

AB

3 (0.12)

UNITS: mm (in)

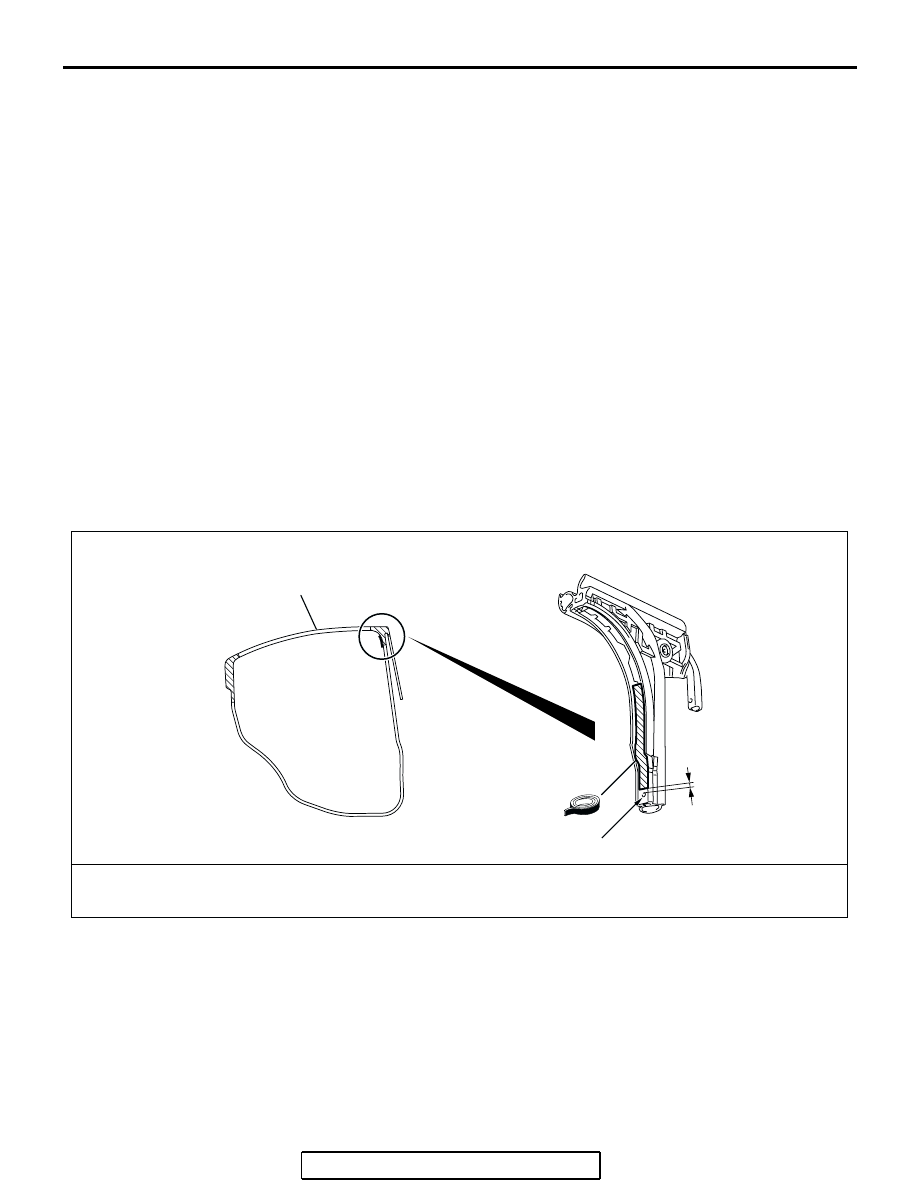

CLIP HOLE

<REAR DOOR>

ADHESIVE TAPE: DOUBLE-SIDED TAPE [ 7 mm (0.28 in) WIDTH, 50 mm (1.97 in) LENGTH AND 0.8 mm (0.031 in)
THICKNESS ]

DOOR OPENING OUTER
WEATHERSTRIP

DOOR

TSB Revision

BODY

42-57

INSTALLATION SERVICE POINTS

.

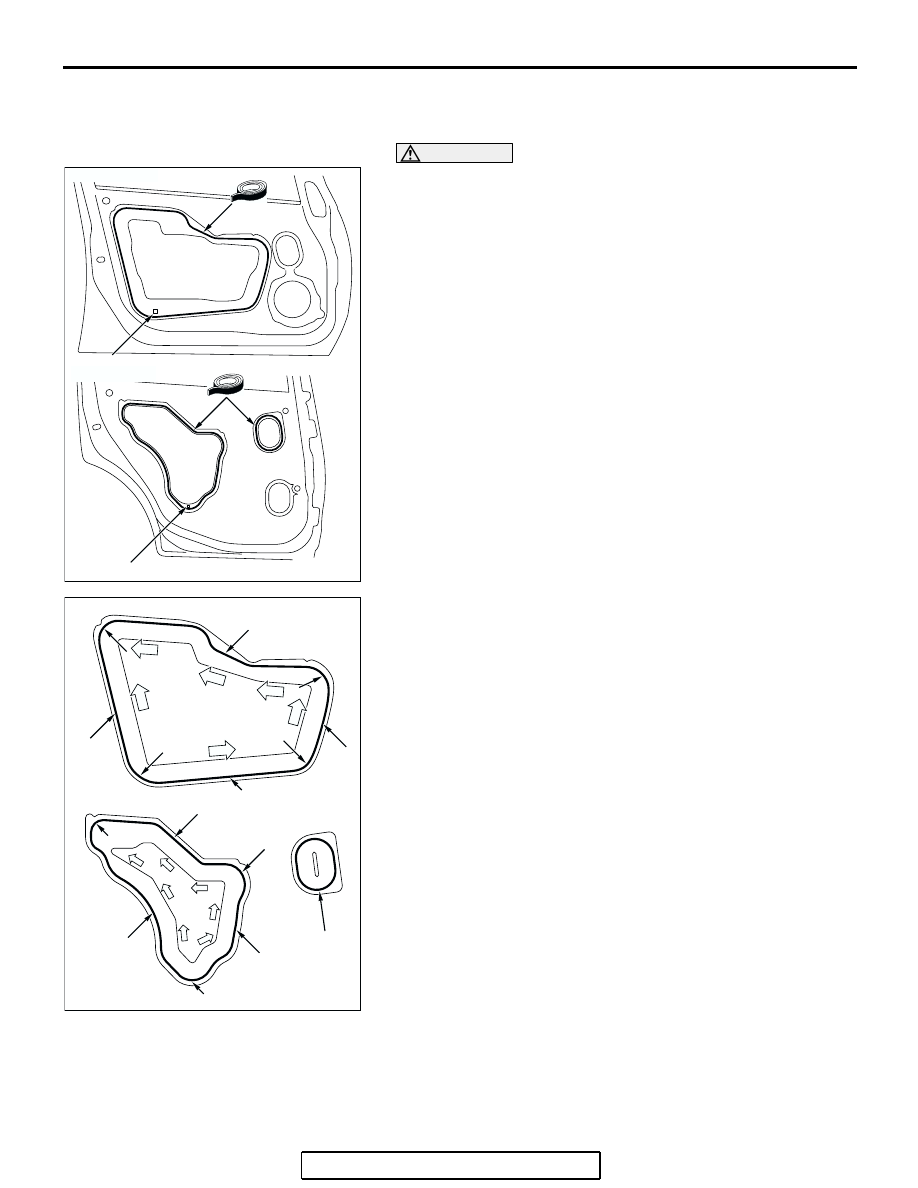

>>A<< WATERPROOF FILM INSTALLATION

CAUTION

When the waterproof film is adhered, be careful that
3M

AAD Part number 8633 or equivalent can pass under

the inner panel water drain hole.

1. Stick the waterproof film to the door in sequence as shown.
2. Press the waterproof film toward the arrow in the illustration.

.

AC306365

AC306366

AC306738

<FRONT DOOR>

<REAR DOOR>

AB

INNER PANEL WATER DRAIN HOLE

INNER PANEL WATER DRAIN HOLE

AC306357

AC306358

AC306737

<FRONT DOOR>

<REAR DOOR>

AB

7

6

8

2

3

3

1

6

7

4

4

5

5

2

1

DOOR

TSB Revision

BODY

42-58

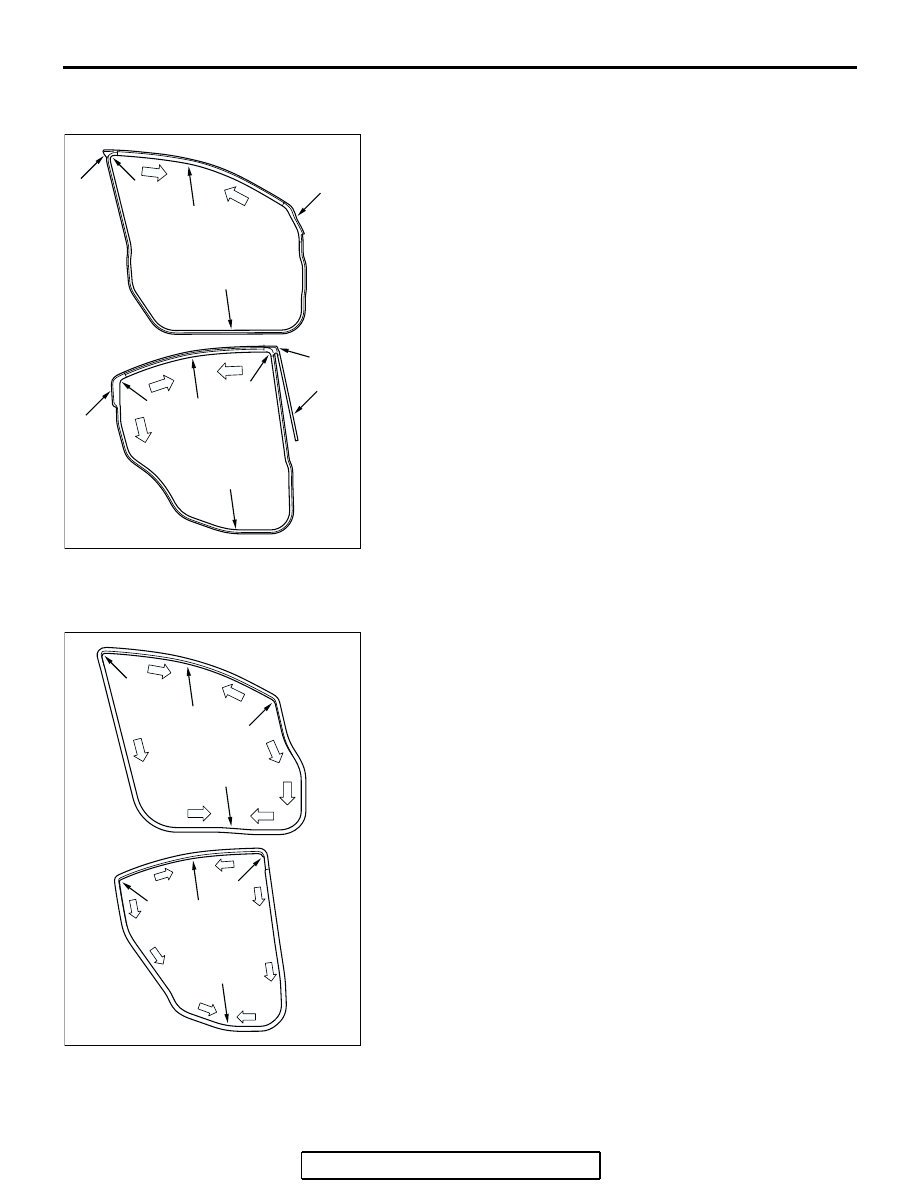

>>B<< DOOR OPENING OUTER WEATHERSTRIP
INSTALLATION

Install the door opening outer weatherstrip in the sequence
shown.

.

>>C<< DOOR OPENING INNER WEATHERSTRIP
INSTALLATION

Install the door opening inner weatherstrip in the sequence
shown.

.

AC306359

AC306360

AC306736

<FRONT DOOR>

<REAR DOOR>

AB

2

3

5

1

6

7

4

4

5

2

1

3

AC306361

AC306362

AC306735

<FRONT DOOR>

<REAR DOOR>

AB

1

2

4

4

1

2

3

3

TRUNK LID

TSB Revision

BODY

42-59

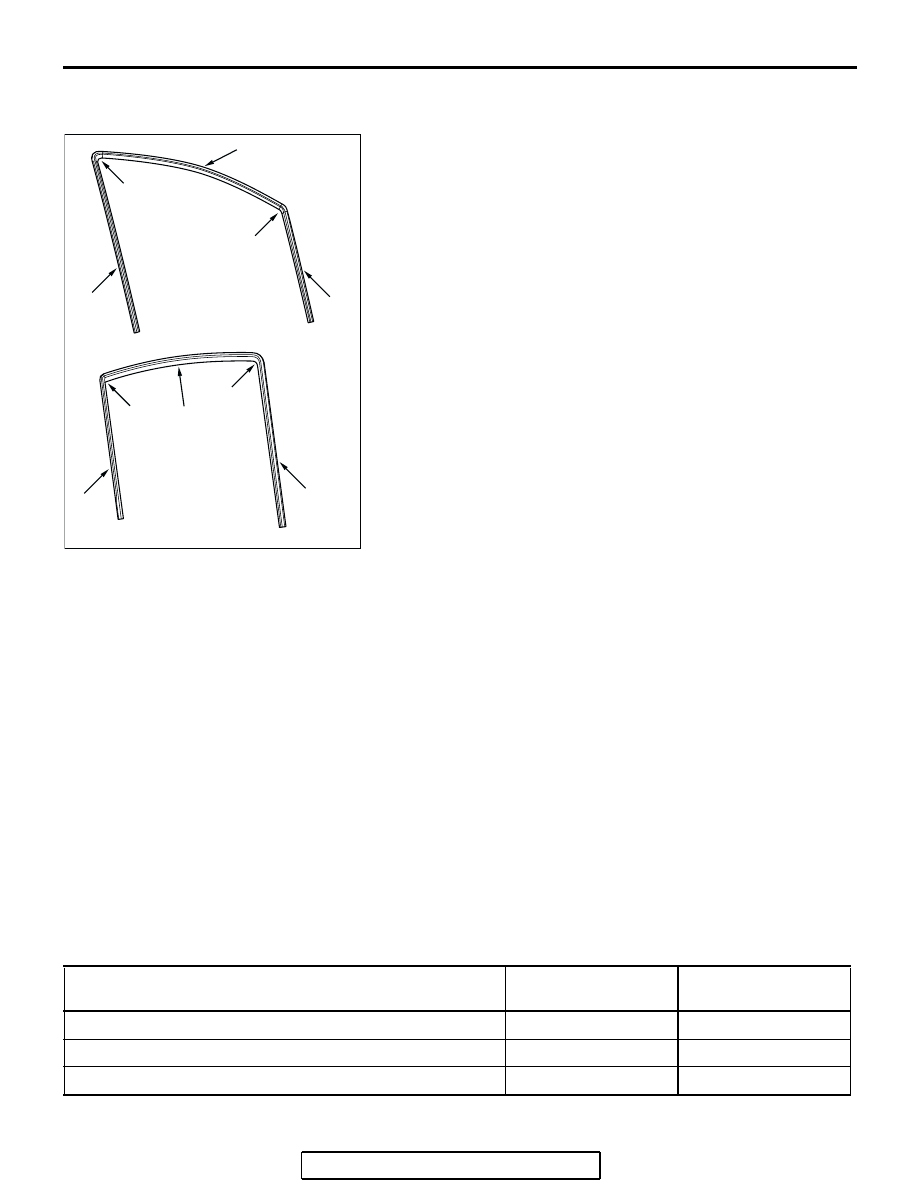

>>D<< DOOR WINDOW GLASS RUNCHANNEL
INSTALLATION

Install the door window glass runchannel in the sequence
shown.

TRUNK LID

TRUNK LID DIAGNOSIS

INTRODUCTION TO TRUNK LID DIAGNOSIS

M1421005800374

Difficult locking and unlocking, uneven clearance and
height, and wind noise from the trunk lid may be
caused by improper adjustment of the trunk lid.

TRUNK LID DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1421005900348

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
trunk lid fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1421006000382

AC306363

AC306364

AC306734

<FRONT DOOR>

<REAR DOOR>

AB

1

2

3

4

5

1

2

3

4

5

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Difficult locking and unlocking

1

P.42-60

Uneven body clearance

2

P.42-60

Uneven height

3

P.42-60
