TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT

.

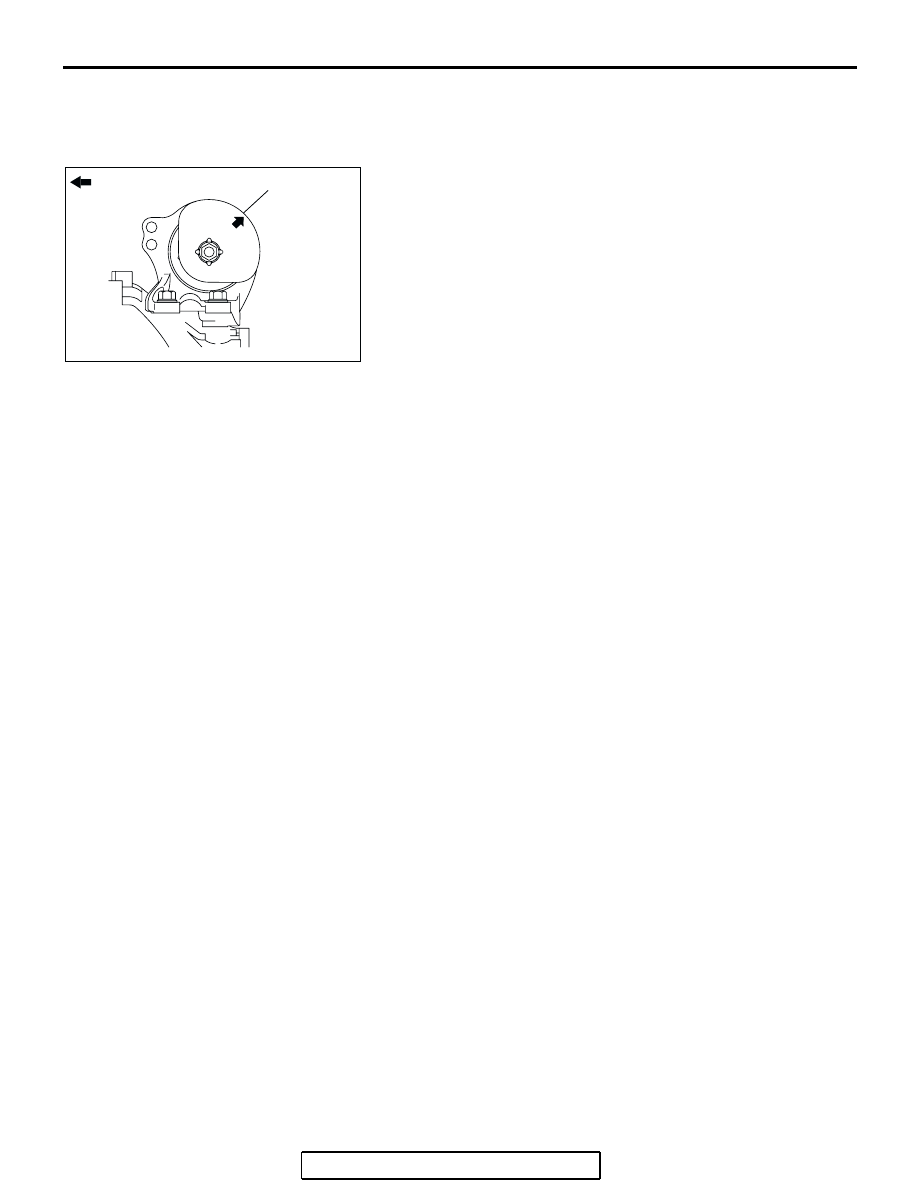

>>A<< TRANSAXLE MOUNTING STOPPER
INSTALLATION

Install the transaxle mounting stopper so that its arrow points
upward.

AC205424

ENGINE SIDE

TRANSAXLE
MOUNTING
STOPPER

AC

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-7

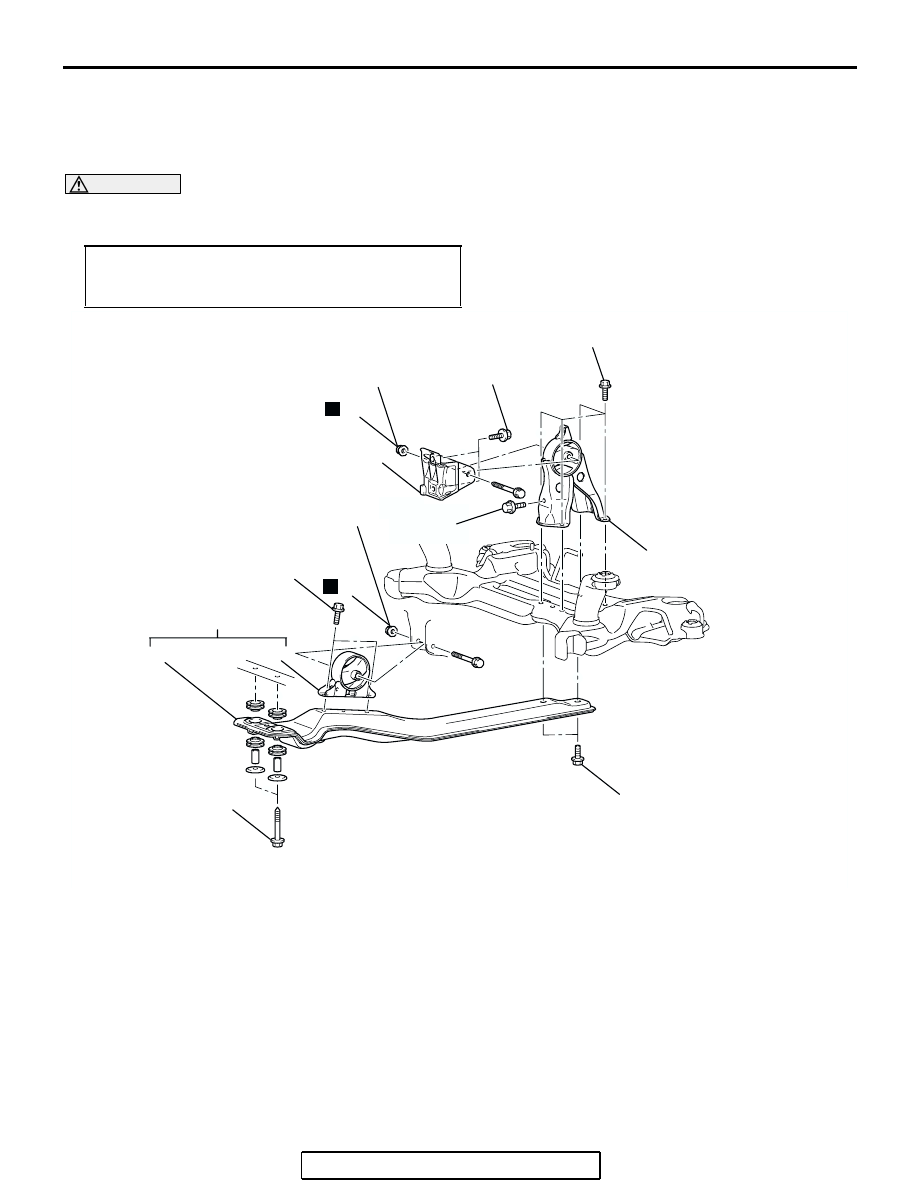

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

M1321002300306

<2.4L ENGINE>

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
Side Under Cover Removal and Installation (Refer to
GROUP 51, Under Cover

P.51-11

).

AC306905

1

7

6

5

4

3

2

83 ± 12 N·m
61 ± 9 ft-lb

83 ± 12 N·m
61 ± 9 ft-lb

58 ± 7 N·m*
43 ± 5 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

90 ± 10 N·m
67 ± 7 ft -lb

58 ± 7 N·m*
43 ± 5 ft-lb*

AB

58 ± 7 N·m
43 ± 5 ft-lb

N

N

FRONT ROLL STOPPER AND
CENTERMEMBER REMOVAL
STEPS

1.

SELF-LOCKING NUT

2.

ENGINE  FRONT ROLL STOPPER
BRACKET AND
CENTERMEMBER

>>B<<

3.

ENGINE  FRONT ROLL STOPPER
BRACKET

4.

CENTERMEMBER

REAR ROLL STOPPER
REMOVAL STEPS

•

FRONT AXLE NO.1
CROSSMEMBER ASSEMBLY
(REFER TO

P.32-10

).

>>A<<

5.

ENGINE REAR ROLL STOPPER
BRACKET

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-8

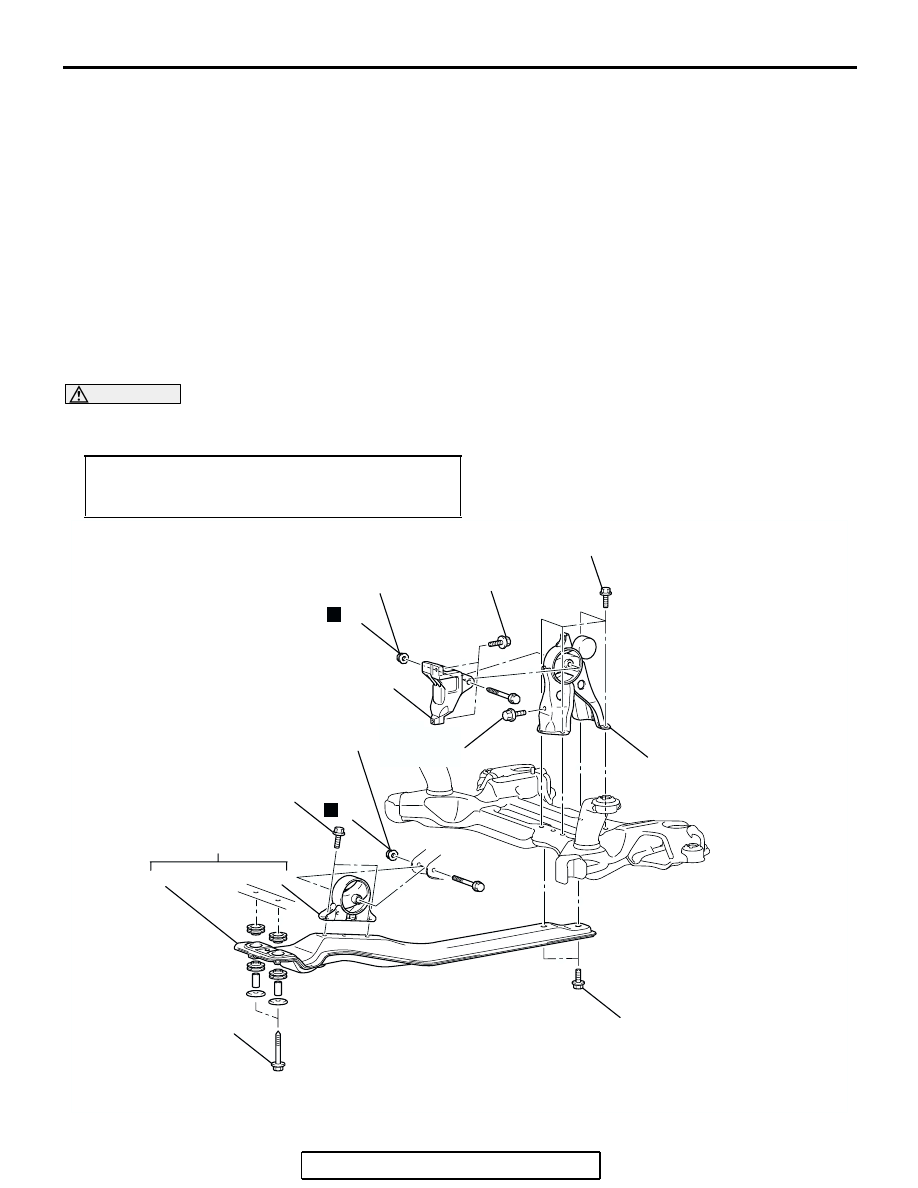

<3.8L ENGINE>

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

REAR ROLL STOPPER
BRACKET REMOVAL STEPS

•

FRONT NO.1 EXHAUST PIPE
AND FRONT NO.2 EXHAUST
PIPE CONNECTION (REFER TO
GROUP 15, EXHAUST PIPE AND
MAIN MUFFLER

P.15-20

).

1.

SELF-LOCKING NUT

2.

ENGINE  FRONT ROLL STOPPER
BRACKET AND
CENTERMEMBER

6.

SELF-LOCKING NUT

7.

TRANSAXLE CASE REAR  ROLL
STOPPER BRACKET

Pre-removal and Post-installation Operation
Side Under Cover Removal and Installation (Refer to
GROUP 51, Under Cover

P.51-11

).

AC306906

1

7

6

5

4

3

2

83 ± 12 N·m
61 ± 9 ft-lb

83 ± 12 N·m
61 ± 9 ft-lb

58 ± 7 N·m*
43 ± 5 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

90 ± 10 N·m
67 ± 7 ft -lb

58 ± 7 N·m*
43 ± 5 ft-lb*

AB

N

N

58 ± 7 N·m
43 ± 5 ft-lb

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-9

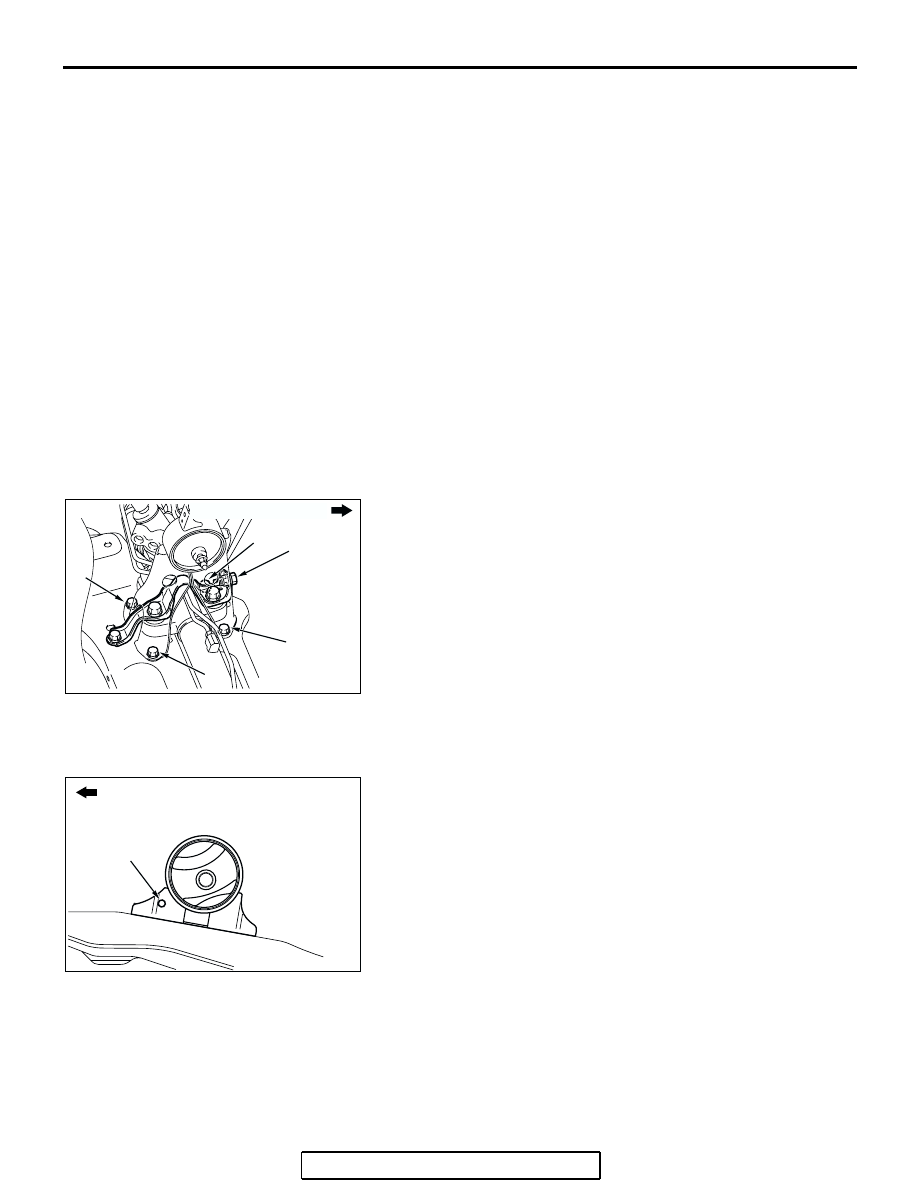

INSTALLATION SERVICE POINTS

.

>>A<< ENGINE REAR ROLL STOPPER BRACKET
INSTALLATION

Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.

.

>>B<< ENGINE FRONT ROLL STOPPER
BRACKET INSTALLATION

Install the engine front roll stopper bracket so that its hole
points towards the front side of the vehicle.

FRONT ROLL STOPPER AND
CENTERMEMBER REMOVAL
STEPS

1.

SELF-LOCKING NUT

2.

ENGINE  FRONT ROLL STOPPER
BRACKET AND
CENTERMEMBER

>>B<<

3.

ENGINE  FRONT ROLL STOPPER
BRACKET

4.

CENTERMEMBER
REAR ROLL STOPPER
REMOVAL STEPS

•

FRONT AXLE  NO.1
CROSSMEMBER ASSEMBLY
(REFER TO

P.32-10

).

>>A<<

5.

ENGINE REAR ROLL STOPPER
BRACKET

REAR ROLL STOPPER
BRACKET REMOVAL STEPS

•

FRONT NO.1 EXHAUST PIPE
(REFER TO GROUP 15,
EXHAUST  PIPE AND MAIN
MUFFLER

P.15-20

).

1.

SELF-LOCKING NUT

2.

ENGINE FRONT ROLL STOPPER
BRACKET AND
CENTERMEMBER

6.

SELF-LOCKING NUT

7.

TRANSAXLE CASE REAR ROLL
STOPPER BRACKET

AC306791AC

C

D

FRONT OF VEHICLE

D

E

E

AC205425

AC306965

FRONT OF VEHICLE

HOLE
