CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-284

REMOVAL SERVICE POINTS

.

<<A>> FLEXIBLE SUCTION HOSE AND LIQUID
PIPE A DISCONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To prevent the entry of dust or other foreign bodies, plug the
dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

.

>>A<< CONDENSER INSTALLATION

When replacing the condenser, refill it with a specified amount
of compressor oil and install it to the vehicle.

Compressor oil: SUN PAG 56
Quantity: 15 cm

3

 (0.5 fl.oz)

INSPECTION

M1552014301102

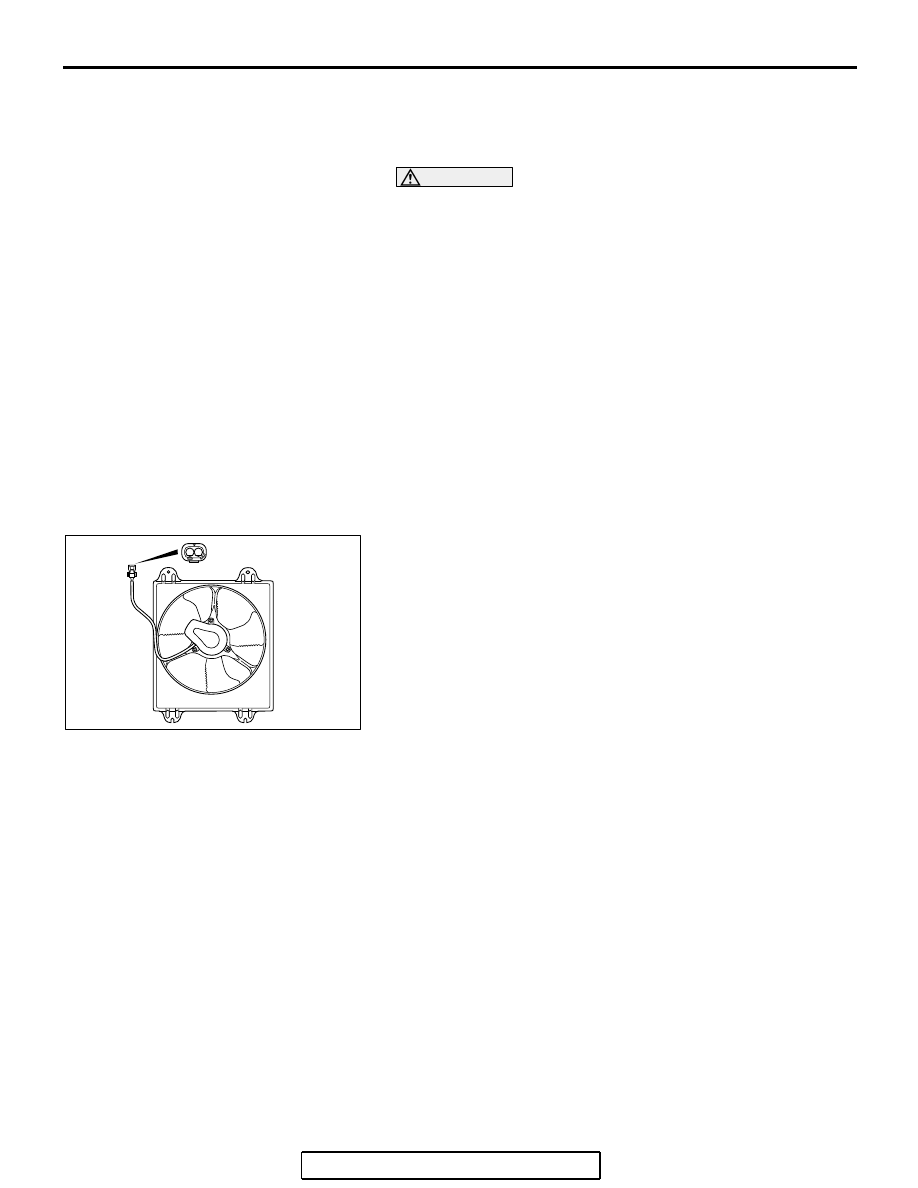

CONDENSER FAN MOTOR CHECK

Check to be sure that the condenser fan motor operates when
battery voltage is applied to terminal 2 and terminal 1
grounded.

1 2

AC307097

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-285

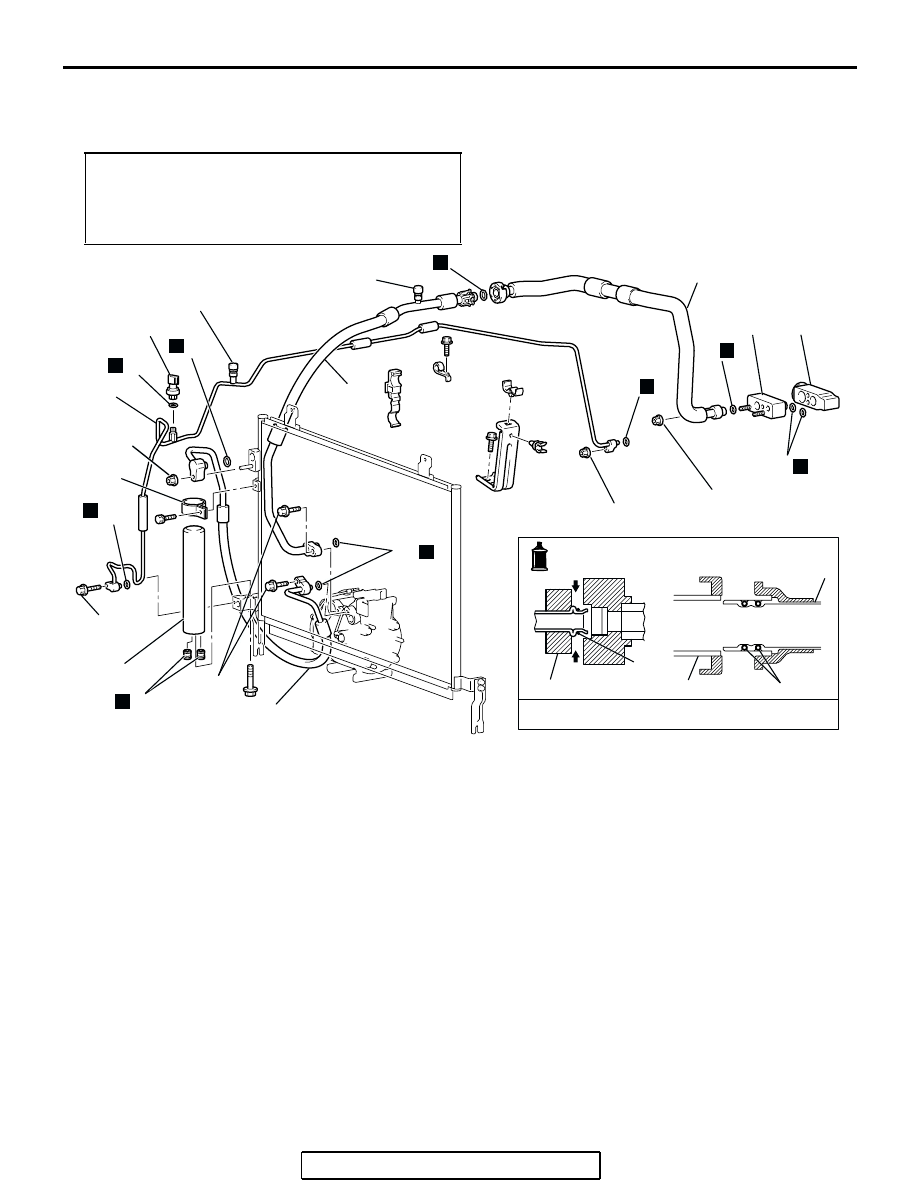

REFRIGERANT LINE

REMOVAL AND INSTALLATION

M1552006400446

Pre-removal and Post-installation Operation
• Refrigerant Draining and Refilling (Refer to Charging and

Discharging

P.55A-260

).

• Radiator Grille Removal and Installation (Refer to

GROUP 51, Radiator Grilles

P.51-5

).

AC306613

1

11

11

4

5

3

N

N

8

N

2

9

10

6

7

11

N

AD

High-Pressure
Side Service Valve

Low-pressure side
service valve

11

N

11

N

11

N

11

N

11

N

1, 2, 3, 4, 5, 8, 9

A/C compressor oil:  SUN PAG 56

-Pipe coupling

11

2

11

4.9 ± 0.9 N·m
43 ± 8 in-lb

4.9 ± 0.9 N·m
43 ± 8 in-lb

25 ± 4 N·m
18 ± 3 fi-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

3

REMOVAL STEPS

<<A>>

1.

FLEXIBLE DISCHARGE HOSE

<<A>> >>A<<

2.

FLEXIBLE SUCTION HOSE

<<B>> >>A<<

3.

SUCTION PIPE

<<A>>

4.

LIQUID PIPE

<<A>>

5.

A/C PRESSURE SENSOR

6.

CLAMP

<<A>>

7.

RECEIVER

8.

RECEIVER JOINT

9.

EXPANSION VALVE JOINT

<<A>>

10. EXPANSION VALVE
11. O-RING

REMOVAL STEPS (Continued)

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-286

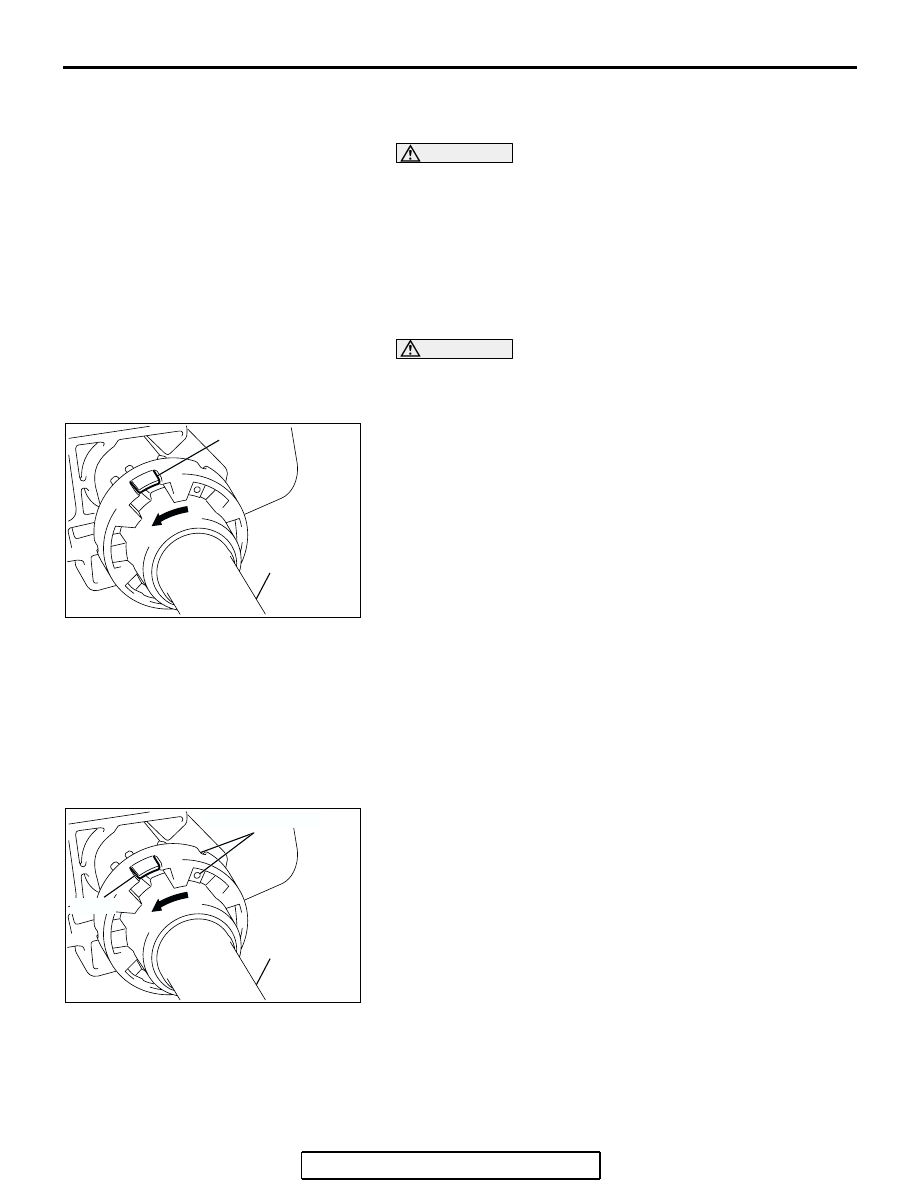

REMOVAL SERVICE POINT

.

<<A>> HOSE/PIPE DISCONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To prevent the entry of other foreign bodies, plug the con-
denser, compressor, and expansion valve nipples.

.

<<B>> SUCTION PIPE AND SUCTION FLEXIBLE
HOSE DISCONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To disconnect the suction hose from the suction flexible hose,
lift the lug on the suction pipe and twist the suction flexible hose
union counterclockwise.
Plug the hose nipple to prevent entry of dust and dirt.

INSTALLATION SERVICE POINT

.

>>A<< SUCTION HOSE INSTALLATION

1. When replacing the suction hose, refill them with a specified

amount of compressor oil, and then install them.

Compressor oil: SUN PAG 56

Quantity: 10 cm

3

 (0.3 fl.oz)

2. Align the white painting marks when connecting the flexible

suction hose and the suction pipe.

AC209788AB

CLAW

SUCTION
FLEXIBLE HOSE

AC209788AB

SUCTION
FLEXIBLE HOSE

CLAW

WHITE PAINTING MARK

DUCTS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-287

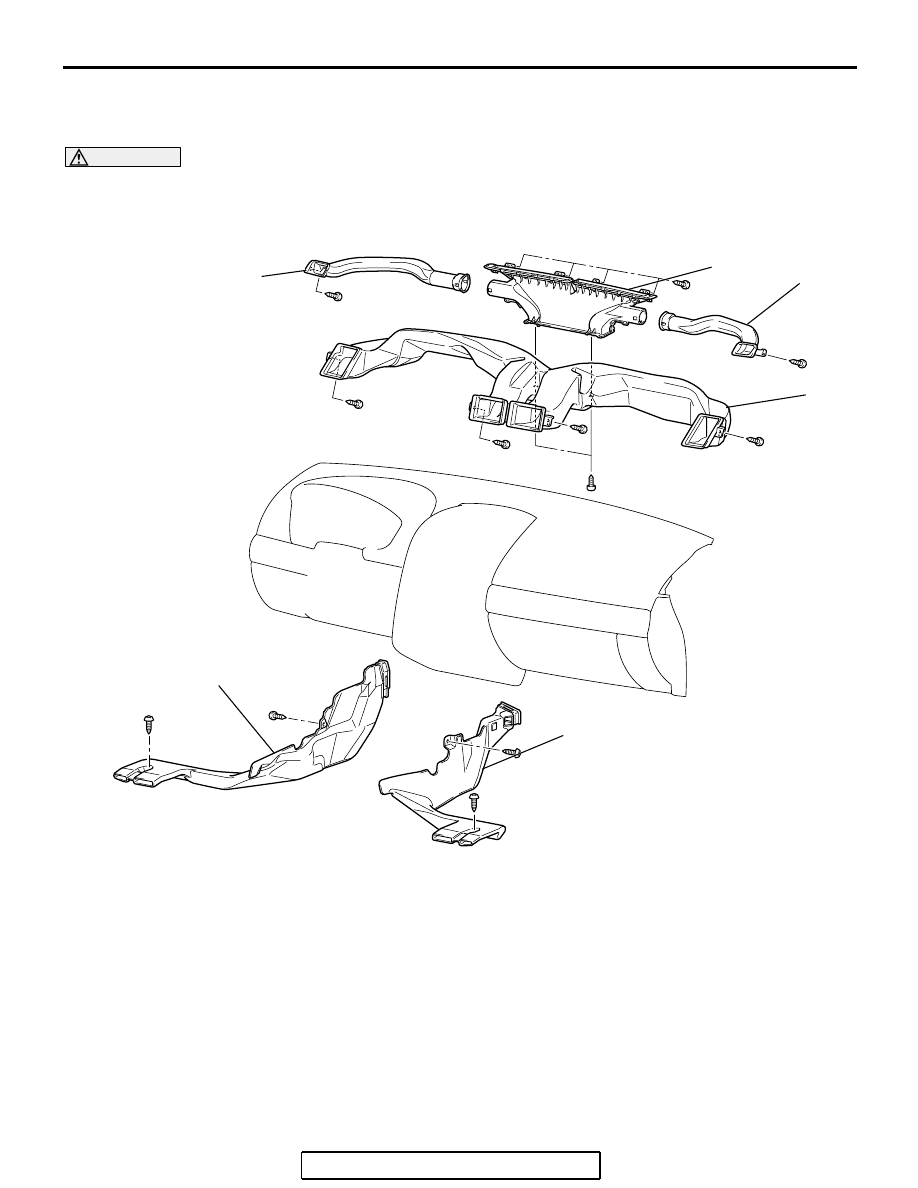

DUCTS

REMOVAL AND INSTALLATION

M1553001000275

WARNING

When removing and installing the front passenger seat, be sure to carry out accuracy check
occupant classification sensor after the seat has been installed in the vehicle. (Refer to
GROUP 52B, On-Vehicle Service

P.52B-355

.)

AC306618

2

1

1

3

4

5

AB

DEFROSTER NOZZLE AND
DISTRIBUTION DUCT REMOVAL
STEPS

•

INSTRUMENT  PANEL (REFER TO
GROUP 52A

P.52A-3

).

1.

VENTILATOR AIR DISTRIBUTION
DUCT

2.

SIDE DEFROSTER DUCT

3.

DEFROSTER NOZZLE

FOOT DUCT AND REAR HEATER
DUCT REMOVAL STEPS

•

FRONT SEAT ASSEMBLY
(REFER TO GROUP 52A, FRONT
SEAT ASSEMBLY

P.52A-20

).

•

FRONT SCUFF PLATE, COWL
SIDE TRIM (REFER TO GROUP
52A, TRIMS

P.52A-10

.)

•

FLOOR CARPET PEELING

•

FLOOR CONSOLE ASSEMBLY
(REFER TO GROUP 52A, FLOOR
CONSOLE ASSEMBLY

P.52A-9

.)

•

TRUNK  LID RELEASE HANDLE
COVER (REFER TO GROUP 42,
TRUNK LID

P.42-62

.)
