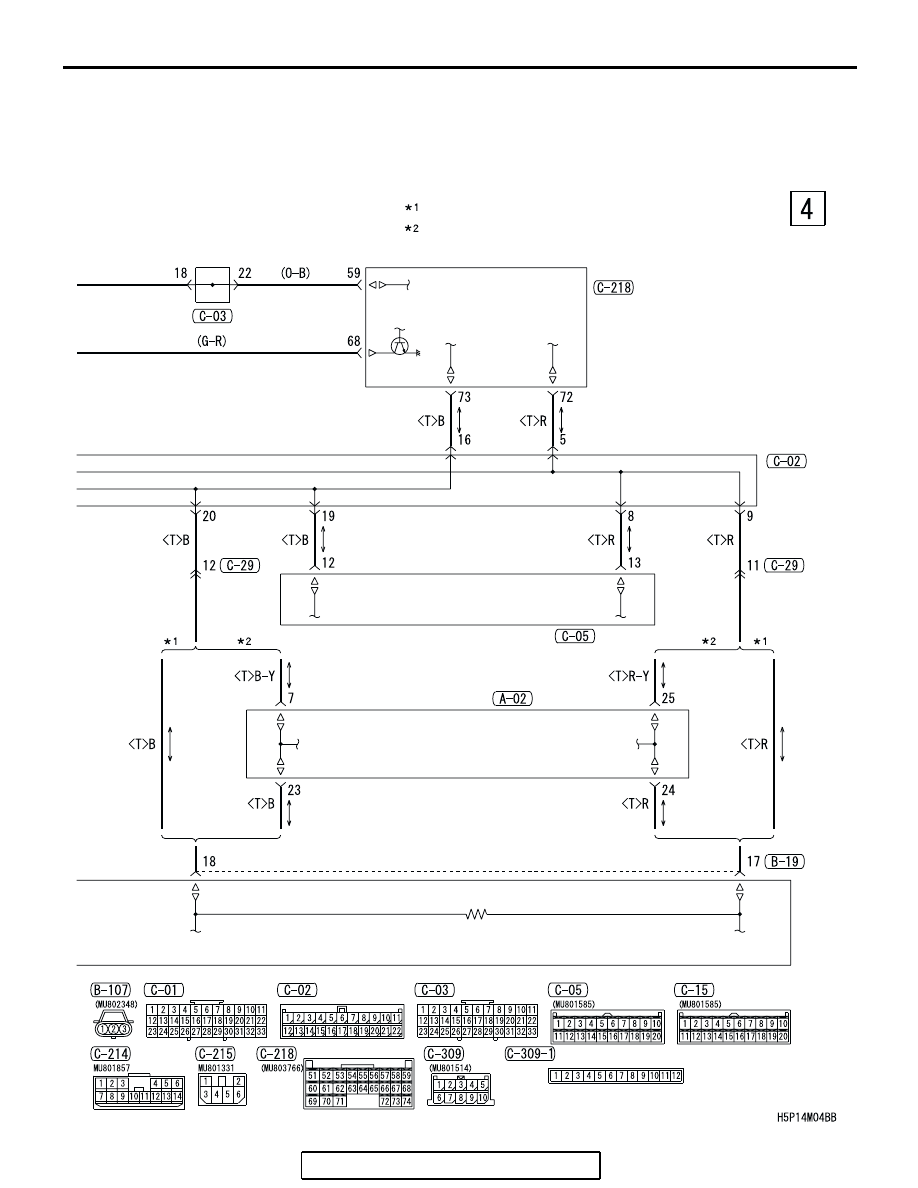

MULTI-CENTER DISPLAY <MIDDLE>

TSB Revision

CIRCUIT DIAGRAMS

90-206

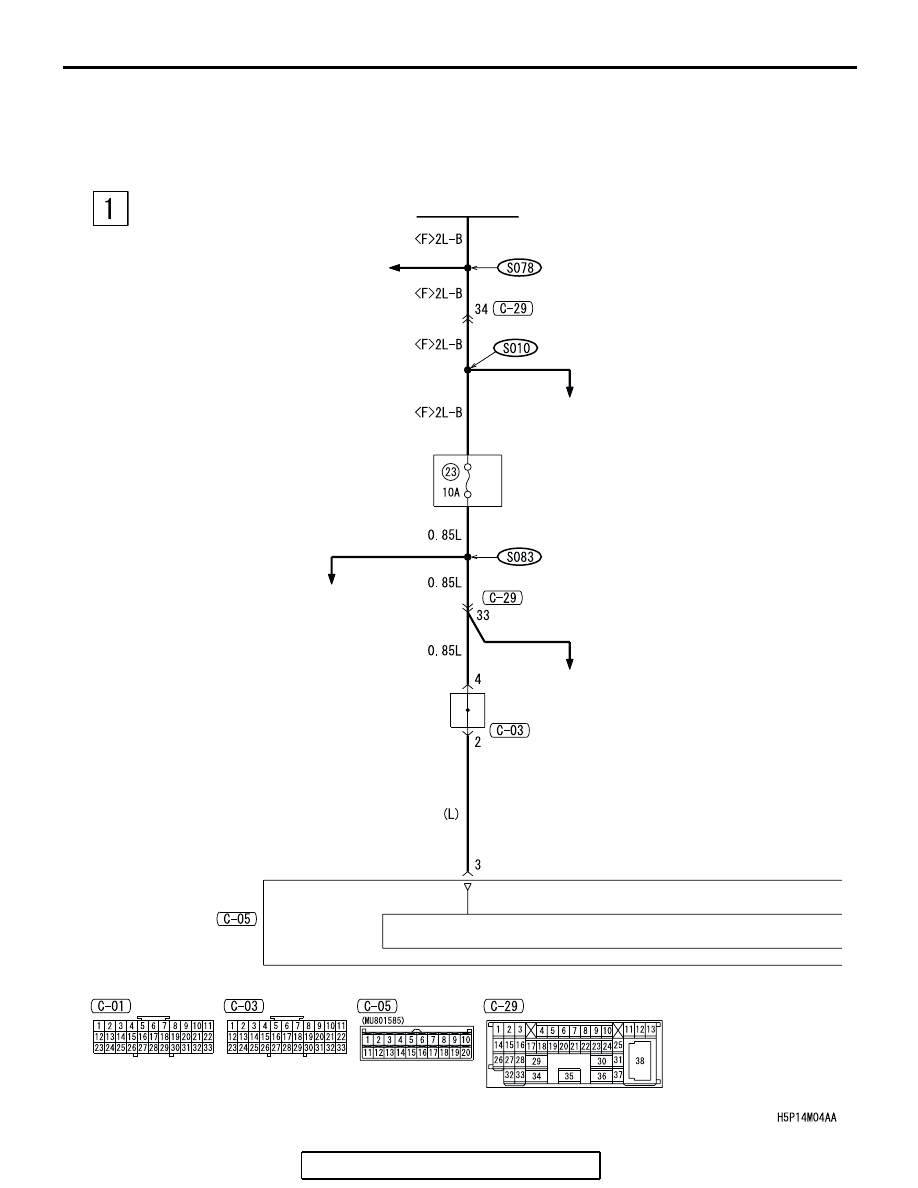

MULTI-CENTER DISPLAY <MIDDLE>

M1901018000274

IGNITION
SWITCH (ACC)

POWER SUPPLY

MULTI-CENTER
DISPLAY UNIT

RELAY
BOX

JOINT
CONNECTOR (2)

WINDSHIELD WIPER
AND WASHER

AUDIO SYSTEM

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER
 AREA NETWORK
 (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·WINDSHIELD WIPER
 AND WASHER

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·REMOTE CONTROLLED
 MIRROR

MULTI-CENTER DISPLAY <MIDDLE>

TSB Revision

CIRCUIT DIAGRAMS

90-207

BATTERY

FRONT-ECU

TAILLIGHT
RELAY

RELAY
BOX

JUNCTION
BLOCK

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

JOINT
CONNECTOR (1)

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·HEATED SEAT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·REAR WINDOW
 DEFOGGER AND DOOR
 MIRROR HEATER
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·BRAKE WARNING
 LIGHT, OIL PRESSURE
 WARNING LIGHT,
 FUEL WARNING LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·DOOR AJAR WARNING
 TONE ALARM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
·ENGINE IMMOBILIZER
 SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·INVECS-II 4A/T
·LIGHTING MONITOR
 TONE ALARM
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·SEAT BELT WARNING
 TONE ALARM
·SUPPLEMENTAL
 RESTRAINT SYSTEM
 (SRS)
·TAILLIGHT, POSITION
 LIGHT, FRONT SIDE
 MARKER LIGHT AND
 LICENSE PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

MULTI-CENTER DISPLAY <MIDDLE>

TSB Revision

CIRCUIT DIAGRAMS

90-208

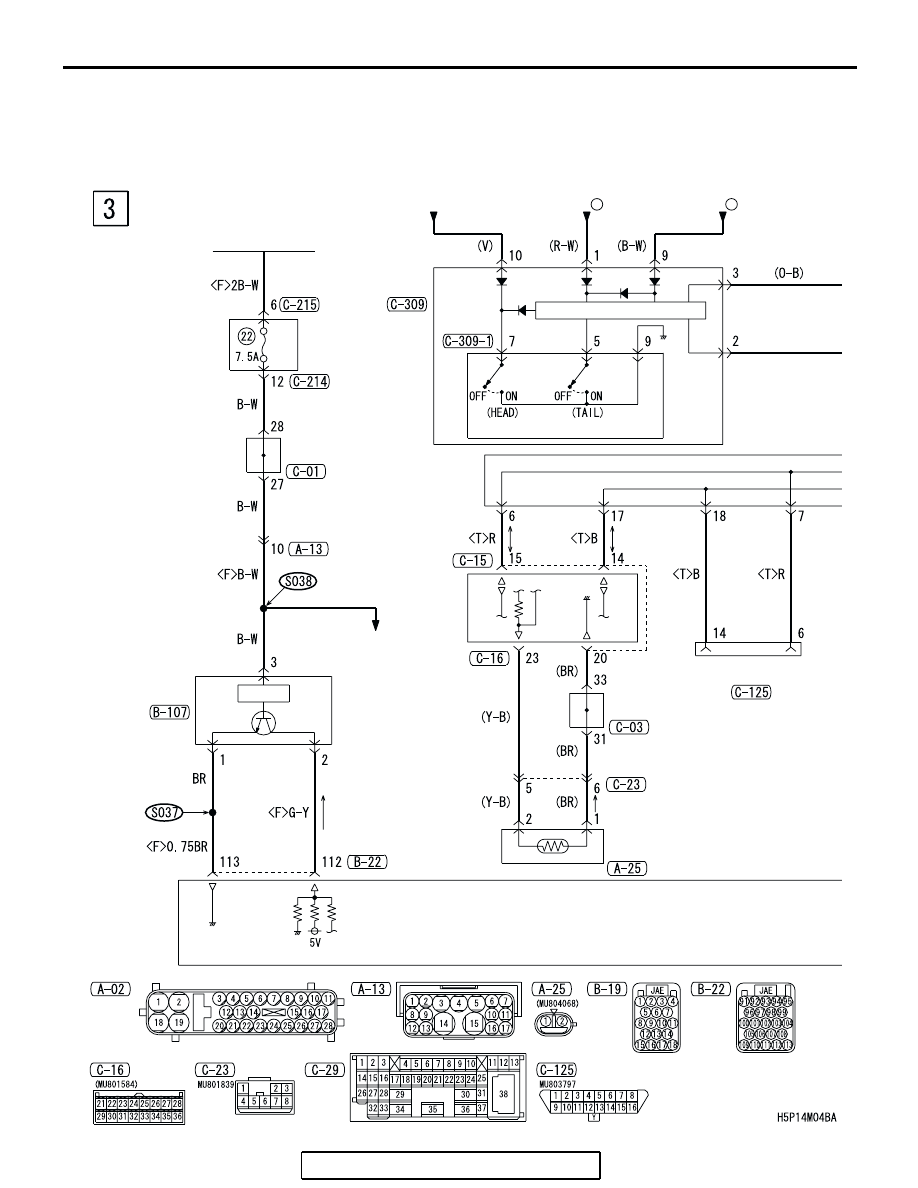

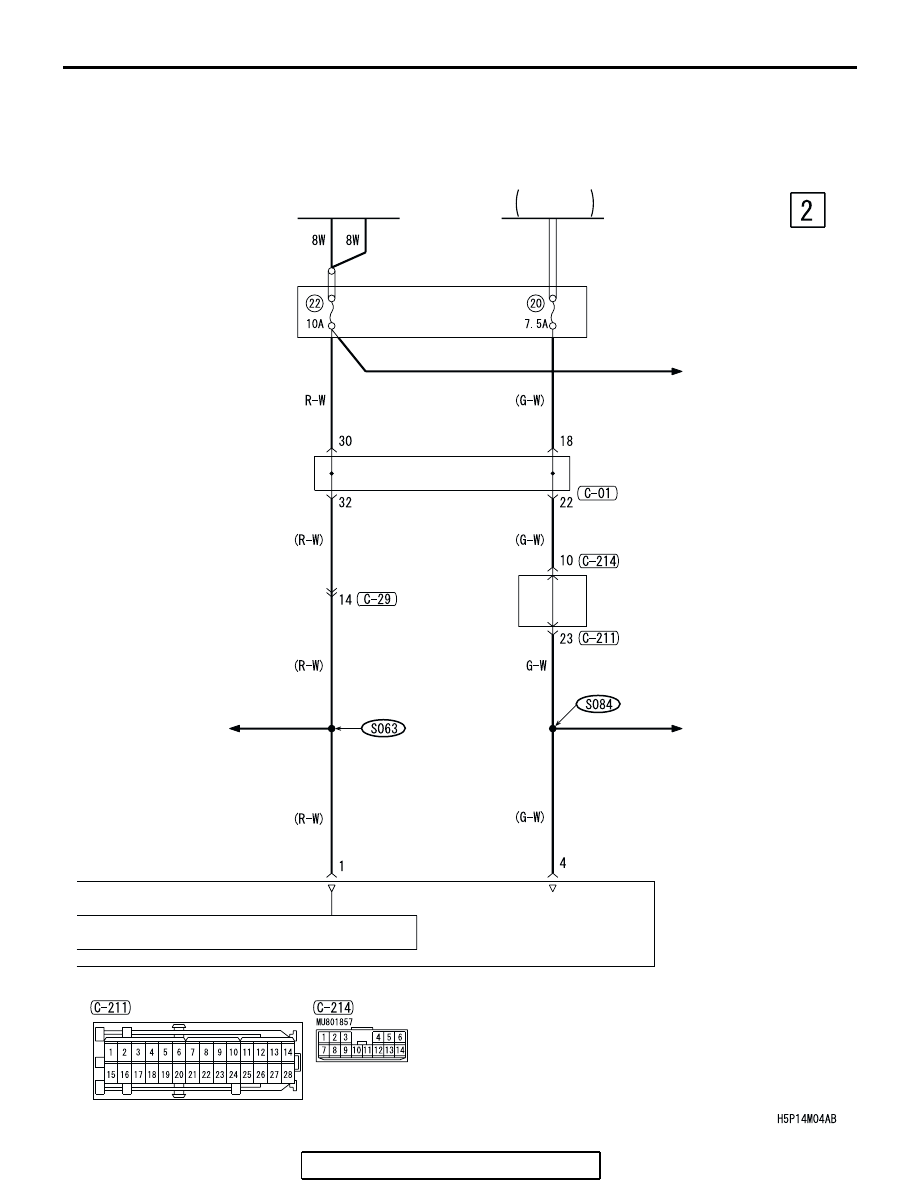

MULTI-CENTER DISPLAY <MIDDLE> (CONTINUED)

FRONT
-ECU

RELAY BOX
(FUSE     )

22

JUNCTION BLOCK
(FUSE     )

23

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

COLUMN
SWITCH

JOINT
CONNECTOR (1)

OUTPUT SHAFT
SPEED SENSOR

POWERTRAIN
CONTROL
MODULE

INVECS-II
4A/T

AMBIENT
TEMPERATURE
SENSOR

JOINT
CONNECTOR (2)

A/C-
ECU

DATA LINK
CONNECTOR

COLUMN-ECU

LIGHTING SWITCH

MULTI-CENTER DISPLAY <MIDDLE>

TSB Revision

CIRCUIT DIAGRAMS

90-209

ETACS-ECU

JOINT
CONNECTOR (3)

MULTI-CENTER DISPLAY UNIT

ABS-ECU

JOINT
CONNECTOR (2)

WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)
WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)

NOTE

:

:

UPPER
SIDE
