FOG LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-98

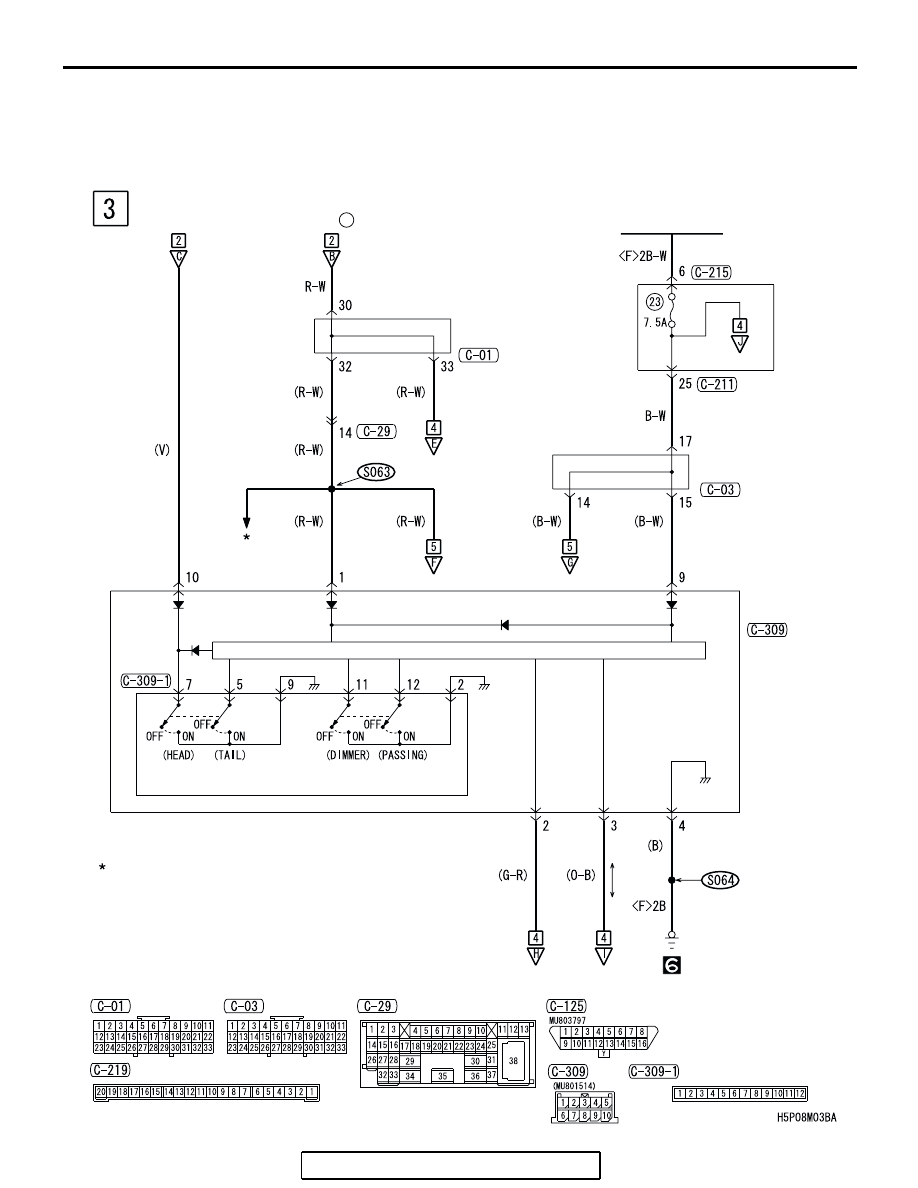

FOG LIGHT (CONTINUED)

FRONT-ECU

RELAY BOX
(FUSE )

JOINT
CONNECTOR (1)

COLUMN-ECU

LIGHTING SWITCH

SWITCH

COLUMN
SWITCH

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

·AUDIO SYSTEM
·AUTOMATIC AIR
CONDITIONING
SYSTEM
·CONTROLLER AREA
NETWORK (CAN)

·MANUAL AIR
CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·VANITY MIRROR LIGHT

·FRONT DOME LIGHT,
REAR DOME LIGHT,
TRUNK LIGHT AND
IGNITION KEY HOLE
ILLUMINATION LIGHT

NOTE

UPPER
SIDE

JUNCTION BLOCK SIDE

FOG LIGHT

TSB Revision

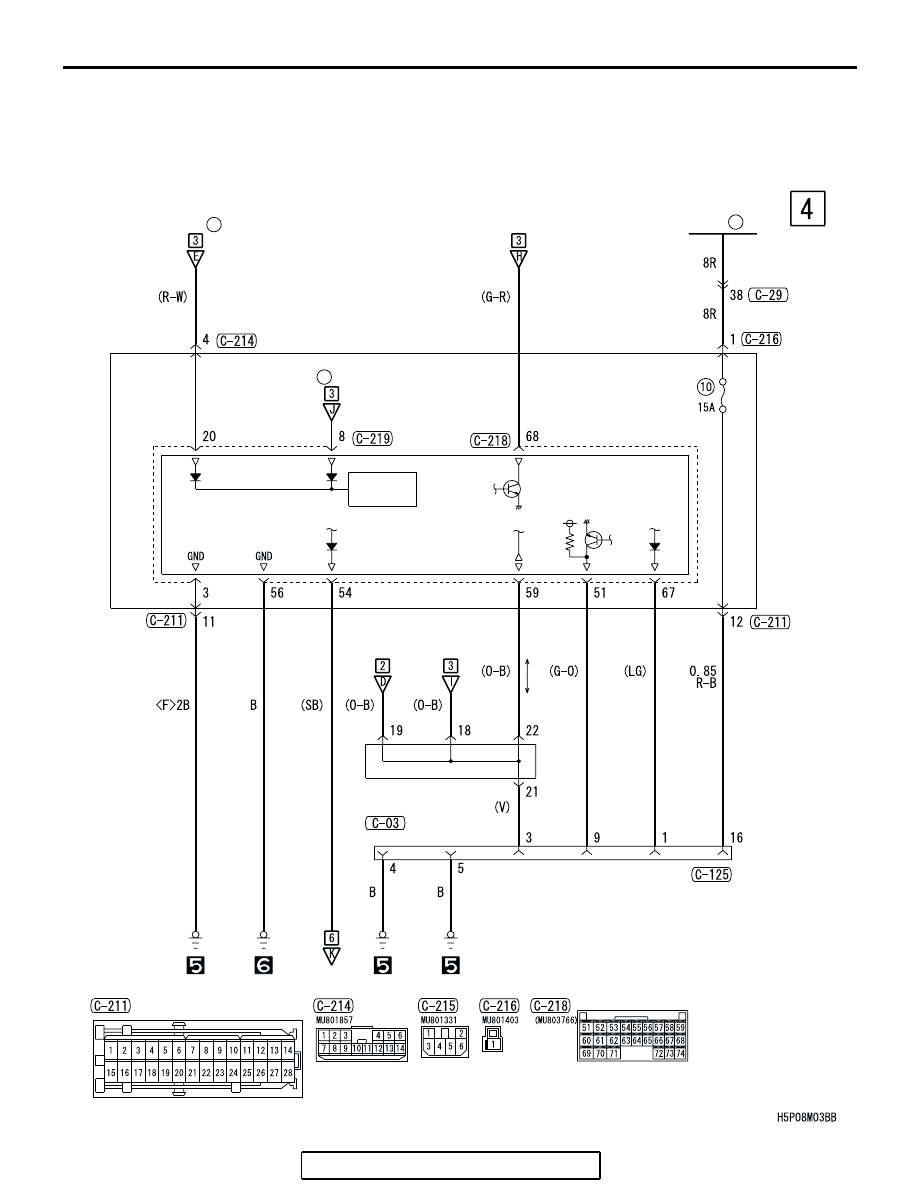

CIRCUIT DIAGRAMS

90-99

JOINT
CONNECTOR (1)

JUNCTION BLOCK
(FUSE )

POWER
SUPPLY

COLUMN
SWITCH

FUSIBLE
LINK

JUNCTION
BLOCK

FRONT
-ECU

COLUMN
SWITCH

JOINT
CONNECTOR (2)

DATA LINK
CONNECTOR

WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE
BR :BROWN O : ORANGE GR : GRAY R : RED W : WHITE
SB : SKY BLUE P : PINK Y : YELLOW V : VIOLET

ETACS-
ECU

(FUSE )

FOG LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-100

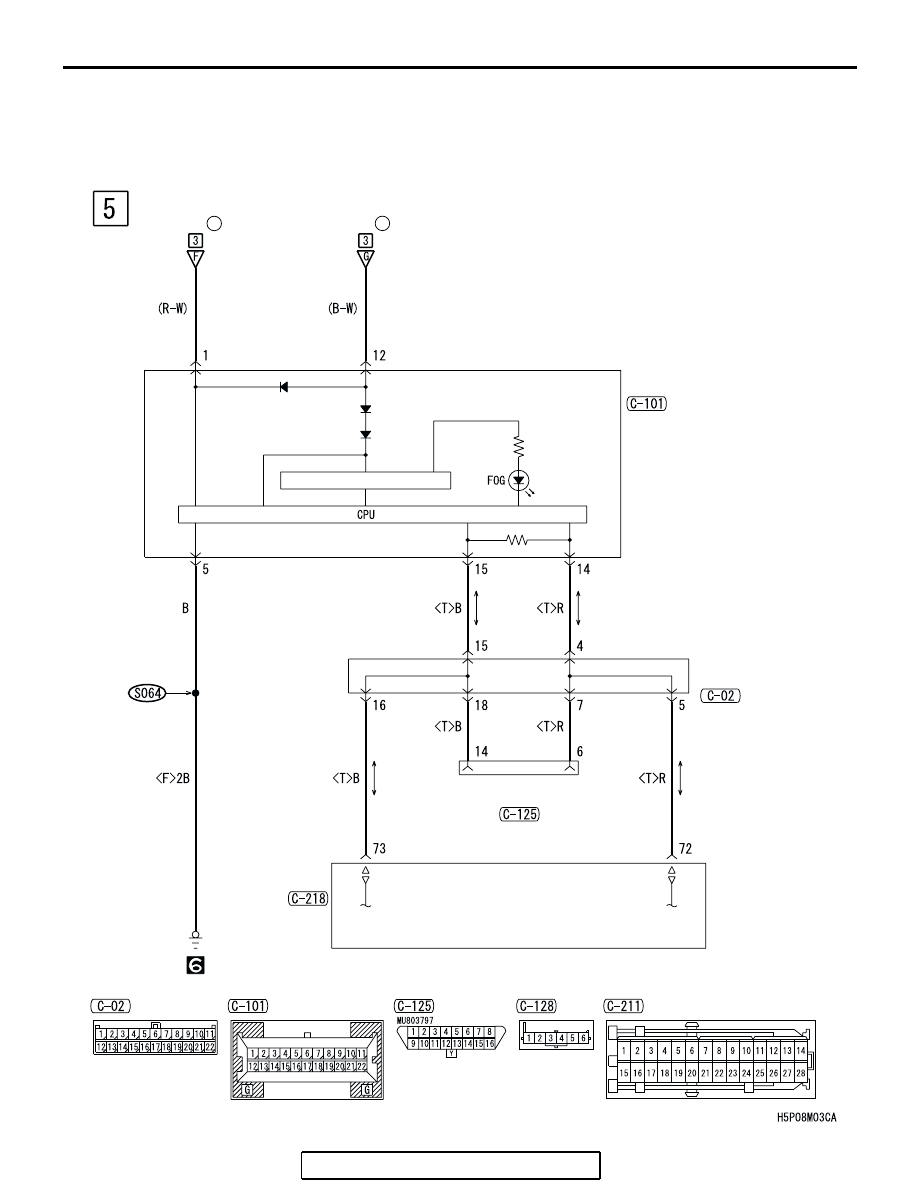

FOG LIGHT (CONTINUED)

(FUSE )

JOINT
CONNECTOR (2)

JOINT
CONNECTOR (1)

RHEOSTAT CIRCUIT

COMBINATION
METER

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

ETACS-
ECU

(FUSE )

FOG LIGHT

TSB Revision

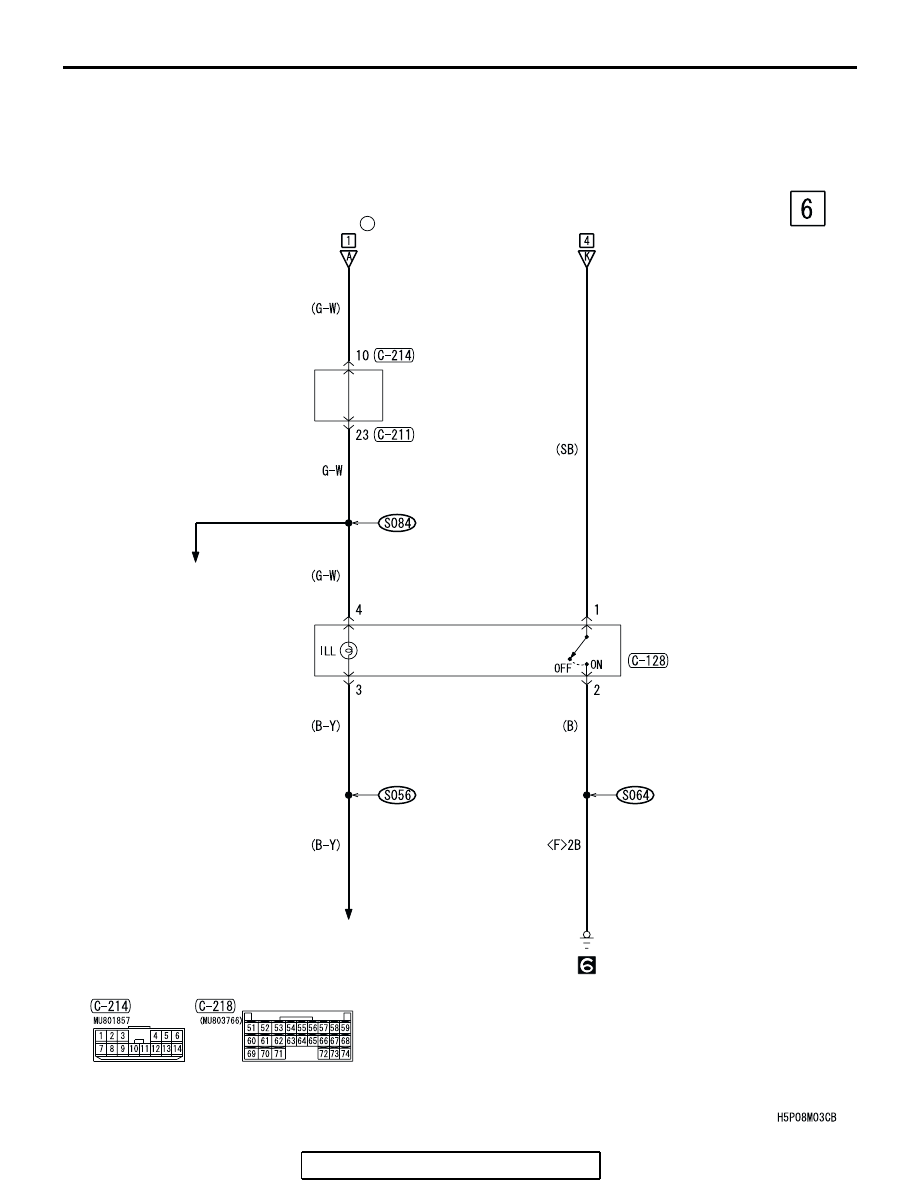

CIRCUIT DIAGRAMS

90-101

(FUSE )

ETACS-
ECU

JUNCTION
BLOCK

RHEOSTAT

FOG LIGHT
SWITCH

·AUDIO SYSTEM
·AUTOMATIC AIR
CONDITIONING
SYSTEM
·ELECTRONIC BRAKE-
FORCE DISTRIBUTION
(EBD) AND ANTI-LOCK
BRAKING SYSTEM (ABS)
<VEHICLES WITH
TRACTION CONTROL (TCL)>
·GLOVE BOX LIGHT
·HEATED SEAT
·INVECS-II 4A/T
·MANUAL AIR
CONDITIONING
SYSTEM
·METER AND
GAUGE
·MULTI-CENTER
DISPLAY
·REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATER
·RHEOSTAT
·SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
·TURN-SIGNAL
LIGHT AND
HAZARD WARNING
LIGHT

WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE
BR :BROWN O : ORANGE GR : GRAY R : RED W : WHITE
SB : SKY BLUE P : PINK Y : YELLOW V : VIOLET

JOINT
CONNECTOR (1)
