CONFIGURATION DIAGRAMS
80A-24
DOOR
M1801001400541
AC304367
Connector
symbol
E
AB

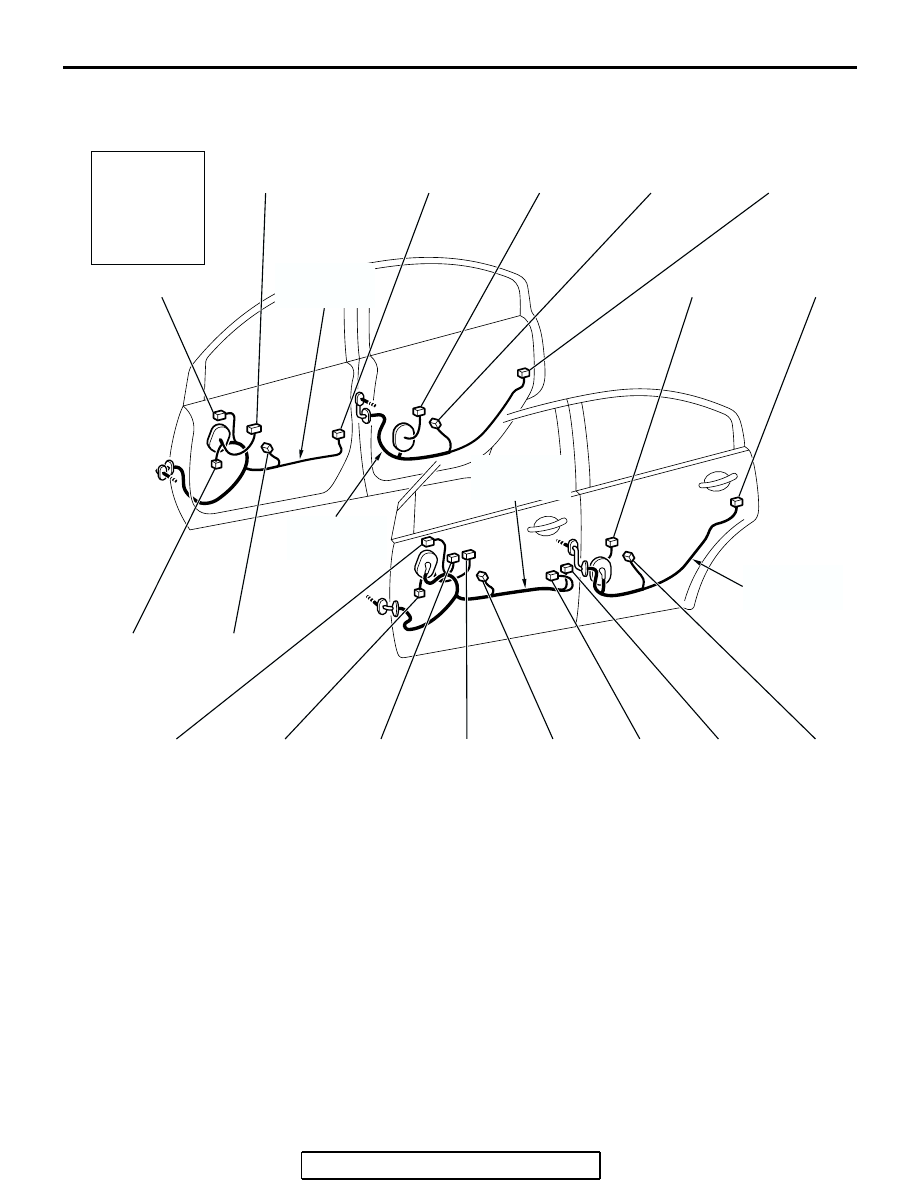

FRONT DOOR
WIRING
HARNESS (RH)
FRONT DOOR
WIRING
HARNESS (LH)
REAR DOOR
WIRING
HARNESS (RH)
REAR DOOR
WIRING
HARNESS (LH)
E-01
E-04
E-05
E-06
E-07
E-08
E-02
E-03
E-17
E-18
E-09
E-10
E-11
E-12
E-13
E-14
E-15
E-16
E-01
(6-GR)
REMOTE CONTROLLED MIRROR
(RH)
E-02
(2)
FRONT DOOR SPEAKER (RH)
E-03
(2-GR)
FRONT POWER WINDOW
REGULATOR MOTOR (RH)
E-04
(8)
FRONT POWER WINDOW SUB
SWITCH
E-05
(6-B)
FRONT DOOR LOCK ACTUATOR
(RH)
E-06
(8)
REAR POWER WINDOW SUB
SWITCH (RH)
E-07
(2-GR)
REAR POWER WINDOW
REGULATOR MOTOR (RH)
E-08
(6-B)
REAR DOOR LOCK ACTUATOR
(RH)
E-09
(6-GR)
REMOTE CONTROLLED MIRROR
(LH)
E-10
(2)
FRONT DOOR SPEAKER (LH)
E-11
(11)
REMOTE CONTROLLED MIRROR
SWITCH
E-12
(11)
POWER WINDOW MAIN SWITCH
E-13
(2-GR)
FRONT POWER WINDOW
REGULATOR MOTOR (LH)
E-14
(3-B)
DOOR LOCK KEY CYLINDER
SWITCH
E-15
(6-B)
FRONT DOOR LOCK ACTUATOR
(LH)
E-16
(2-GR)
REAR POWER WINDOW
REGULATOR MOTOR (LH)
E-17
(8)
REAR POWER WINDOW SUB
SWITCH (LH)
E-18
(6-B)
REAR DOOR LOCK ACTUATOR (LH)
