Mitsubishi Galant 9G. Manual - part 152

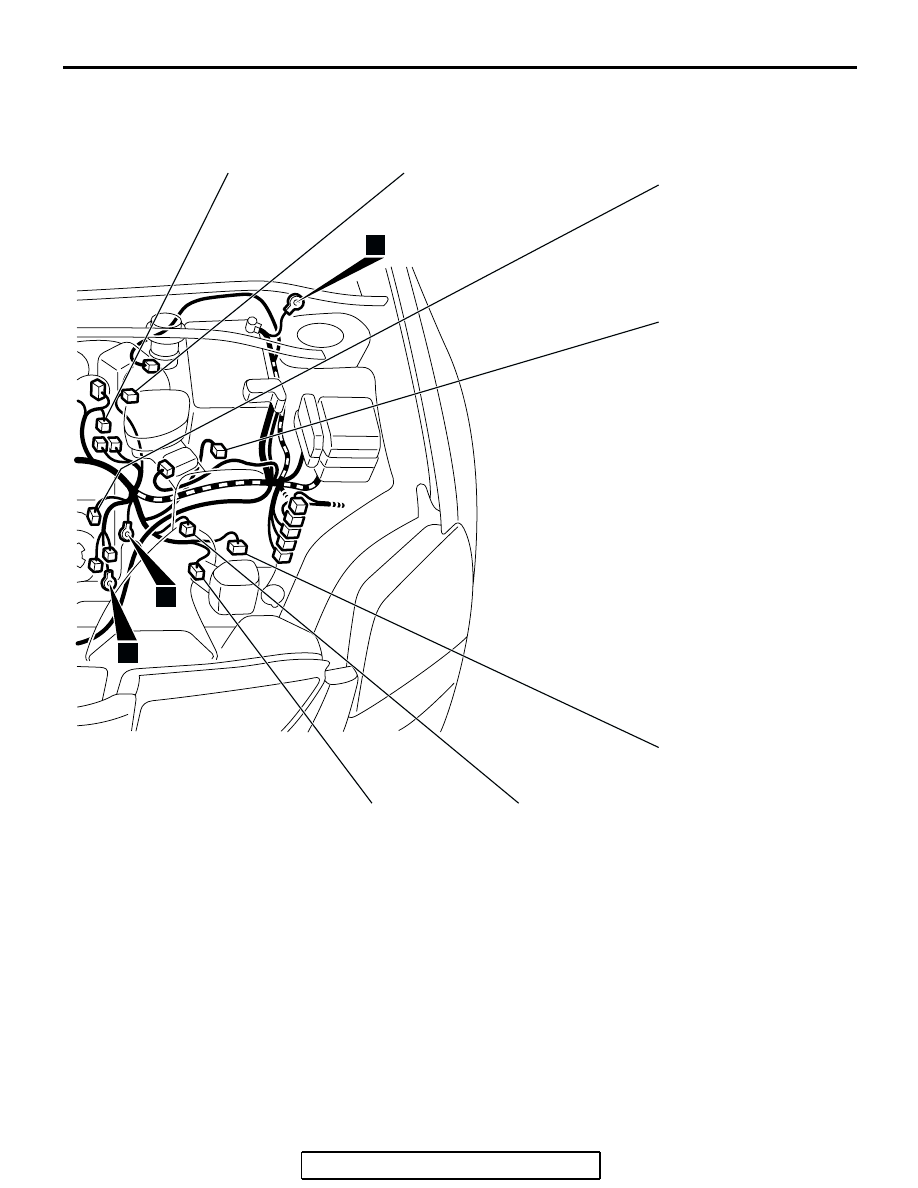

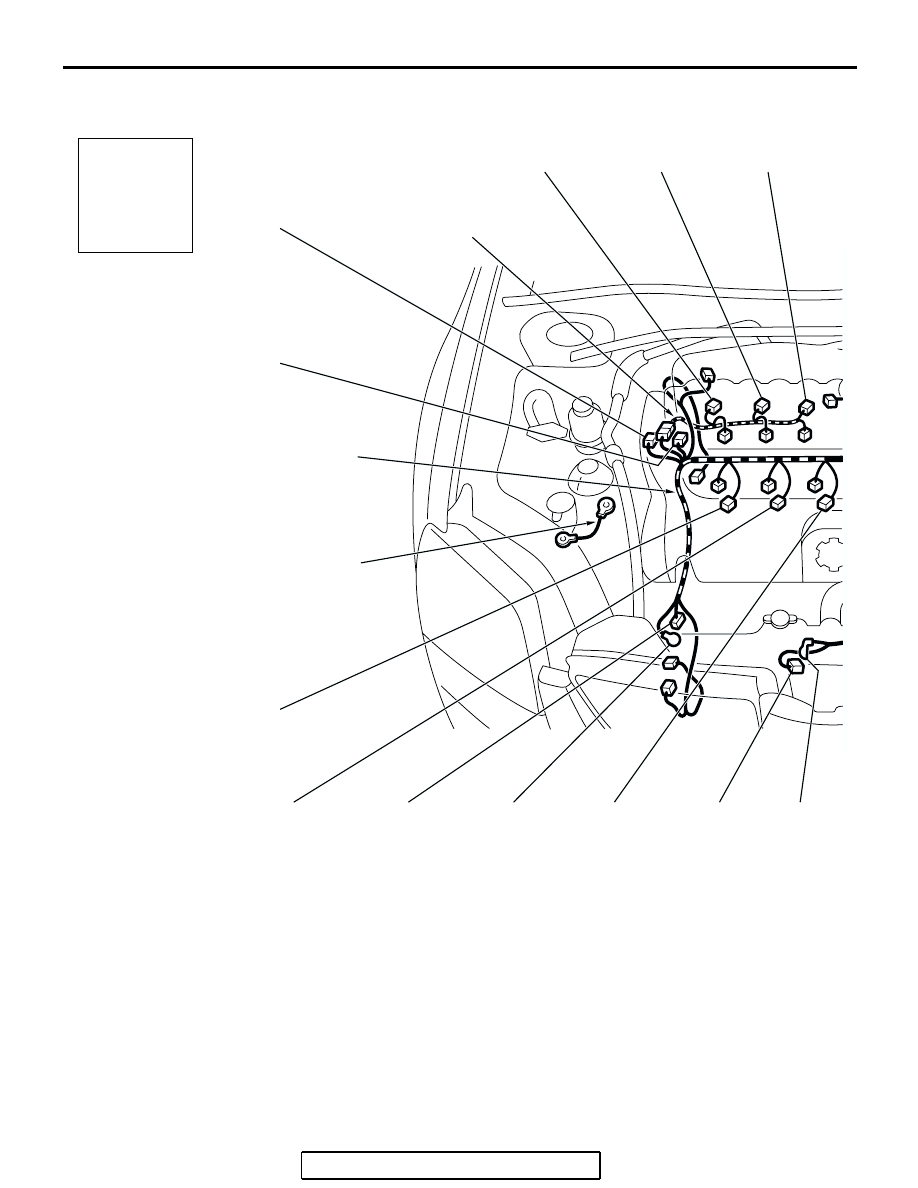

ENGINE AND TRANSAXLE <3.8L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-12

ENGINE AND TRANSAXLE <3.8L ENGINE> (CONTINUED)

AC304357

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

Connector
symbol

-101
thru
-120

INJECTOR
WIRING
HARNESS

CONTROL
WIRING
HARNESS

GROUNDING
CABLE

B-101

B-102

B-103

B-120

B-119

B-118

B-117

B-116

B-115

B-114

B-113

B-112

B-101 (3-GR)

IGNITION COIL 1

B-102 (3-GR)

IGNITION COIL 3

B-103 (3-GR)

IGNITION COIL 5

B-104 (2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

B-105 (6-GR)

EXHAUST GAS RECIRCULATION
VALVE

B-106 (3-B)

CAMSHAFT POSITION SENSOR

B-107 (3-GR)

OUTPUT SHAFT SPEED SENSOR

B-108 (10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-109 (3-B)

INPUT SHAFT SPEED SENSOR

B-110 (10-B)

TRANSMISSION RANGE SWITCH

ENGINE AND TRANSAXLE <3.8L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-13

AC400217

B-104

B-105

B-106

B-107

B-108

B-109

B-110

B-112 (1)

STARTER

B-113 (1-B)

STARTER

B-114 (3-GR)

IGNITION COIL 6

B-115 (1)

GENERATOR

B-116 (4-GR)

GENERATOR

B-117 (3-GR)

IGNITION COIL 4

B-118 (3-GR)

IGNITION COIL 2

B-119 (3-B)

CRANKSHAFT POSITION SENSOR

B-120 (2-GR)

KNOCK SENSOR

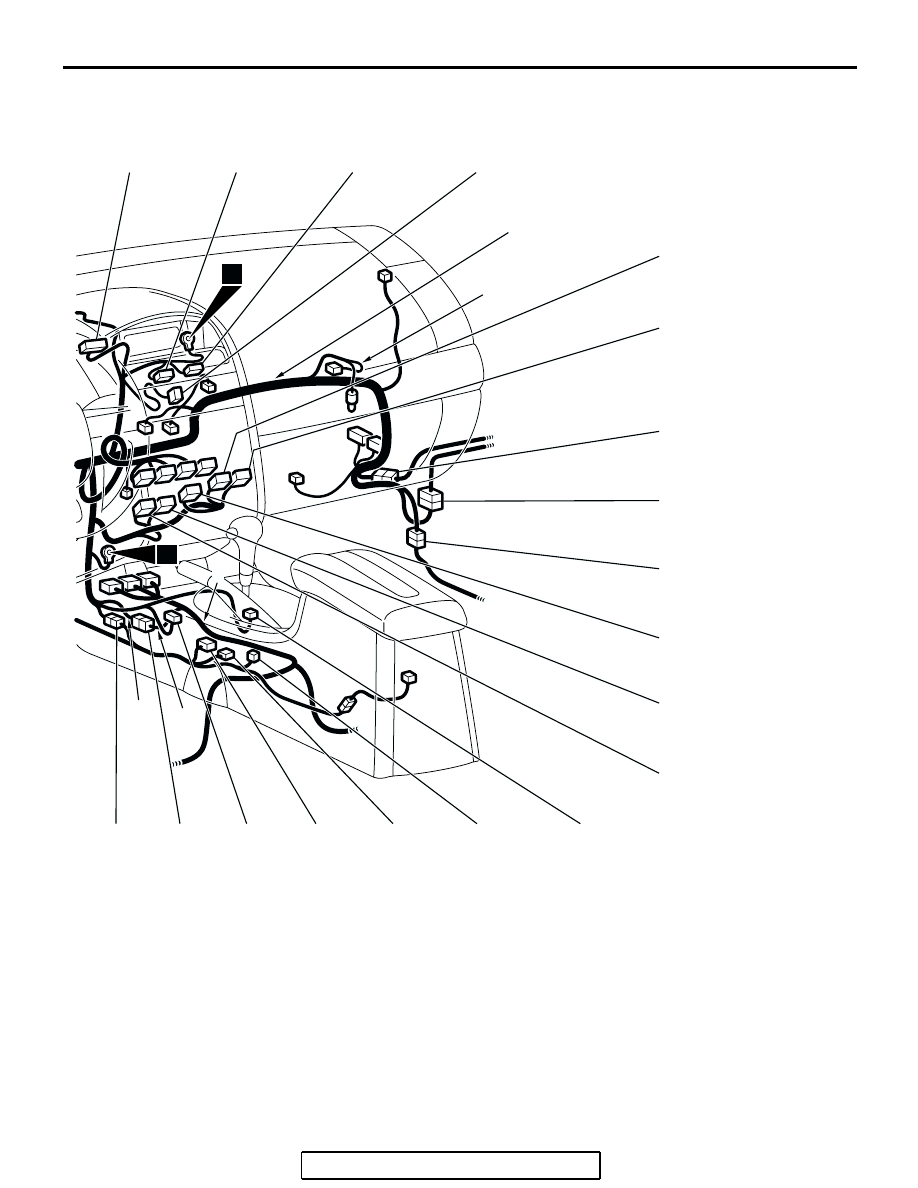

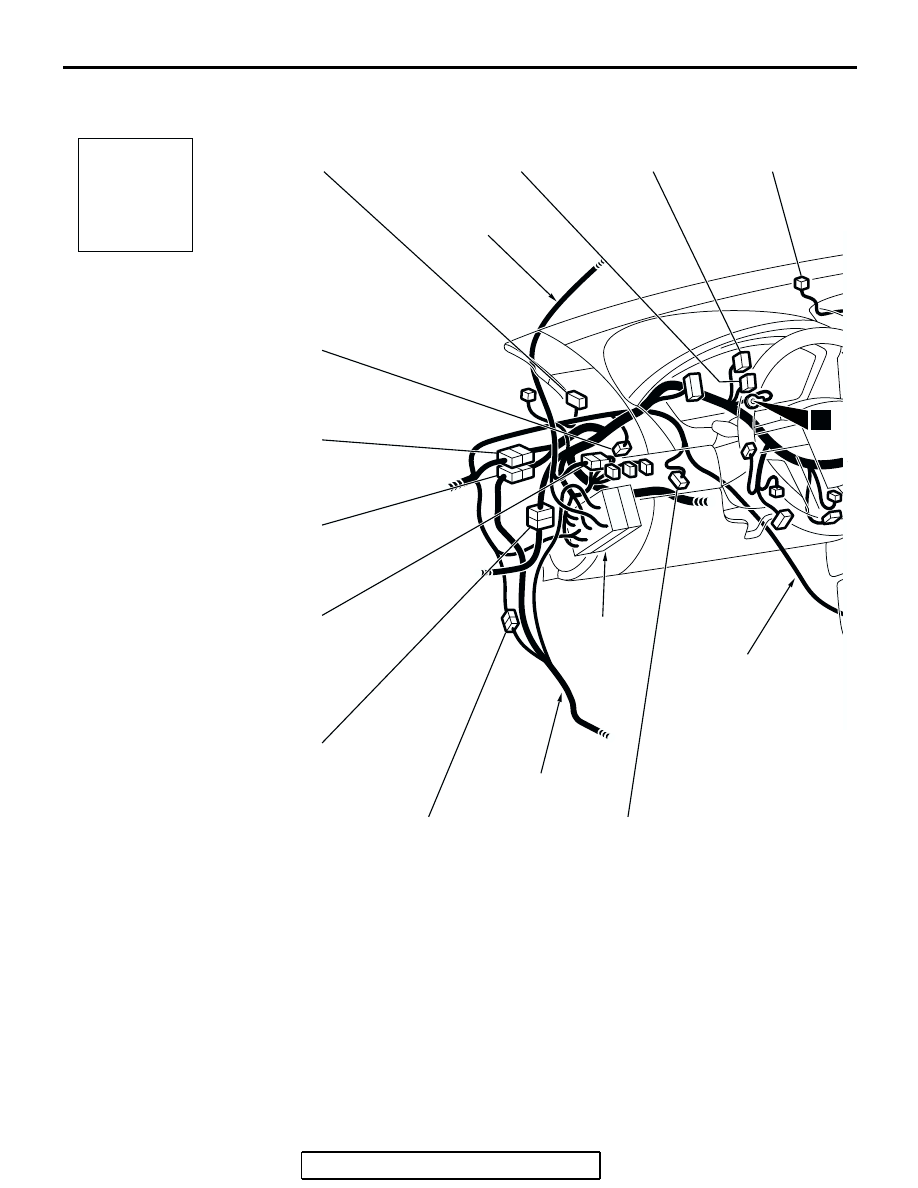

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-14

DASH PANEL

M1801000601147

AC304360

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

Connector
symbol

-01
thru
-30

ROOF WIRING
HARNESS

JUNCTION
BLOCK

FRONT WIRING
HARNESS

FLOOR WIRING
HARNESS

C-01

C-02

C-03

C-04

C-24

C-25

C-26

C-27

C-28

C-29

C-30

C-01

(33)

J/C (1)

C-02

(22)

J/C (3)

C-03

(33)

J/C (2)

C-04

(2)

PHOTO SENSOR <AUTOMATIC

A/C>

C-05

(20-B)

MULTI CENTER DISPLAY UNIT

C-06

(3)

AIR BAG OFF INDICATOR LIGHT

(PASSENGER’S SIDE)

C-07

(4)

SEAT BELT WARNING LIGHT

(PASSENGER’S SIDE)

C-08

(4)

HAZARD WARNING LIGHT SWITCH

C-09

(12-B)

A/C-ECU <MANUAL A/C (LOW)>

C-10

(16-B)

A/C-ECU <MANUAL A/C (LOW)>

C-11

(2)

INSTRUMENT PANEL WIRING

HARNESS AND FRONT WIRING

HARNESS COMBINATION

C-12

(19)

INSTRUMENT PANEL WIRING

HARNESS AND FRONT DOOR

WIRING HARNESS (RH)

COMBINATION

C-13

(8)

INSTRUMENT PANEL WIRING

HARNESS AND FLOOR WIRING

HARNESS COMBINATION

C-14

(6)

BLOWER SWITCH <MANUAL A/C

(LOW)>

C-15

(20-B)

A/C-ECU <MANUAL A/C (MIDDLE),

AUTOMATIC A/C>

C-16

(16-B)

A/C-ECU <MANUAL A/C (MIDDLE),

AUTOMATIC A/C>

C-17

(2)

ACCESSORY SOCKET (1)

C-18

(1-B)

PARKING BRAKE SWITCH

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-15

AC401090AB

INSTRUMENT PANEL
WIRING HARNESS

C-05

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

C-17

C-18

C-19

C-20

C-21

C-22

C-23

C-19

(2)

A/T SELECTOR LEVER POSITION

ILLUMINATION LIGHT <2.4L

ENGINE>

C-20

(6)

SHIFT SWITCH ASSEMBLY <3.8L

ENGINE>

C-21

(9)

HEATED SEAT SWITCH

C-22

(28-Y)

INSTRUMENT PANEL WIRING

HARNESS AND FLOOR WIRING

HARNESS COMBINATION

C-23

(8)

INSTRUMENT PANEL WIRING

HARNESS AND FRONT WIRING

HARNESS COMBINATION

C-24

(6-B)

ACCELERATOR PEDAL POSITION

SENSOR

C-25

(16)

FRONT WIRING HARNESS AND

FLOOR WIRING HARNESS

COMBINATION

C-26

(32)

INSTRUMENT PANEL WIRING

HARNESS AND FRONT DOOR

WIRING HARNESS (LH)

COMBINATION

C-27

(4)

INSTRUMENT PANEL WIRING

HARNESS AND ROOF WIRING

HARNESS COMBINATION

C-28

(43)

INSTRUMENT PANEL WIRING

HARNESS AND FLOOR WIRING

HARNESS COMBINATION

C-29

(38)

INSTRUMENT PANEL WIRING

HARNESS AND FRONT WIRING

HARNESS COMBINATION

C-30

(4)

STOPLIGHT SWITCH
