SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-38

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B1400: Driver’s Air Bag Module (1st Squib) System Fault 1 (Short Circuit between Terminals of
the Squib Circuit)
DTC B1480: Driver’s Air Bag Module (2nd Squib) System Fault 1 (Short Circuit between Terminals of
the Squib Circuit)

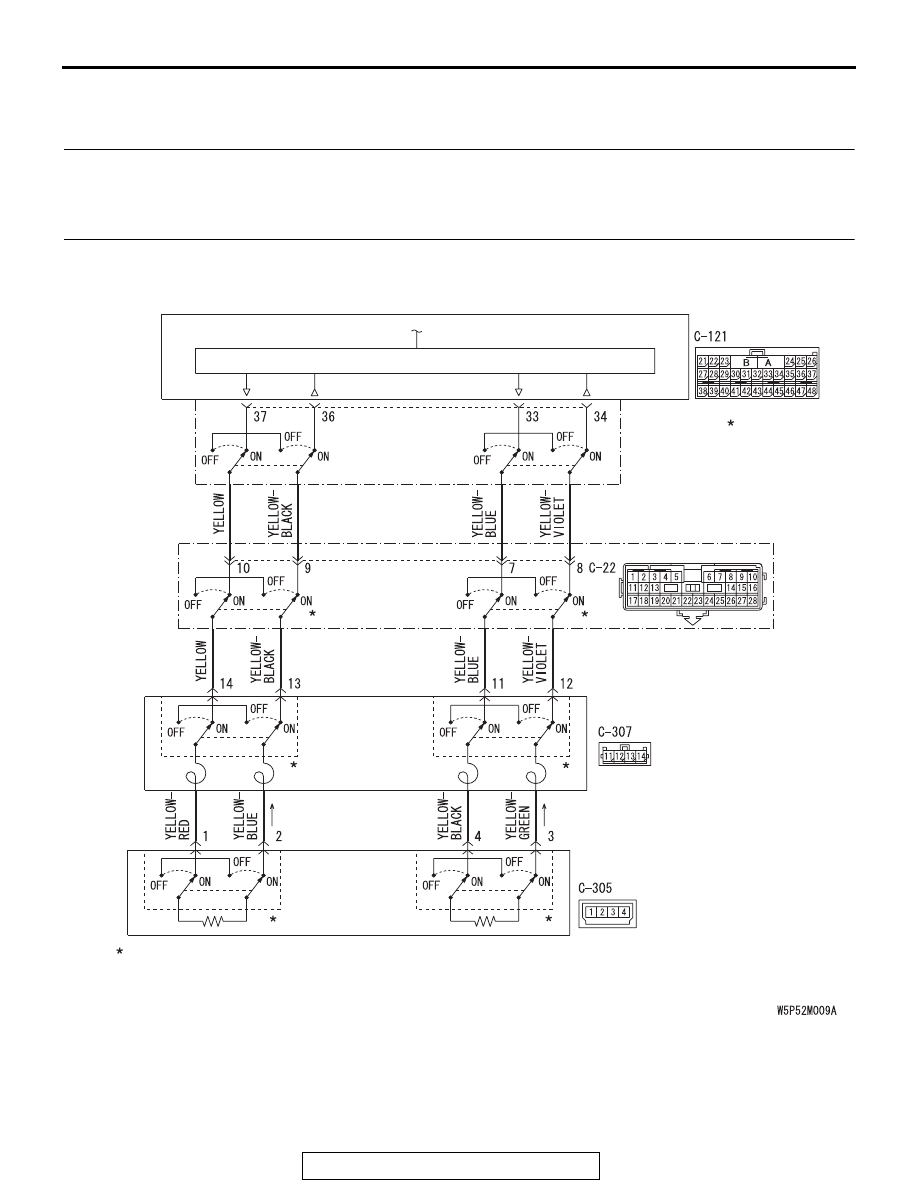

Driver's Air Bag Module (1st and 2nd Squib) Circuit

AIR BAG MODULE
(SQUIB) (DRIVER'S SIDE)

CLOCK
SPRING

AIR BAG DRIVE CIRCUIT

SRS-ECU

CONNECTOR
LOCK SWITCH

: CONNECTOR LOCK SWITCH
  CONNECTOR CONNECTED: ON
  CONNECTOR DICONNECTED: OFF

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-39

CAUTION

If DTC B1400 <1st squib> or B1480 <2nd squib>
is set in the combination meter, always diagnose
the CAN bus lines.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the front air bag safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the air bag module

via the clock spring to inflate the air bag.

.

DTC SET CONDITIONS

• This DTC is set if there is abnormal resistance

between the input terminals of the driver's side air
bag module (squib). The most likely causes for
this code to be set are the followings:

• Short circuit in driver’s air bag module (squib)

or harness

• Short circuit in the clock spring

However, if no DTC reset, the SRS warning light will
be turned off (DTC will OK).

.

TROUBLESHOOTING HINTS

• Improper engaged connector or defective short

spring*

• Short circuit in the clock spring

• Short circuit between the driver's air bag module

(squib) circuit terminals

• Damaged connector(s)

• Malfunction of the SRS-ECU

.

NOTE: *: The squib circuit connectors integrate a
"short" spring (which prevents the air bag from
deploying unintentionally due to static electricity by
shorting the positive wire to the ground wire in the
squib circuit when the connectors are disconnected)
(Refer to

P.52B-3

). Therefore, if connector C-121,

C-22, C-307 or C-305 is damaged or improperly
engaged, the short spring may not be released when
the connector is connected.

.

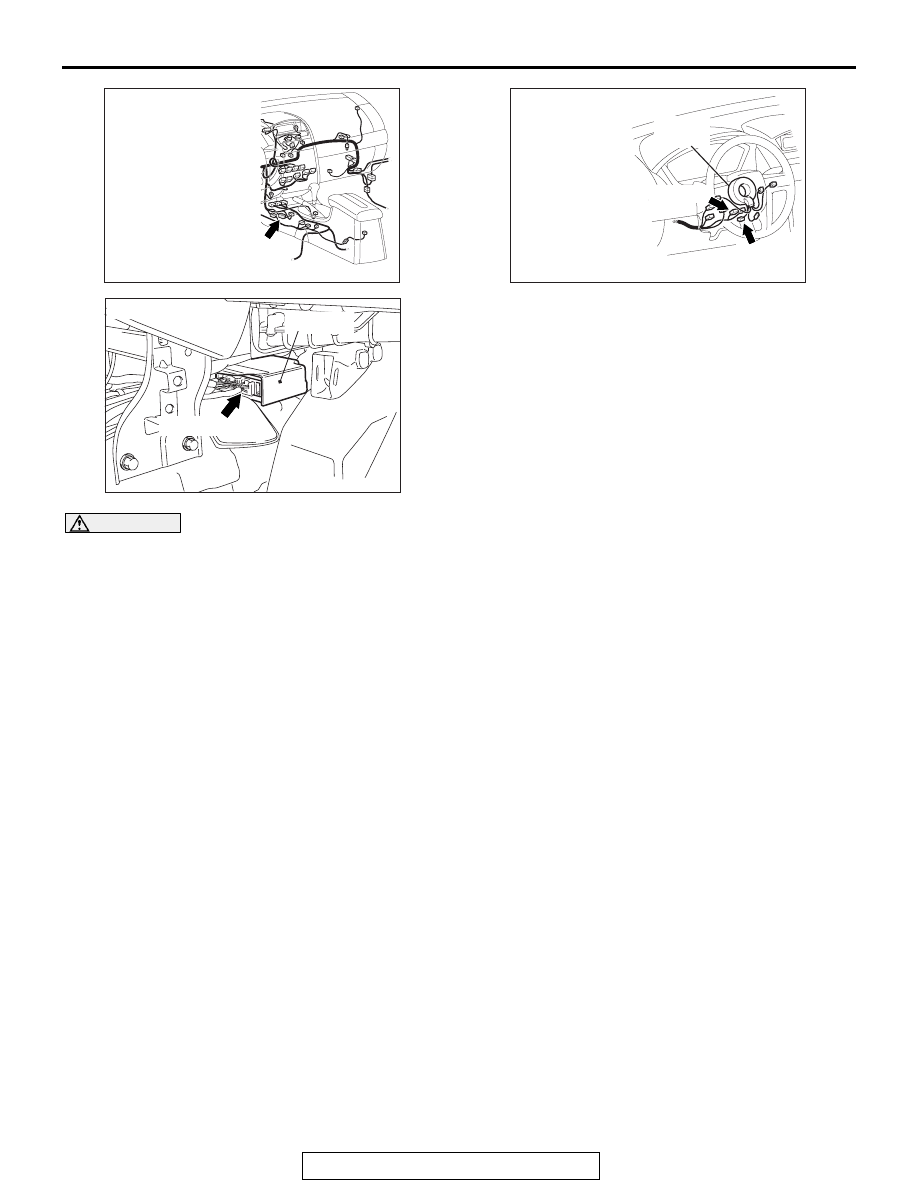

AC305233 AO

CONNECTOR: C-22

C-22 (Y)

AC305362

CONNECTOR: C-121

C-121 (Y)

AD

SRS-ECU

AC305235AP

C-307 (Y)

CONNECTORS: C-305, C-307

CLOCK
SPRING

C-305 (Y)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-40

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

• MB991865: Dummy resistor

• MB991866: Resister harness

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis ).

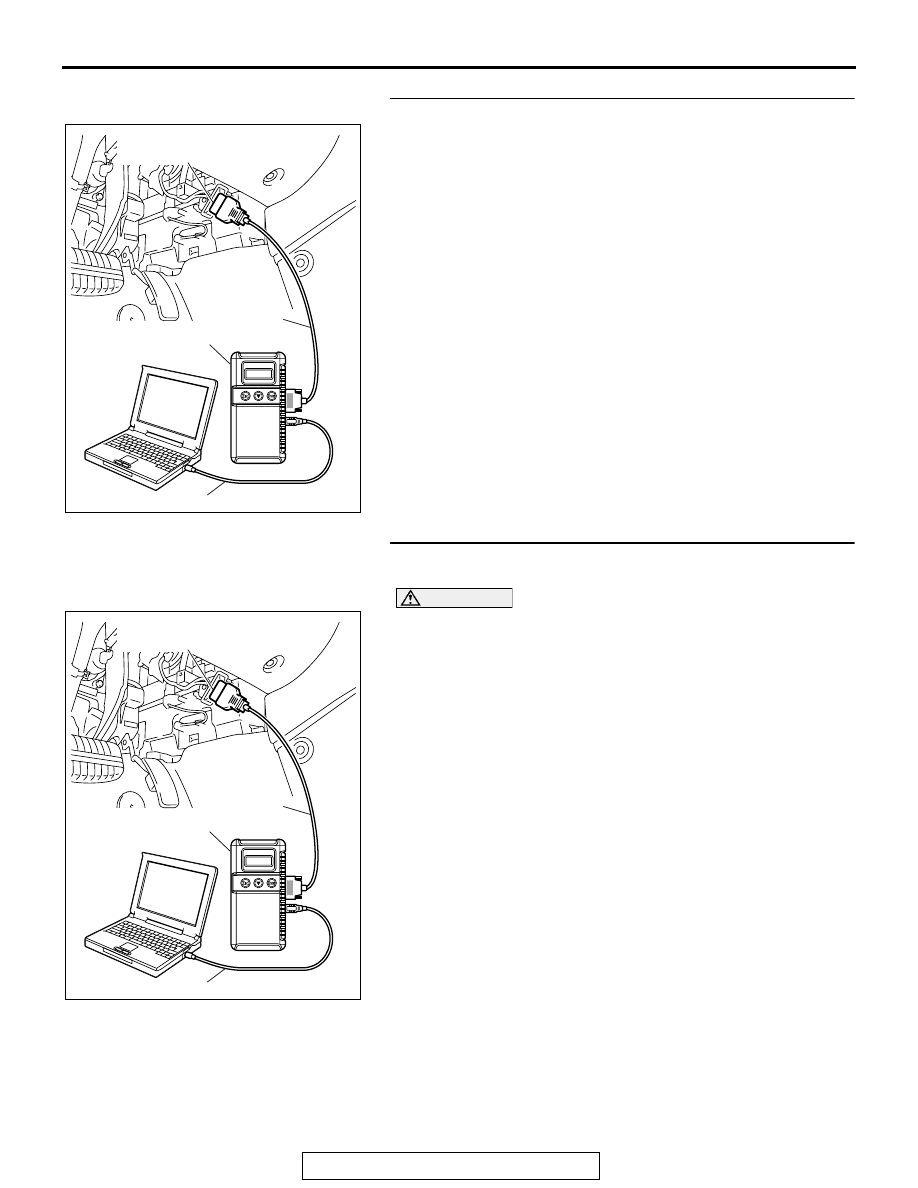

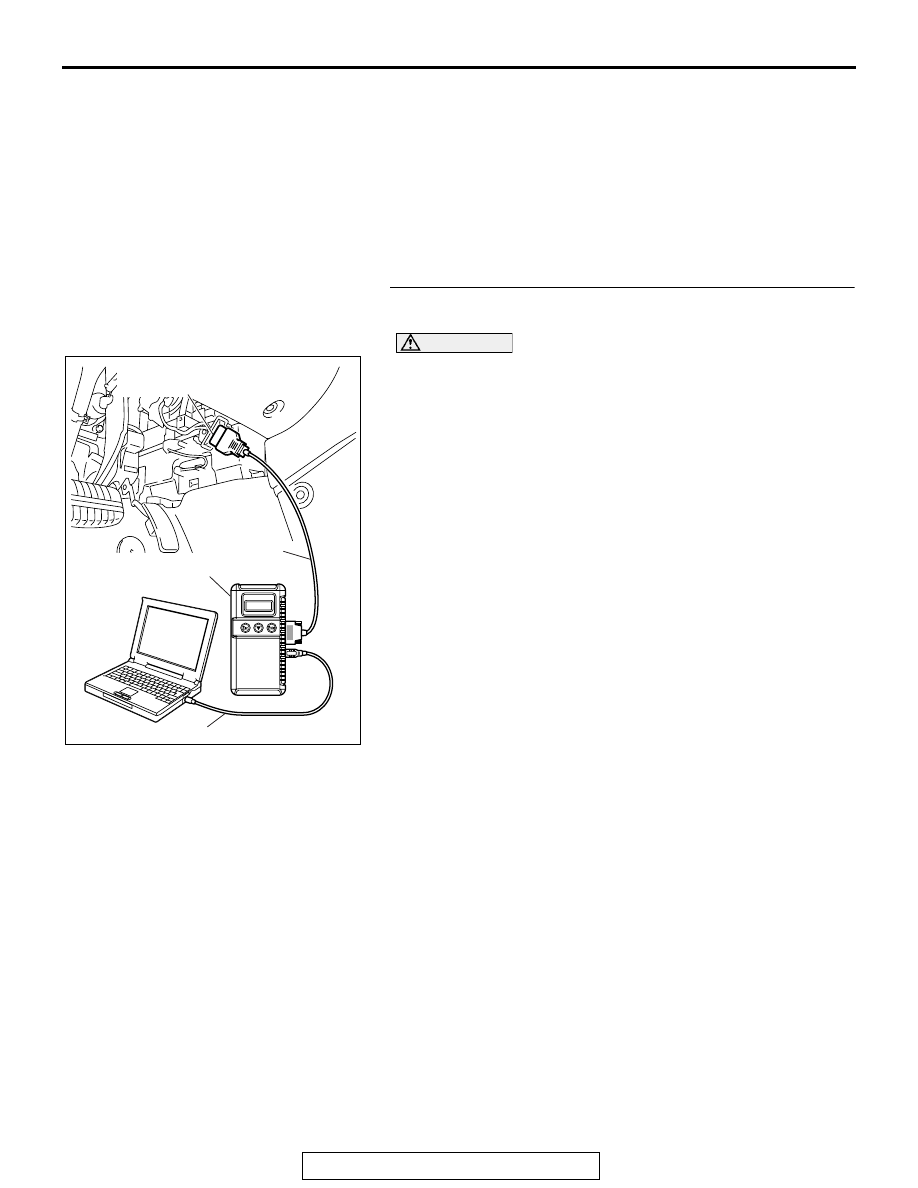

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-41

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOOK (OFF)" position.

Q: Is DTC B1519 set?

YES : Go to Step 4.
NO :  Go to Step 5.

AC305412
