SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-448

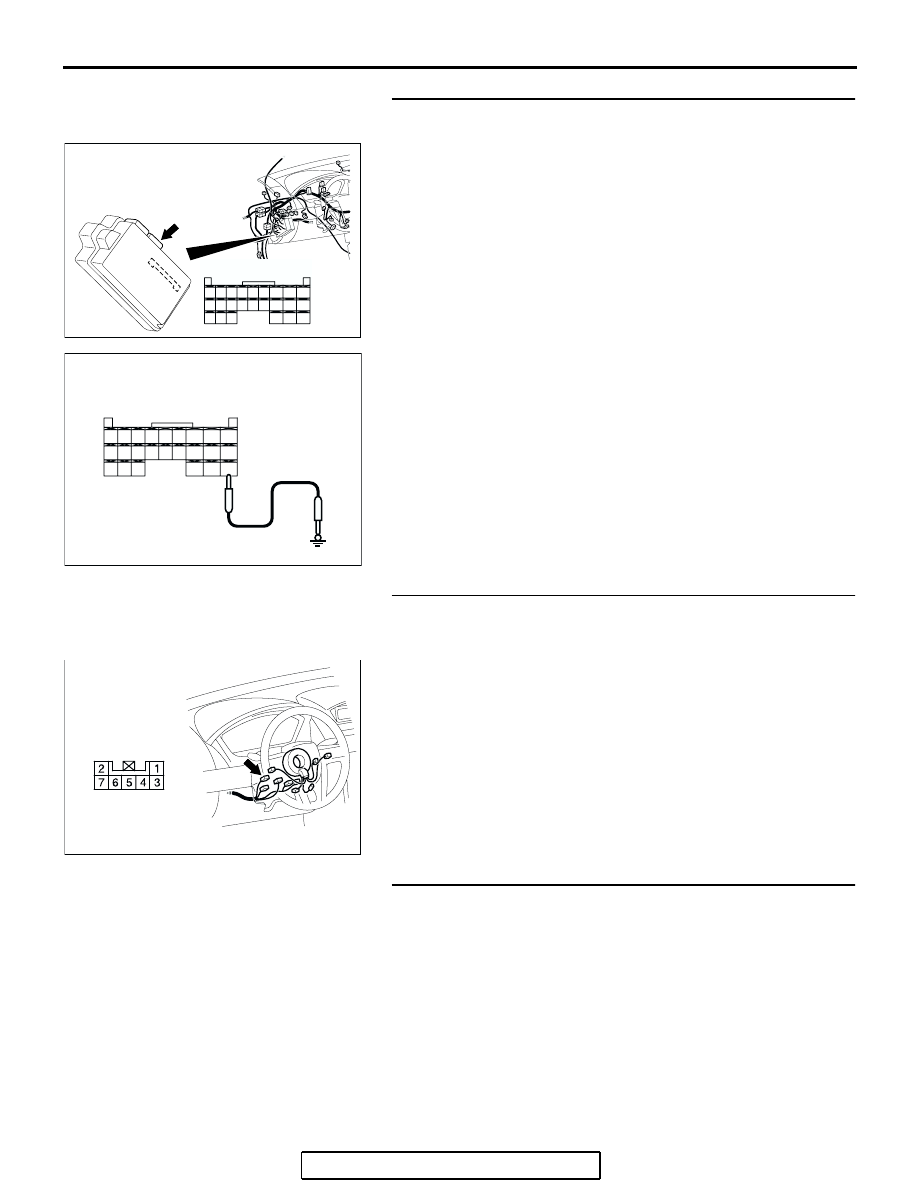

STEP 5. Check at ETACS-ECU connector C-218 in order to
check the ignition key hole illumination light circuit.
(1) Disconnect ETACS-ECU connector C-218, and measure at

the wiring harness side.

(2) The ignition key hole illumination light should illuminate

when terminal 69 is grounded.

Q: Does the ignition key hole illumination light illuminate?

YES : Replace the ETACS-ECU. Verify that the ignition key

hole illumination light illuminates normally.

NO :  Go to Step 6.

STEP 6. Check key reminder switch connector C-310 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is key reminder switch connector C-310 in good

condition?
YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the ignition key hole illumination

light illuminates normally.

STEP 7. Check the ignition key hole illumination light bulb.
Q: Is the ignition key hole illumination light bulb in good

condition?
YES : Go to Step 8.
NO :  Replace the bulb. Verify that the ignition key hole

illumination light illuminates normally.

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

AC210777

68

74

63

66

72

73

67

65 64

61

70

71

62

69

60

57

58

59

56 55

52

54 53

51

CONNECTOR C-218
(HARNESS SIDE)

AB

AC305235AF

CONNECTOR: C-310

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-449

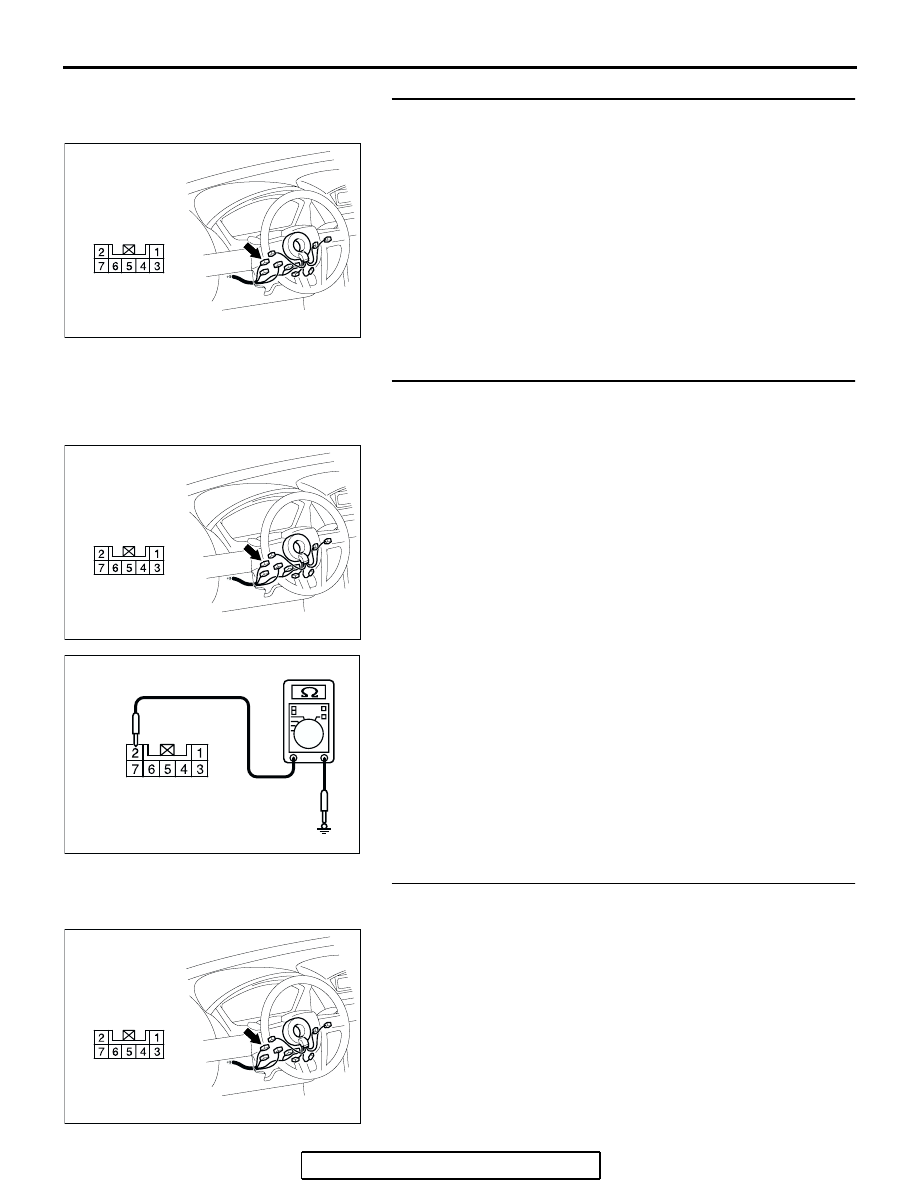

STEP 8. Check the key reminder switch (ignition key hole
illumination).
(1) Disconnect key reminder switch connector C-310.
(2) Remove the ignition key hole illumination light bulb. Then

measure the resistance value between the bulb terminals.

(3) Install a bulb to the key remainder switch, and measure the

resistance between connector C-310 terminals 1 and 2. The
measured resistance value should be roughly the same as
the value measured in Step (2).

Q: Are these two resistance values extremely different?

YES : Replace the key reminder switch. Verify that the

ignition key hole illumination light illuminates normally.

NO :  <Nearly equal> Go to Step 9.

STEP 9. Check the battery power supply circuit to the key
reminder switch circuit. Measure the voltage at key
reminder switch connector C-310.
(1) Disconnect key reminder switch connector C-310, and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 2 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 11.
NO :  Go to Step 10.

STEP 10. Check the wiring harness between key reminder
switch connector C-310 (terminal 2) and battery.

AC305235AF

CONNECTOR: C-310

HARNESS SIDE

AC305235AF

CONNECTOR: C-310

HARNESS SIDE

AC209364

CONNECTOR C-310
(HARNESS SIDE)

GY

AC305235AF

CONNECTOR: C-310

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-450

NOTE: Also check joint connector C-01 and intermediate con-
nector C-29 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connector. If joint connector C-01 or
intermediate connector C-29 is damaged, repair or replace the
connector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between key reminder switch

connector C-310 (terminal 2) and battery in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the ignition key hole illumination light illuminates
normally.

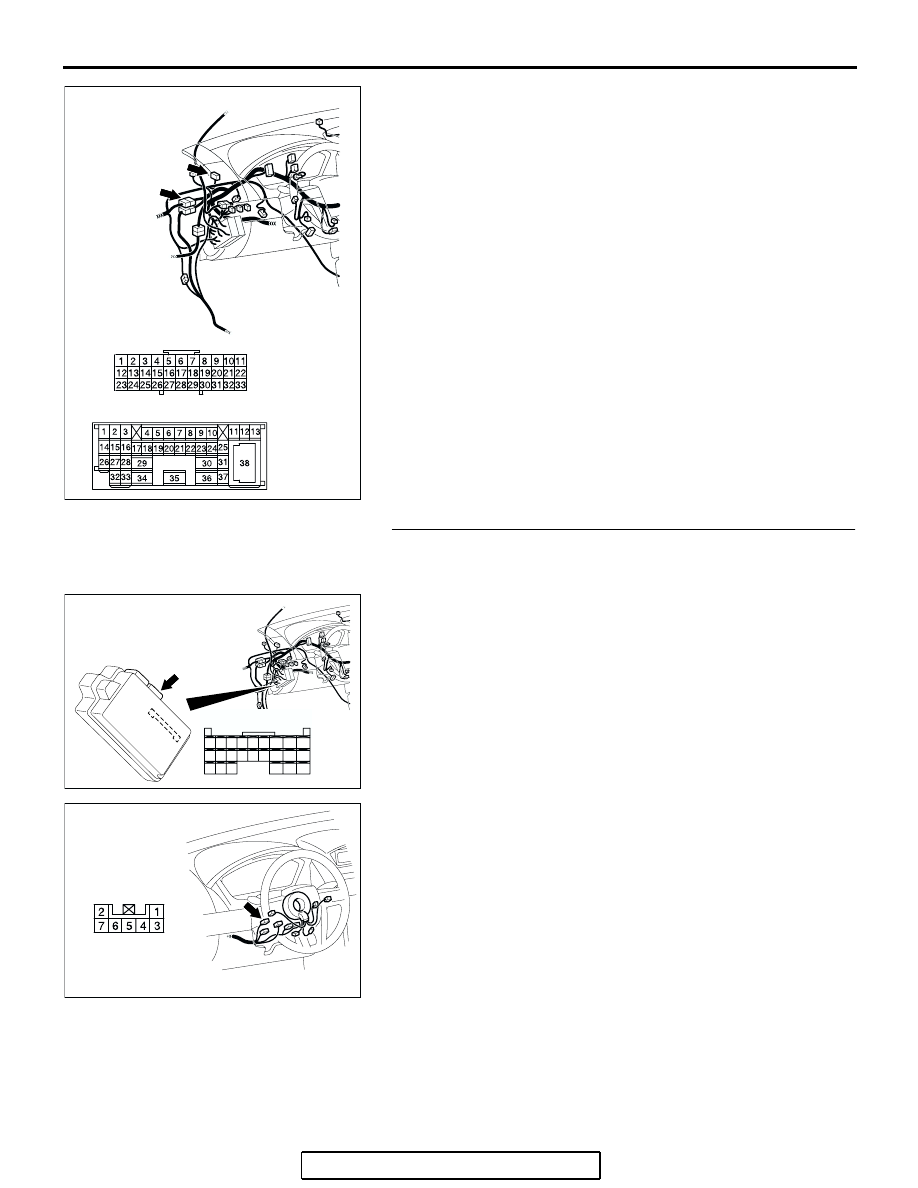

STEP 11. Check the wiring harness between key reminder
switch connector C-310 (terminal 1) and ETACS-ECU
connector C-218 (terminal 69).
Q: Is the wiring harness between key reminder switch

connector C-310 (terminal 1) and ETACS-ECU connector
C-218 (terminal 69) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the ignition key hole illumination light illuminates
normally.

AC305232

CONNECTORS: C-01, C-29

C-01

C-29

C-01

C-29

AK

AC305413AN

CONNECTOR: C-218

JUNCTION BLOCK
(REAR VIEW)

C-218 (GR)

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

AC305235AF

CONNECTOR: C-310

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-451

INSPECTION PROCEDURE K-5: Interior Light: The interior light automatic shutoff  function does not
work normally.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

CIRCUIT OPERATION

The ETACS-ECU operates the interior light auto-
matic shutdown function according to the following
switch signals:

• Ignition switch (ACC)

• Ignition switch (IG1)

• Front door switch (LH)

• Door switches

• interior light loaded signal

.

TECHNICAL DESCRIPTION (COMMENT)

If the function does not work normally, the input cir-
cuit system from the switches or the ETACS-ECU
may be defective (refer to "CIRCUIT OPERATION").

.

TROUBLESHOOTING HINTS

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

22

RELAY BOX
(FUSE     )

NOTE

WITHOUT SUNROOF
WITH SUNROOF

ETACS-
ECU

KEEP RELAY

·

ALL DOOR

  SWITCH
· IGNITION
  SWITCH (IG1)
· IGNITION
  SWITCH (ACC)
·

INTERIOR LIGHT

  LOADED SIGNAL

·

MAP LIGHT ASSEMBLY

· OVERHEAD CONSOLE

 ASSEMBLY

·

REAR DOME LIGHT

·

TRUNK LIGHT

INTERIOR
LAMP CUT

BACK-UP
CIRCUIT

LOAD

DETERMINATION
CIRCUIT

JUNCTION BLOCK SIDE

JUNCTION BLOCK

INPUT SIGNAL

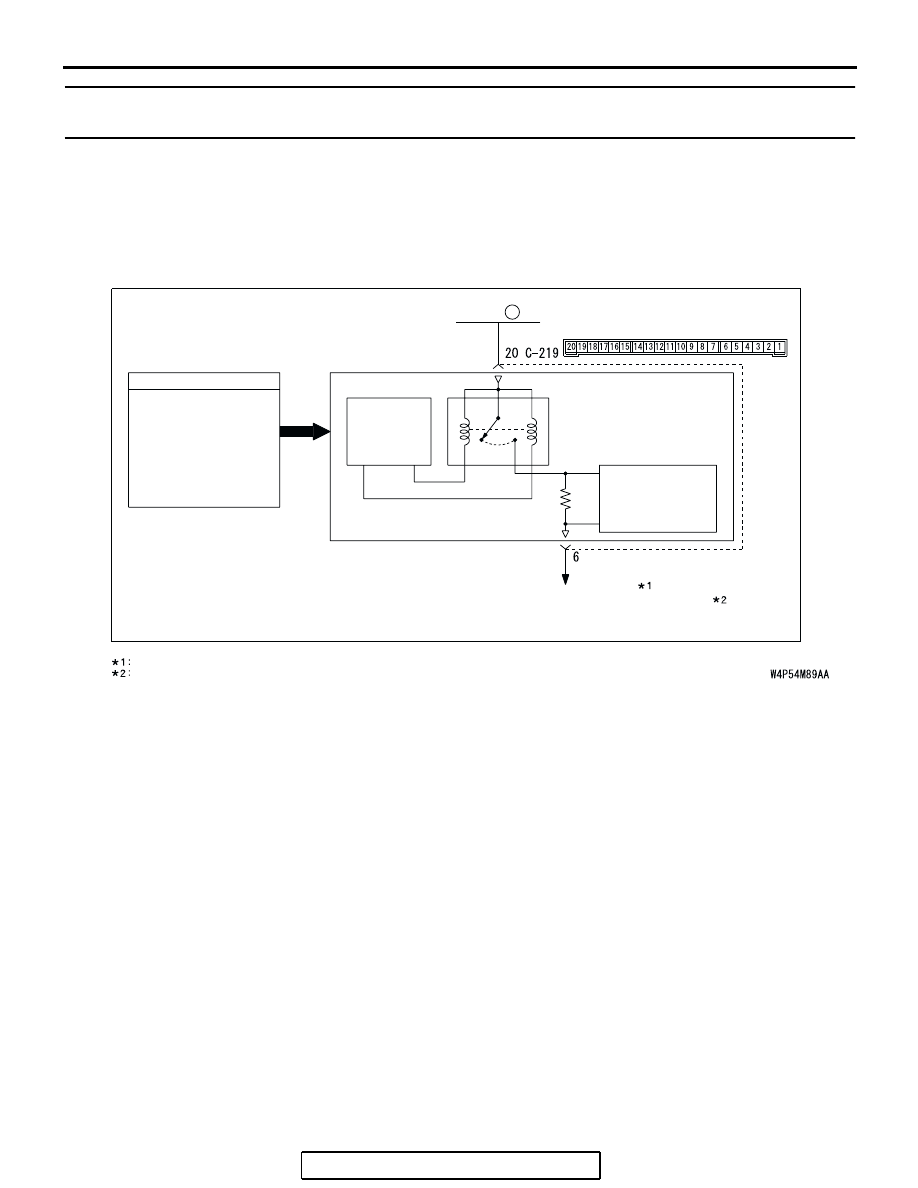

Interior Light Automatic Shutoff Function Circuit
