SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-416

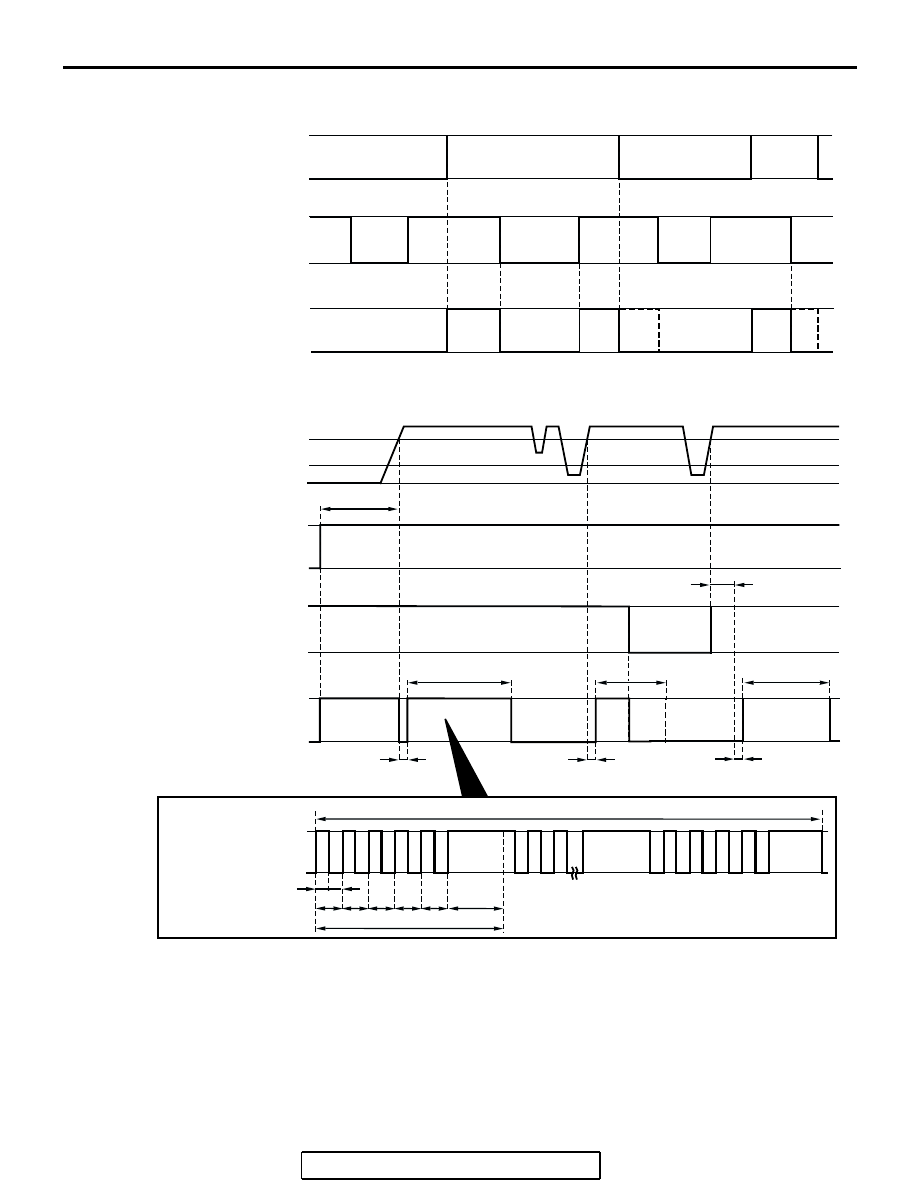

Seat belt indicator

AC305420

ON

OFF

ON (UNFASTENED)

OFF (FASTENED)

ON (ILLUMINATED)

OFF (NOT ILLUMINATED)

IGNITION SWITCH (IG1)

SEAT BELT
SWITCH
(DRIVER'S SIDE)

SEAT BELT
WARNING
LIGHT

AC

AC305443

ON

OFF

ON (UNFASTENED)

OFF (FASTENED)

ON (ILLUMINATED)

OFF (NOT ILLUMINATED)

IGNITION SWITCH (IG1)

SEAT BELT
SWITCH
(DRIVER'S SIDE)

SEAT BELT
WARNING
LIGHT

8 km/h (5 mph)

0 km/h (0 mph)

VEHICLE SPEED

e

3 km/h (2 mph)

ON

OFF

a: 0.48 SECOND

b: 0.52 SECOND

c: 1 SECOND

d: 3 SECONDS

e: 60 SECONDS  OR MORE

f: 10 SECONDS

AB

a

g

g

g

f

b

c

c

c

c

c

d

12 CYCLES

1 CYCLE

12 CYCLES

12 CYCLES

12 CYCLES

SEAT BELT
WARNING
LIGHT

g: 0.5 SECOND

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-417

If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU illumi-
nates, flashes or extinguishes the seat belt indicator
by using the driver's seat belt switch signal and the
vehicle speed signal sent from the combination
meter.

• Illuminates when the ignition switch is at "ON"

and the seat belt switch is turned on (the driver's
seat belt is unfastened).

• Flashes and illuminates the indicator 12 cycles

(after 0.5 seconds) if any of the following condi-
tions is met when sixty seconds or more have
elapsed since the ignition switch is turned "ON".
One cycle consists of five-second "flashing" and
then three-second "illumination".

a. The vehicle speed has reached 8 km/h (5

mph) while the seat belt switch is turned on
(driver's seat belt is not fastened) with the
ignition switch "ON.

b. The seat belt switch has been turned on

(driver's seat belt has not been fastened) for
at least ten seconds while the ignition switch
has been turned "ON" and the vehicle speed
has been 8 km/h (5 mph) or more.

NOTE: Once this timer operation has been acti-

vated, it will not be activated again until the
vehicle speed reduces to 3 km/h (2 mph) or
less even if any of the following conditions is
met.

• The indicator stops illuminating if the ignition

switch or the seat belt switch is turned off (the
driver's seat belt is fastened) while the timer
operation is active.

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-418

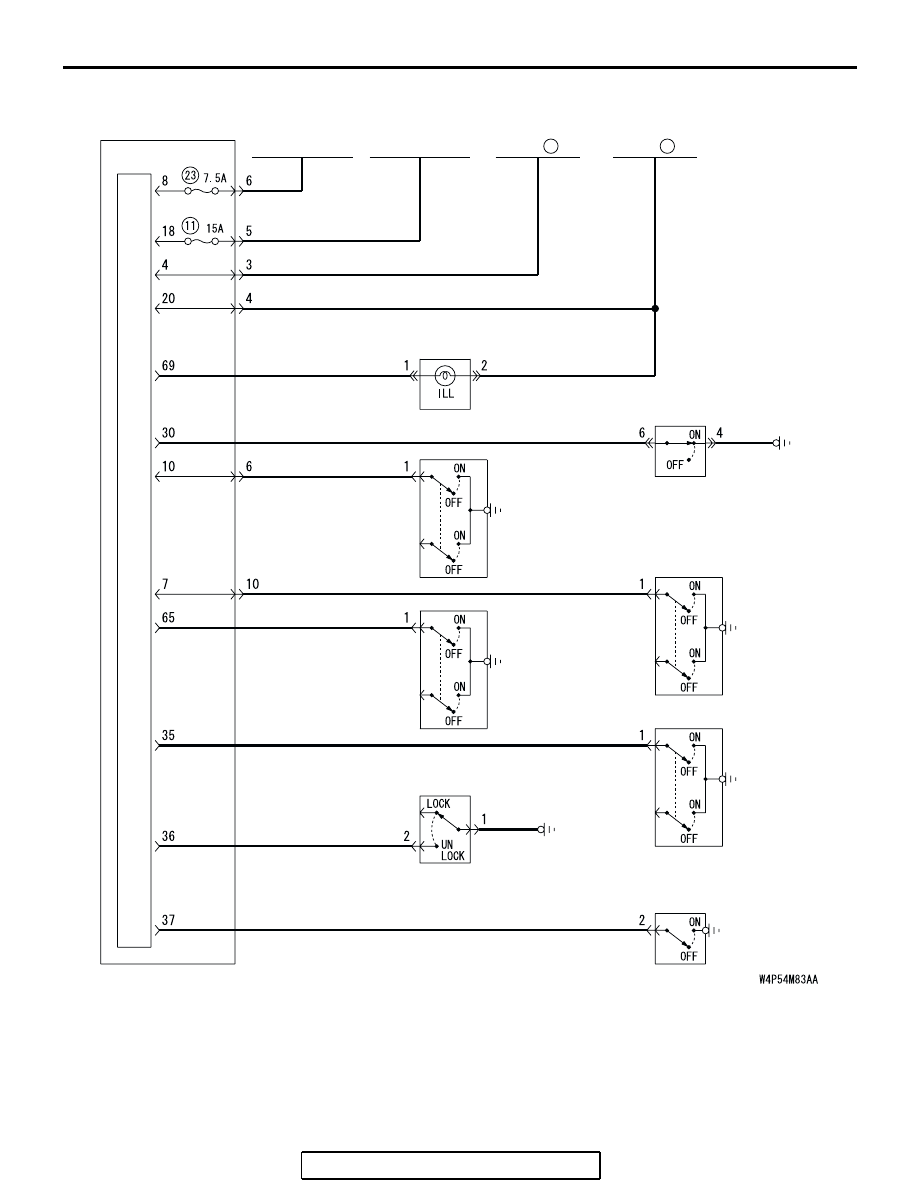

General circuit diagram for interior lights

JUNCTION BLOCK

22

RELAY BOX
(FUSE     )

RELAY BOX
(FUSE     )

23

ETACS-
ECU

IGNITION
SWITCH (IG1)

IGNITION
SWITCH (ACC)

KEY REMINDER
SWITCH

FRONT
DOOR
SWITCH (LH)

FRONT
DOOR
SWITCH (RH)

FRONT DOOR
LOCK ACTUATOR (LH)

REAR
DOOR
SWITCH (LH)

REAR
DOOR
SWITCH (RH)

TRUNK LID
LATCH
ASSEMBLY

KEY REMINDER
SWITCH

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-419

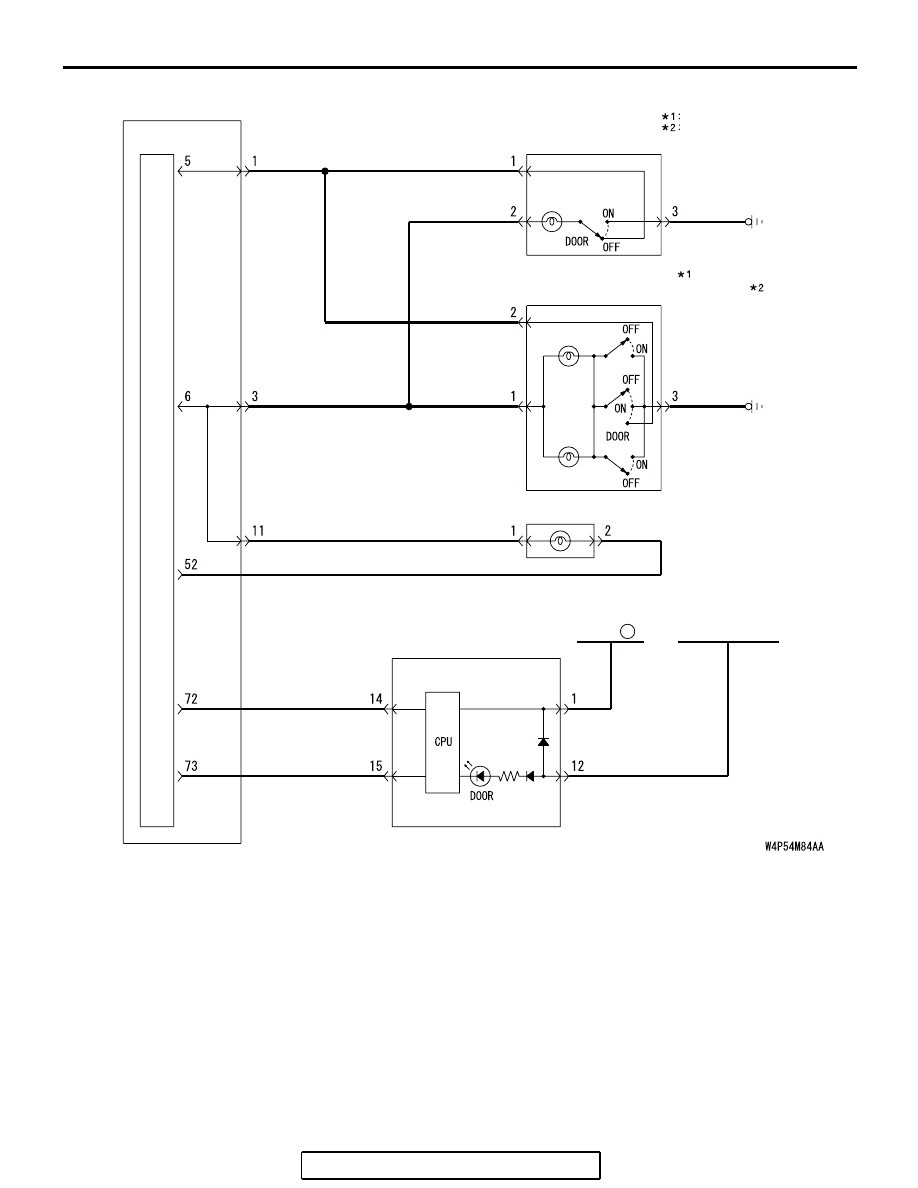

JUNCTION BLOCK

NOTE

WITHOUT SUNROOF
WITH SUNROOF

ETACS-
ECU

REAR DOME LIGHT

MAP LIGHT ASSEMBLY
OVERHEAD CONSOLE ASSEMBLY

TRUNK LIGHT

RELAY
BOX

 (FUSE     )

IGNITION
SWITCH (IG1)

COMBINATION
METER

22
