ENGINE ELECTRICAL –

Ignition System

16-1

GROUP 16

ENGINE ELECTRICAL

IGNITION SYSTEM

GENERAL

OUTLINE OF CHANGES

The 4G93-GDI engine has been replaced with the 4G94-GDI engine. Due to this, the following service
adjustment procedures have been changed. Other procedures are the same as the conventional 4G93-GDI
engine.



An ignition failure sensor has been added.



The spark plug type has been changed.

GENERAL INFORMATION

SPARK PLUG SPECIFICATION

Items

Specifications

NGK

IZFR5B

SERVICE INFORMATION

IGNITION FAILURE SENSOR

Items

4G94-GDI

Resistance

Ω

0.1 or less

ON-VEHICLE SERVICE

IGNITION FAILURE SENSOR CHECK

NOTE
An analog-type circuit tester should be used.

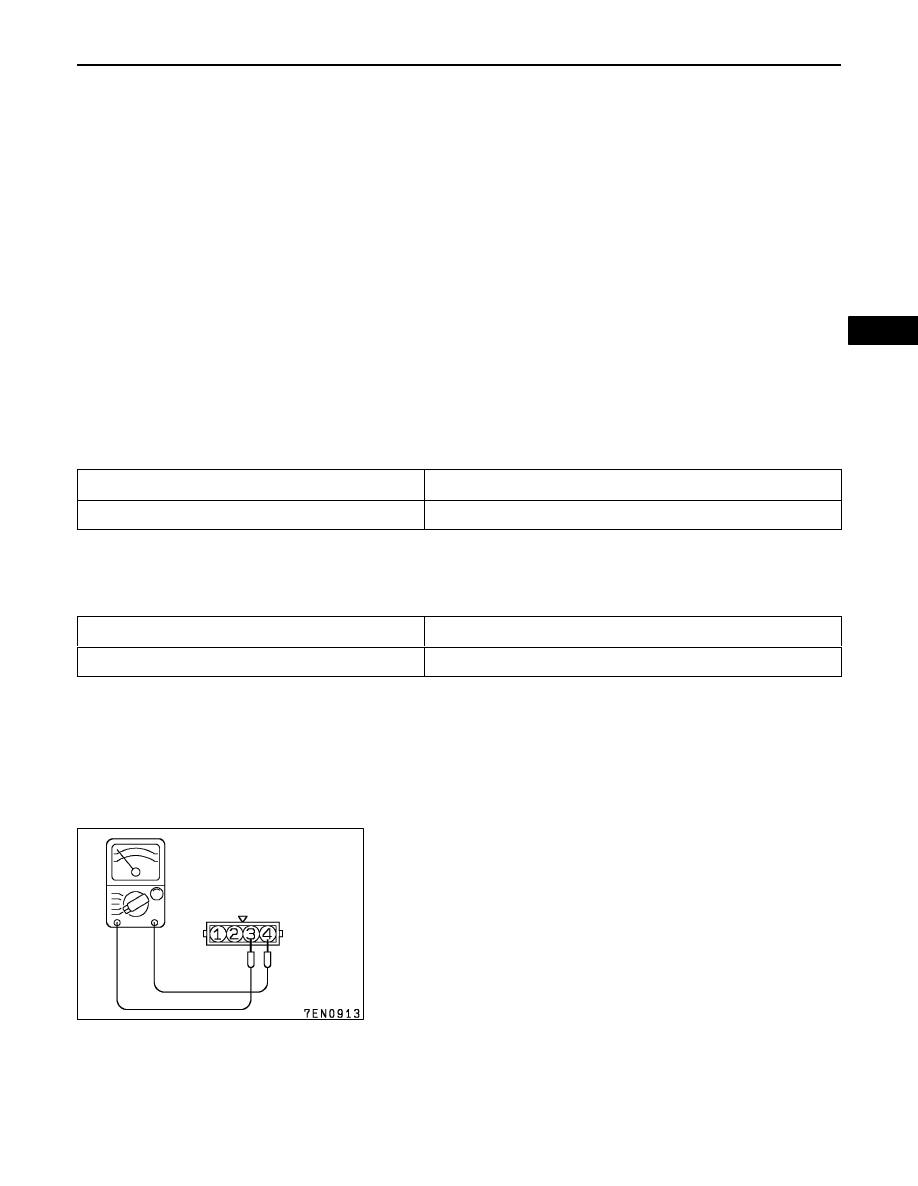

Check that the resistance between terminals 3 and 4 is at
the standard value.

Standard value: 0.1

Ω

 or less

ENGINE ELECTRICAL –

Ignition System

16-2

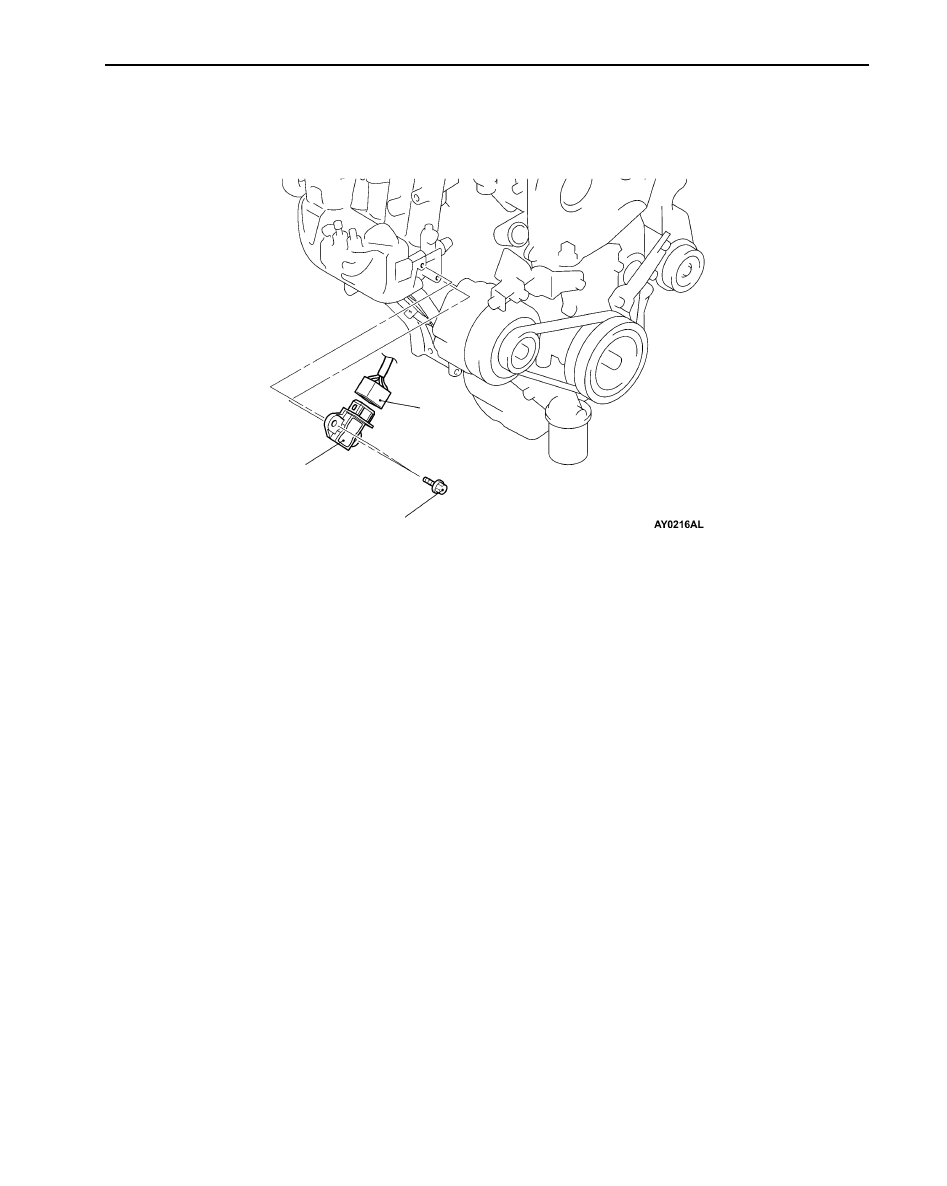

IGNITION FAILURE SENSOR

REMOVAL AND INSTALLATION

1

2

5.0 Nm

Removal steps

1. Ignition failure sensor connector
2. Ignition failure sensor
