TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT

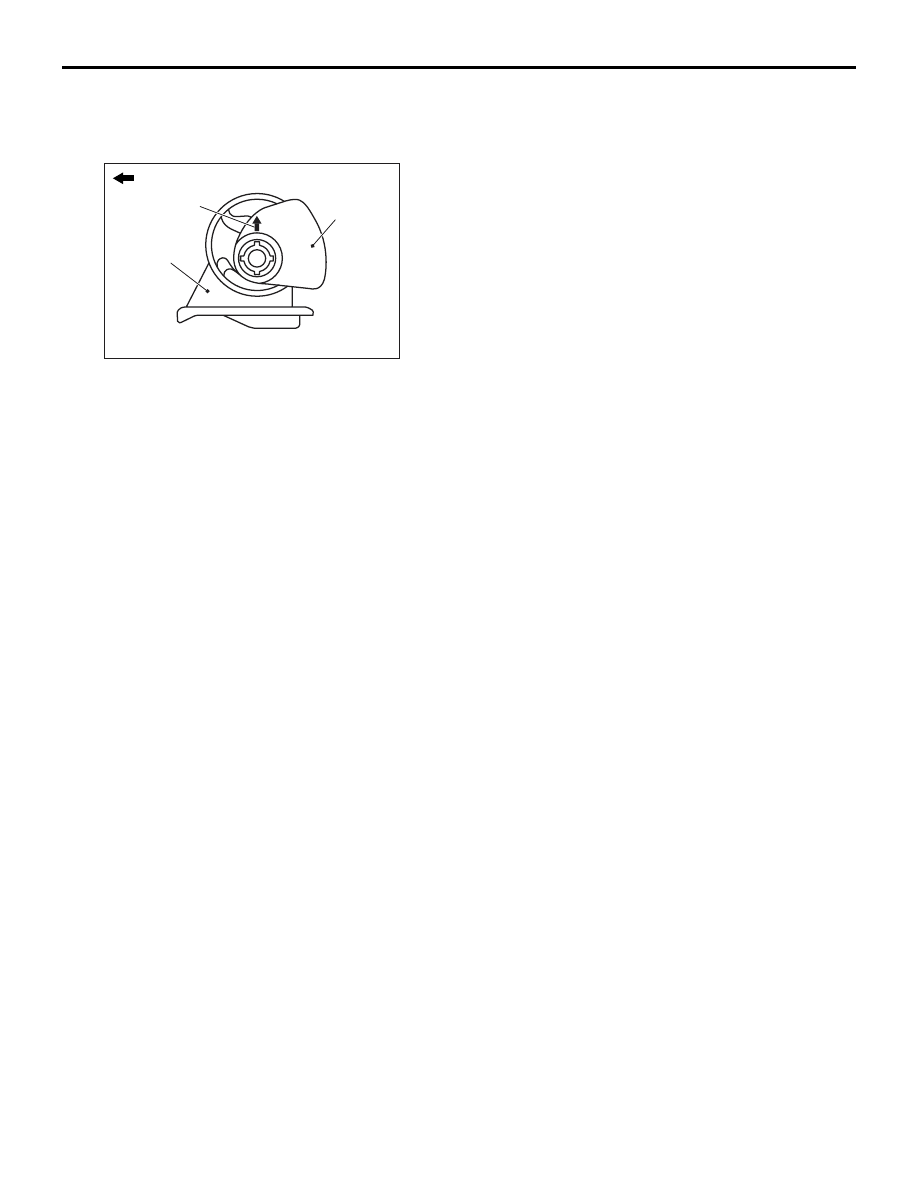

>>A<< TRANSMISSION MOUNTING
STOPPER INSTALLATION

AC200645

Transmission
mounting
stopper

Arrow

Transmission
mounting
insulator

Engine side

AK

Install the transmission mounting stopper so that its
arrow points upward.

ENGINE ROLL STOPPER, CENTREMEMBER

POWER PLANT MOUNT

32-7

ENGINE ROLL STOPPER, CENTREMEMBER

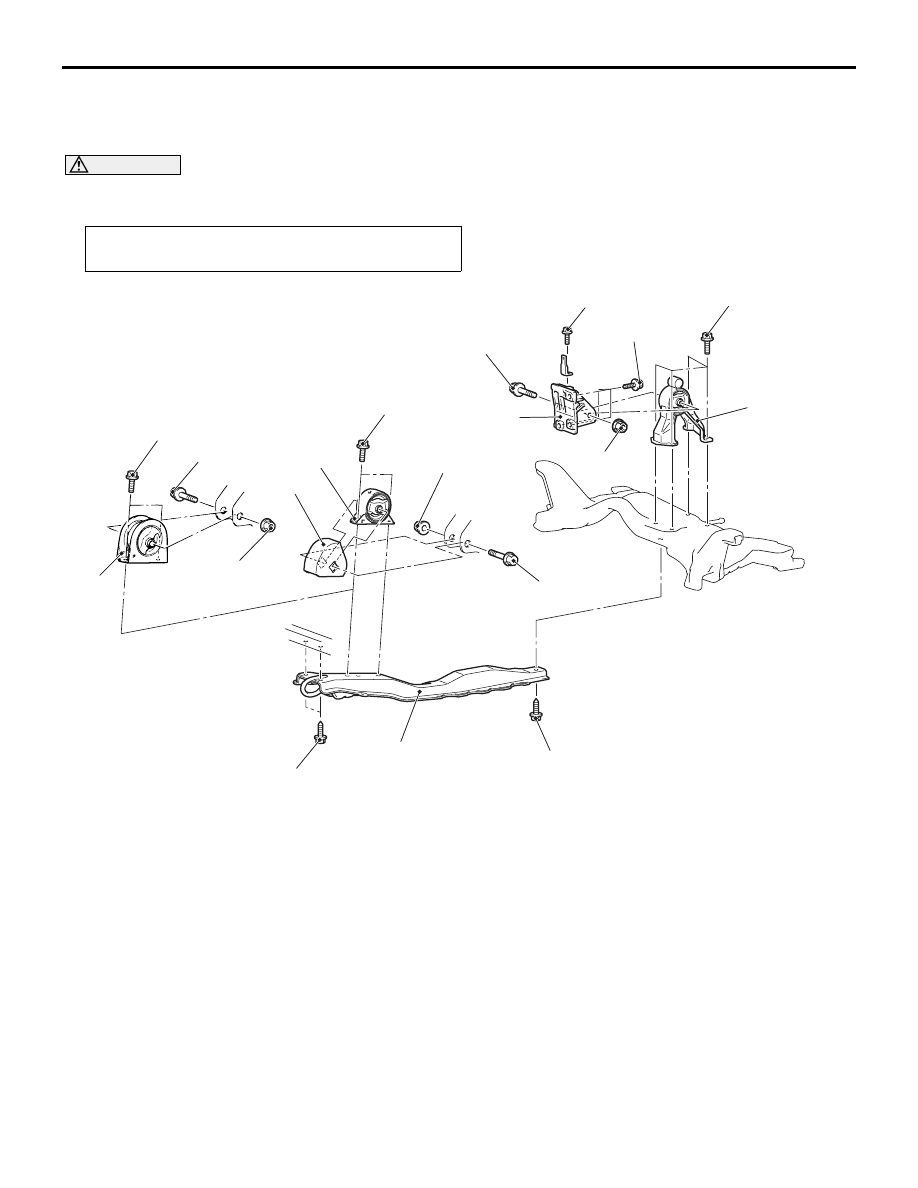

REMOVAL AND INSTALLATION

M1321002300287

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
Under Cover Removal and Installation

AC303978

AC304309

45 ± 5 N·m*

45 ± 5 N·m*

<4G1>

<4G6>

52 ± 7 N·m*

52 ± 7 N·m*

45 ± 5 N·m*

52 ± 7 N·m*

11 ± 1 N·m

69 ± 10 N·m

69 ± 10 N·m

69 ± 10 N·m

1

3

2

1

3

4

5

6

7

AB

Engine front roll stopper bracket
and centremember removal
steps

1.

Engine front roll stopper bracket
connecting bolt

•

Centremember and engine front roll
stopper bracket assembly

>>

B

<<

2.

Engine mounting cushion stopper
<4G6>

>>

A

<<

3.

Engine front roll stopper bracket

4.

Centremember

Engine rear roll stopper bracket
removal steps

5.

Engine rear roll stopper bracket
connecting bolt

6.

Transmission case rear roll stopper
bracket

7.

Engine rear roll stopper bracket

CROSSMEMBER

POWER PLANT MOUNT

32-8

INSTALLATION SERVICE POINTS

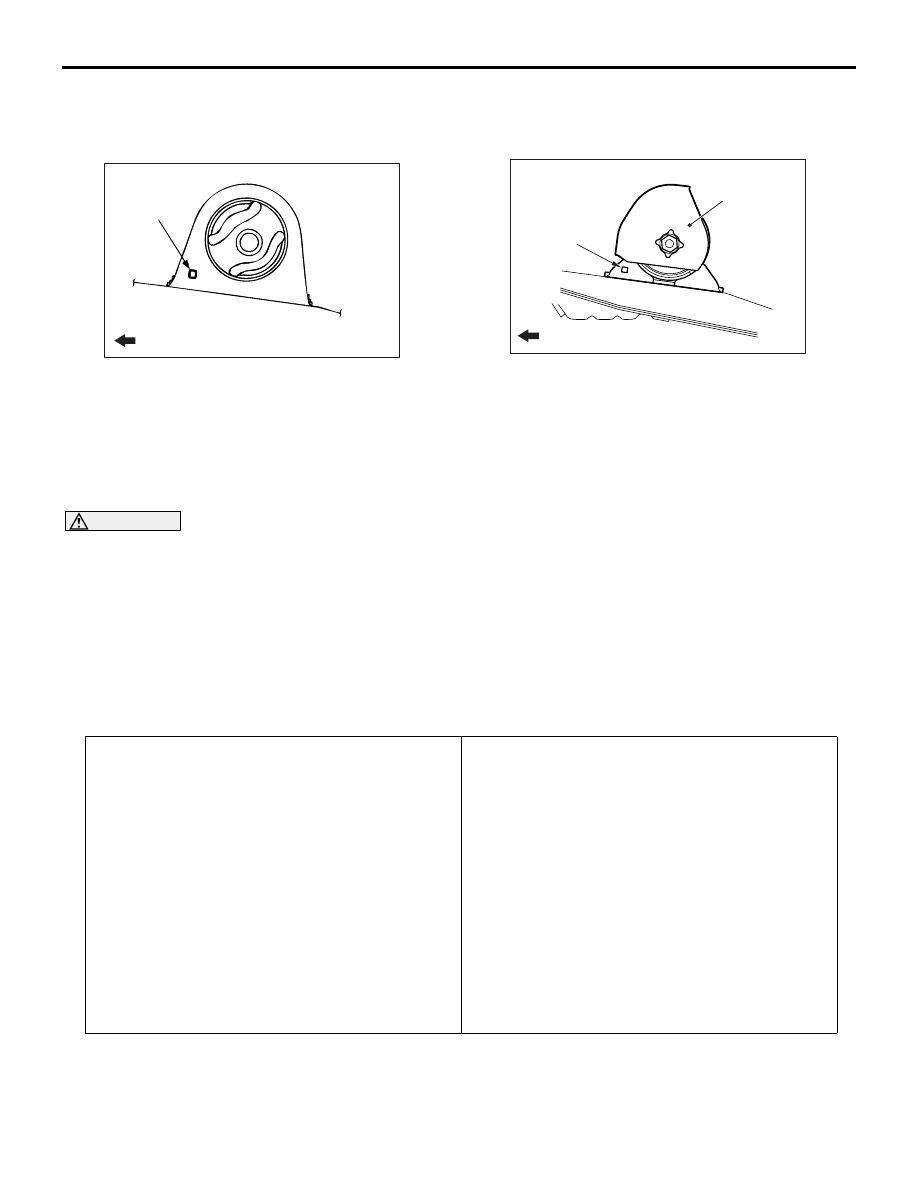

>>A<< ENGINE FRONT ROLL STOPPER
BRACKET INSTALLATION

AC005918

Front of vehicle

Hole

AC

Install the engine front roll stopper bracket so that its
hole points towards the front side of the vehicle.

>>B<< ENGINE MOUNTING CUSHION
STOPPER INSTALLATION <4G6>

AC304315

AB

Front of vehicle

Hole

Engine mounting
cushion stopper

Install the engine mounting cushion stopper as
shown.

CROSSMEMBER

REMOVAL AND INSTALLATION

M1321003200368

CAUTION

• Before removing the steering wheel and air bag module assembly, always refer to GROUP 52B -

Service Precautions

P.52B-5

, Air bag Module and Clock Spring

P.52B-194

. Also, set the front

wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this,
the SRS clock spring will be damaged, causing the SRS air bag to be inoperative and serious
injury.

• *

1

: Indicates parts which should be initially tightened, and then fully tightened after placing the

vehicle horizontally and loading the full weight of the engine on the vehicle body.

•

Pre-removal Operation
• Centremember Removal (Refer to

P.32-7

).

• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-10

).

• Steering Wheel Air Bag Module Assembly Removal

(Refer to GROUP 37, Steering Wheel

P.37-17

).

• Power Steering Fluid Draining (Refer to GROUP 37,

On-vehicle Service

P.37-13

).

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-10

).

• Centremember Installation (Refer to

P.32-7

).

• Clock Spring Centring (Refer to GROUP 52B, Air Bag

Modules and Clock Spring

P.52B-194

).

• Steering Wheel Air Bag Module Assembly Installation

(Refer to GROUP 37, Steering Wheel

P.37-17

).

• Power Steering Fluid Supplying (Refer to GROUP 37,

On-vehicle Service

P.37-13

).

• Power Steering Fluid Line Bleeding (Refer to GROUP 37,

On-vehicle Service

P.37-14

).

• Press the dust cover with a finger to check whether the

dust cover cracked or damaged.

• Checking Steering Wheel Position with Wheels Straight

Ahead.

• Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33, On-vehicle Service

P.33-6

).

*

2

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the earth in the unladen condition.

CROSSMEMBER

POWER PLANT MOUNT

32-9

<L.H. drive vehicles>

AC304000

108 ± 10 N·m

25 ± 4 N·m

18 ± 2 N·m

70 ± 10 N·m

21 ± 4 N·m

21 ± 4 N·m

186 ± 10 N·m*

167 ± 9 N·m

49 ± 10 N·m

52 ± 7 N·m*

45 ± 5 N·m*

70 ± 10 N·m

57 ± 7 N·m

12 ± 2 N·m

5

4

10

9

11

8

12

14

13

6

7

16

15

17

2

3

1

N

N

N

2

1

1

AB

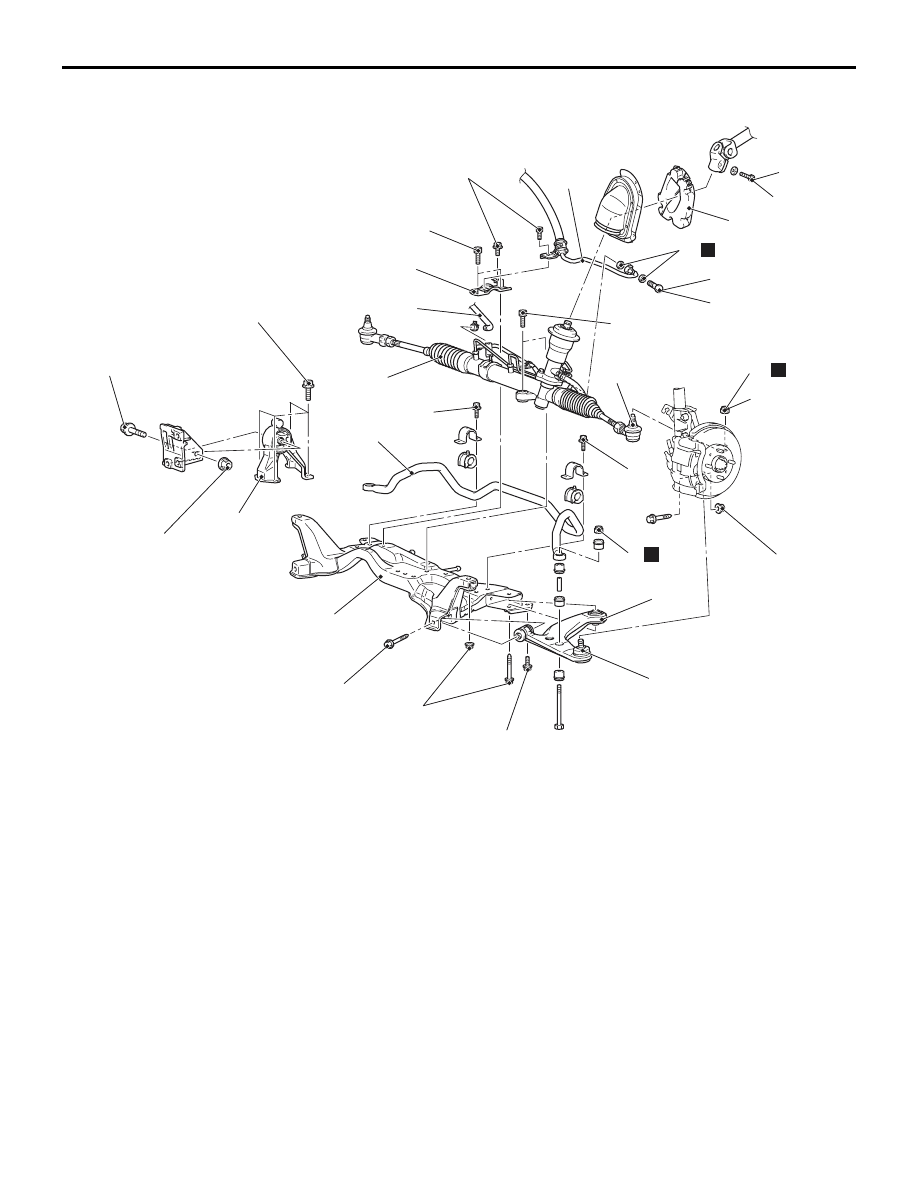

Removal steps

1.

Lower arm and knuckle connection

>>

B

<<

2.

Self-locking nut

3.

Lower arm assembly

4.

Shaft cover

5.

Steering shaft assembly and gear
box connecting bolt

6.

Engine rear roll stopper bracket
connection bolt

7.

Engine rear roll stopper bracket

8.

Return hose connection

9.

Eye bolt

10. Pressure hose connection
11. Gasket
12. Clamp
13. Self-locking nut

<<

A

>>

14. Tie rod end and knuckle connection

<<

B

>>

•

Crossmember assembly

>>

A

<<

15. Stabilizer bar
16. Steering gear and linkage
17. Crossmember
