CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-230

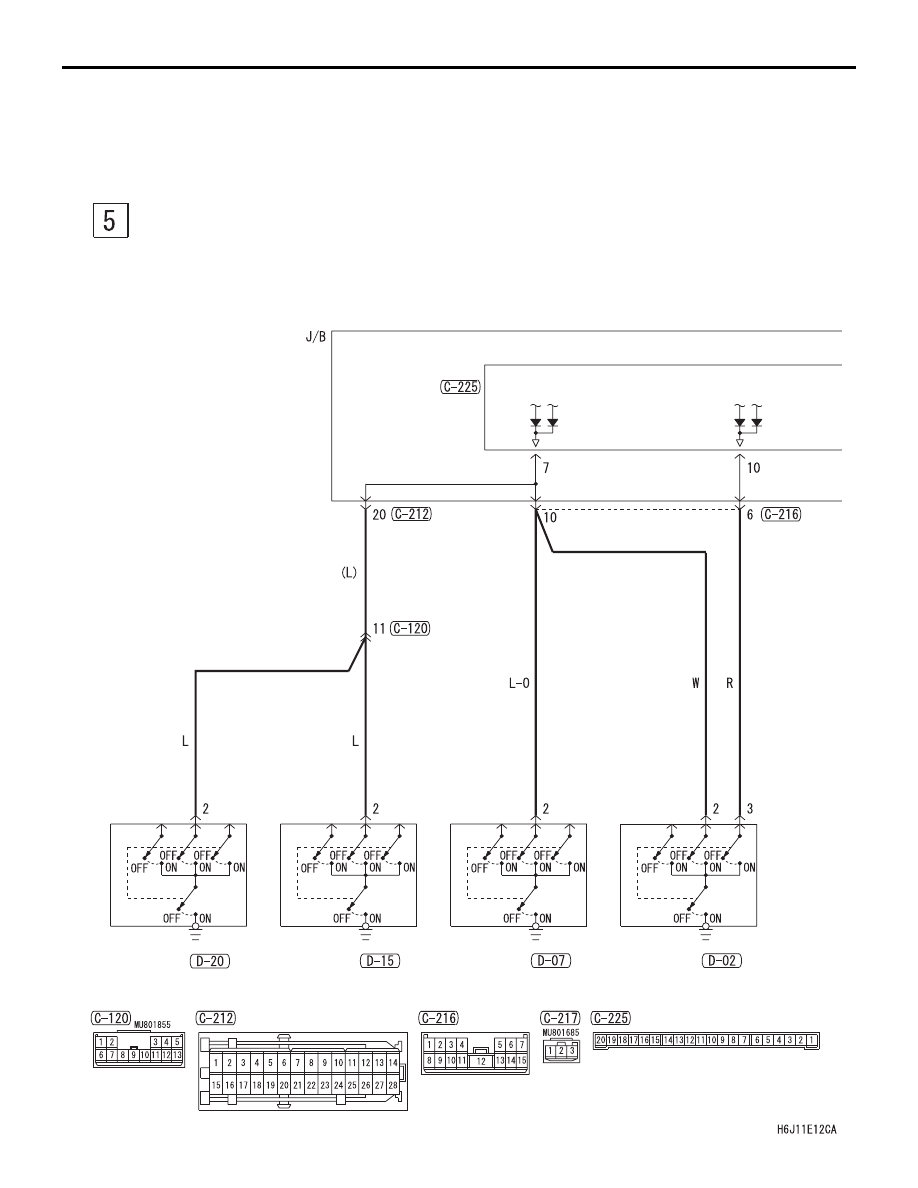

CENTRAL DOOR LOCKING SYSTEM <SEDAN RHD WITH KEYLESS ENTRY> (CONTINUED)

J/B SIDE

ETACS-ECU

DOOR
SWITCH
(FRONT: LH)

DOOR
SWITCH
(REAR: LH)

DOOR
SWITCH
(REAR: RH)

DOOR
SWITCH
(FRONT: RH)

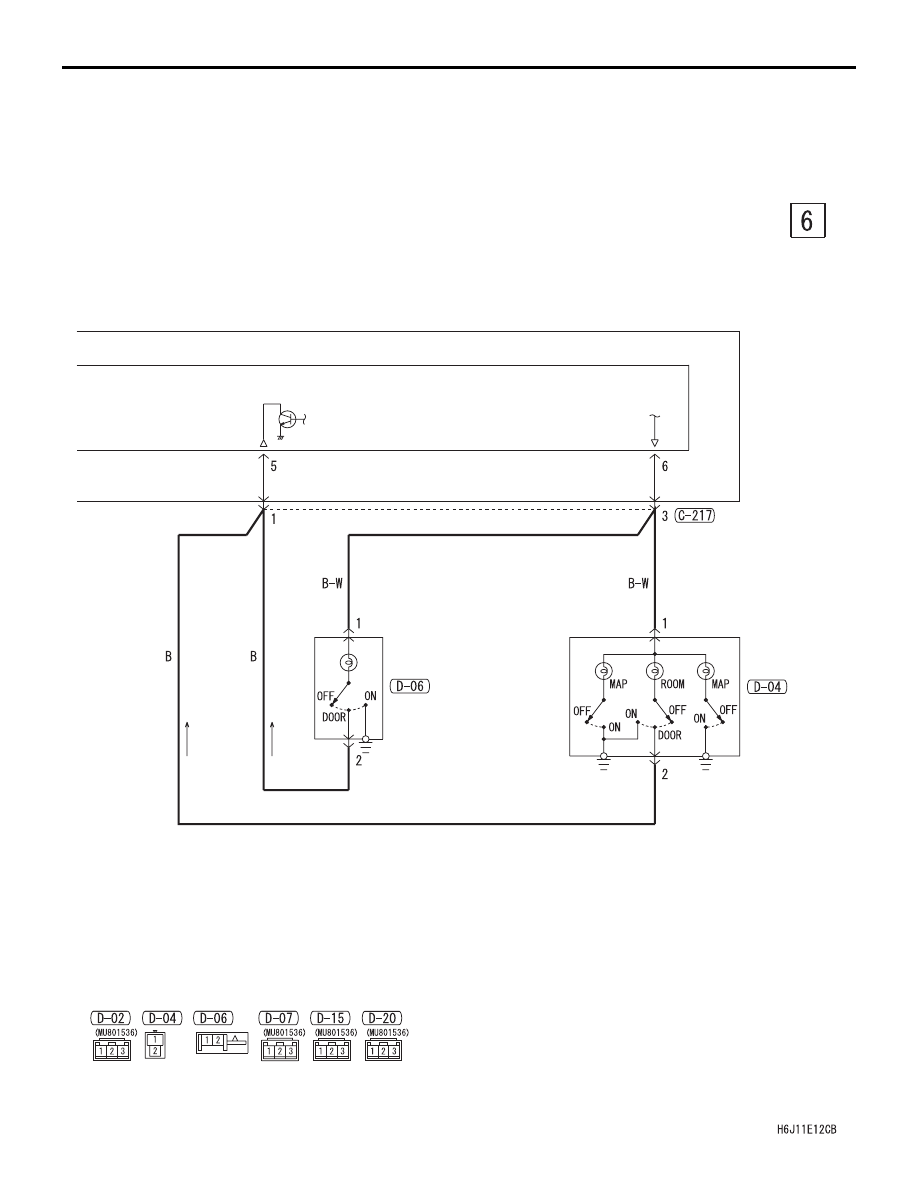

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-231

REAR
ROOM
LAMP

FRONT
ROOM
LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-232

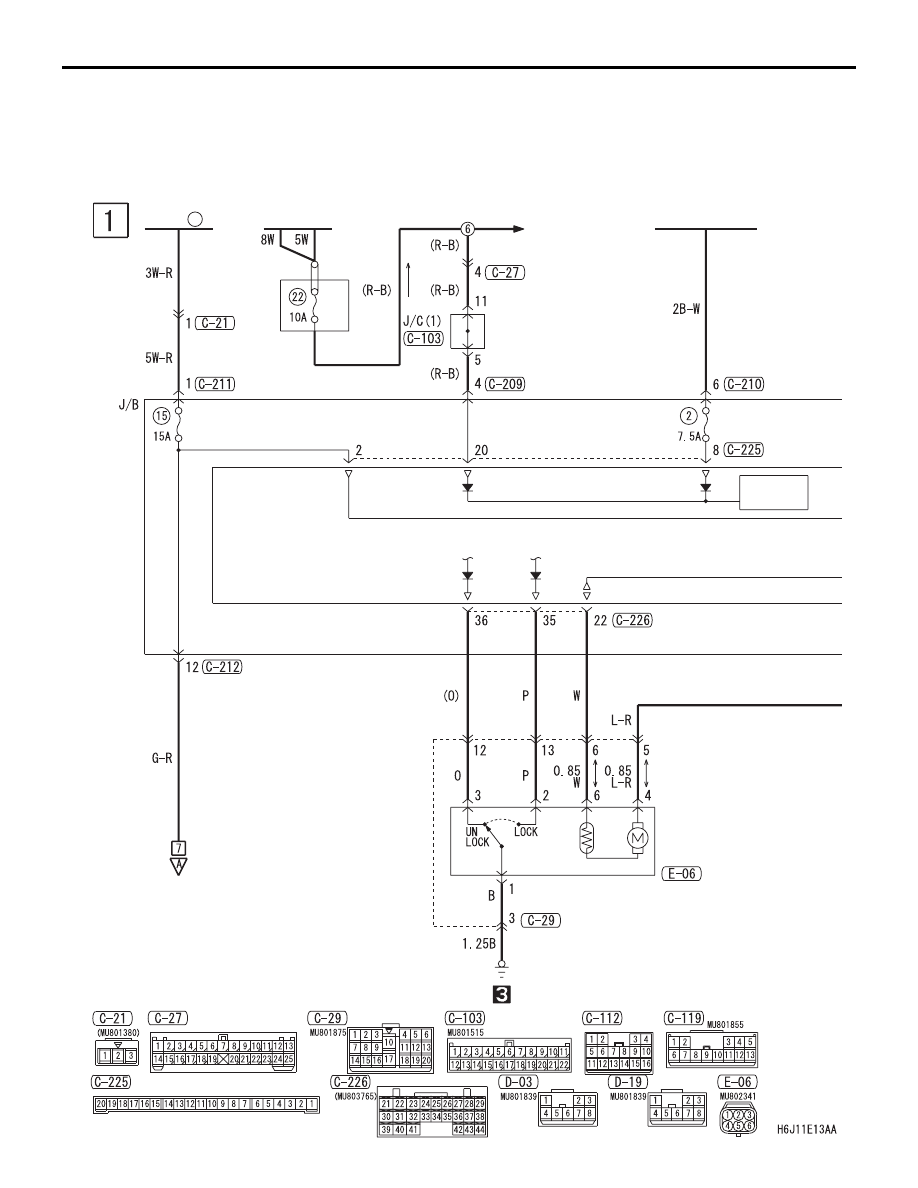

CENTRAL DOOR LOCKING SYSTEM <WAGON LHD WITH KEYLESS ENTRY>

M1901004703354

IGNITION
SWITCH (IG1)

BATTERY

POWER
SOURCE

FUSIBLE
LINK

1

FRONT
DOOR LOCK
ACTUATOR
(LH)

RELAY
BOX

·FRONT
 FOG LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING
 SYSTEM

·REAR FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

·HEADLAMP
 WASHER

J/B SIDE

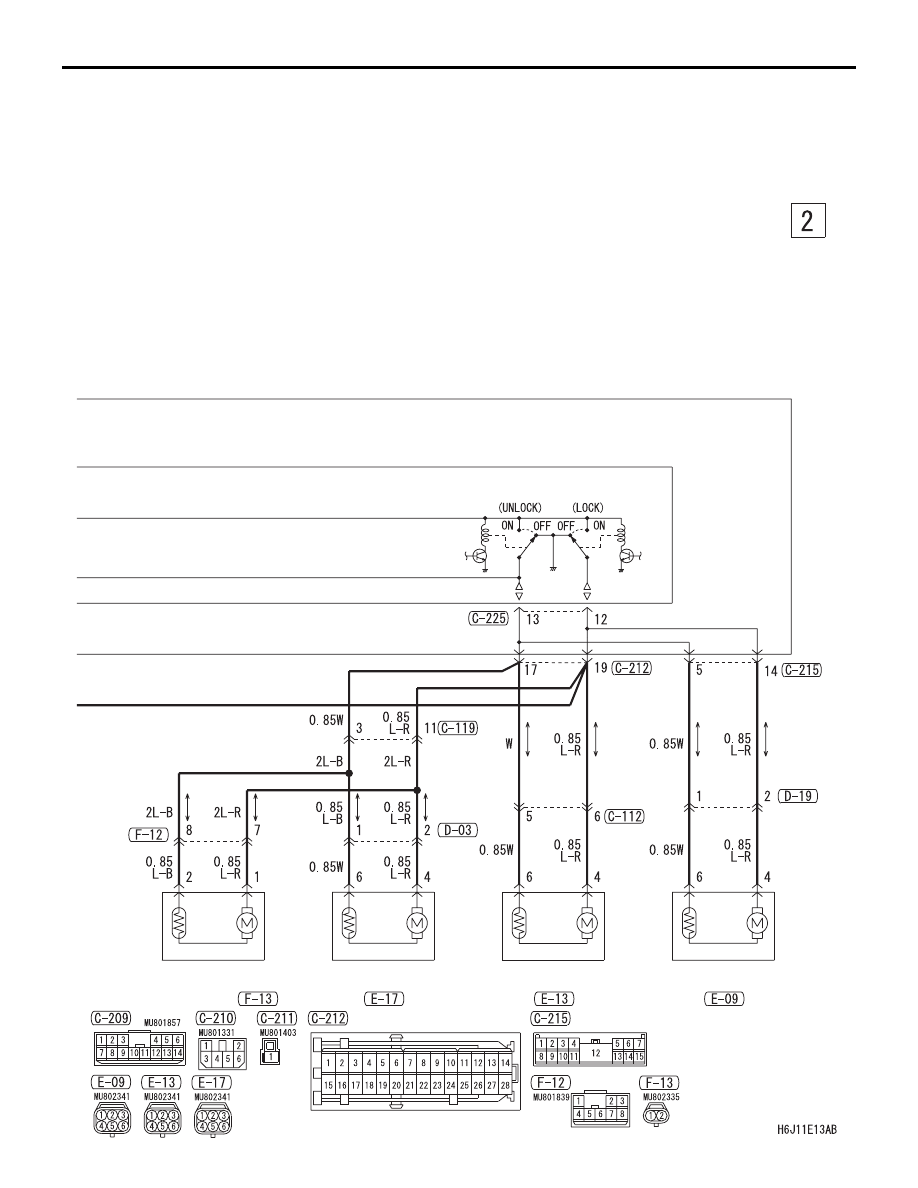

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-233

FRONT DOOR
LOCK ACTUATOR
(RH)

REAR DOOR
LOCK ACTUATOR
(LH)

ETACS-ECU

REAR DOOR
LOCK ACTUATOR
(RH)

TAILGATE
LOCK
ACTUATOR
