FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-42

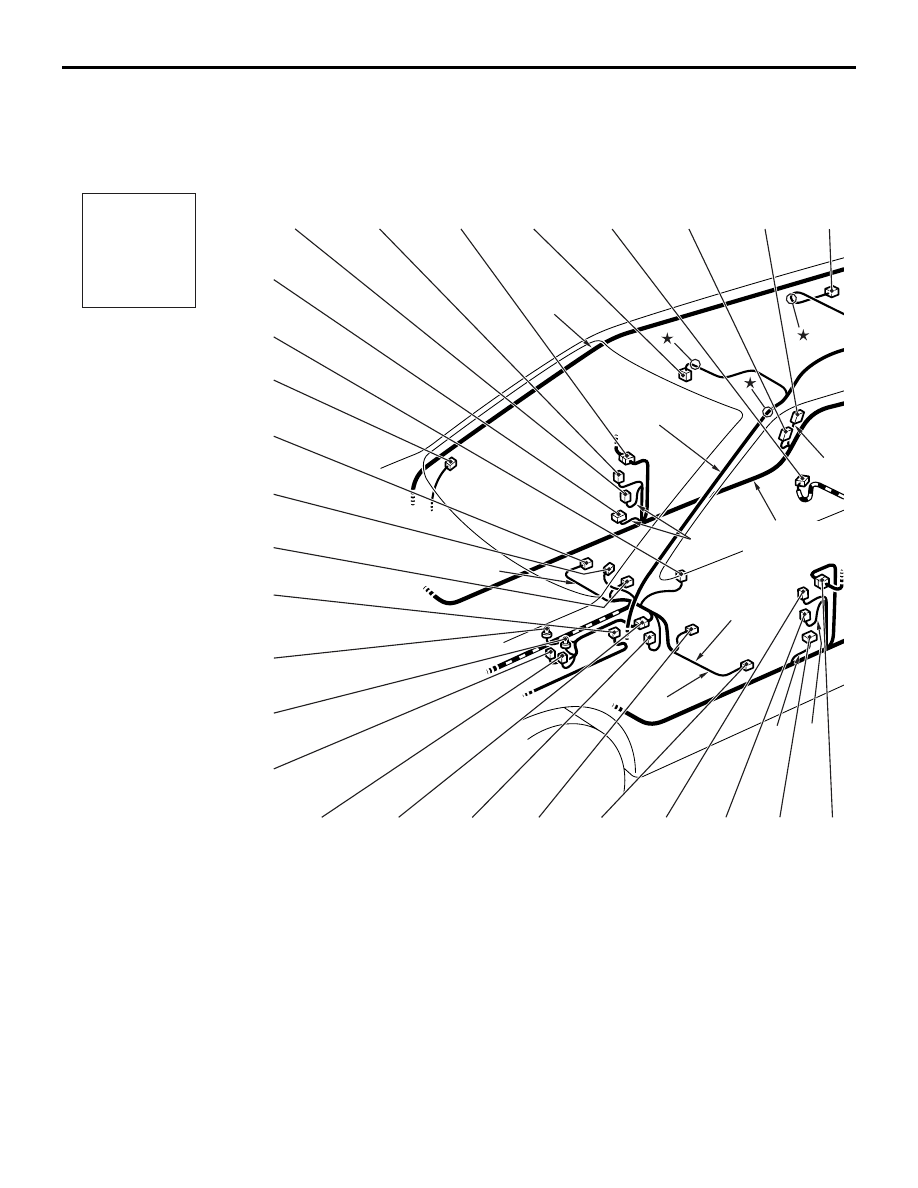

FLOOR AND ROOF <WAGON (LHD)>

M1801000901579

AC502061

D-07

D-08

D-05

D-04

D-03

D-02

D-01

D-35

D-34

D-33

D-38

D-32

D-39

D-31

D-30

D-29

D-28

D-24

D-19

Y

Y

Y

Connector
symbol

D

D-20

Roof wiring
harness

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-09

D-22

D-21

D-23

D-25

D-26

D-27

Y

Y

Instrument panel
wiring harness

Floor wiring
harness (RH)

Y

Antenna
feeder
cable

AB

D-01

(2)

Side impact sensor (Front: RH)

D-02

(3)

Door switch (Front: RH)

D-03

(8)

Floor wiring harness (RH) and rear door
wiring harness (RH) combination

D-04

(2)

Front room lamp

D-05

(2-B)

Wheel speed sensor (Rear: RH)

D-06

(2-GR) Rear room lamp

D-07

(3)

Door switch (Rear: RH)

D-08

(2-Y)

Side impact sensor (Rear: RH)

D-09

(3)

Rear personal lamp (RH)

D-10

(3)

Luggage room lamp

D-11

(2-B)

Diode (for luggage room lamp circuit)

D-12

(3)

Rear personal lamp (LH)

D-13

(3-B)

Fuel tank gauge unit

D-14

(2-Y)

Side impact sensor (Rear: LH)

D-15

(3)

Door switch (Rear: LH)

D-16

(5-GR) Fuel tank pump

D-17

(2-B)

Wheel speed sensor (Rear: LH)

D-18

(8)

Floor wiring harness (LH) and fuel wiring
harness combination

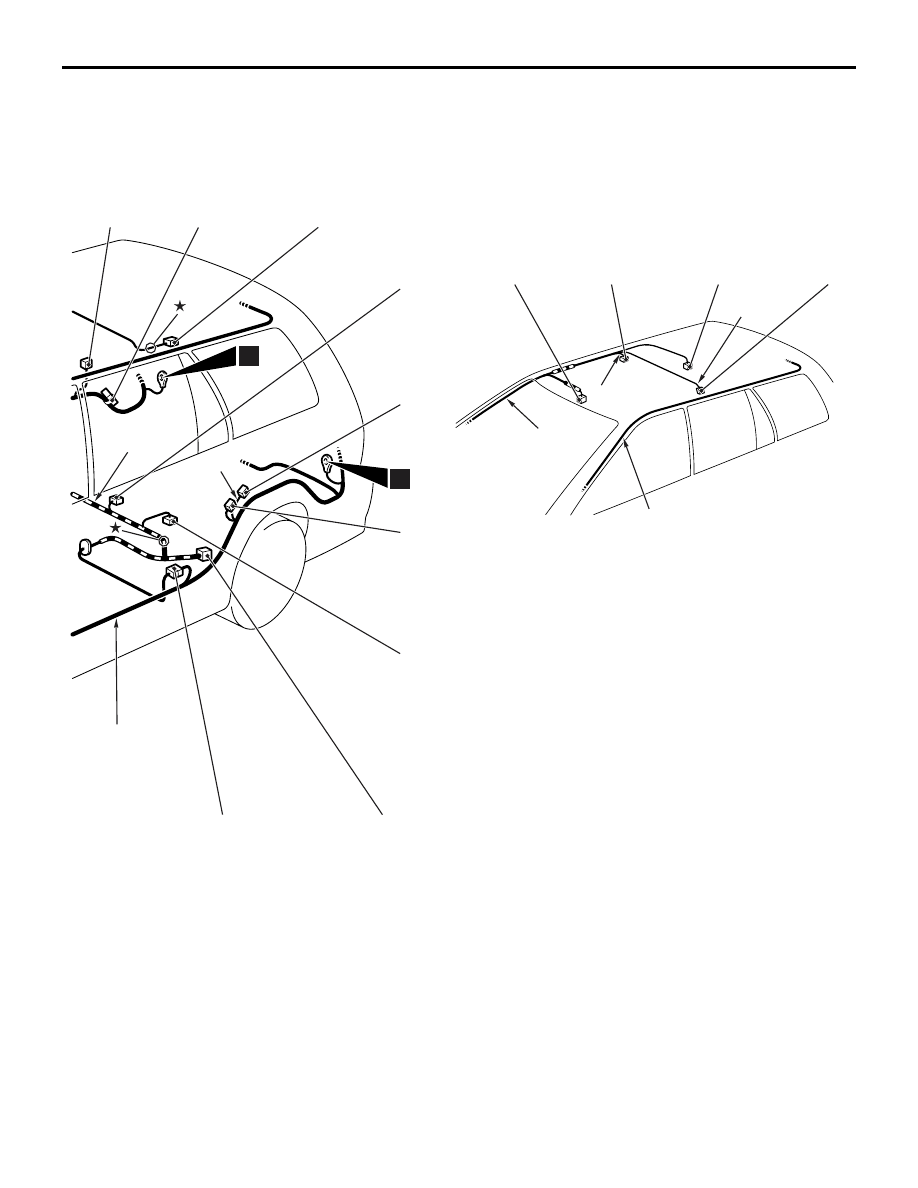

AC301824

<Vehicles with curtain air bag>

AB

D-10

D-12

D-14

D-15

D-16

D-17

D-18

Y

Y

D-04

D-36

D-06

D-37

Roof wiring
harness

Fuel wiring
harness

7

17

Y

D-11

D-13

Floor wiring
harness (LH)

Antenna
feeder cable

D-19

(8)

Floor wiring harness (LH) and rear door
wiring harness (LH) combination

D-20

(3)

Door switch (Front: LH)

D-21

(2)

Side impact sensor (Front: LH)

D-22

(2-B)

Seat belt pre-tensioner (LH)

D-23

(2-R)

Side air bag module (squib) (LH)

D-24

(3)

Heated seat assembly (LH)

D-25

(9)

Heated seat switch

D-26

(4)

Instrument panel wiring harness and
console wiring harness combination

D-27

(6)

Shift switch assembly

D-28

(1)

Cigarette lighter

D-29

(1-B)

Cigarette lighter

D-30

(2-B)

Cigarette lighter illumination lamp

D-31

(2-B)

Ashtray illumination lamp

D-32

(3)

Heated seat assembly (RH)

D-33

(2-R)

Side air bag module (squib) (RH)

D-34

(1-B)

Parking brake switch

D-35

(2-B)

Seat belt pre-tensioner (RH)

D-36

(2-B)

Curtain air bag module (squib) (RH)

D-37

(2-B)

Curtain air bag module (squib) (LH)

D-38

(2)

Tweeter (LH)

D-39

(2)

Tweeter (RH)

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-43

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-44

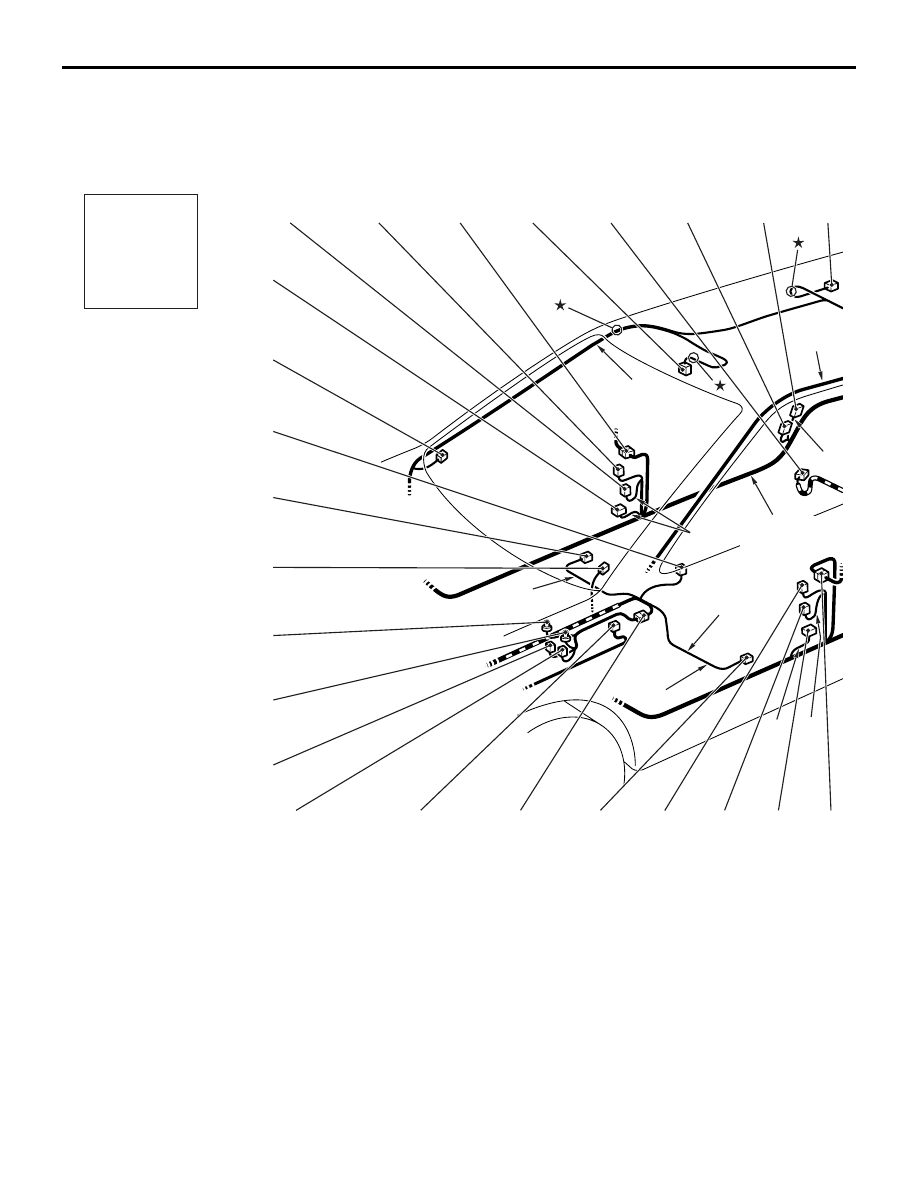

FLOOR AND ROOF <WAGON (RHD)>

M1801000901580

AC502062

D-07

D-08

D-05

D-04

D-03

D-02

D-01

D-35

D-34

D-33

D-39

D-38

D-31

D-30

D-29

D-28

D-19

Y

Y

Y

Connector
symbol

D

D-20

Roof wiring
harness

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-09

D-22

D-21

D-23

D-26

D-27

Y

Y

Instrument panel
wiring harness

Floor wiring
harness (RH)

Y

Antenna
feeder
cable

AB

D-01

(2)

Side impact sensor (Front: RH)

D-02

(3)

Door switch (Front: RH)

D-03

(8)

Floor wiring harness (RH) and rear door
wiring harness (RH) combination

D-04

(2)

Front room lamp

D-05

(2-B)

Wheel speed sensor (Rear: RH)

D-06

(2-GR) Rear room lamp

D-07

(3)

Door switch (Rear: RH)

D-08

(2-Y)

Side impact sensor (Rear: RH)

D-09

(3)

Rear personal lamp (RH)

D-10

(3)

Luggage room lamp

D-11

(2-B)

Diode (for luggage room lamp circuit)

D-12

(3)

Rear personal lamp (LH)

D-13

(3-B)

Fuel tank gauge unit

D-14

(2-Y)

Side impact sensor (Rear: LH)

D-15

(3)

Door switch (Rear: LH)

D-16

(5-GR) Fuel tank pump

D-17

(2-B)

Wheel speed sensor (Rear: LH)

D-18

(8)

Floor wiring harness (LH) and fuel wiring
harness combination

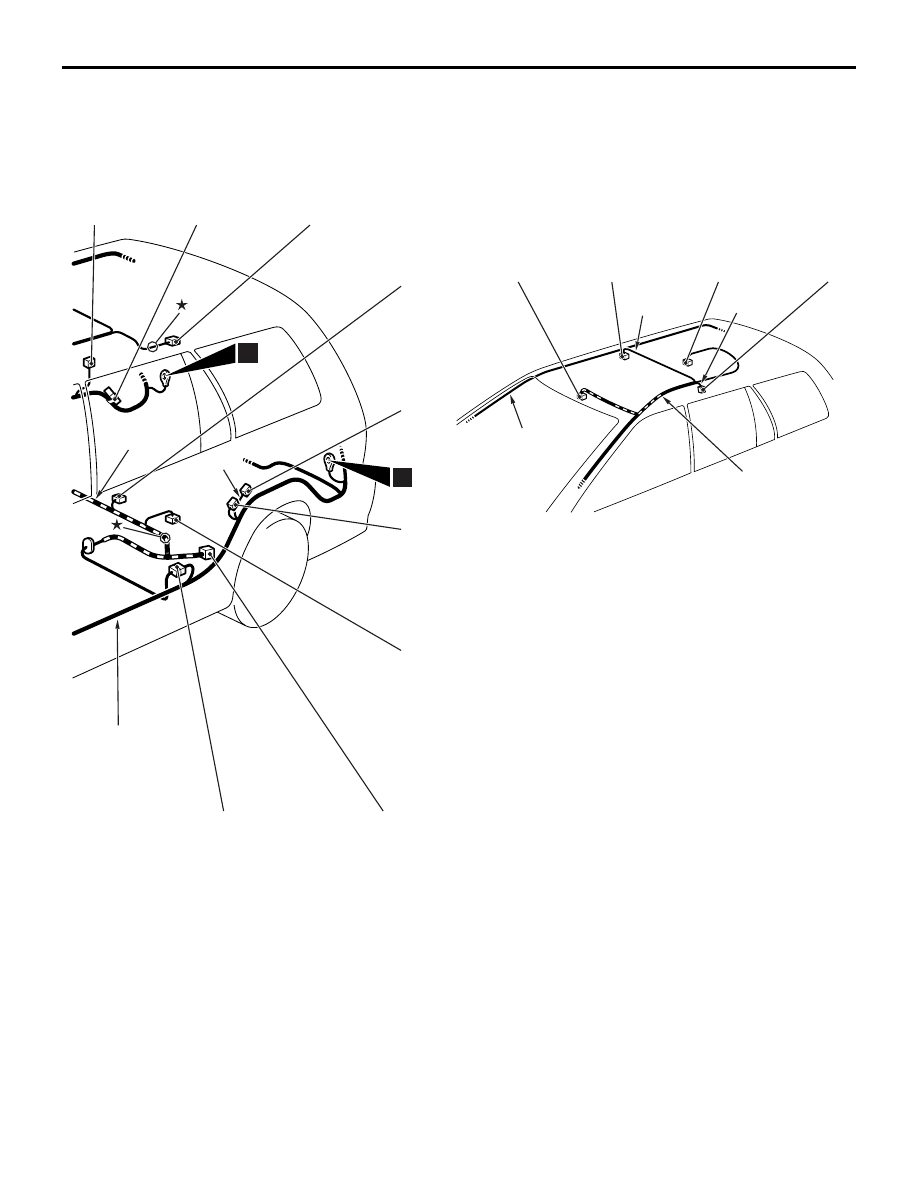

AC301825

<Vehicles with curtain air bag>

AB

D-10

D-12

D-14

D-15

D-16

D-17

D-18

Y

Y

D-04

D-36

D-06

D-37

Roof wiring
harness

Fuel wiring
harness

7

17

Y

D-11

D-13

Floor wiring
harness (LH)

Antenna
feeder cable

D-19

(8)

Floor wiring harness (LH) and rear door
wiring harness (LH) combination

D-20

(3)

Door switch (Front: LH)

D-21

(2)

Side impact sensor (Front: LH)

D-22

(2-B)

Seat belt pre-tensioner (LH)

D-23

(2-R)

Side air bag module (squib) (LH)

D-26

(4)

Instrument panel wiring harness and
console wiring harness combination

D-27

(6)

Shift switch assembly

D-28

(1)

Cigarette lighter

D-29

(1-B)

Cigarette lighter

D-30

(2-B)

Cigarette lighter illumination lamp

D-31

(2-B)

Ashtray illumination lamp

D-33

(2-R)

Side air bag module (squib) (RH)

D-34

(1-B)

Parking brake switch

D-35

(2-B)

Seat belt pre-tensioner (RH)

D-36

(2-B)

Curtain air bag module (squib) (RH)

D-37

(2-B)

Curtain air bag module (squib) (LH)

D-38

(2)

Tweeter (LH)

D-39

(2)

Tweeter (RH)

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-45
