Mitsubishi Lancer. Manual - part 65

ROAD TEST

PRE-DELIVERY INSPECTION

1-14

ROAD TEST

27. ENGINE PERFORMANCE AND
EXHAUST GAS

M6010800100023

AC305633

1. Engine performance

Check the engine for proper performance and
accelerator pedal for smooth operation.

2. Exhaust system

(1) Check the exhaust system components for

gas leaks.

(2) Verify that no black smoking is emitted from

the end of the exhaust pipe (diesel-powered
vehicles).

28. TRANSMISSION IN ALL RANGES

M6010800200020

AC305634

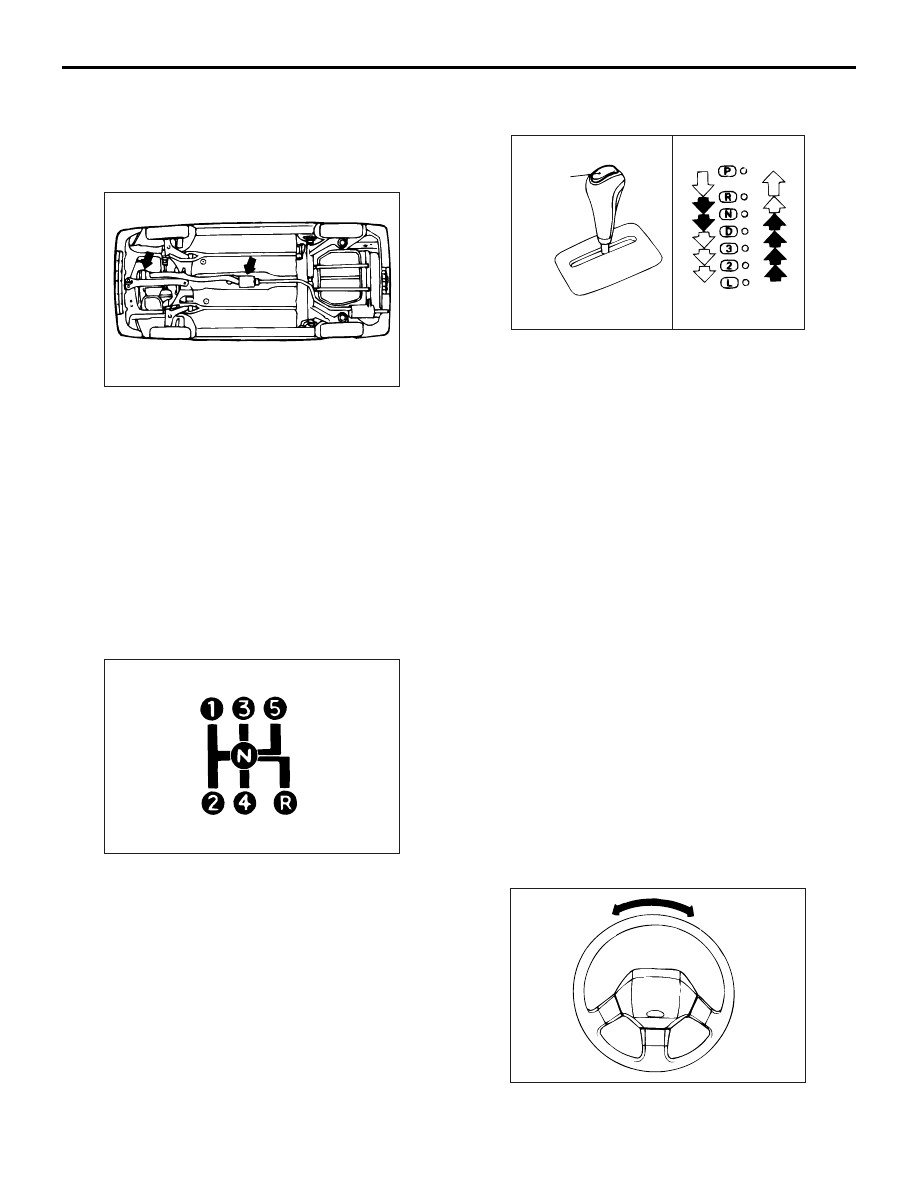

1. Manual transmission

Check the transmission in all forward ranges and
in reverse.

AC305635

Button

2. Automatic transmission

(1) Make sure shift indicator lines up properly in

all ranges.

(2) Depress the accelerator completely to check

that the manual kickdown is operating
correctly.

(3) Stop the vehicle on a steep incline.

Put the automatic transmission in "P" position
and slowly release the service brakes to see if
"P" position lock holds. If it does not hold, the
transmission requires further service.

29. BRAKES

M6010800300027

1. Service Brake

Put the vehicle in gear and apply the brakes while
the vehicle is in motion. Be sure brake operation
is smooth and positive.

2. Parking Brake

(1) Stop the vehicle on a steep incline.

With the service brakes firmly applied, place
the transmission in "N" position, and set the
parking brakes.

(2) Slowly release the service brakes to see if the

parking brakes will hold.

30. STEERING CONTROL

M6010800400024

AC305636

1. Check for excessive play or looseness.
2. Check the steering wheel centre.

AFTER ROAD TEST

PRE-DELIVERY INSPECTION

1-15

31. VIBRATION AND RATTLES

M6010800500021

1. Locate squeaks, rattles and unusual vibrations.
2. Verify that no noise occurs from the engine,

transmission, axle and body.

32. ELECTRICAL EQUIPMENT

M6010800600028

AC305637

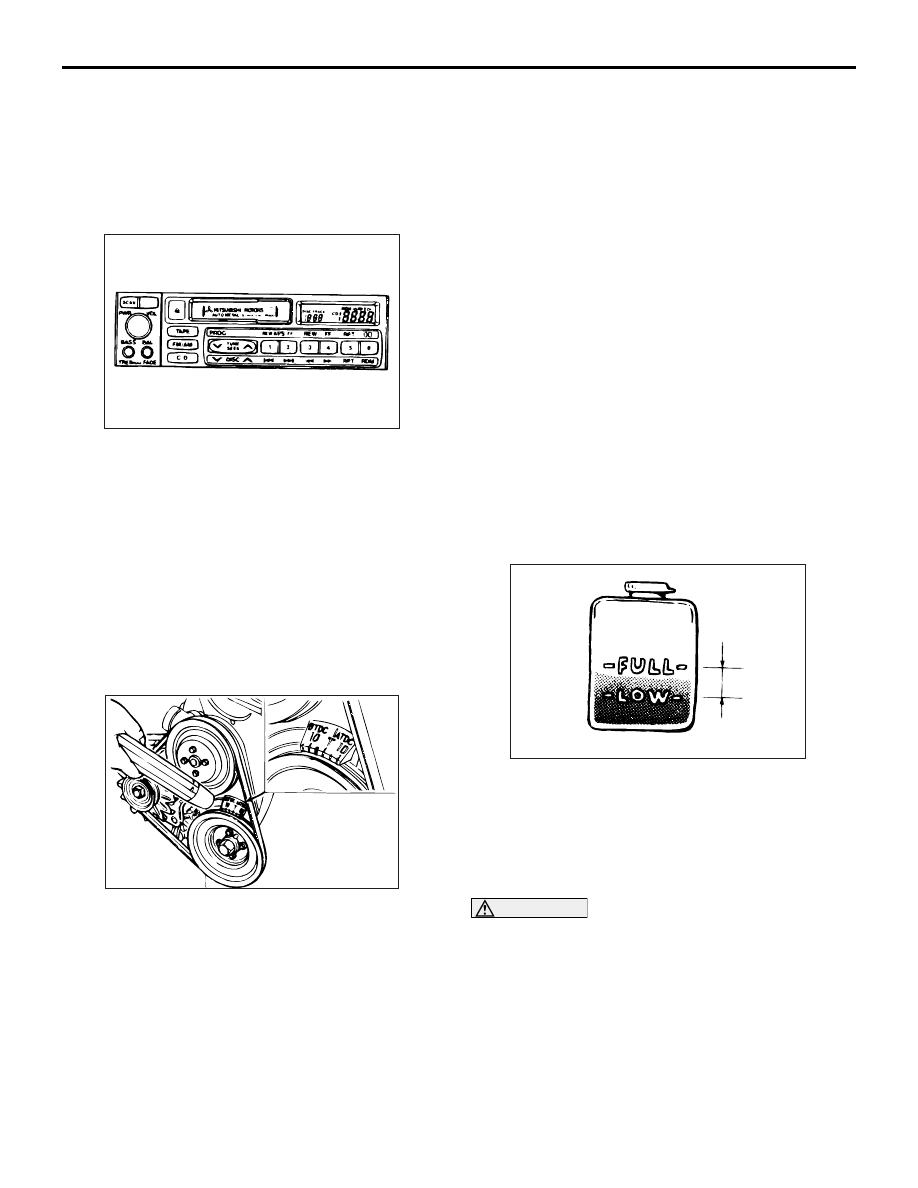

1. Radio

Tune the radio to a local broadcasting station and
check the following:
(1) Operate the volume, tone, balance and fader

controls, etc.

(2) Pull out the pushbuttons, dial another station

and set each pushbuttons.

(3) Operate the AM/FM switch.

2. Tape player

Insert a cassette tape in the tape player and
check as follows:
(1) Check the operation of the tape feeder and

rewind.

(2) Check the ejection.
(3) Check the operation of volume, tone, balance

and fader controls, etc.

AFTER ROAD TEST

33. IDLE SPEED

M6010900100053

Check the engine idle speed.
NOTE: For specific idle speed adjustment proce-
dure, refer to GROUP 2, Periodic Inspection and
Maintenance

P.2-3

34. IGNITION TIMING

M6010900200061

AC305641

Check the ignition timing. Except MPI vehicles with
crankshaft-mounted crankshaft angle sensor.
NOTE: For the inspection and adjustment of the igni-
tion timing, refer to GROUP 2, Periodic Inspection
and Maintenance

P.2-3

35. RADIATOR COOLANT LEVEL

M6010900300068

AC305642

1. Check that the coolant level in the reserve tank is

at or above "LOW" mark at normal engine
operating temperature. And check cooling system
for leaks.

2. Check that the coolant concentration is 30% to

60%.

CAUTION

Do not remove the radiator cap while the cooling
system is under pressure.

When removing the radiator cap, be careful of
steam and boiling water. Add coolant only to the
reserve tank if it is required.

AFTER ROAD TEST

PRE-DELIVERY INSPECTION

1-16

36. HOSES, FLUID LINES AND
CONNECTIONS LOCATED UNDER HOOD

M6010900400065

AC305643

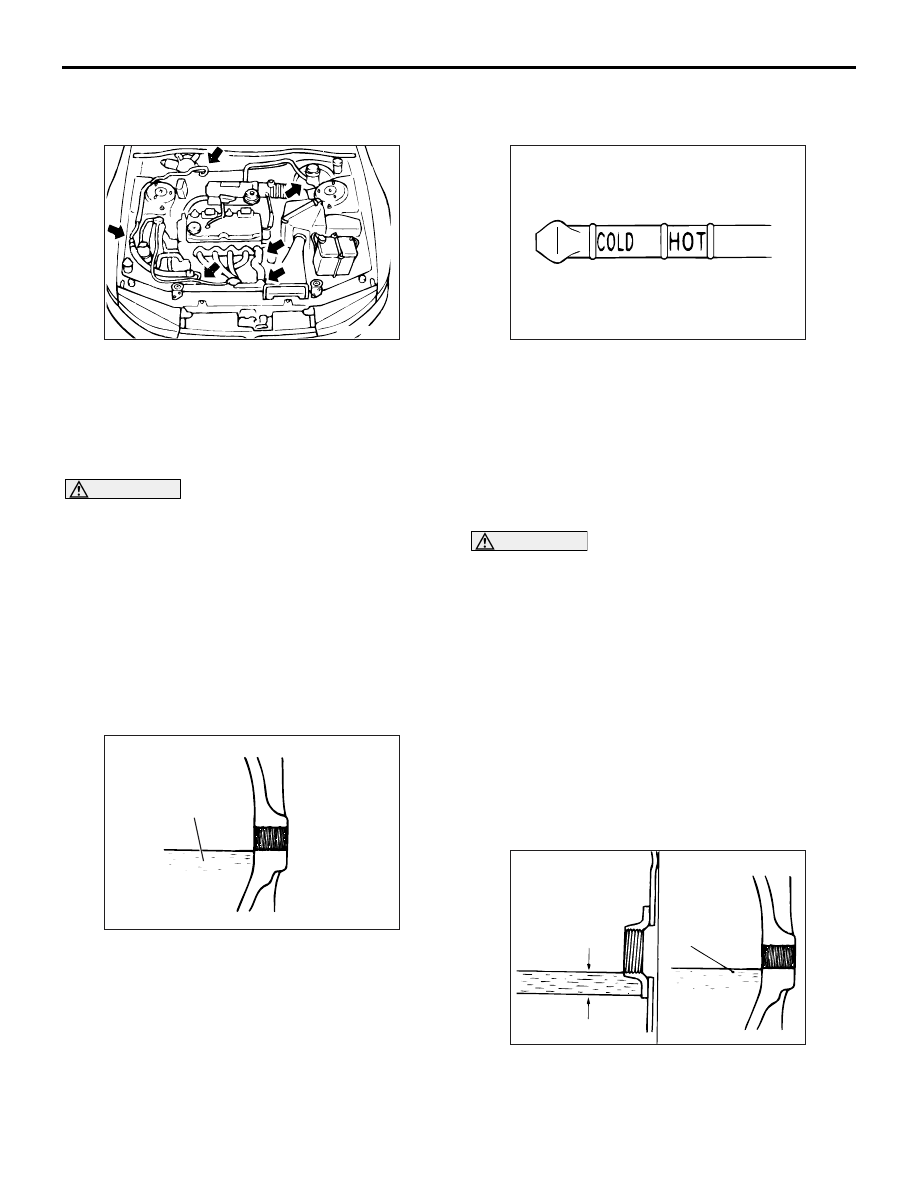

1. Check all brake, fuel, power steering and air

conditioner lines and connections; verify proper
routing, check connections for leaks, tighten loose
connector as required.

2. Inspect routing and connections of all vacuum,

and radiator and heater houses.

CAUTION

Remember that the air conditioner system is
under pressure.

NOTE:

Keep in mind that an oily residue around an air
conditioner connector does not necessarily indi-
cate a leak. Oil is used to lubricate fittings during
assembly. Be sure lines are not twisted or kinked.

37. MANUAL TRANSMISSION AND
TRANSFER (4WD) OIL LEVEL

M6010900500073

AC305644

Transmission oil

1. Remove the filler plug.
2. Check the oil level. If the oil level is at or slightly

below the filler hole, it is in satisfactory condition.

3. If the level is low, replenish the transmission and

transfer case with fresh oil by using a lubricator.
NOTE: For the specified oil, refer to GROUP 2,
Periodic Inspection and Maintenance

P.2-3

38. AUTOMATIC TRANSMISSION FLUID
LEVEL

M6010900600081

AC005861AD

1. Remove the dipstick and check the fluid level.
2. Fluid level is okay if it is in the specified range as

illustration at normal engine operating
temperature.

3. If the level is below the lower notch, replenish fluid

until the level reaches the upper notch.

Automatic transmission fluid: DIA QUEEN
ATF SP III

CAUTION

Do not overfill.

39. ENGINE, TRANSMISSION, STEERING
GEAR BOX AND DIFFERENTIAL FOR
LEAKS

M6010900700066

Check the engine, transmission, steering gear box
and differential for oil leaks.

40. FRONT AND REAR DIFFERENTIAL
OIL LEVELS

M6010900800063

1. Remove the filler plug.
2. Check the oil level. If the oil level is at or slightly

below the filler hole, it is in satisfactory condition.

•

AC305646

8 mm

Upper
limit

Lower
limit

Gear oil

TYPE 1

TYPE2

Type 1 only: Remove the filler plug, and check the

gear oil level. Check that gear oil level is not 8
mm below the bottom of filler plug hole.

FINAL STEPS

PRE-DELIVERY INSPECTION

1-17

3. If the level is low, replenish the front and/or rear

differential with fresh oil by using a lubricator.
NOTE:

For the specified oil, refer to GROUP 2, Periodic
Inspection and Maintenance

P.2-3

41. HOSES, FLUID LINES AND
CONNECTIONS LOCATED UNDER
VEHICLE

M6010901000060

AC305647

1. Check all hoses, fluid lines and connections for

leaks.

2. Check all hoses and fluid lines for proper routing

away from sharp edges and moving components.

FINAL STEPS

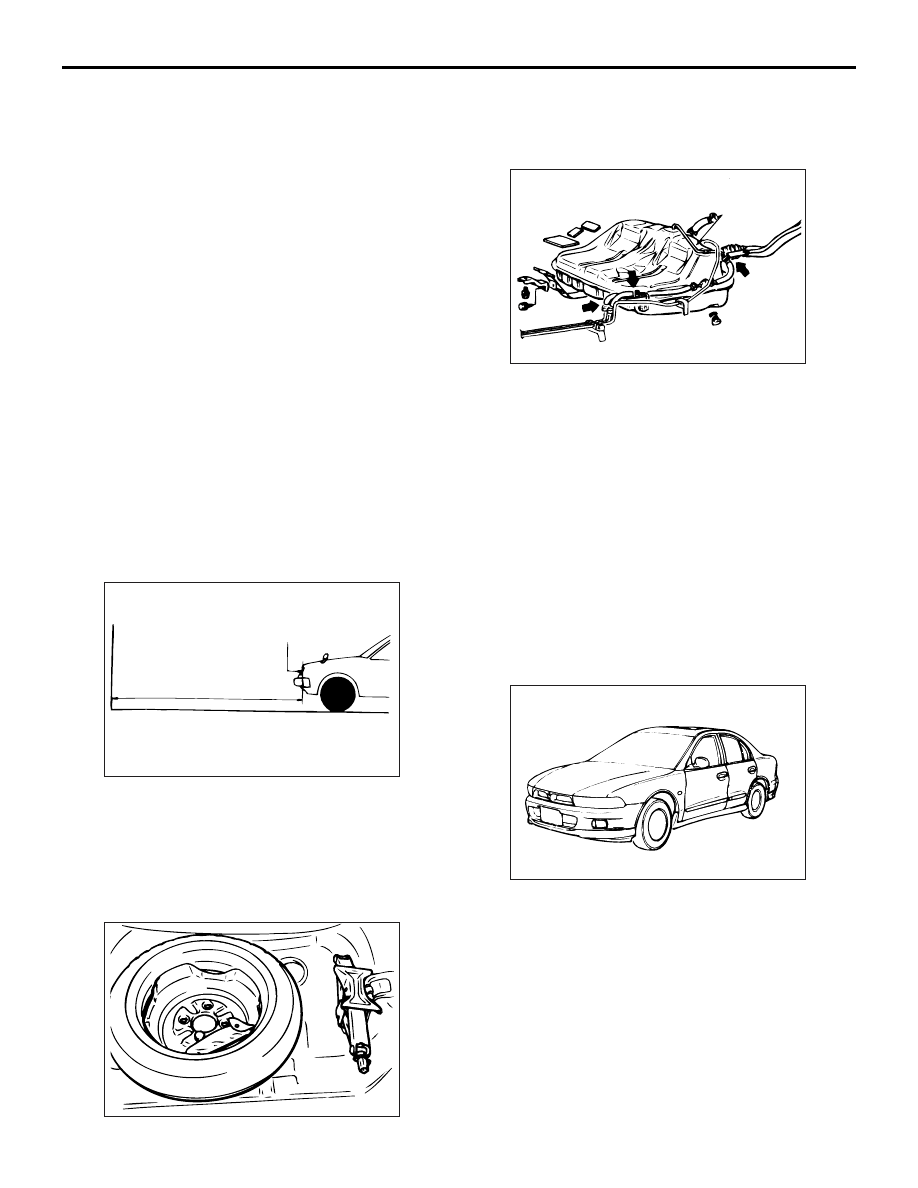

42. HEADLAMP AIMING

M6011000100064

AC305648

Level surface

Headlamp

Screen

Check condition for headlamp aiming.
NOTE:

For headlamp aiming procedures, refer to the Work-
shop Manual for that model.

43. EQUIPMENT

M6011000200061

AC305649

Check the installation of the various equipment.
1. Floor mats
2. Spare tyre
3. Jack, jack handle and tool set

44. EXTERIOR AND INTERIOR

M6011000300068

AC305650

Finally check and clean the exterior and interior.
1. Wash the vehicle to remove all traces of road

grime and other dirt on the vehicle as a result of
new vehicle preparations.

2. Clean exterior and interior glass surface.
3. Remove all protective covers.
4. Remove undercoat overspray, excess window

sealer, and excess weatherstrip adhesive.

5. Verify that the secondary key can not unlock the

glove box and tailgate/boot lid (if so equipped).

6. Remove shipping and inspection stickers.
