REAR DOOR OUTER PANEL (ADHESION TYPE)
WELDED PANEL REPLACEMENT
3-46

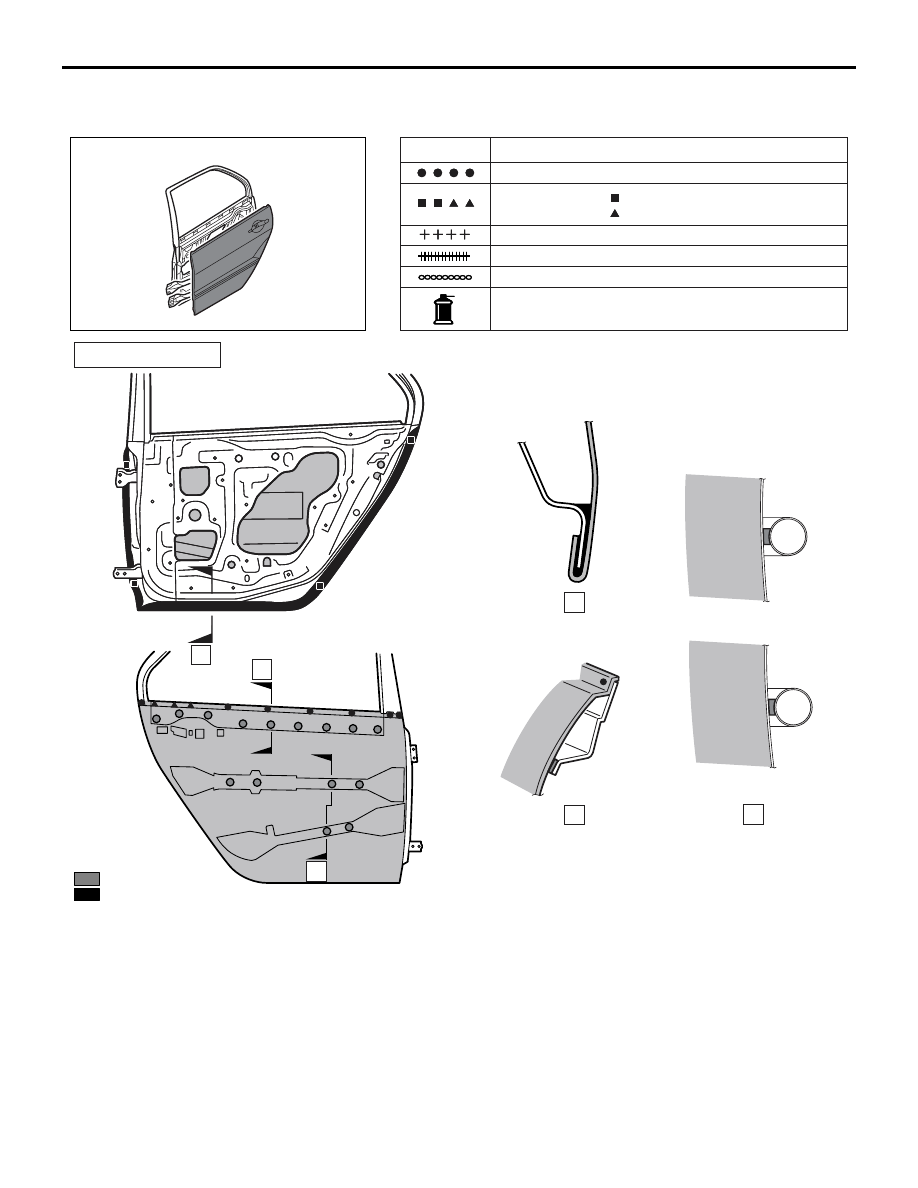

REAR DOOR OUTER PANEL (ADHESION TYPE)
M4030001800047
• Adhesive 1: Urethane body sealer
Brand: 3M ATD Part No.8542 or equivalent
• Adhesive 2: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
NOTE ON REPAIR WORK
INSTALLATION
1. When installing the rear door outer panel, grind
the bonding surface and remove the paint to
improve adhesion. Then, degrease the rear door
outer panel.
2. Install the rear door outer panel and hem it. Then,
wipe off the adhesive that squeezed out.
AB300892
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding : indicates two panels to be welded
: indicates three panels to be welded
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
( )
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding : indicates two panels to be welded
: indicates three panels to be welded
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
( )
AB
AB500774
B
B
A
C
C
AB

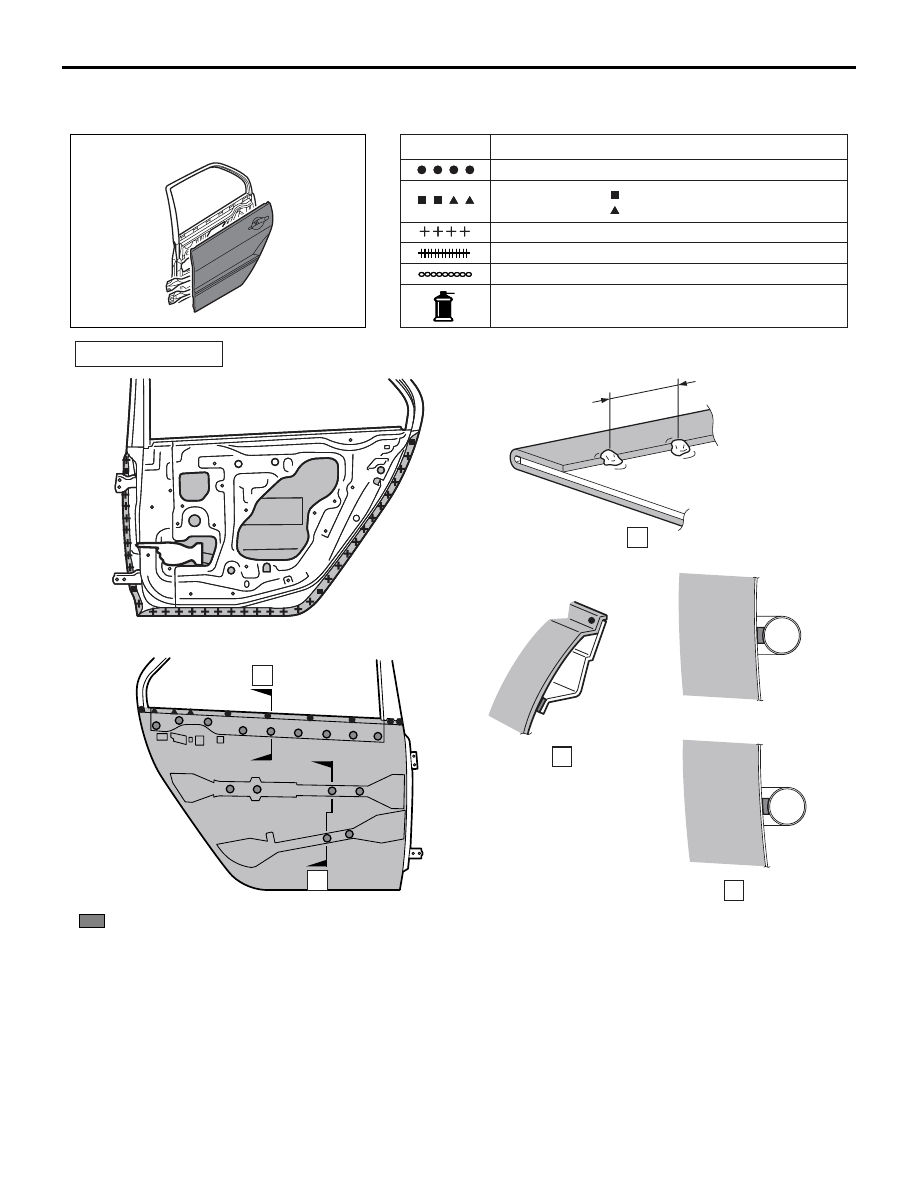

REPAIR WELDS
A
: Adhesive 1
: Adhesive 2
