Mitsubishi Lancer. Manual - part 27

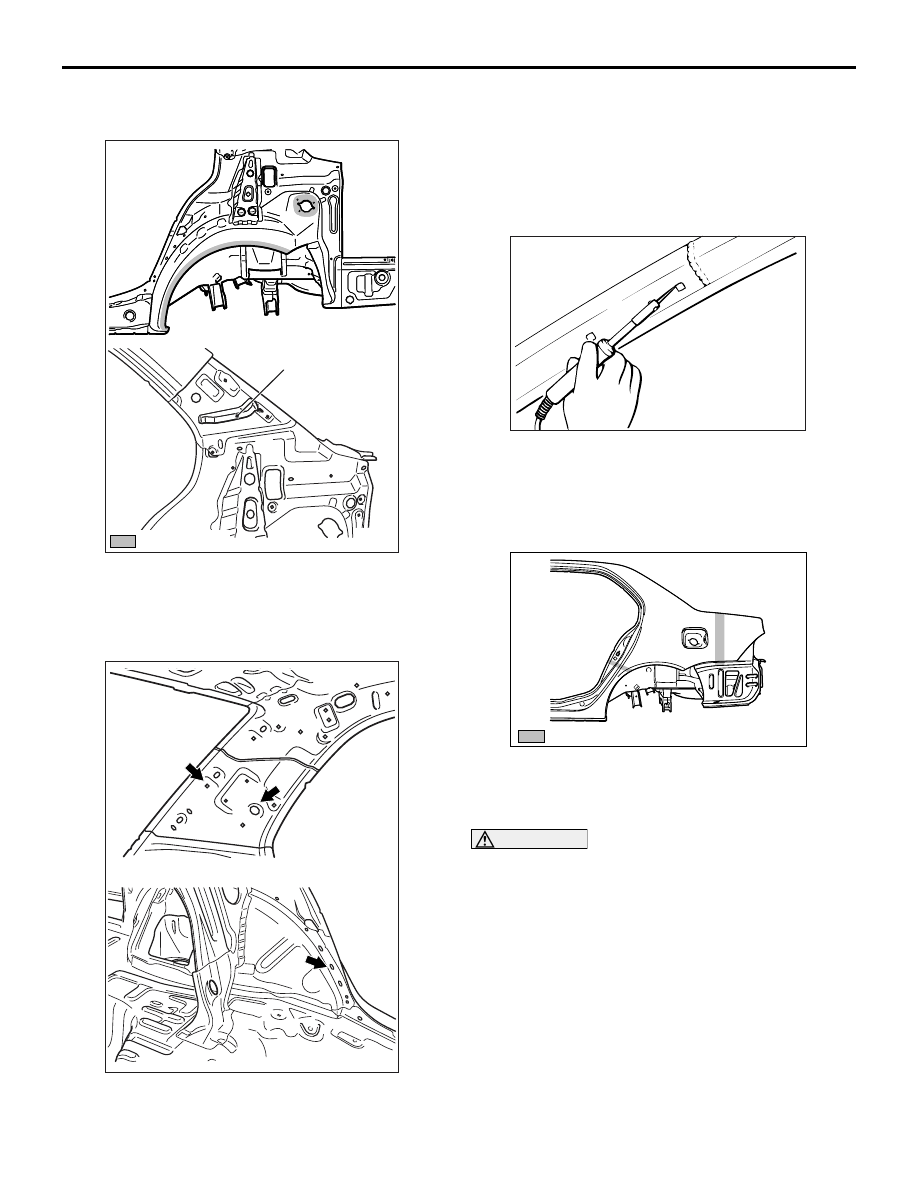

QUARTER, OUTER <SEDAN>

WELDED PANEL REPLACEMENT

3-26

NOTE ON REPAIR WORK
INSTALLATION

1. When attaching the quarter outer, apply sealant to

the areas indicated in the illustration.
Attach the rear pillar silencer protector, and fill the
gaps with butyl tape.

2. Assemble the quarter outer, then cover the hole

and flange with bolt and aluminium tape and fill
the hole with foam materials A and B as shown in
the figure of the instructions.

• FOAM (Hole A): 3M ATD ULTRAPRO

Panel foam-Yellow

• FOAM (Hole B): 3M ATD Super panel filler

3. Wait 2 hours after filling the foam material to

remove the bolt and aluminium tape, then melt the
foam materials with a soldering gun so a clip, etc.
can thoroughly be inserted in the hole filled with
foam materials.

4. Reference

Parts replacement is advised. depending on the
damaged range.

CAUTION

Avoid the fuel filler bracket (left side).

AB301083

Rear pillar
silencer protector

AB

 : Body sealant

AB301084

A

A

B

AB

AB301077AB

AB300903

AB

: Cuttable range

QUARTER, OUTER <SEDAN>

WELDED PANEL REPLACEMENT

3-27

NOTES

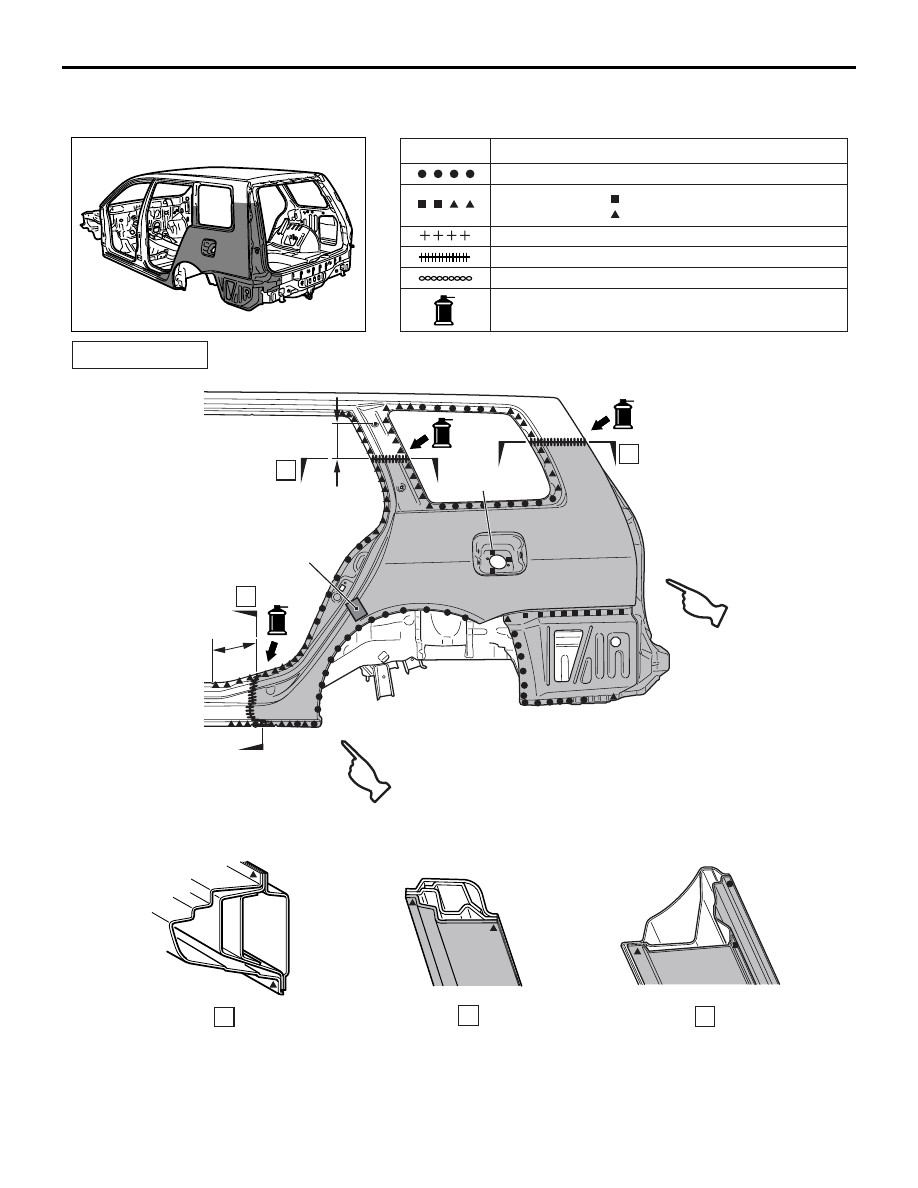

QUARTER, OUTER <WAGON>

WELDED PANEL REPLACEMENT

3-28

QUARTER, OUTER <WAGON>

M4030008000172

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB300749

AB300821

AB

AB301086AB

A

B

C

A

B

C

D

140 ± 70 mm

160 ± 50 mm

E

REPAIR WELDS

3 points
left side

Acoustic foam

QUARTER, OUTER <WAGON>

WELDED PANEL REPLACEMENT

3-29

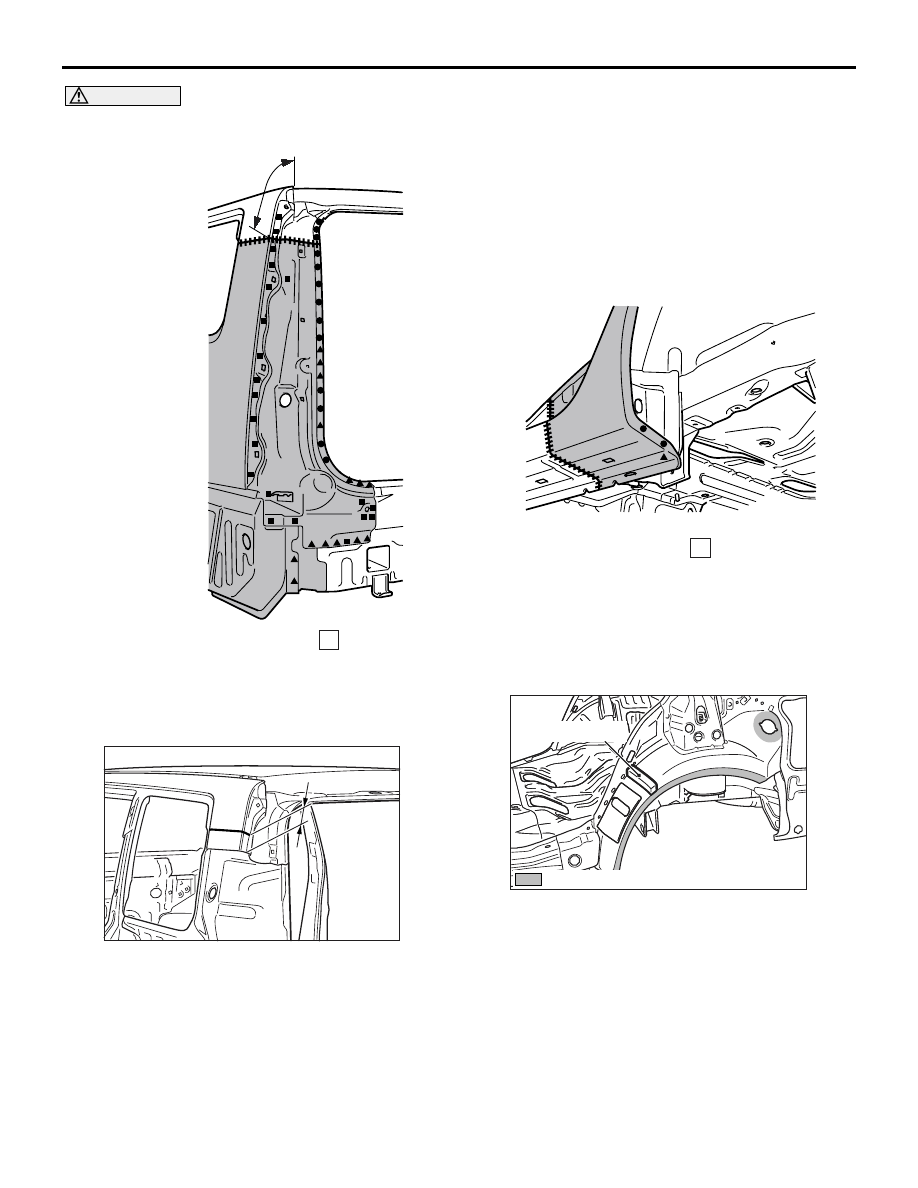

CAUTION

Do not use heat at areas using foam material as the foam material may burn.

NOTE ON REPAIR WORK
INSTALLATION

1. To reinforce the strength of the rear gate pillar cut

area, cut only the side outer panel from 50 mm
above the cut area of the gate pillar.

2. To prevent the foam materials from dripping, apply

urethane foam to bury the inside of the
wheelhouse arch.

3. When assembling the quarter outer panel, apply

in advance body sealant to the areas shown in the
figure of the instructions.

AB301087

E

D

200 ± 30 mm

AB301090AB

50 mm

AB300904

AB300904

Urethane foam

AB

: Body sealant
