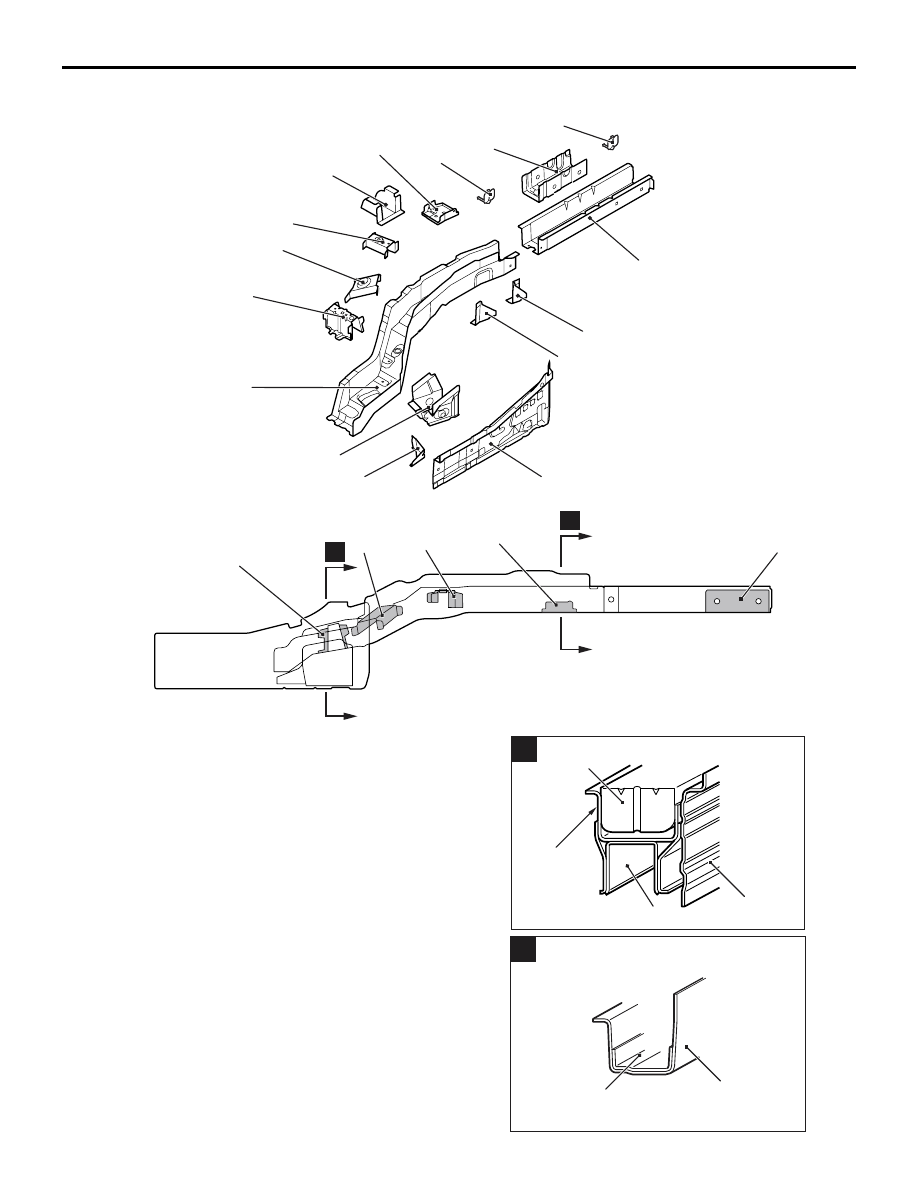

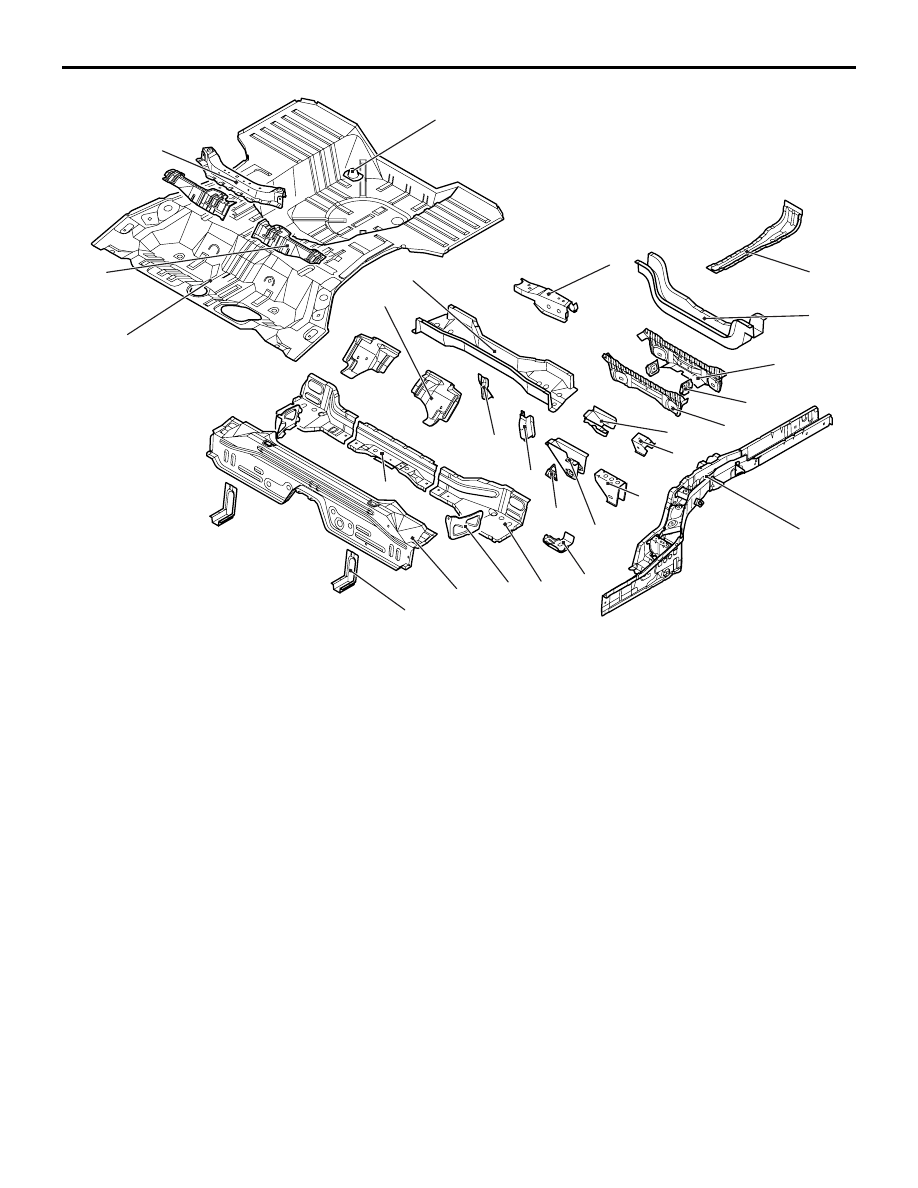

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-26

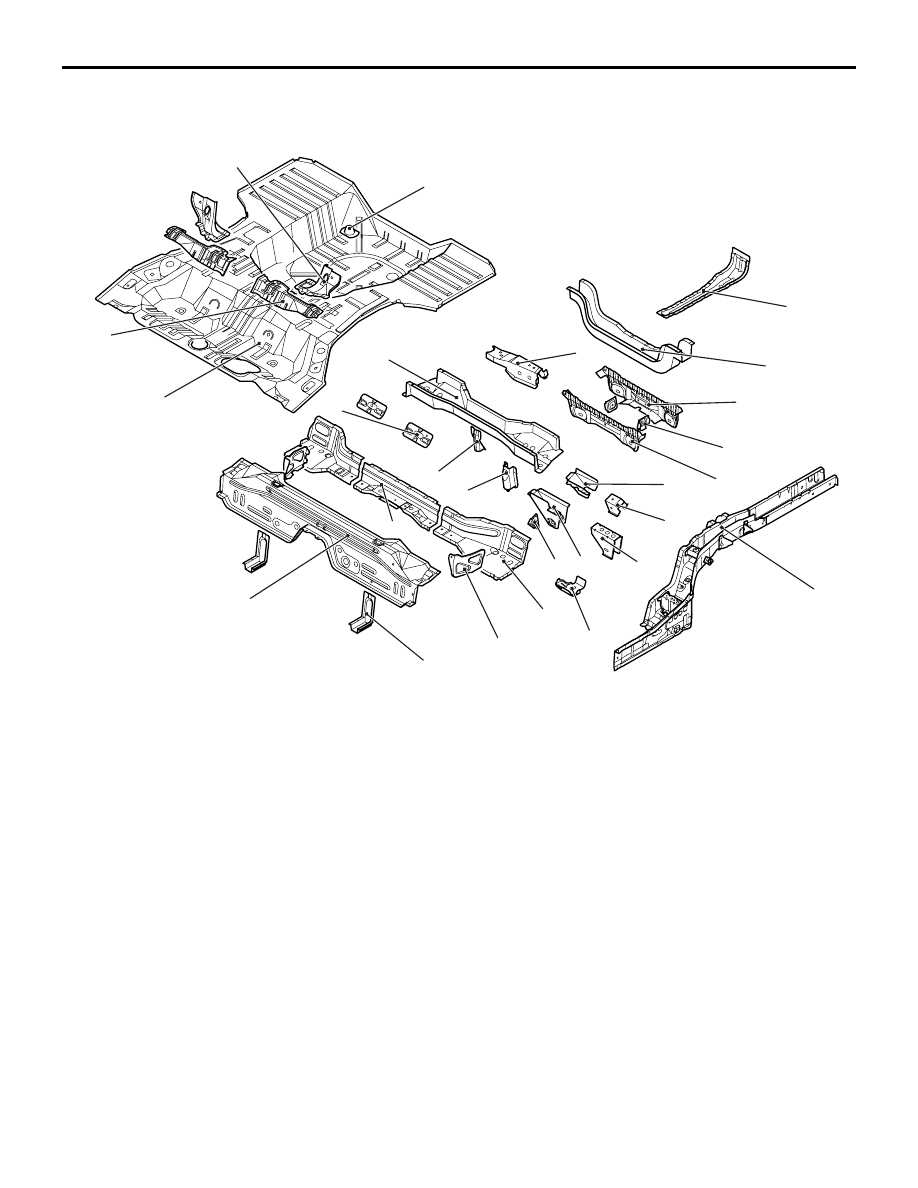

Rear Floor

The cross section of the rear floor sidemember has
been made large to improve safety in collision.

AB300847

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

AB

<Sedan>

25

26

1.

Rear floor pan

2.

Child anchor bracket lower

3.

Rear seatback reinforcement

4.

Spare tyre bracket

5.

Towing hook reinforcement

6.

Rear floor crossmember

7.

Upper arm crossmember reinforcement

8.

Lower arm bracket rear

9.

Lower arm bulkhead

10. Lower arm bracket front
11. Upper arm support bracket
12. Upper arm bracket reinforcement
13. Toe control link reinforcement

14. Toe control link bracket
15. Fuel tank bracket rear
16. Fuel tank bracket rear centre
17. Toe control link bracket support
18. Tie down reinforcement
19. Rear seat crossmember side
20. Rear seat crossmember centre
21. Rear seat crossmember bulkhead side
22. Front floor sidemember extension
23. Rear floor extension
24. Rear floor seat belt reinforcement
25. Upper arm crossmember
26. Rear floor sidemember

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-27

AB300848

AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

<Wagon>

25

26

1.

Rear floor pan

2.

Child anchor bracket lower

3.

Rear floor crossmember upper

4.

Spare tyre bracket

5.

Towing hook reinforcement

6.

Rear floor crossmember

7.

Upper arm crossmember reinforcement

8.

Lower arm bracket rear

9.

Lower arm bulkhead

10. Lower arm bracket front
11. Upper arm support bracket
12. Upper arm bracket reinforcement
13. Toe control link reinforcement

14. Toe control link bracket
15. Toe control link bracket support
16. Fuel tank bracket rear
17. Fuel tank bracket rear centre
18. Tie down reinforcement
19. Rear seat crossmember side
20. Rear seat crossmember bulkhead side
21. Rear seat crossmember centre
22. Rear floor extension
23. Front floor sidemember extension
24. Rear floor seat belt reinforcement Large
25. Upper arm crossmember
26. Rear floor sidemember

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-28

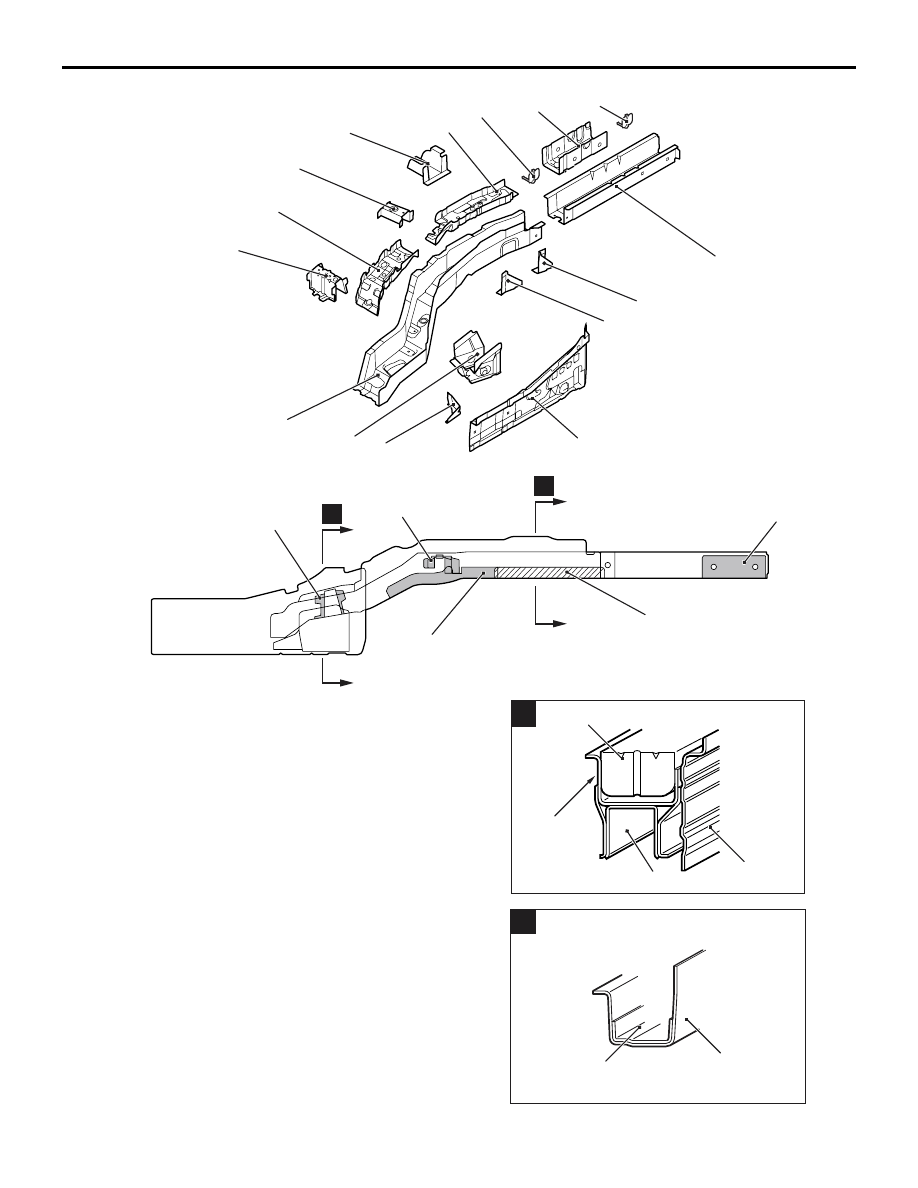

Rear Floor Sidemember Reinforcement

AB300852

AB

1

2

3

4

5

6

7

8

9

10

11

12

15

<Sedan>

13

14

AB300850

AB

4

5

6

8

9

A

B

1.

Rear floor sidemember support

2.

Trailing arm bracket

3.

Rear floor sidemember

4.

Rear floor sidemember bulkhead

5.

Rear seat belt bracket

6.

Rear seatback bracket side

7.

Rear floor crossmember extension

8.

Stabilizer reinforcement

9.

Muffler hanger front A (Right side)

10. Rear sidemember trailer reinforcement
11. Muffler hanger rear (Right side)
12. Rear floor sidemember extension
13. Rear spring house bracket support rear
14. Rear spring house bracket support front
15. Rear floor side sill inner

AB300940AC

A

2

3

4

15

AB300941AB

B

3

8

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-29

AB300853

AB

1

2

3

4

5

6

7

8

9

10

11

12

13

<Wagon>

15

14

AB300849

AB

4

5

6

8

13

A

B

1.

Rear floor sidemember support

2.

Trailing arm bracket

3.

Rear floor sidemember

4.

Rear floor sidemember bulkhead

5.

Rear floor sidemember reinforcement front

6.

Rear seatback bracket side

7.

Rear floor crossmember extension

8.

Rear floor sidemember reinforcement rear

9.

Muffler hanger front A (Right side)

10. Rear sidemember trailer reinforcement
11. Muffler hanger rear (Right side)
12. Rear floor sidemember extension
13. Rear spring house bracket support rear
14. Rear spring house bracket support front
15. Rear floor side sill inner

AB300940AB

A

2

3

4

15

AB300941AB

B

3

8
