Mitsubishi Lancer (4A9 engine). Manual - part 196

USB BOX

CHASSIS ELECTRICAL

54A-446

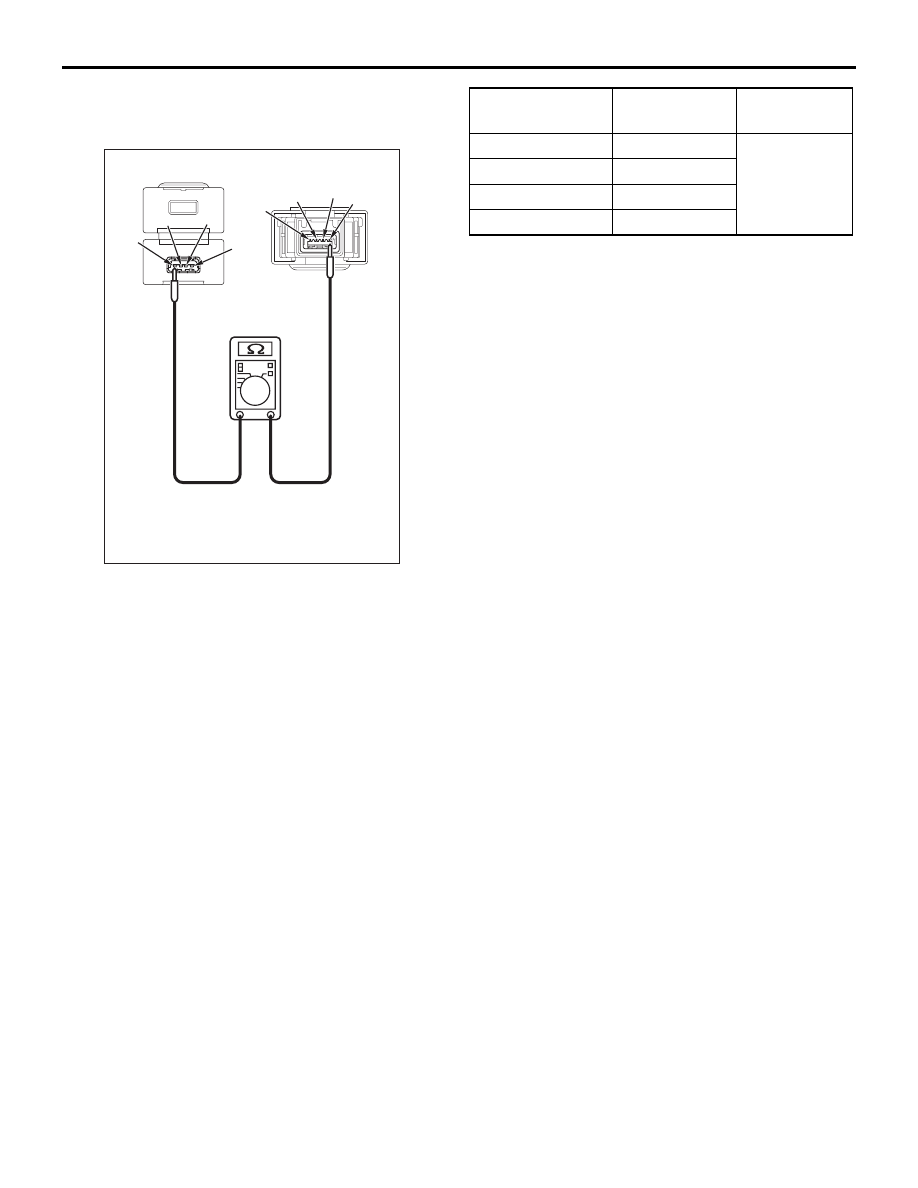

2. Check that the continuity exists between the front

side terminals of USB adapter and rear side ter-
minals of USB adapter.

AC900440

AB

Front side

Rear side

1

2

3

4

4

3

2

1

Front side
terminal

Rear side
terminal

Measurement
value

1

1

Continuity
exists (2

Ω or

less)

2

2

3

3

4

4

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-447

HANDS FREE ECU

SPECIAL TOOLS

M1544403500168

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-448

Tool

Number

Name

Use

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III measure

adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
CAN bus diagnostics, diagnosis
code or service data check.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991223

a

d

c

b

DO NOT USE

BA

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-449

TROUBLESHOOTING

INTRODUCTION TO DIAGNOSIS

M1544404500105

Prior to the troubleshooting, check if the causes below can be the case. If any, take actions according to the
solution method.
Pairing of the Bluetooth

®device (mobile phone or music player) and hands free ECU cannot be made.

The hands free ECU does not recognize the Bluetooth

®device (mobile phone or music player)

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB992006

Cause

SOLUTION

The power of the
bluetooth

®device is off.

With the power of the bluetooth

®device turned on, check the trouble

symptom again.

In addition to the
bluetooth

®device to be

recognized, two or more
bluetooth

®device exist in the

vehicle.

• With the voice operation, select the device to be connected.

• Select the device to be connected on the multivision display. <Vehicles

with MMCS>

Power supply abnormality in
the hands free ECU, or
communication error
between the radio and CD
player or multivition display,
and hands free ECU.

Turn the ignition switch to the "ON" position and check if iPod connected to
the USB adapter or USB device can be played. If the music cannot be
played, the power supply of hands free ECU or the communication between
the radio and CD player or multivition display, and hands free ECU may have
a problem. Perform the Inspection procedure 2: The USB adapter data
cannot be replayed. (Refer to  <Vehicles with radio and CD player> or
<Vehicles with MMCS>.) If the diagnosis mode of hands free ECU can be
made an entry, the ECU status can be checked by the hands free ECU self-
check, however, if the power supply of hands free ECU, or the
communication with the radio and CD player or multivition display may have
a problem, the ECU status can not be checked.(Refer to  <Vehicles with
radio and CD player> or  <Vehicles with MMCS>.)
