Mitsubishi Lancer (4A9 engine). Manual - part 102

COMBINATION METER

CHASSIS ELECTRICAL

54A-70

LOW OIL
PRESSURE

Displayed when
there is a
malfunction to
the engine oil
circulation
system.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the oil pressure.
(Refer to GROUP 12
− On-vehicle Service
.) Then if the oil
pressure is normal,
perform the
troubleshooting for
the engine. (Refer to
GROUP 13A

−

Trouble Symptom
Chart  <1600> or
GROUP 13B

−

Trouble Symptom
Chart  <1800-Petrol-
DOHC, 2000> or
GROUP 13C

−

Trouble Symptom
Chart  <1800-
Diesel> or GROUP
13F

− Trouble

Symptom Chart
<1800-Petrol-
SOHC>.)

CHARGING
SYSTEM
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the charging
system.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the charging system.
Refer to GROUP 16
− On-vehicle service
− Output current test
and Regulated
voltage test .

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

CHECK

AC509840

AC809624

SERVICE
         REQUIRED

AC509841

AC809625

COMBINATION METER

CHASSIS ELECTRICAL

54A-71

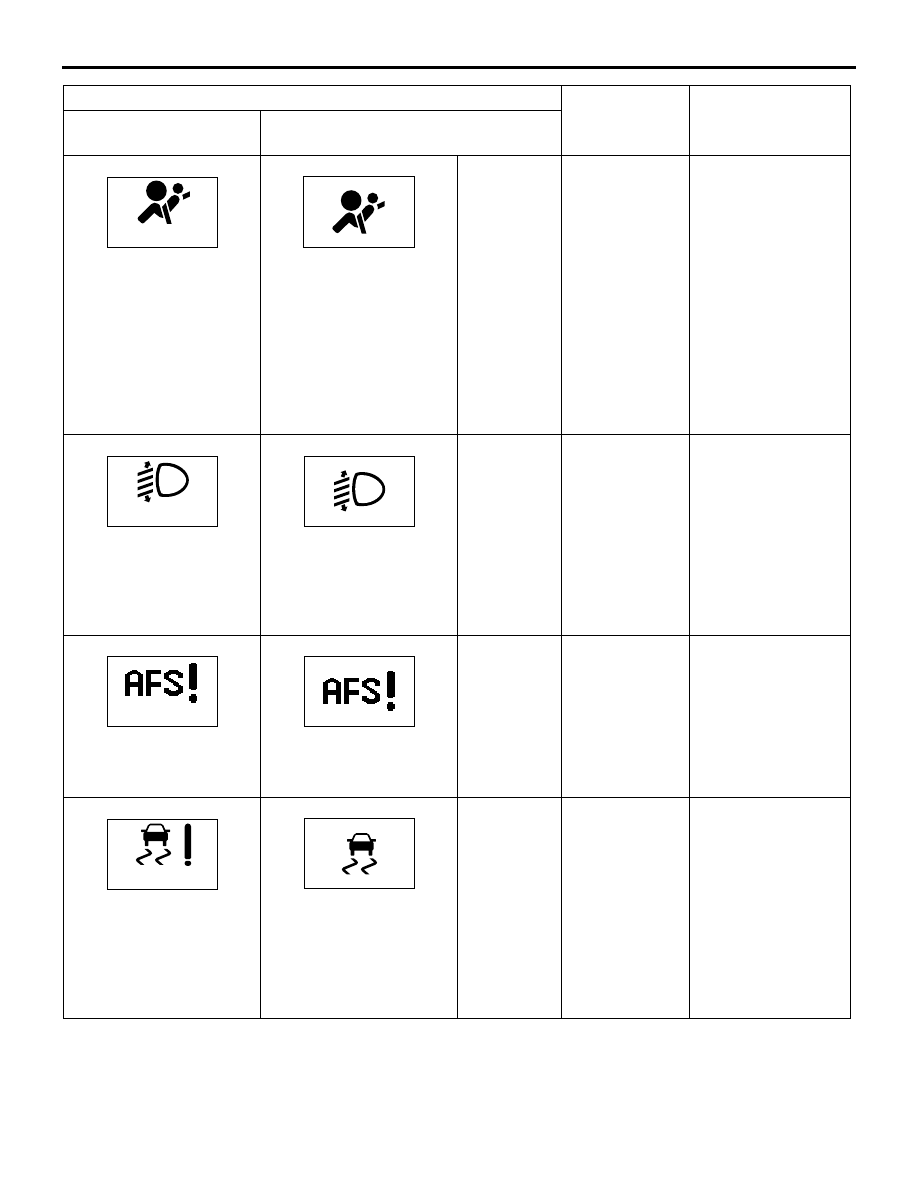

AIRBAG
SYSTEM
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the SRS air bag
or to the pre-
tensioner
mechanism.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the SRS air bag/pre-
tensioner
mechanism warning
lamp. Refer to
GROUP 52B

−

Trouble symptom
chart .

HEADLAMP
LEVELLING
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the headlamp
automatic
levelling
function.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the headlamp
automatic levelling
function. Refer to .

ADAPTIVE
FRONT
LIGHTING
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the AFS.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the AFS. Refer to .

ASC
SYSTEM
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the ASC.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the ASC. Refer to
GROUP 35C

−

Trouble symptom
chart .

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

SERVICE
         REQUIRED

AC509842

AC809626

SERVICE
         REQUIRED

AC509843

AC809628

SERVICE
         REQUIRED

AC613202

AC809629

SERVICE
         REQUIRED

AC509844

AC809630

COMBINATION METER

CHASSIS ELECTRICAL

54A-72

OTHER SCREENS

The screen displays the operation state of each sys-
tem, periodic checkup timing, or timing for taking a
rest during driving. If the screen display differs from
the actual system operation state or if the screen is
not displayed at the set timing, take measures

according to the action procedure.

4WD
SYSTEM
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the
electronically-
controlled 4WD
system.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the electronically-
controlled 4WD
system. Refer to
GROUP 27C

−

Trouble symptom
chart .

4WD
SYSTEM
OVERHEATI
NG SLOW
DOWN

Displayed when
there is a
malfunction to
the
electronically-
controlled 4WD
differential
temperature is
high.

POSSIBLE
ICY ROADS

Displayed with
the sounding of
buzzer when
the ambient
temperature is 3
°C or less.

If the warning buzzer
does not sound
when the
combination meter
displays 3

°C,

perform the
troubleshooting for
the freeze warning
buzzer. Refer to .

CHECK DPF
SYSTEM

Displayed when
the excessive
diesel
particulates are
accumulated.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the diesel particulate
filter system (DPF).

CHECK
ENGINE OIL
LEVEL

Displayed when
the engine oil
level has
increased
excessively.
<1800-diesel>

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the diesel engine
diagnosis code.
Refer to GROUP
13C

− Diagnosis

Code Chart .

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

SERVICE
         REQUIRED

AC509845

AC809631

SLOW DOWN

AC509846

AC809642

POSSIBLE
        ICY ROADS

AC509848

AC809632

CHECK

AC612476

AC809633

AC612468

CHECK ENGINE
            OIL LEVEL

AC809639

COMBINATION METER

CHASSIS ELECTRICAL

54A-73

Display content

System
operation state

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

a

a

−

Displayed in
accordance
with operation
state of the
4WD selector
switch.

a. "2WD" mode

is selected.

b. "4WD" mode

is selected.

c. "4WD

LOCK" mode
is selected.

If the 4WD selector
switch position and
screen do not agree
with each other,
perform the
troubleshooting for
the 4WD. Refer to
GROUP 27C

−

Trouble symptom
chart .

b

b

4WD AUTO

c

c

4WD LOCK

−

Displayed when
the ASC is in
operation.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the ASC. Refer to
GROUP 35C

−

Trouble symptom
chart .

ROUTINE
MAINTENA
NCE
REQUIRED

Displayed when
the set period
elapses.

−

REST
REMINDER

Displayed when
the set time
elapses.

−

AC505707

AC809644

AC505708

AC809645

AC505709

AC809646

AC809636

AC809636

PERIODIC
        INSPECTION

AC509849

AC809637

REST REMINDER

AC613245

AC809638
