RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-289

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to diagnose the CAN bus lines.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-285

."

(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-14

.) On completion, go to Step 2.

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if the DTC is set.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

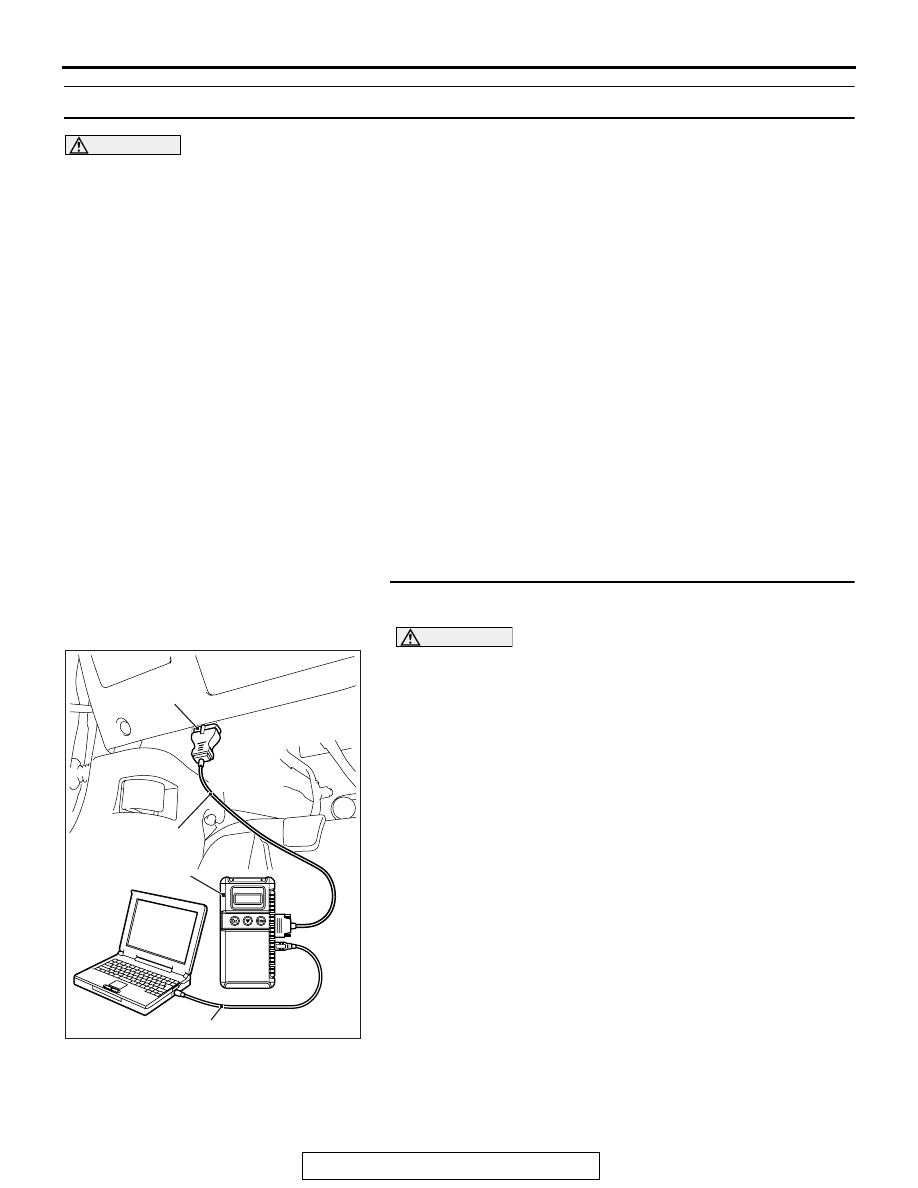

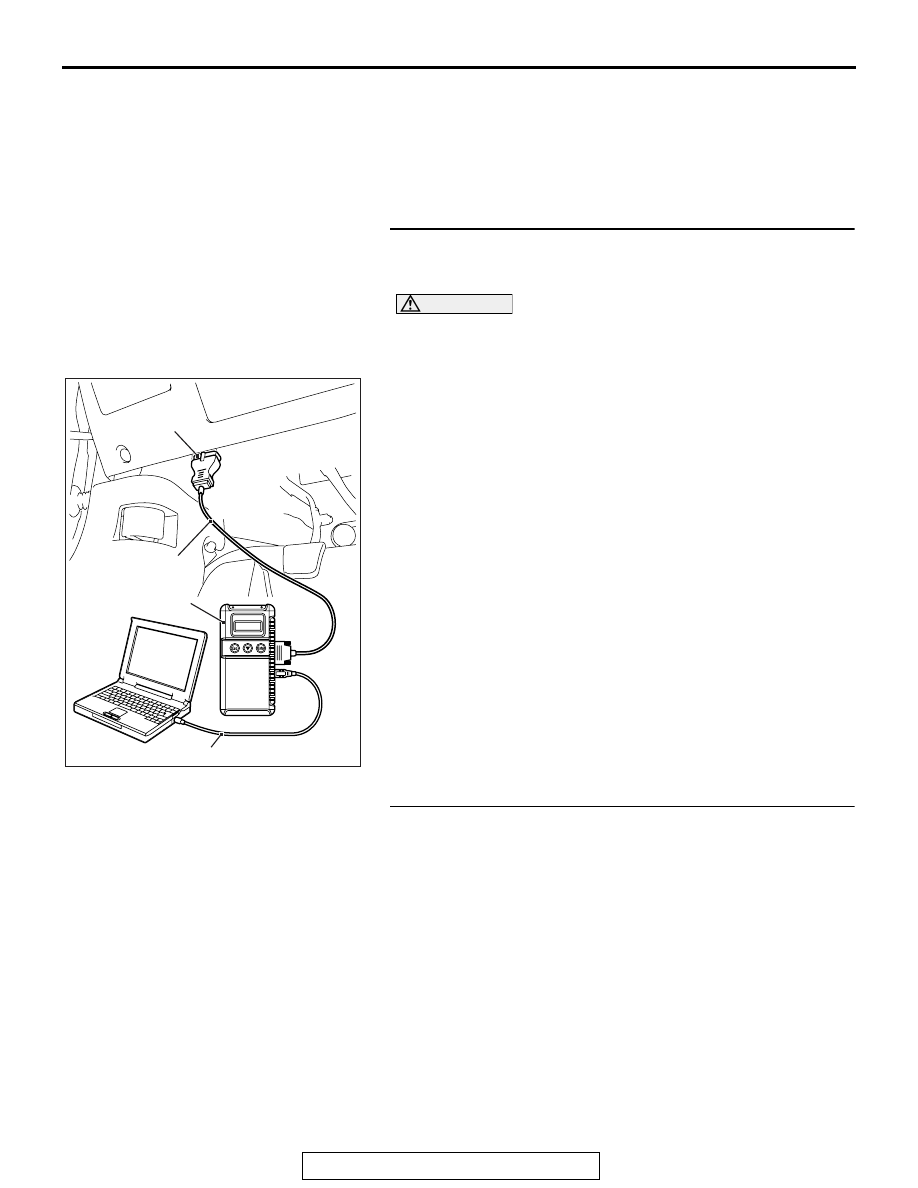

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-290

DTC U0141: ETACS CAN timeout

CAUTION

• If DTC U0141 is set, be sure to diagnose the

CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from ETACS-ECU cannot be received,
the radio and CD player sets the DTC U0141.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nication with ETACS-ECU cannot be established for
2,500 ms or more, the radio and CD player deter-
mines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The radio and CD player may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-285

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-291

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to

P.54A-582

).

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

DTC U0151: SRS-ABG CAN timeout

CAUTION

• If DTC U0151 is set, be sure to diagnose the

CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from SRS-ECU cannot be received, the
radio and CD player sets DTC U0151.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

−16 volts (data from

ETACS-ECU), power supply fuse is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nication with SRS-ECU cannot be established for
2,500 ms or more, the radio and CD player deter-
mines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The radio and CD player may be defective

• The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-292

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-285

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code
Check again if the DTC is set to the SRS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the SRS (Refer to GROUP 52B,

Troubleshooting

P.52B-31

).

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
