POWER STEERING OIL PUMP ASSEMBLY

TSB Revision

POWER STEERING

37-39

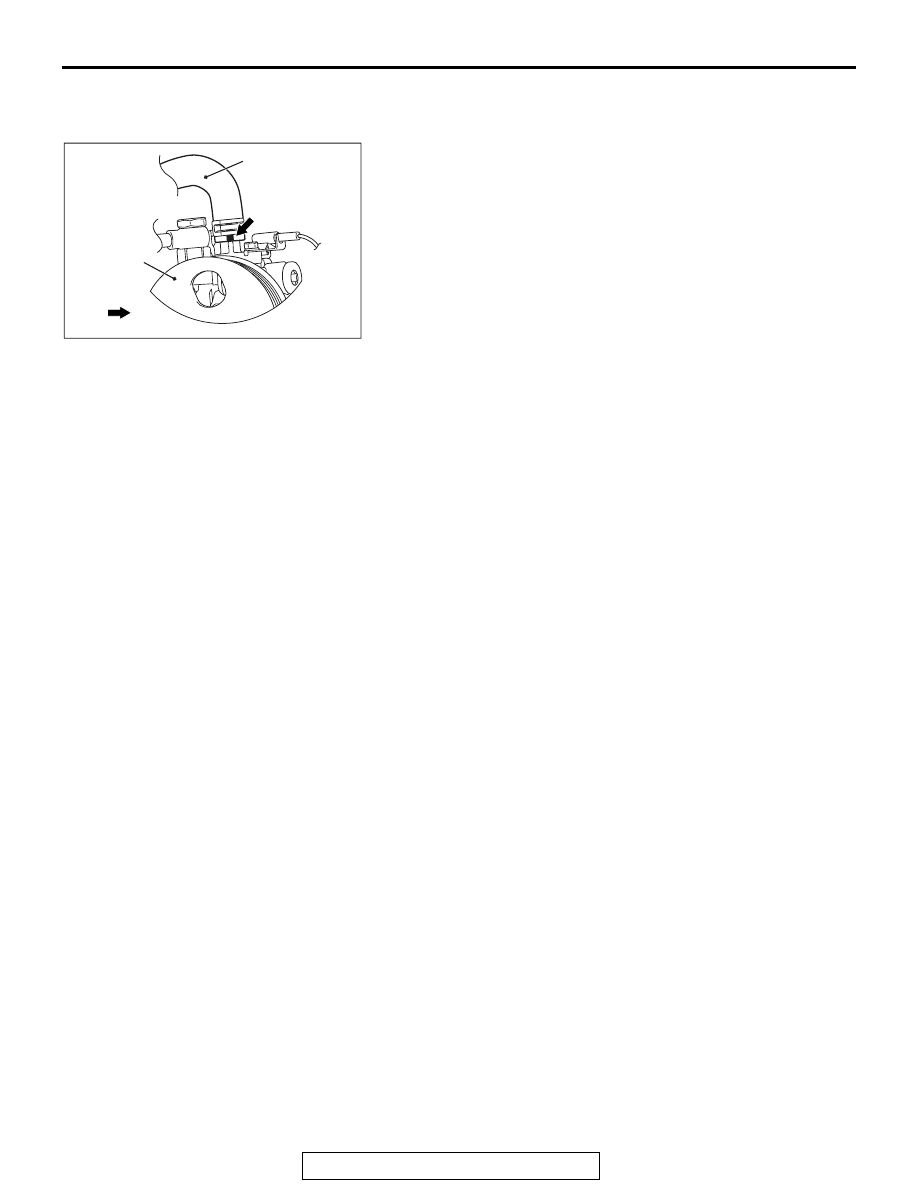

INSTALLATION SERVICE POINT

.

>>A<< SUCTION HOSE INSTALLATION

AC708493 AC

Marking

Oil pump

Suction hose

Vehicle front side

Install the suction hose with its marking located as shown in the
figure.

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-40

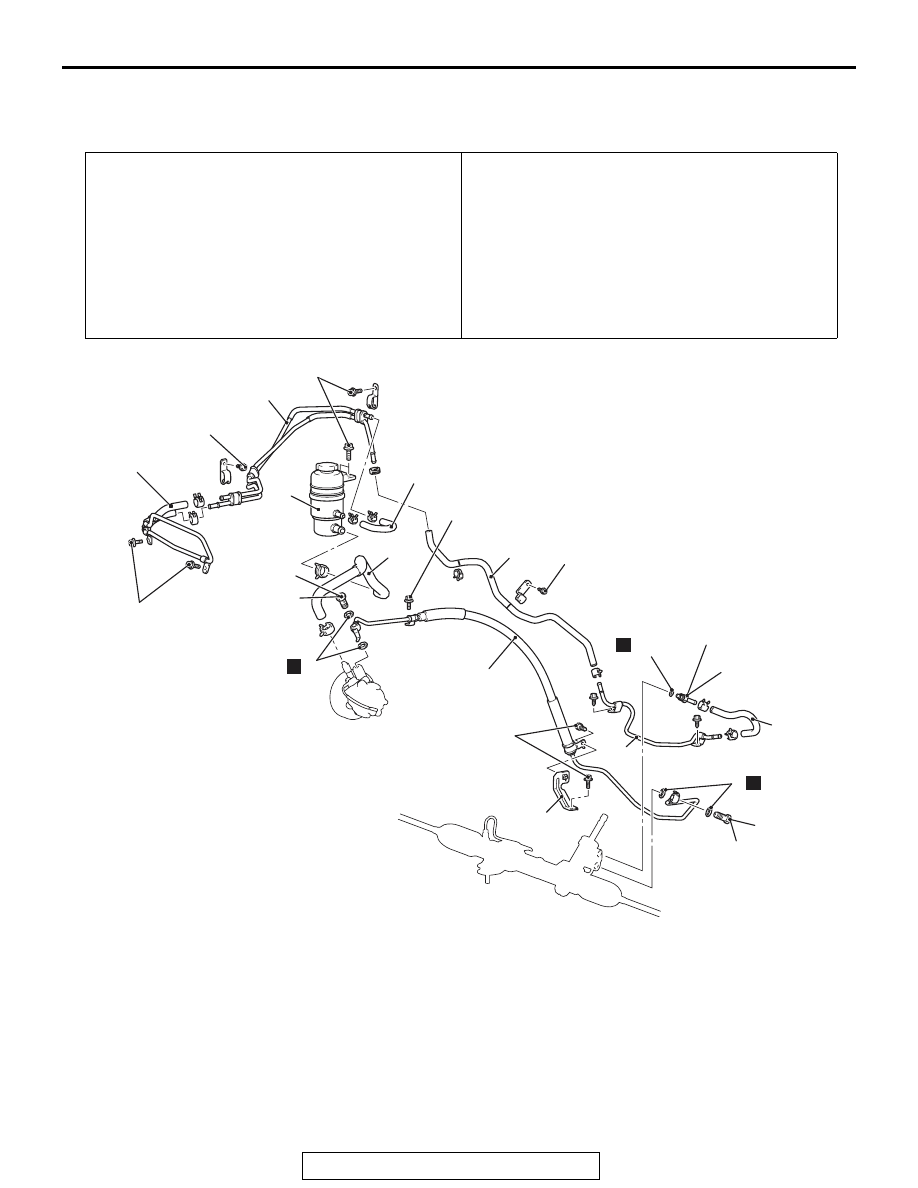

POWER STEERING HOSES

REMOVAL AND INSTALLATION

M1372005701382

Pre-removal Operation
• Power steering fluid draining  (Refer to

P.37-18

.)

• Front bumper assembly removal (Refer to GROUP 51,

Front Bumper Assembly and Radiator Grille

P.51-3

.)

• Headlight (RH) removal (Refer to GROUP 54A

P.54A-184



Headlight.)

• Strut tower bar removal (Refer to GROUP 42A

P.42A-15



Strut Tower Bar.)

• Engine upper cover removal (Refer to GROUP 11A −

Camshaft

P.11A-25

.)

Post-installation Operation
• Strut tower bar installation (Refer to GROUP 42A − Strut

Tower Bar

P.42A-15

.)

• Headlight (RH) installation (Refer to GROUP 54A − Head-

light

P.54A-184

.)

• Front bumper assembly installation (Refer to GROUP 51 −

Front Bumper Assembly and Radiator Grille

P.51-3

.)

• Power steering fluid refilling and bleeding (Refer to

P.37-19

.)

• Engine upper cover installation (Refer to GROUP 11A −

Camshaft

P.11A-25

.)

AC708301AB

13 ± 2 N·m
9.0 ± 2.0 ft-lb

10

3

N

4

5

N

N

6

2

14

13

11

7

15

16

1

8

9

12

13 ± 2 N·m
9.0 ± 2.0 ft-lb

13 ± 2 N·m
9.0 ± 2.0 ft-lb

57 ± 7 N·m
42 ± 5 ft-lb

57 ± 7 N·m
42 ± 5 ft-lb

15 ± 3 N·m
11 ± 2 ft-lb

13 ± 2 N·m
9.0 ± 2.0 ft-lb

13 ± 2 N·m
9 ± 2 ft-lb

13 ± 2 N·m
9 ± 2 ft-lb

Removal steps

1.

Oil reservoir

>>

D

<<

2.

Suction hose

3.

Eye bolt

4.

Gasket

5.

Eye bolt

6.

Gasket

>>

C

<<

7.

Pressure hose

8.

Pressure hose bracket

>>

B

<<

9.

Return hose

10. Return tube
11. Gasket

>>

A

<<

12. Return tube

>>

B

<<

13. Return hose

>>

B

<<

14. Return hose

>>

A

<<

15. Return tube

>>

A

<<

16. Cooler tube assembly

Removal steps (Continued)

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-41

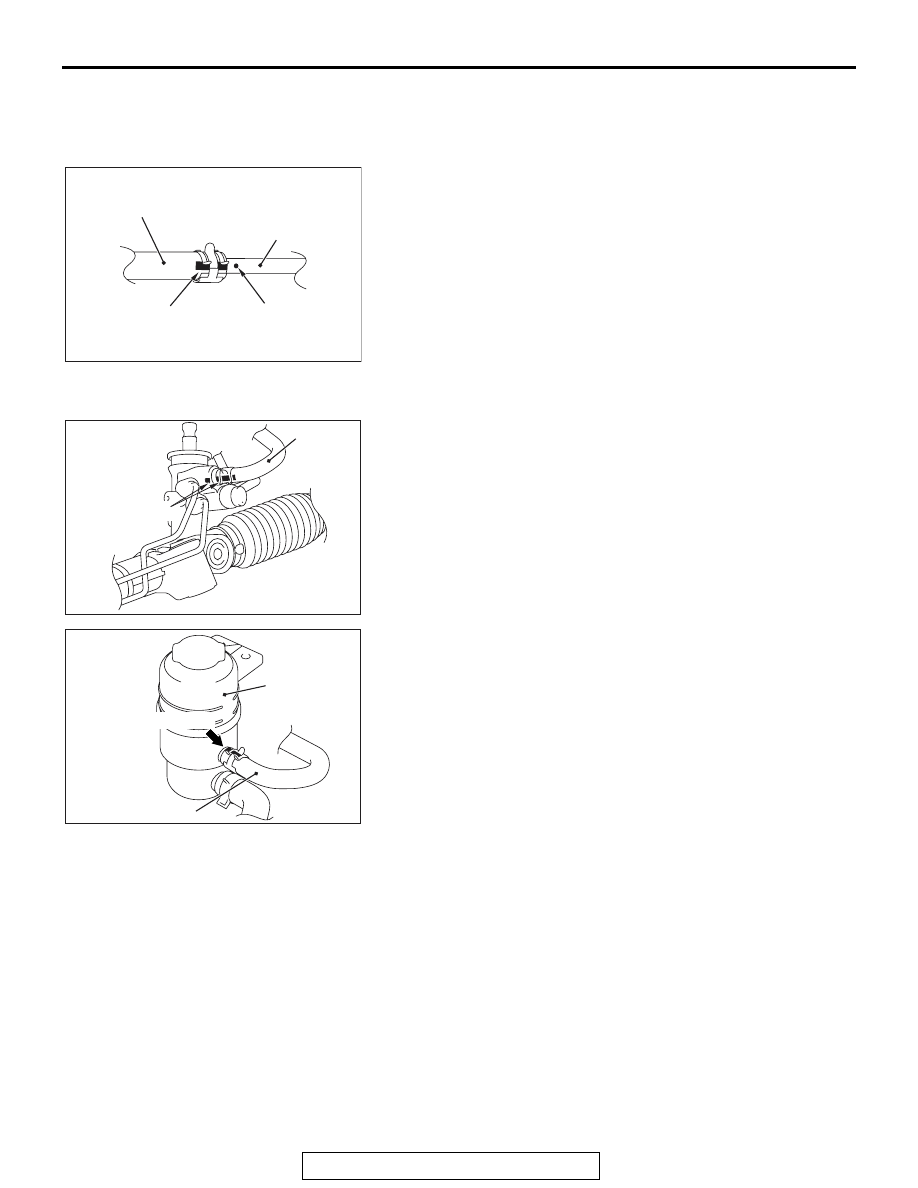

INSTALLATION SERVICE POINTS

.

>>A<< COOLER TUBE ASSEMBLY/RETURN
TUBE ASSEMBLY INSTALLATION

AC704781AC

Cooler tube assembly

Return tube

Marking

Marking

Install by aligning the mating marks of cooler tube assembly
and return tube assembly.

.

>>B<< RETURN HOSE INSTALLATION

AC612002 AB

Return hose

Marking

1. Install the return hose by aligning the mating marks.

AC705437AB

Marking

Return hose

Oil reservoir

2. Install the return hose with its marking located as shown in

the figure.

AC705439 AB

Return hose

Marking

Clip

Clamp hose

Marking

Marking

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-42

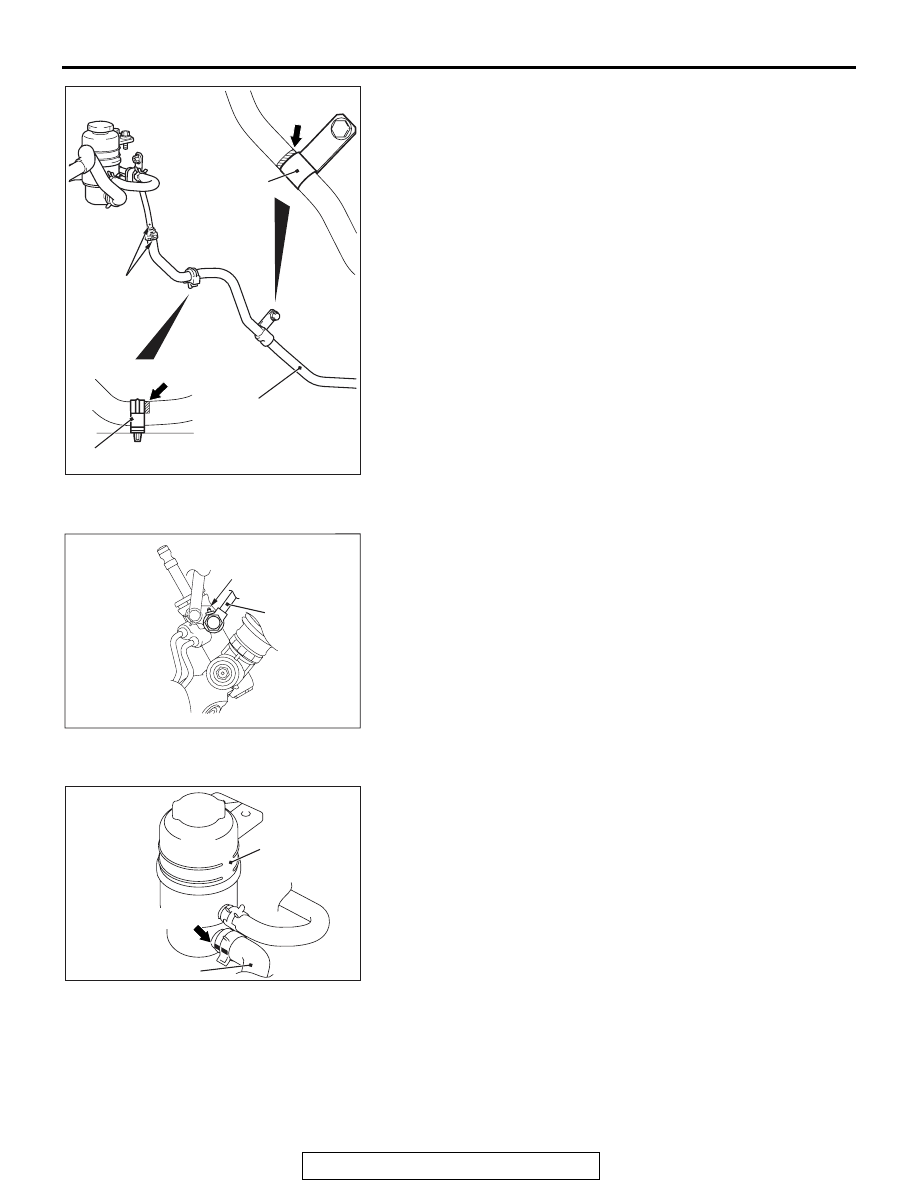

3. Using clips and hose clamps, install the return hose with its

marking located as shown in the figure.

.

>>C<< PRESSURE HOSE INSTALLATION

AC612005 AB

Plate

Pressure hose

Install the pressure hose plate with its marking located as
shown in the figure.

.

>>D<< SUCTION HOSE INSTALLATION

AC705921AB

Marking

Suction hose

Oil reservoir

1. Install the suction hose with its marking located as shown in

the figure.
